Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

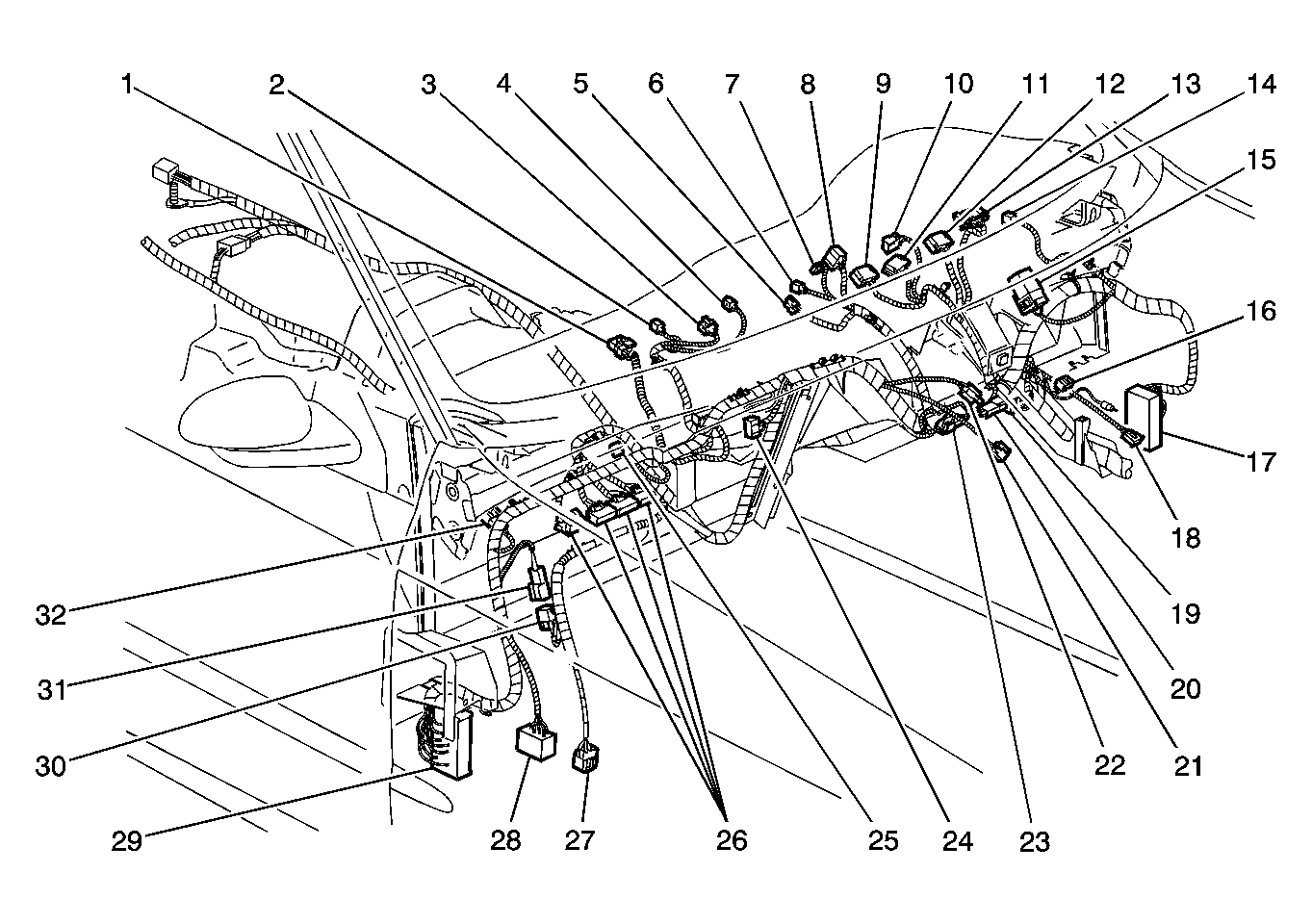

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radio |
| 2 |
Right Heated Seat/Traction Switch |
| 3 |
Hazard Switch |
| 4 |
Left Heated Seat/Fog Lamp Switch |
| 5 |
Passlock Sensor |
| 6 |
Ambient Light Sensor |
| 7 |
Ignition Lock Cylinder Solenoid |
| 8 |
Windshield Wiper/Washer Switch |
| 9 |
Ignition Switch C1 |
| 10 |
Headlamp/Turn Signal Switch |
| 11 |
Ignition Switch C2 |
| 12 |
Inflatable Restraint Steering Wheel Module Coil C4 |
| 13 |
Instrument Panel Cluster (IPC) |
| 14 |
Dimmer/Rear Compartment Lid Release Switch |
| 15 |
Wheel Speed Conditioner Module |
| 16 |
Cruise/Brake Switch |
| 17 |
Fuse Block - I/P - Left |
| 18 |
C207 |
| 19 |
Data Link Connector (DLC) |
| 20 |
C215 |
| 21 |
Accelerator Pedal Position (APP) Sensor |
| 22 |
Cruise Control Module |
| 23 |
C215 |
| 24 |
C205 |
| 25 |
I/P Compartment Lamp |
| 26 |
Body Control Module (BCM) |
| 27 |
C204 (w/o UE1) |
| 28 |
C204 (w/UE1) |
| 29 |
Fuse Block - I/P - Right |
| 30 |
C200 Body Harness Side |
| 31 |
C200 Headliner Harness Side |
| 32 |
Inflatable Restraint I/P Module |

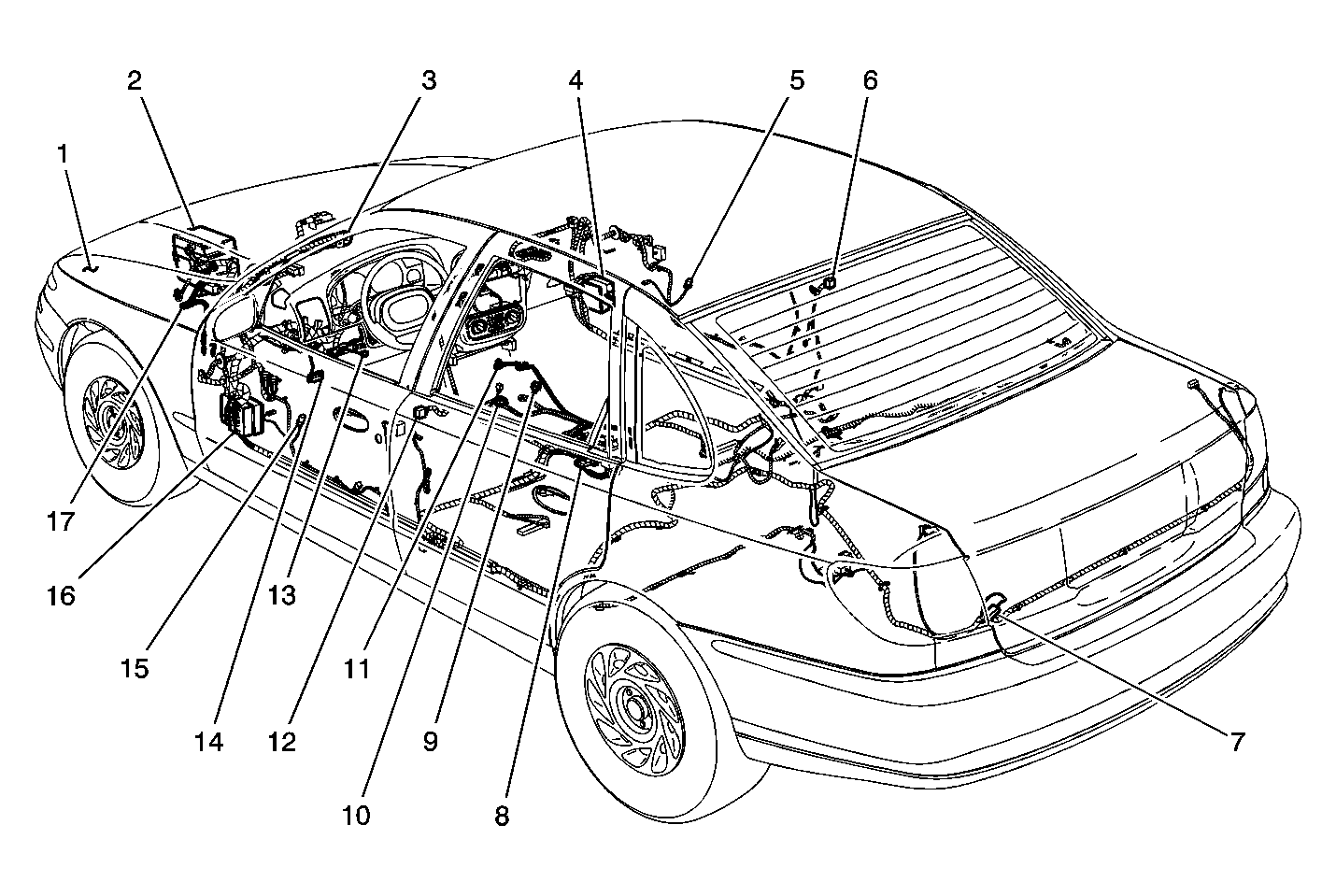

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
SP103 |
| 2 |
Fuse Block - Underhood |
| 3 |
SP105 |
| 4 |
Fuse Block - I/P - Right |
| 5 |
Window Motor - Front Passenger |
| 6 |
Window Switch - RR |
| 7 |
SP401 |
| 8 |
G300 |
| 9 |
Window Switch - Front Passenger |
| 10 |
Window Switch - Driver |
| 11 |
Cigar Lighter |
| 12 |
Window Switch - LR |
| 13 |
Data Link Communication (DLC) Connector |
| 14 |
Dimmer/Rear Compartment Lid Release Switch |
| 15 |
Window Motor - Driver |
| 16 |
Fuse Block - I/P - Left |
| 17 |
SP191 |
