Removal Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

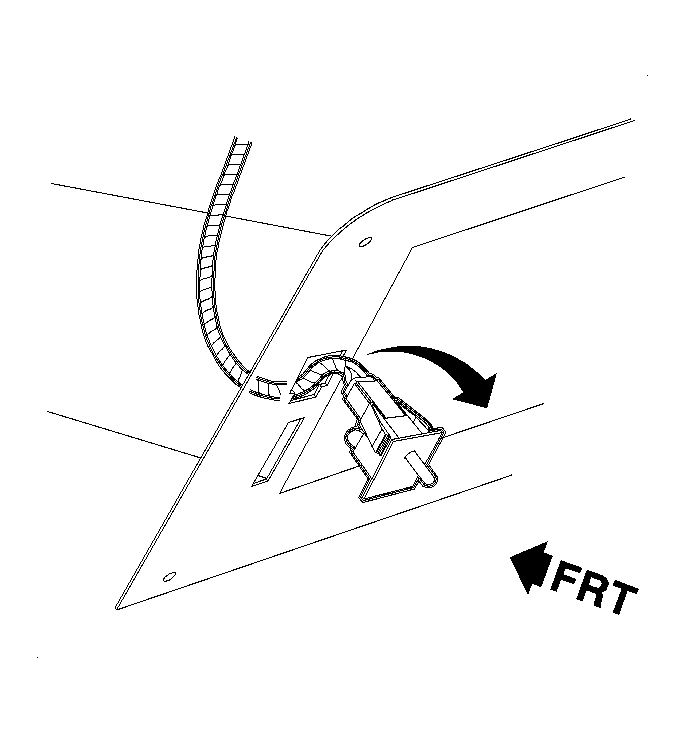

Fig 1: Removing I/P Compartment Lamp Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: After replacement of the body control module (BCM), programming is required.

Open the instrument panel (I/P) compartment door.
Remove the I/P compartment lamp assembly by pulling on the lamp plunger.
Disconnect the lamp wiring harness from the I/P compartment.

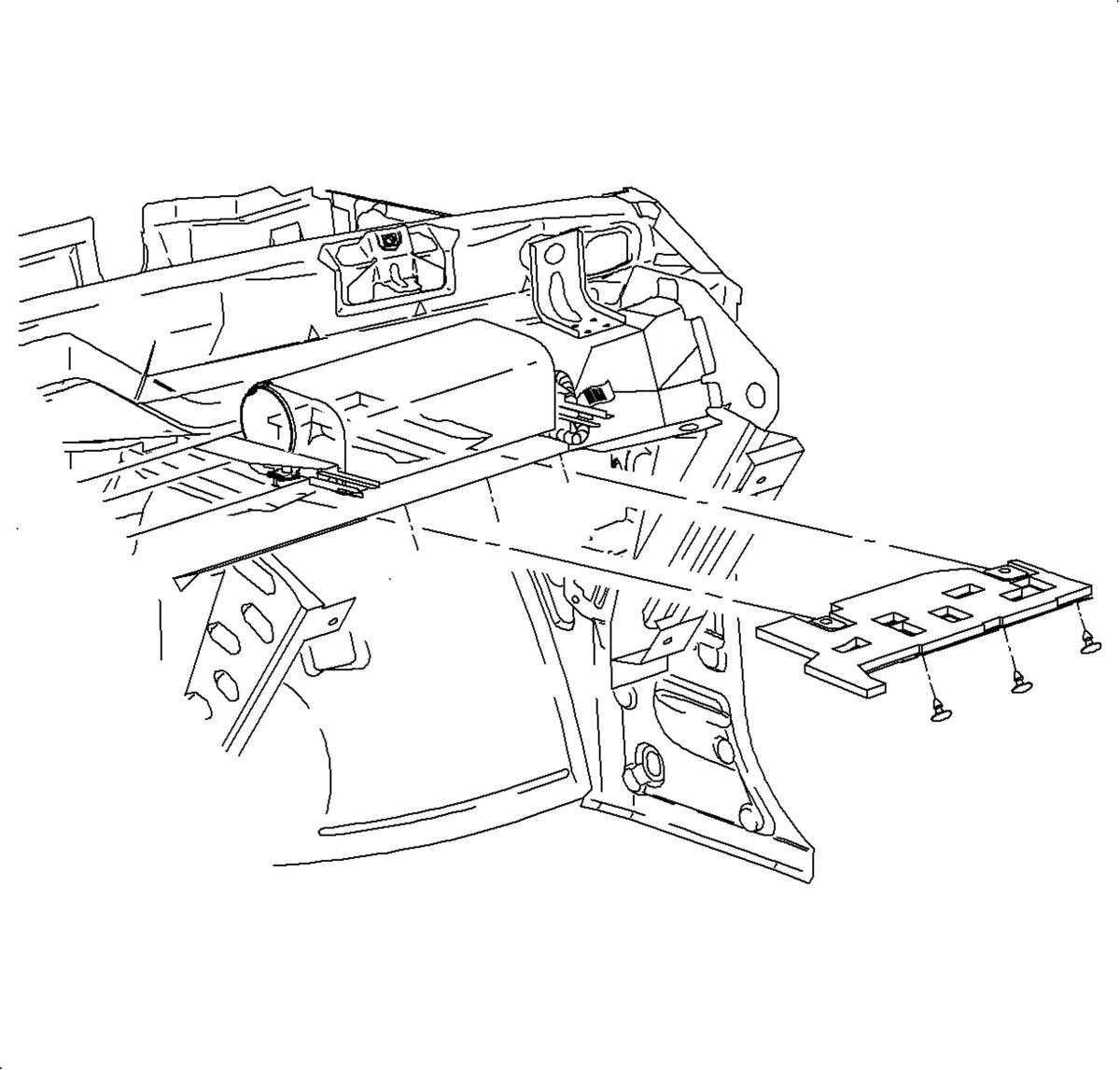

Fig 2: Removing Lower Closeout Panel From Right Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Remove the lower closeout panel from the right side of the I/P.
Pull the closeout panel rearward to detach the panel from the retainers.

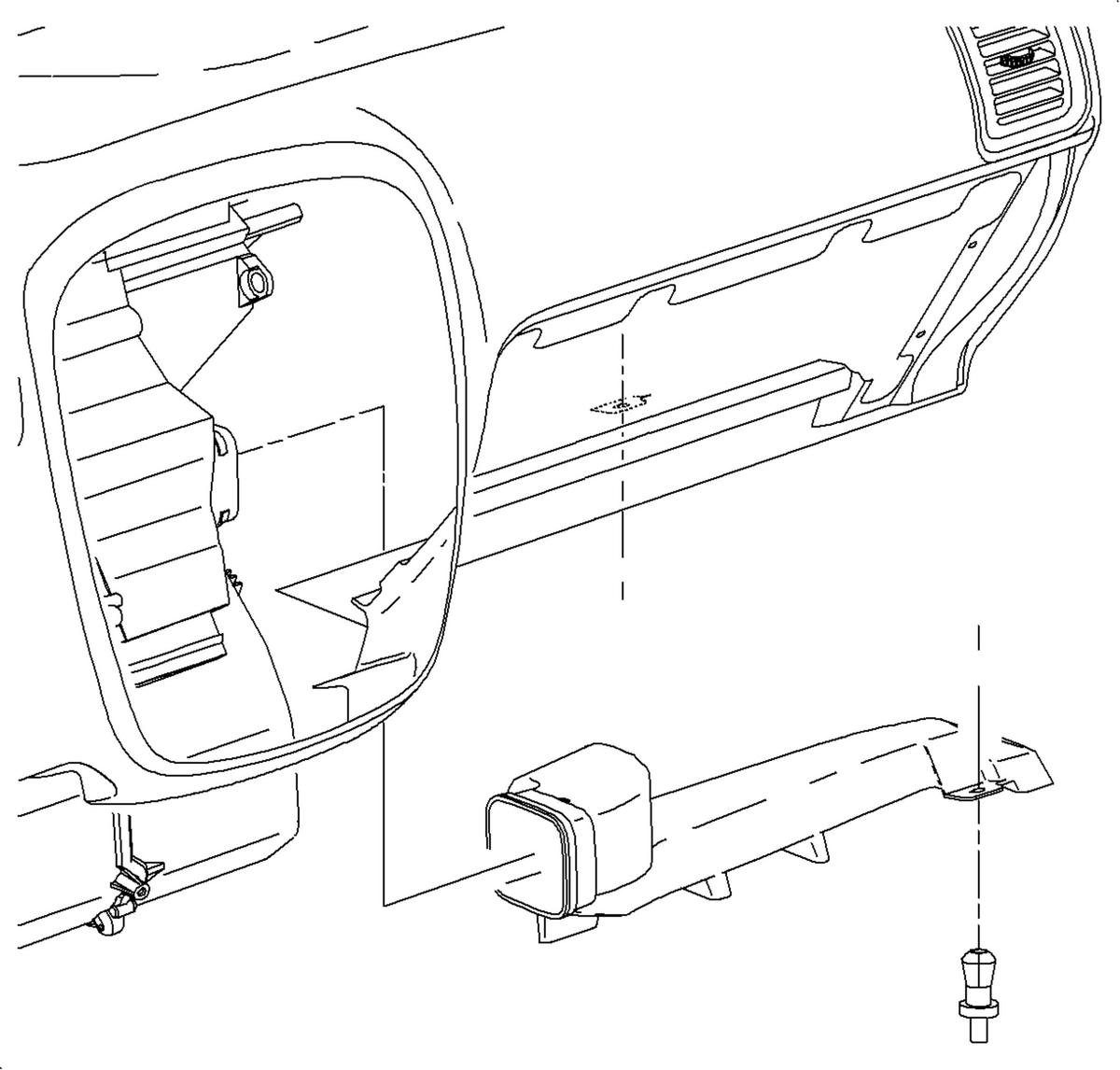

Fig 3: Removing Retainer From Heater Outlet Assembly On Right Side To Remove Outlet

Courtesy of GENERAL MOTORS CORP.

Remove the retainer from the heater outlet assembly on the right side and remove the outlet.
Remove the I/P compartment door. Refer to Door Replacement - Instrument Panel (I/P) Compartment in Instrument Panel, Gages, and Console.

Fig 4: Removing I/P Compartment Bin Fasteners

Courtesy of GENERAL MOTORS CORP.

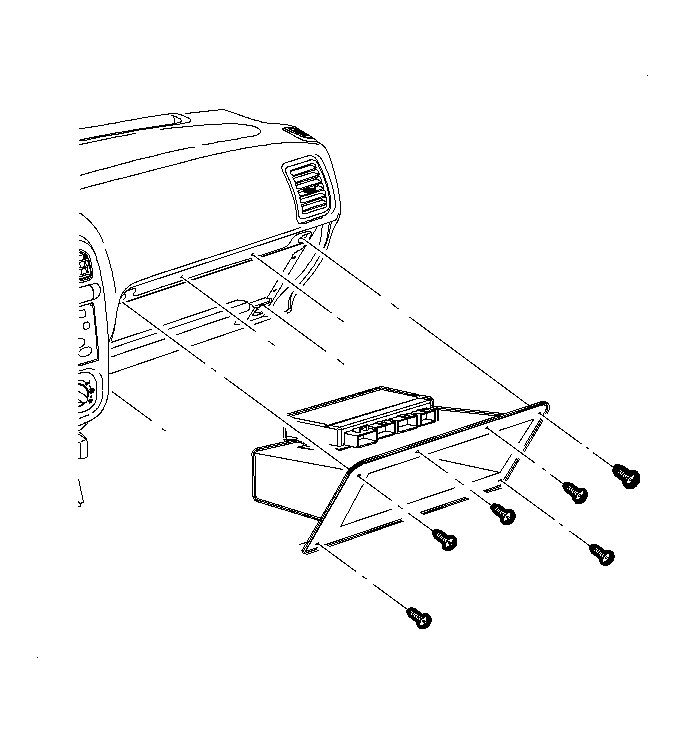

Remove the I/P compartment bin fasteners.

Fig 5: Removing I/P Compartment Bin

Courtesy of GENERAL MOTORS CORP.

Slowly remove the I/P compartment bin, tilting the bin downward, to expose the BCM residing on the top of the I/P compartment.

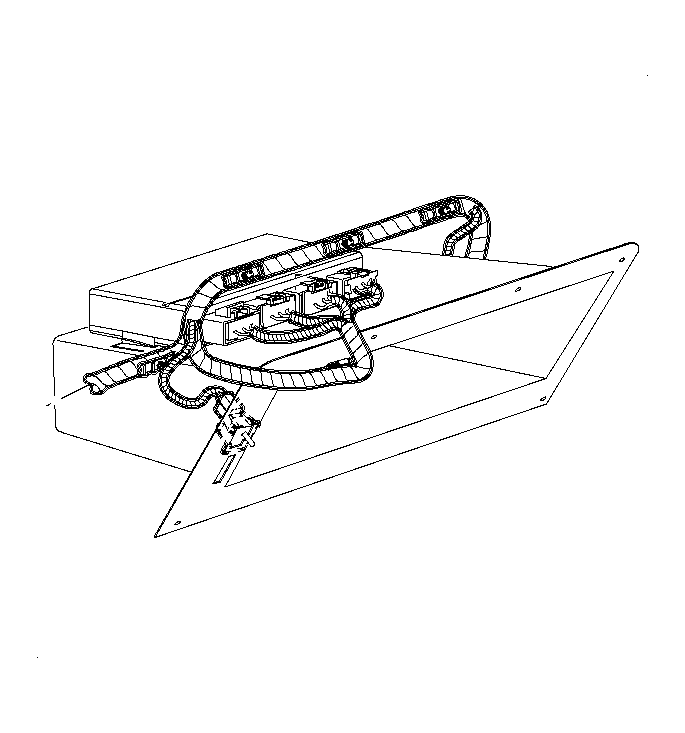

Remove the BCM module from the I/P compartment by sliding the module out of the attaching slots.
Remove the BCM harness connectors.
