Body Control System Schematics

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

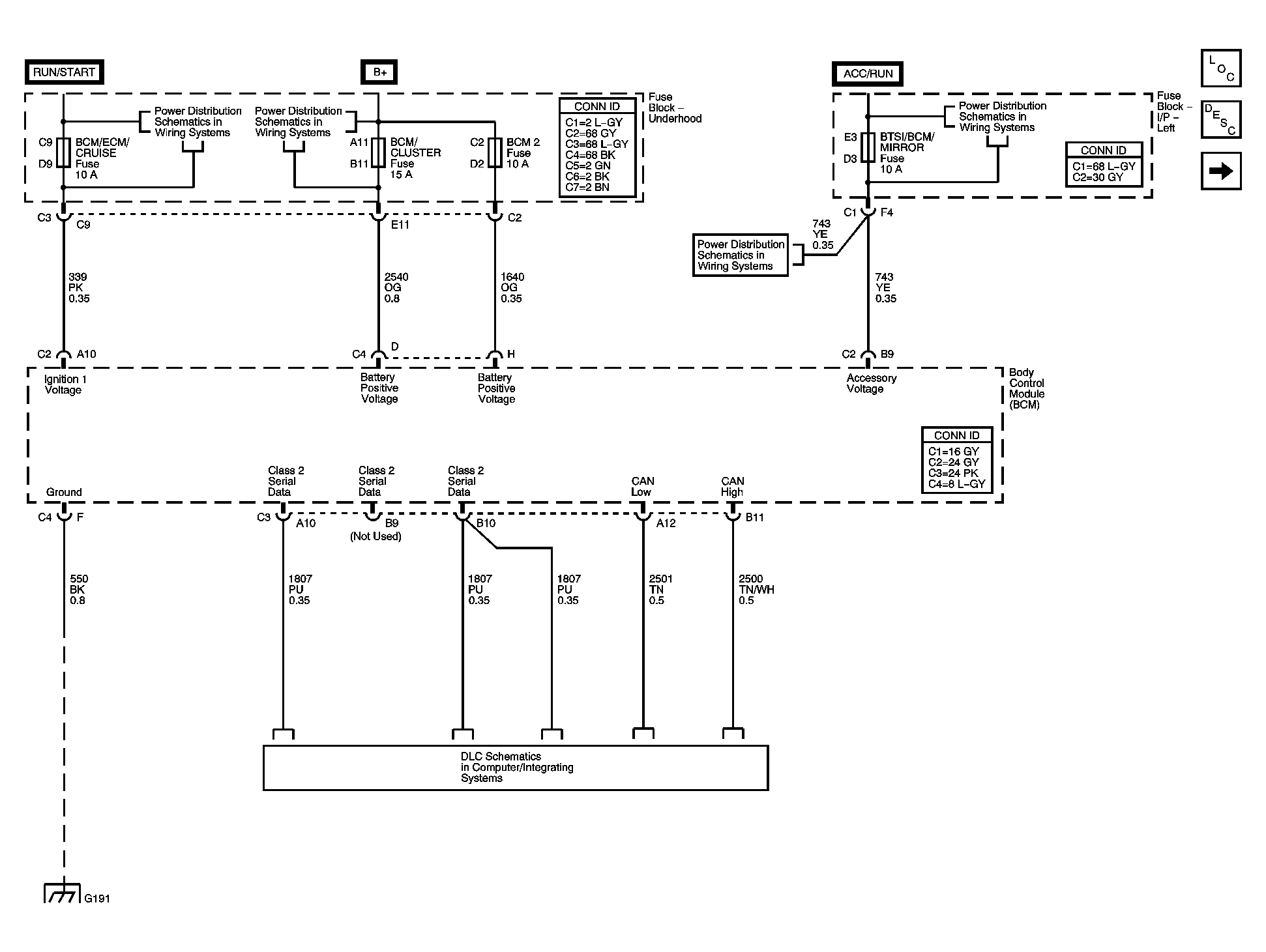

Fig 1: BCM Power, Ground, and Serial Data
GM1429610Courtesy of GENERAL MOTORS CORP.

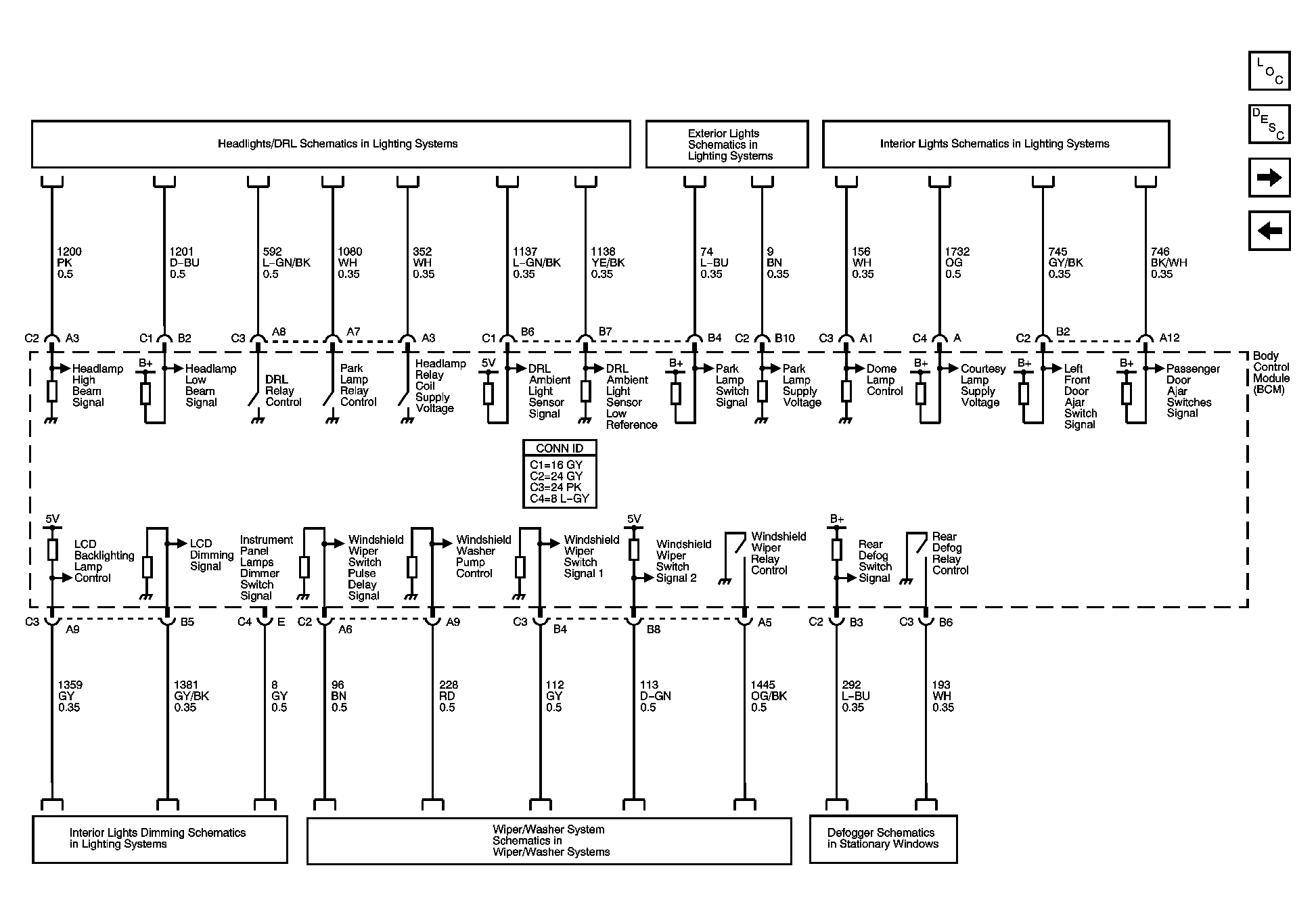

Fig 2: Lighting, Wipers, and Rear Defogger References
GM1458155Courtesy of GENERAL MOTORS CORP.

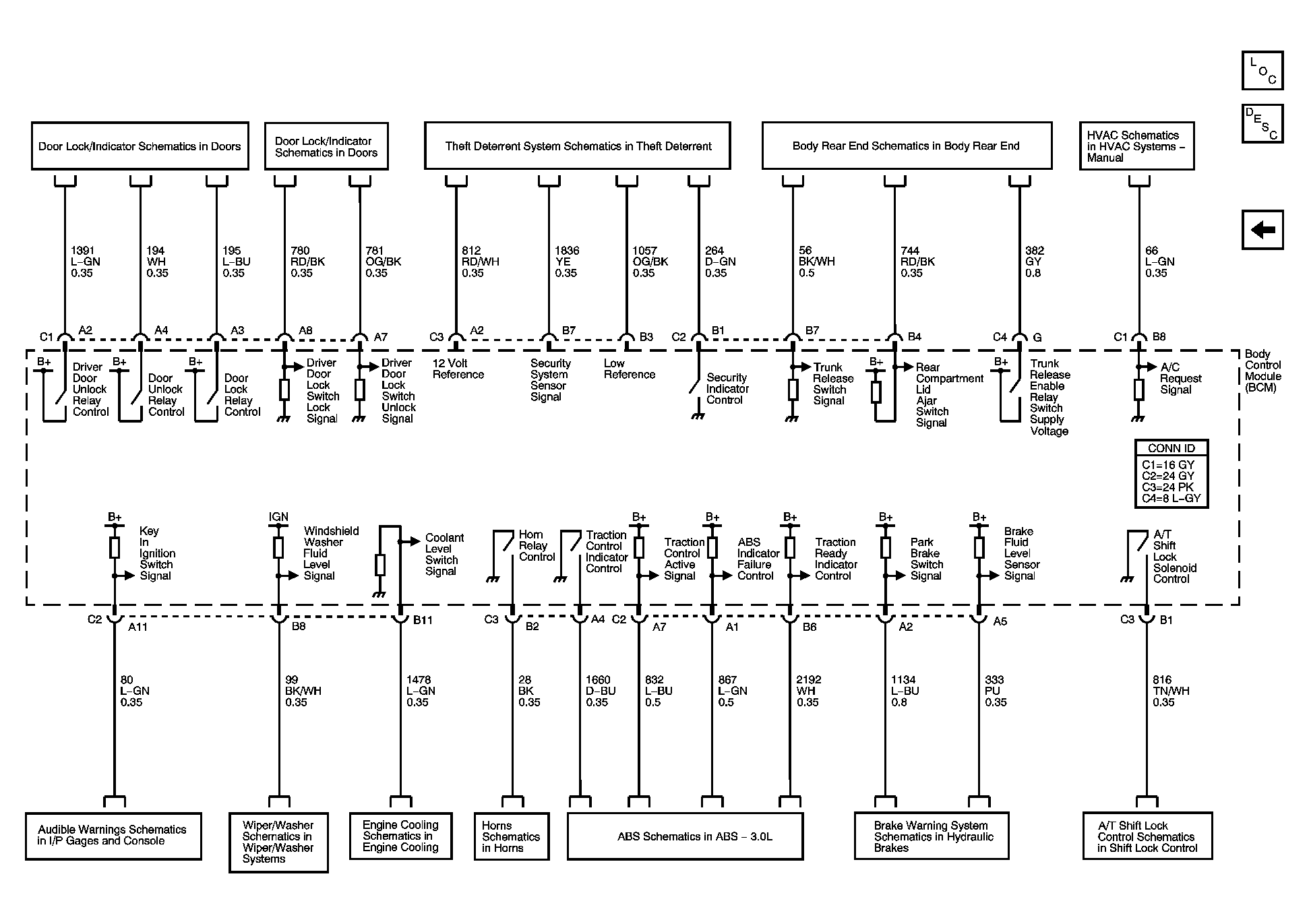

Fig 3: Controlled/Monitored Subsystem References
GM1458157Courtesy of GENERAL MOTORS CORP.
