Front Toe Adjustment

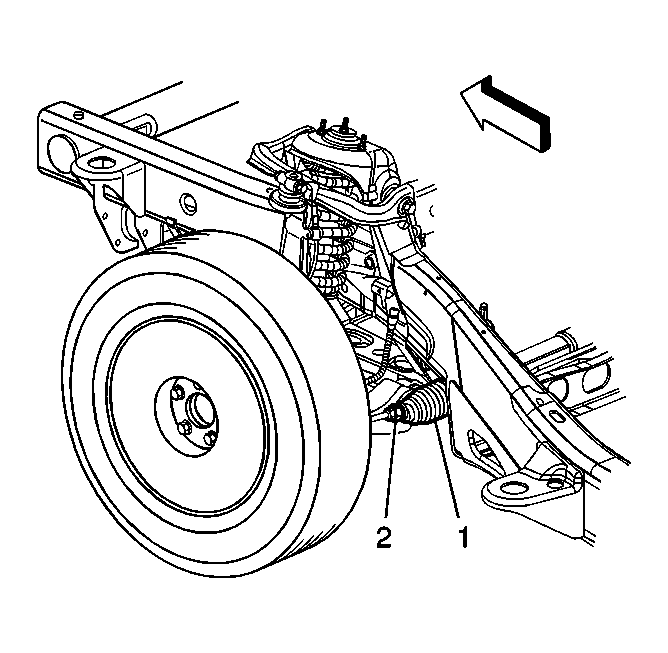

Fig 1: Adjusting Front Toe Angle

Courtesy of GENERAL MOTORS CORP.

NOTE: Care must be taken that the boots are not twisted when rotating the inner tie rods, or damage to the boots may result.

Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the jam nut on the outer tie rod.
Tighten: Tighten the outer tie rod jam nut to 75 N.m (55 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
