Engine Controls Connectors

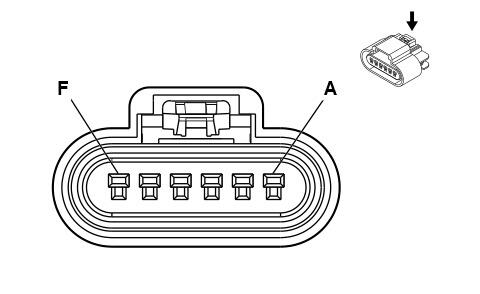

Accelerator Pedal Position (APP) Sensor

GM632357Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326829
  • 6-Way F 150 Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 1272 Low Reference
B L-BU 1162 APP Sensor 2 Signal
C TN 1274 5-Volt Reference
D BN 1271 Low Reference
E D-BU 1161 APP Sensor 1 Signal
F WH/BK 1164 5-Volt Reference
Camshaft Position (CMP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A RD - 12-Volt Reference
B PK/BK - Low Reference
C BN/WH - CMP Sensor Signal
Crankshaft Position (CKP) Sensor

GM366117Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324165
  • 3-Way F Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function
A D-BU/WH 1869 CKP Sensor Signal
B YE/BK 1868 Low Reference
C L-GN 1867 12-Volt Reference
Engine Coolant Temperature (ECT) Sensor

GM900247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A GY 720 Low Reference
B YE 410 ECT Sensor Signal
Evaporative Emission (EVAP) Canister Purge Solenoid

GM684829Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124037
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 239 Ignition 1 Voltage
B D-GN/WH 428 EVAP Canister Purge Solenoid Control
Evaporative Emission (EVAP) Canister Vent Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A OG 540 Battery Positive Voltage
B WH 1310 EVAP Canister Vent Solenoid Control
Fuel Injector 1

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1239 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1339 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 3

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1239 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 4

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1339 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control
Fuel Injector 5

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1239 Ignition 1 Voltage
B BK/WH 845 Fuel Injector 5 Control
Fuel Injector 6

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1339 Ignition 1 Voltage
B YE/BK 846 Fuel Injector 6 Control
Fuel Injector 7

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1239 Ignition 1 Voltage
B RD/BK 877 Fuel Injector 7 Control
Fuel Injector 8

GM603098Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305086
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1339 Ignition 1 Voltage
B D-BU/WH 878 Fuel Injector 8 Control
Fuel Tank Pressure (FTP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 2759 Low Reference
B D-GN 890 Fuel Tank Pressure Sensor Signal
C GY 2709 5-Volt Reference
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

GM474210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176897
  • 4-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A TN 1664 HO2S Low Signal Bank 1 Sensor 1
B PU/WH 1665 HO2S High Signal Bank 1 Sensor 1
C BK/WH 3113 HO2S Heater Low Control Bank 1 Sensor 1
D PK 539 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

GM806613Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326423
  • 4-Way M Metri-Pack 150 Series Sealed (L-GY)
Pin Wire Color Circuit No. Function
A TN/WH 1669 HO2S Low Signal Bank 1 Sensor 2
B PU/WH 1668 HO2S High Signal Bank 1 Sensor 2
C BN 2391 HO2S Heater Low Control Bank 1 Sensor 2
D PK 1539 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

GM474210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176897
  • 4-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A TN 1667 HO2S Low Signal Bank 2 Sensor 1
B PU 1666 HO2S High Signal Bank 2 Sensor 1
C L-GN 3212 HO2S Heater Low Control Bank 2 Sensor 1
D PK 539 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

GM806613Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326423
  • 4-Way M Metri-Pack 150 Series Sealed (L-GY)
Pin Wire Color Circuit No. Function
A TN 1671 HO2S Low Signal Bank 2 Sensor 2
B PU 1670 HO2S High Signal Bank 2 Sensor 2
C RD/WH 3223 HO2S Heater Low Control Bank 2 Sensor 2
D PK 1539 Ignition 1 Voltage
Ignition Coil 1

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C PU 2121 IC 1 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 2

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C RD 2127 IC 2 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 3

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C L-BU 2123 IC 3 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 4

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C D-GN 2125 IC 4 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 5

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C D-GN 2125 IC 5 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 6

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C L-BU 2123 IC 6 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 7

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C RD 2127 IC 7 Control
D PK 39 Ignition 1 Voltage
Ignition Coil 8

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15413116
  • 4-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 151 Ground
B BN 2129 Low Reference
C PU 2121 IC 8 Control
D PK 39 Ignition 1 Voltage
Knock Sensor (KS) 1

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT150 Series, Sealed (NA)
Pin Wire Color Circuit No. Function
A D-BU 496 Knock Sensor 1 Signal
B GY 1716 Low Reference
Knock Sensor (KS) 2

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT150 Series, Sealed (NA)
Pin Wire Color Circuit No. Function
A L-BU 1876 Knock Sensor 2 Signal
B L-BU 2303 Low Reference
Manifold Absolute Pressure (MAP) Sensor

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5-Volt Reference
Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor

GM366067Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305555
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 2760 Low Reference
B TN 472 IAT Sensor Signal
C BK 450 Ground
D PK 239 Ignition 1 Voltage
E YE 492 MAF Sensor Signal

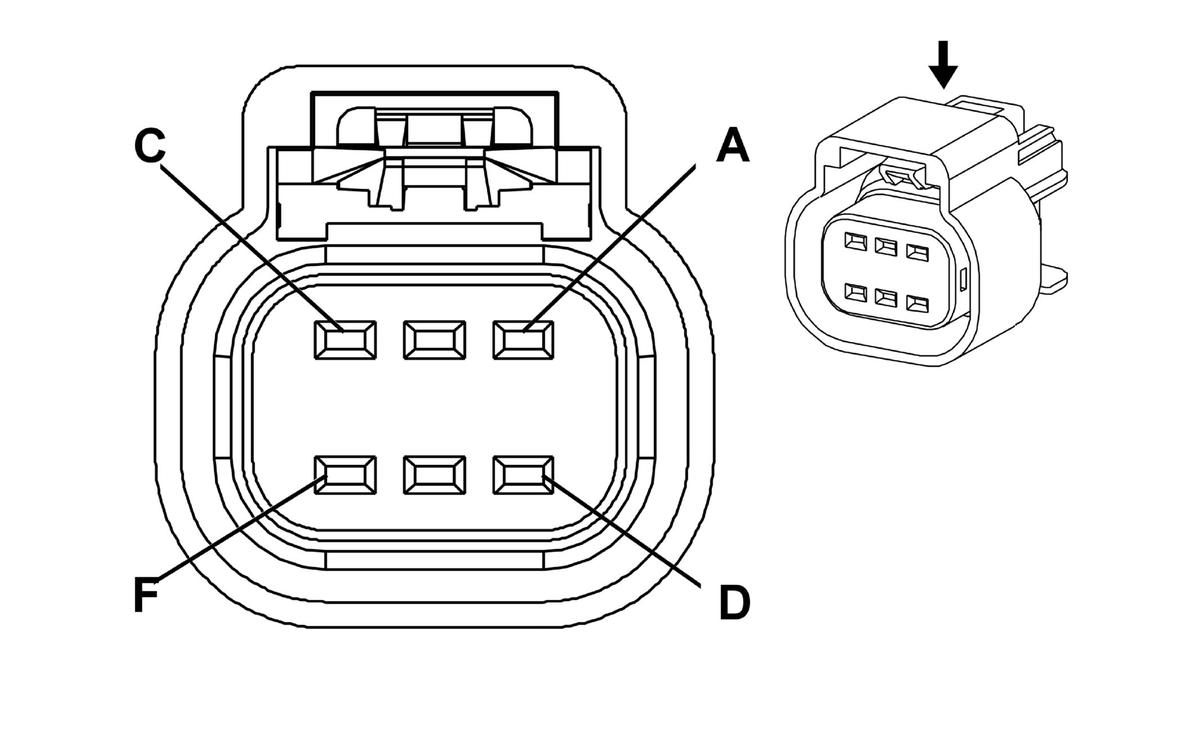

Throttle Body

GM1468494Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355297
  • 6-Way F GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A BN 582 TAC Motor Control 2
B YE 581 TAC Motor Control 1
C BK/WH 1704 Low Reference
D D-GN 485 TP Sensor 1 Signal
E L-BU/BK 1688 5-Volt Reference
F PU 486 TP Sensor 2 Signal
