Installation Procedure

    Fig 1: View of Air Cleaner Element
    GM1275964Courtesy of GENERAL MOTORS CORP.
  1. Insert the air filter.
  2. Close the air cleaner.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install front to rear air cleaner housing screws.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

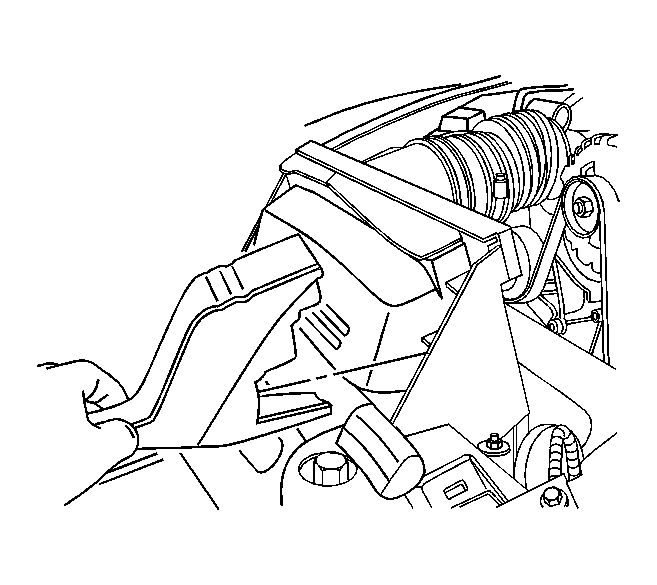

    4. Fig 2: Removing/Installing Foam insulation At air cleaner housing
    GM1530322Courtesy of GENERAL MOTORS CORP.
  4. Install the foam insulation.

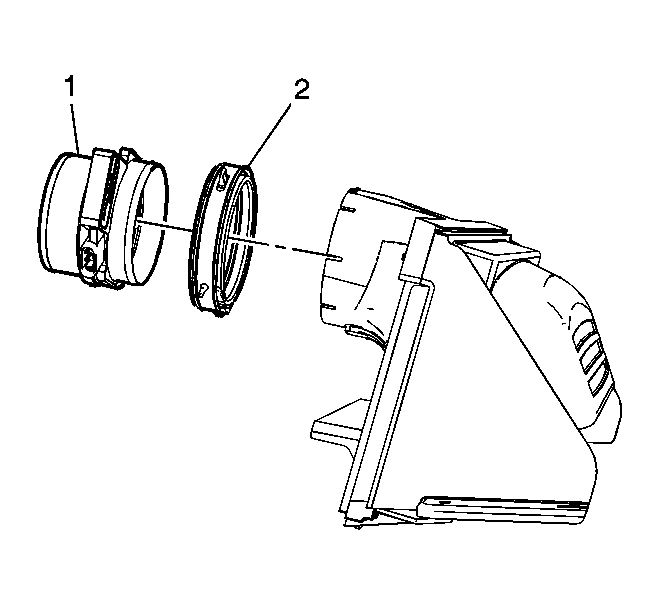

    5. Fig 3: Identifying MAF/IAT Sensor
    GM1275969Courtesy of GENERAL MOTORS CORP.
  5. Install the MAF sensor. Refer to Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Replacement .
  6. Close the hood.
