Removal Procedure

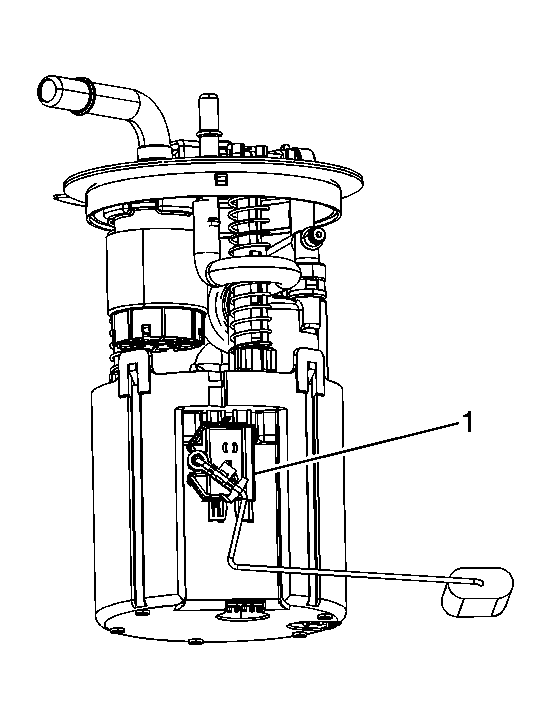

    Fig 1: Locating Fuel Level Sensor
    GM1474427Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
  2. Disconnect the electrical connector from under the fuel sender cover.
  3. Remove the fuel level sensor (1) from the fuel sender assembly.
