Removal Procedure

NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

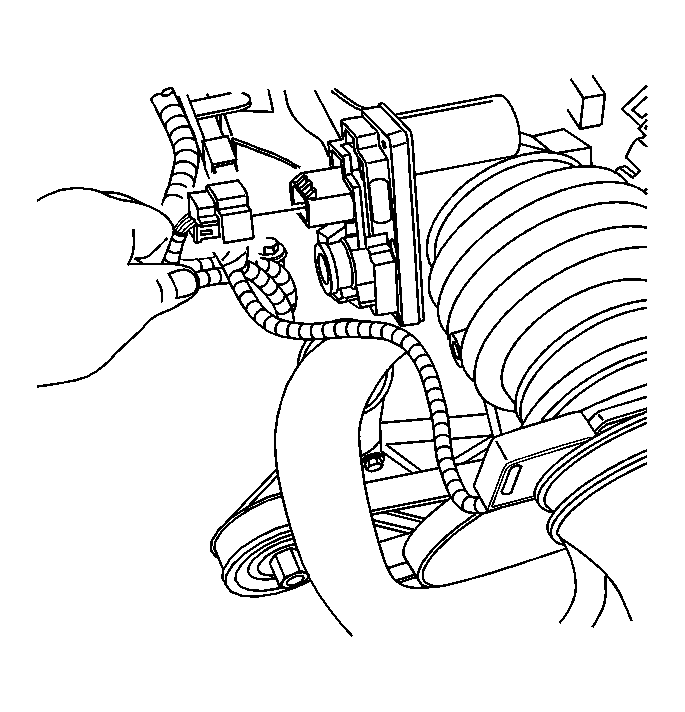

    Fig 1: Disconnecting/Reconnecting Throttle Actuator Motor Electrical Connector
    GM1530325Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Assembly Replacement .
  2. Remove the engine sight shield. Refer to Engine Sight Shield Replacement in Engine Mechanical - 6.0L.
  3. Disconnect the throttle actuator motor electrical connector.

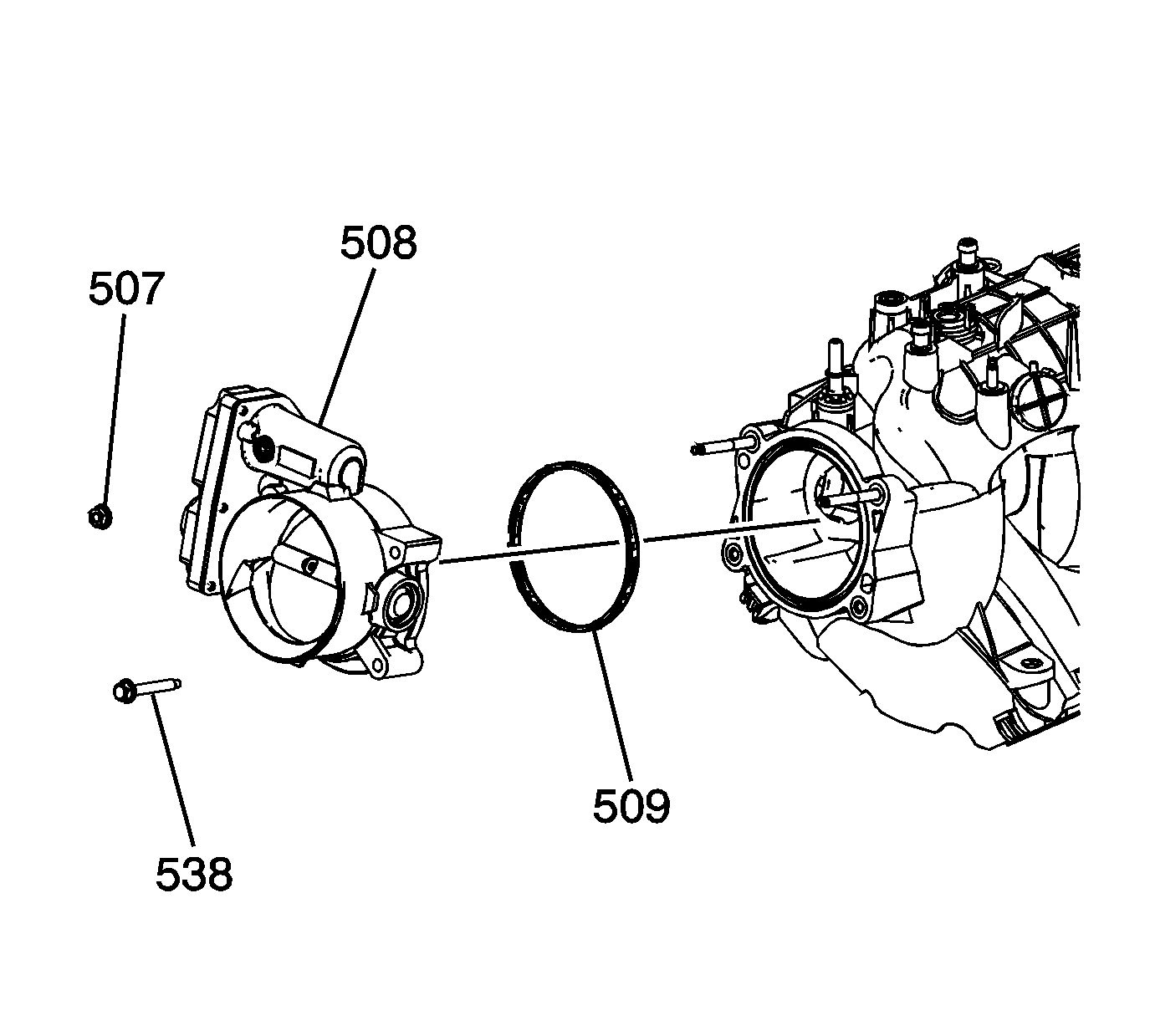

    4. Fig 2: View Of Throttle Body Assembly
    GM1401966Courtesy of GENERAL MOTORS CORP.
  4. Remove the throttle body nuts (507).
  5. Remove the throttle body bolts (538).
  6. Remove the throttle body (508) and the gasket (509).
    IMPORTANT: Do not reuse the throttle body gasket. Install a new gasket during assembly.
  7. Discard the throttle body gasket.
