Fuel Hose/Pipes Routing Diagram

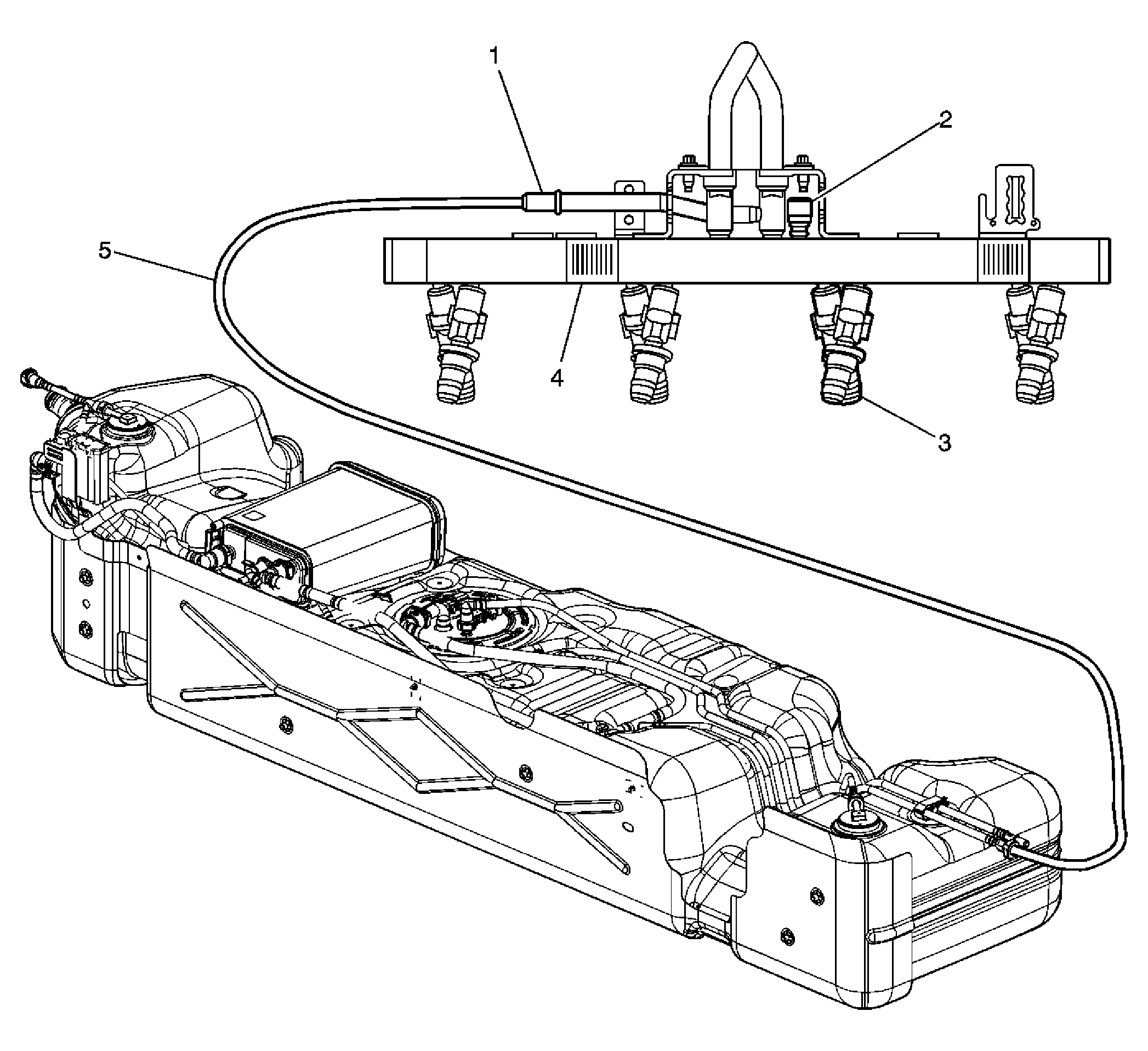

Fig 1: View Of Fuel Hose/Pipes Routing
GM1542823Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Rail Feed Pipe
2 Fuel Pressure Service Connection
3 Fuel Injector
4 Fuel Injector Rail
5 Fuel Feed Hose
