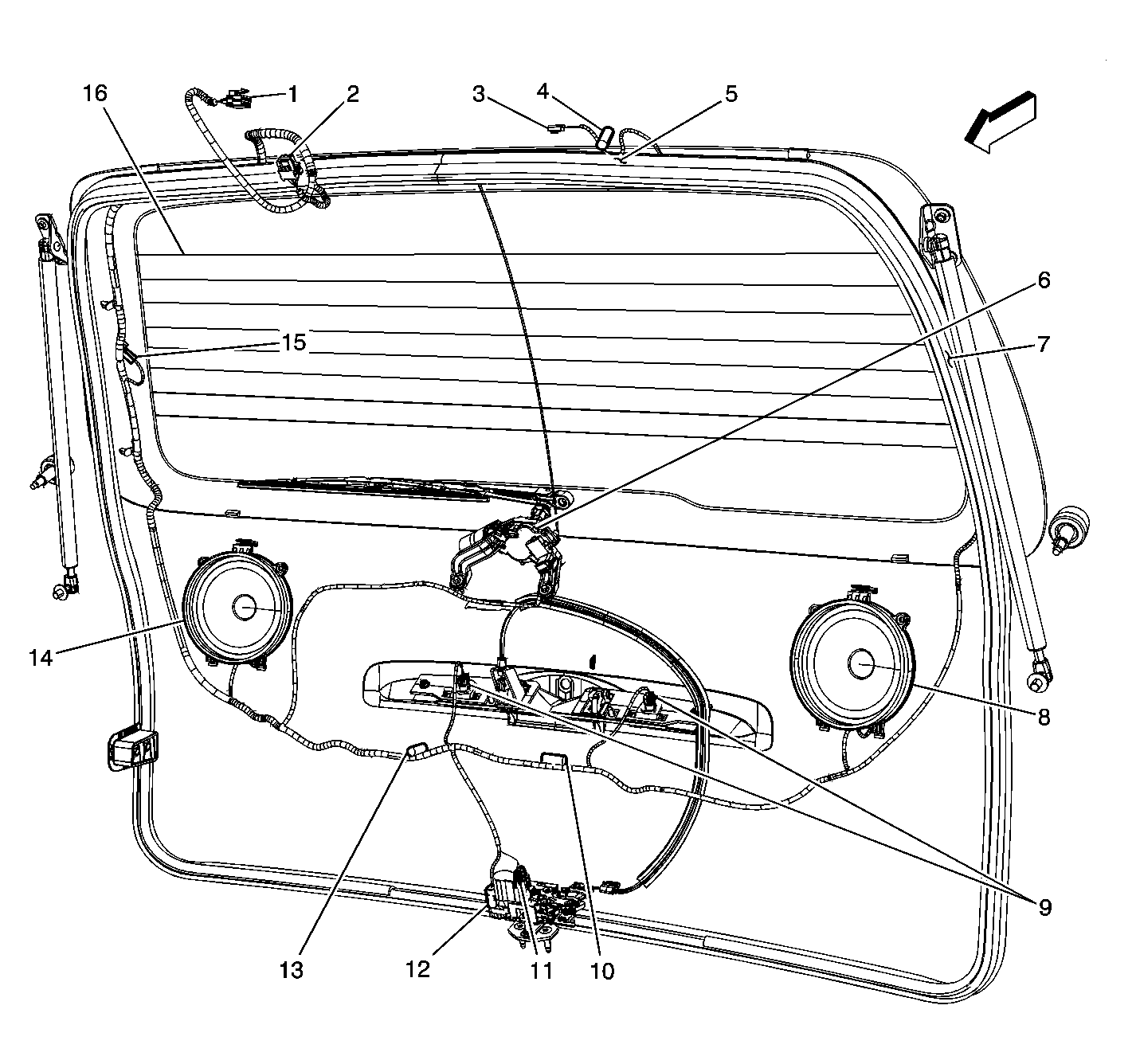

Stationary Windows Component Views
| Callout | Component Name |
|---|---|
| 1 | C402 Liftgate Harness to Body Harness |
| 2 | C400 Liftgate Harness to Body Harness |
| 3 | Center High Mounted Stop Lamp (CHMSL) |
| 4 | S915 |
| 5 | S913 |
| 6 | Rear Window Wiper Motor |
| 7 | Rear Window Defogger Grid C2 |
| 8 | Speaker - LR |
| 9 | License Lamps |
| 10 | S911 |
| 11 | Door Lock Actuator - Liftgate |
| 12 | Door Jamb Switch - Liftgate |
| 13 | S900 |
| 14 | Speaker - RR |
| 15 | Rear Window Defogger Grid C1 |
| 16 | Rear Window Defogger Grid |
