ABS Schematics

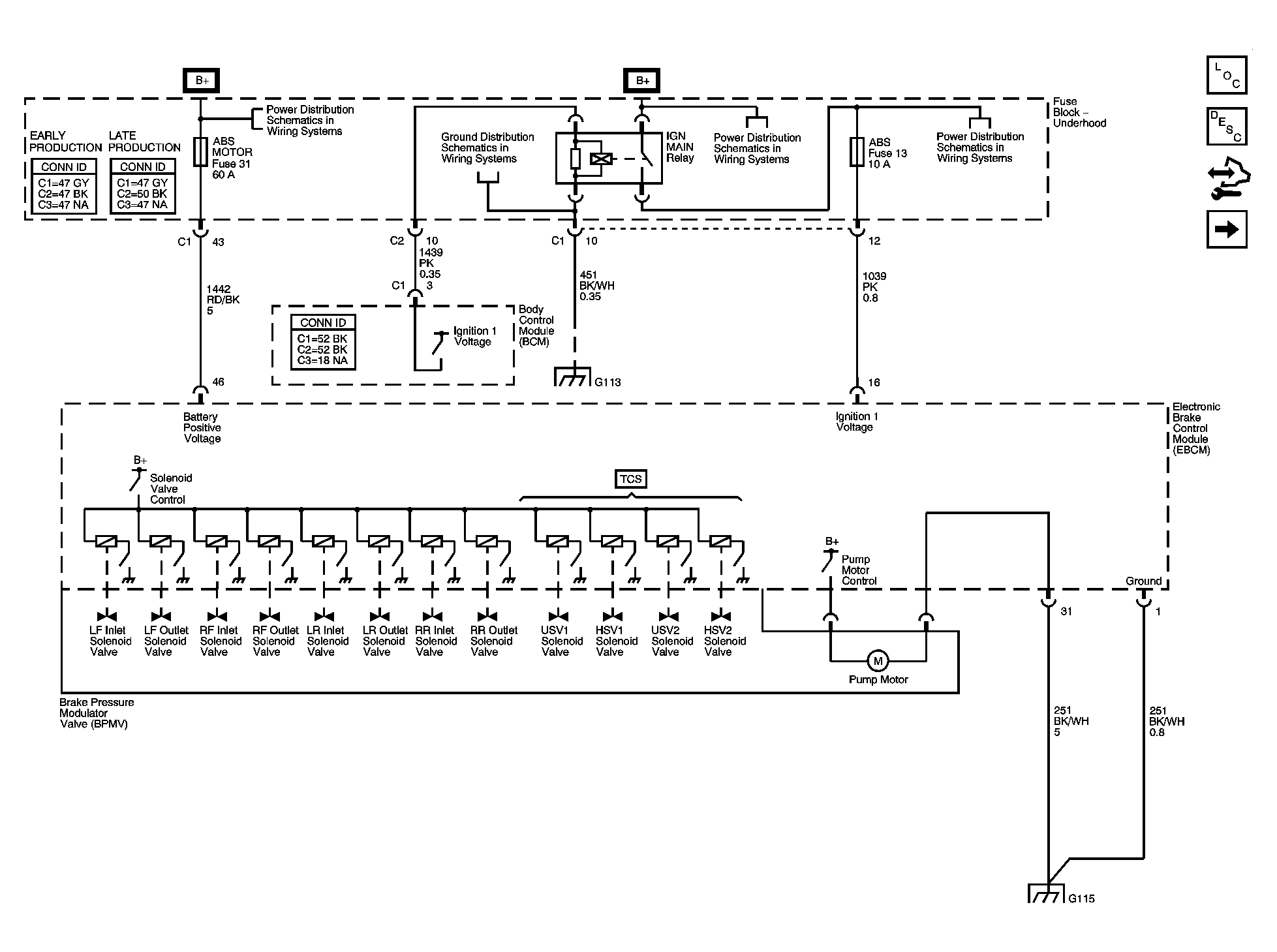

Fig 1: Ground, Power, Pump & Solenoid Valves Schematic

Courtesy of GENERAL MOTORS CORP.

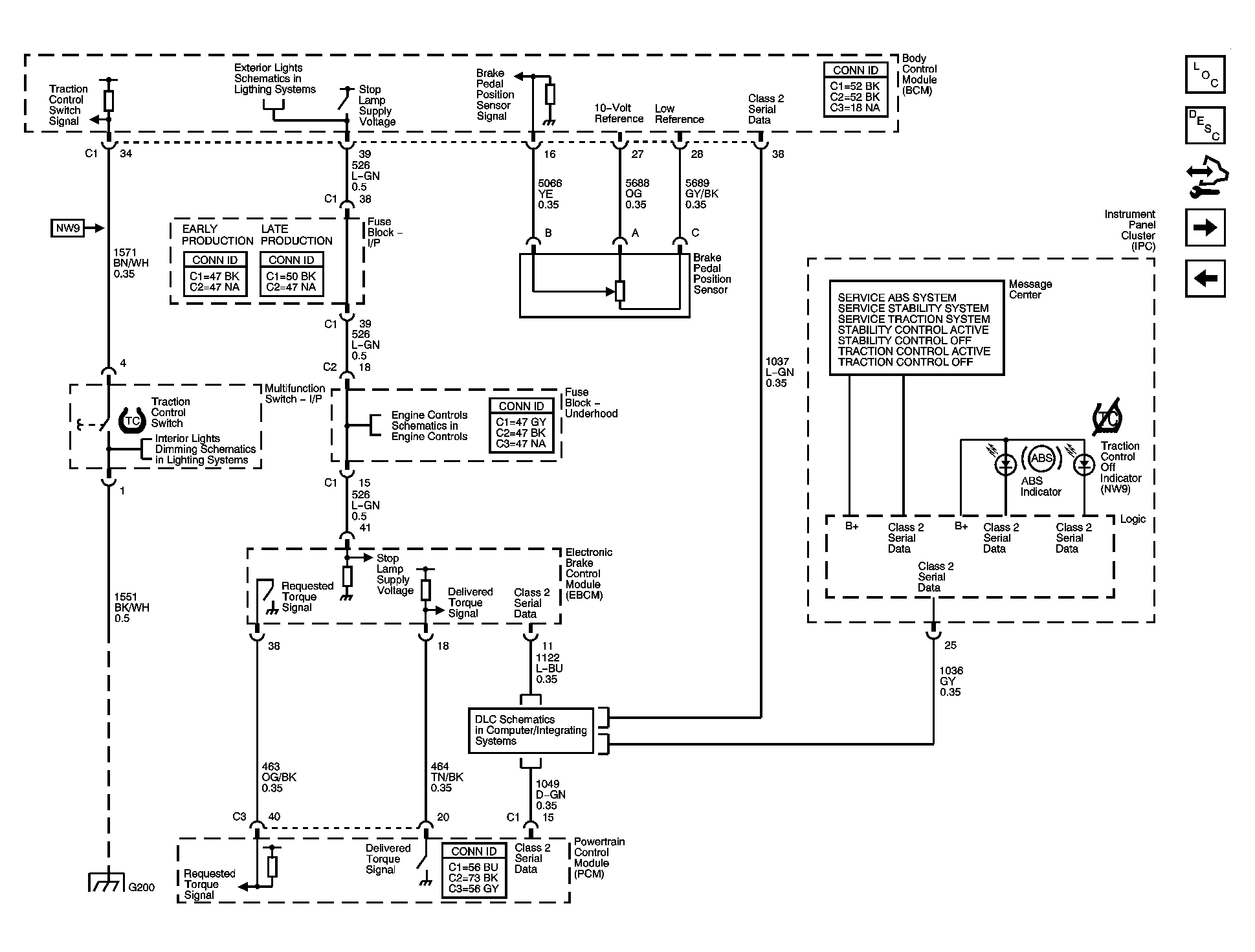

Fig 2: Driver Inputs, Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

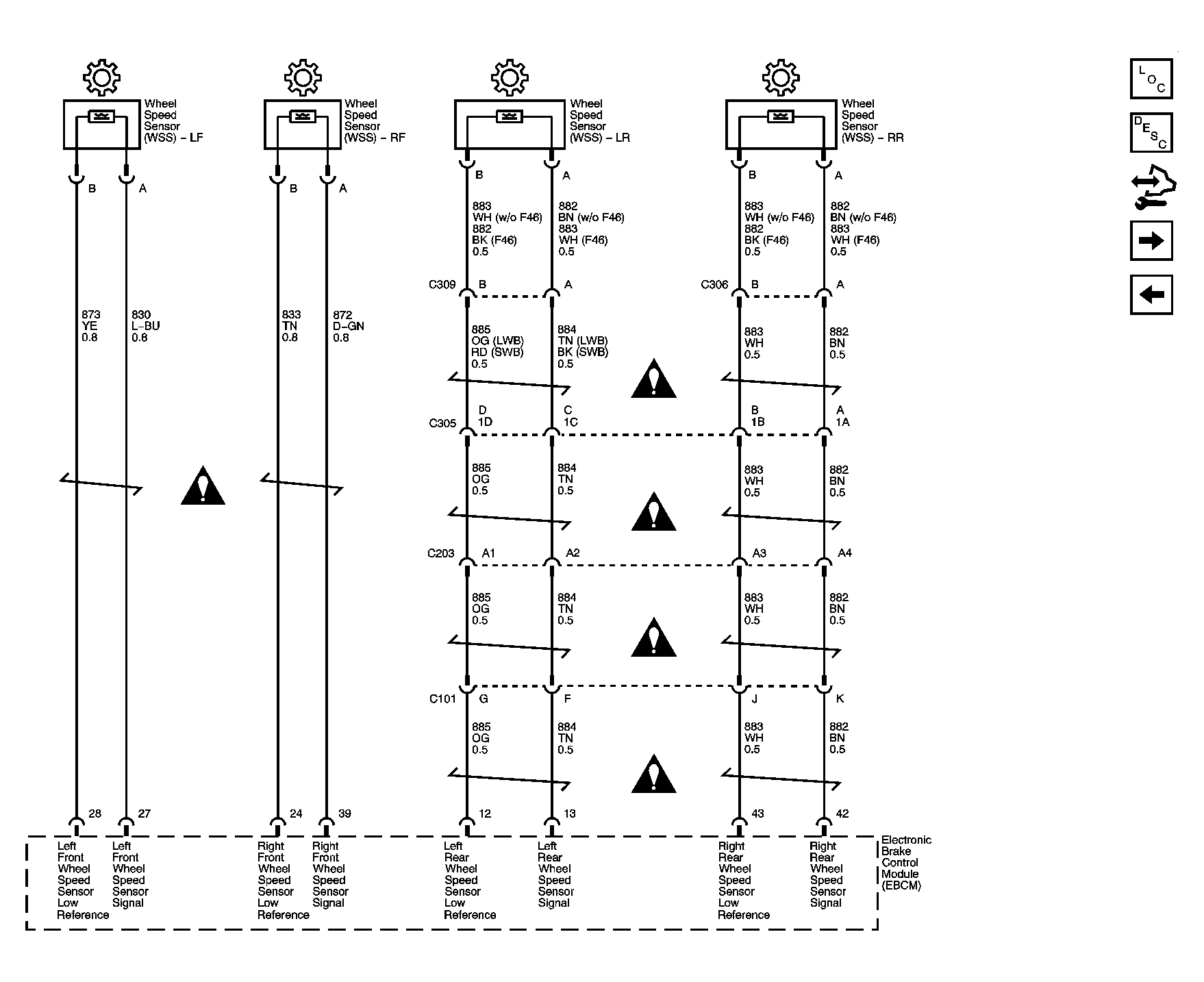

Fig 3: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

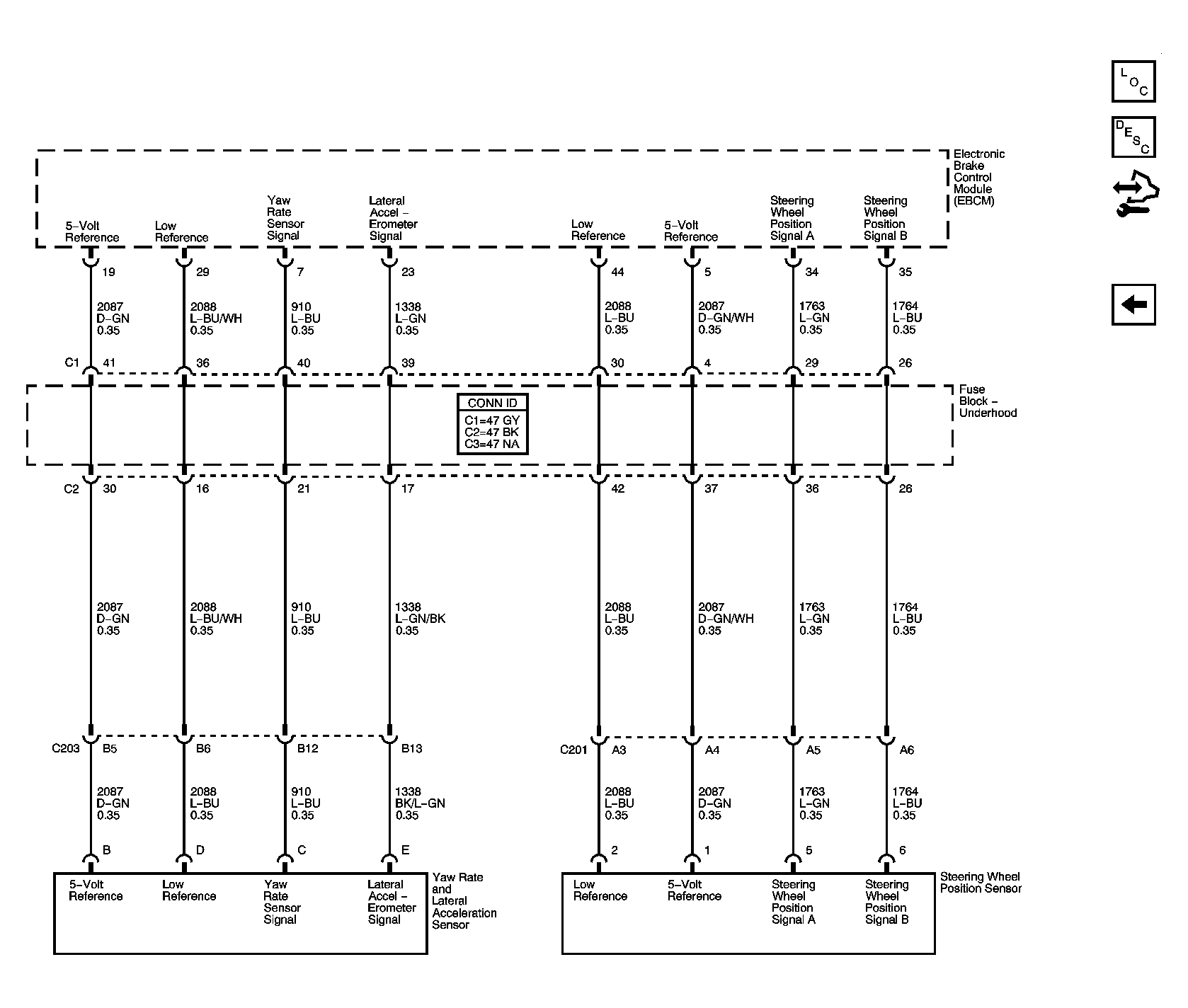

Fig 4: Stability Control Sensors Schematic - JL4

Courtesy of GENERAL MOTORS CORP.
