Keyless Entry Component Views

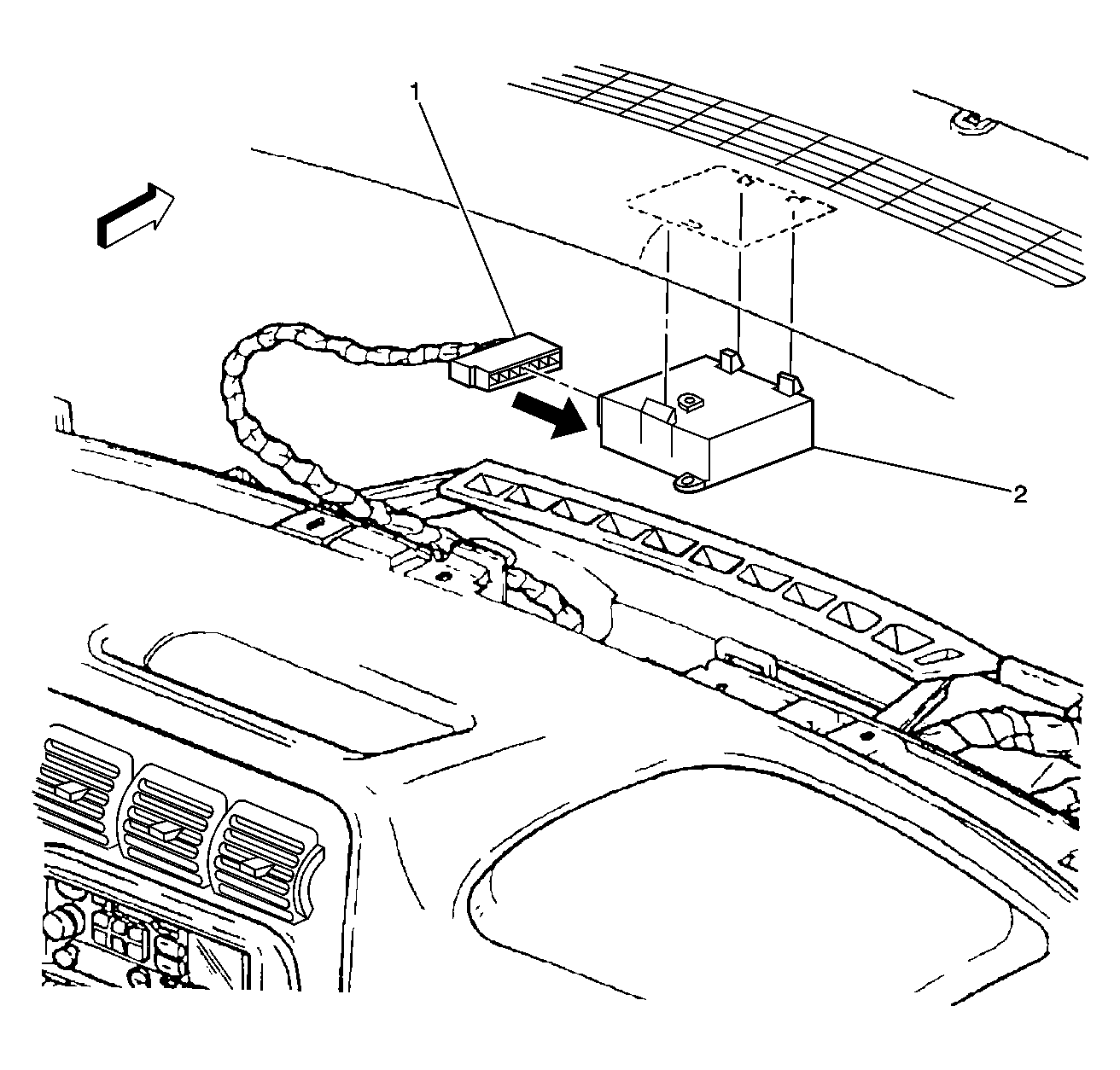

Fig 1: Center of I/P, Below Upper Panel Trim
GM447169Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 Remote Control Door Lock Receiver (RCDLR)
