Removal Procedure

    CAUTION: If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
    IMPORTANT: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.
  3. Remove the rear wiper motor. Refer to Wiper Motor Replacement - Rear in Wipers/Washer Systems.
  4. Disconnect the rear window defogger connector.
    5. CAUTION: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
  5. Cover the following parts to protect from broken glass:
    1. The upper dash pad
    2. The defroster outlets and A/C outlets
    3. The seats and carpeting
    6. Fig 1: Separating Urethane Adhesive From Window
    GM71179Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.
    IMPORTANT: Keep the cutting edge of the tool against the window.
  6. Separate the urethane adhesive from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • Use J 24402-A  , J 39032  or equivalent in order to remove the window. See Special Tools .

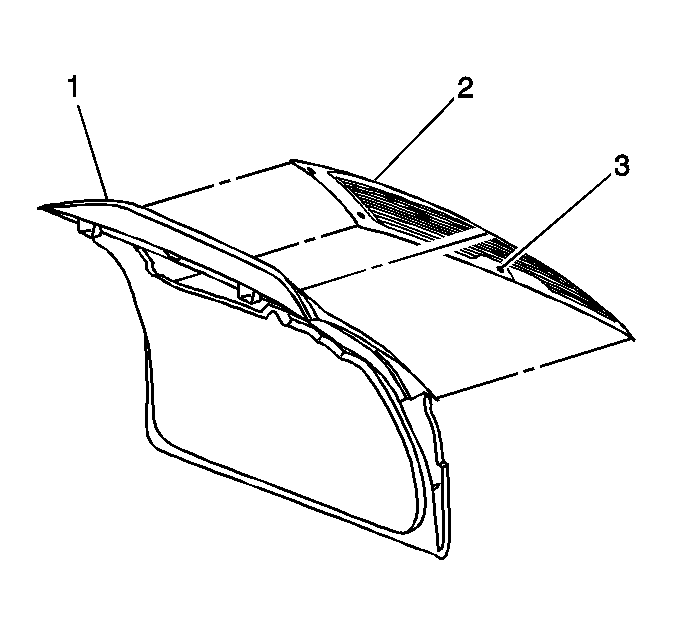

    7. Fig 2: View Of Liftgate Window & Opening
    GM768861Courtesy of GENERAL MOTORS CORP.
  7. With the aid of an assistant, use the suction cups in order to lift the liftgate window (2) from the opening.
