Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fusible Link C | At starter solenoid. |
| I/P Fuse Block | Right side of dash, in right front door opening. |
| Relay Block | Below right side of dash, next to BCM. |
| Sit-N-Lift Seat Circuit Breaker (8A) | Below Sit-N-Lift seat. See Figure . |
| Sit-N-Lift Seat Circuit Breaker (25A) | Below Sit-N-Lift seat. See Figure . |

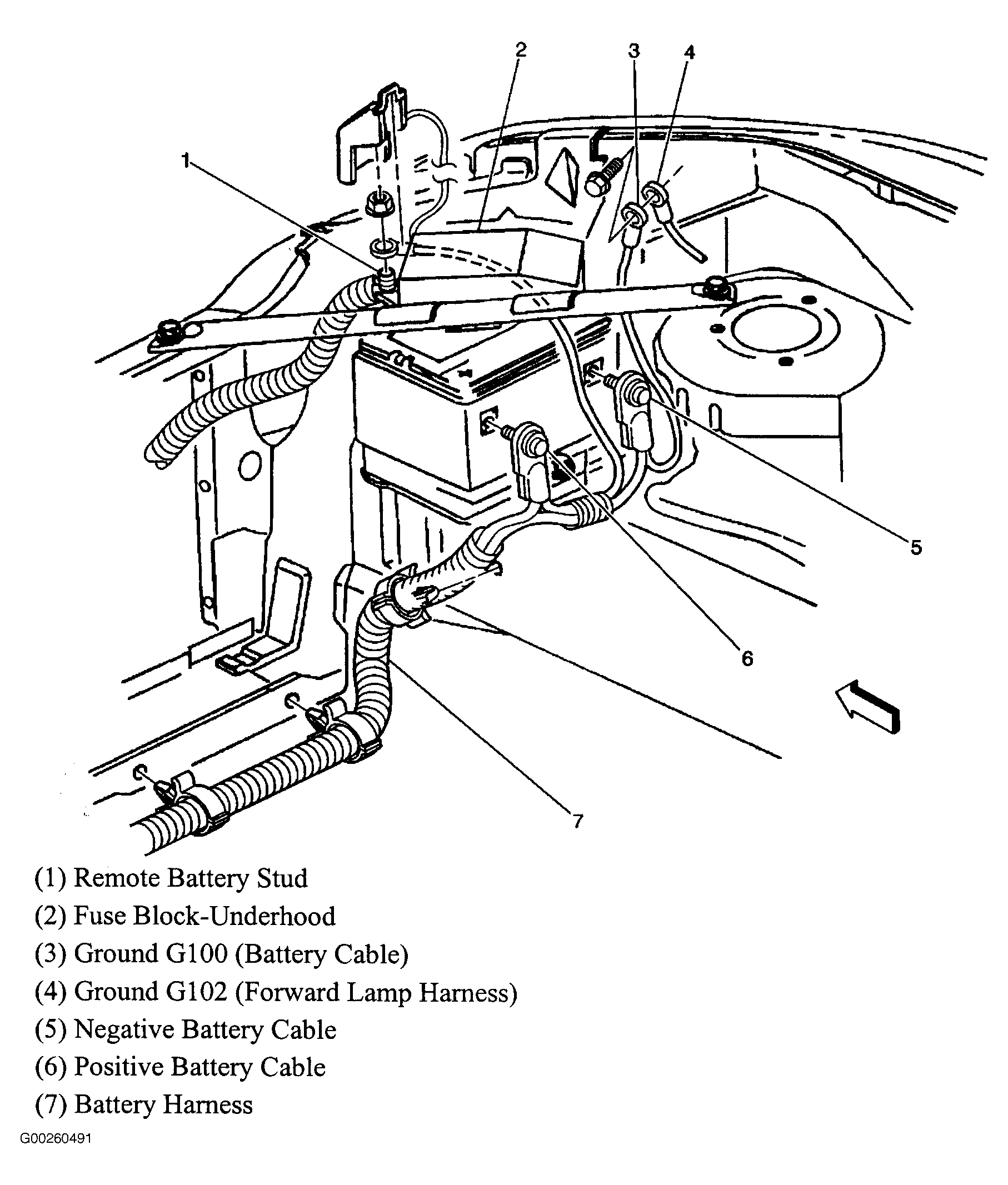

| Underhood Fuse Block | Above battery. See Figure . |

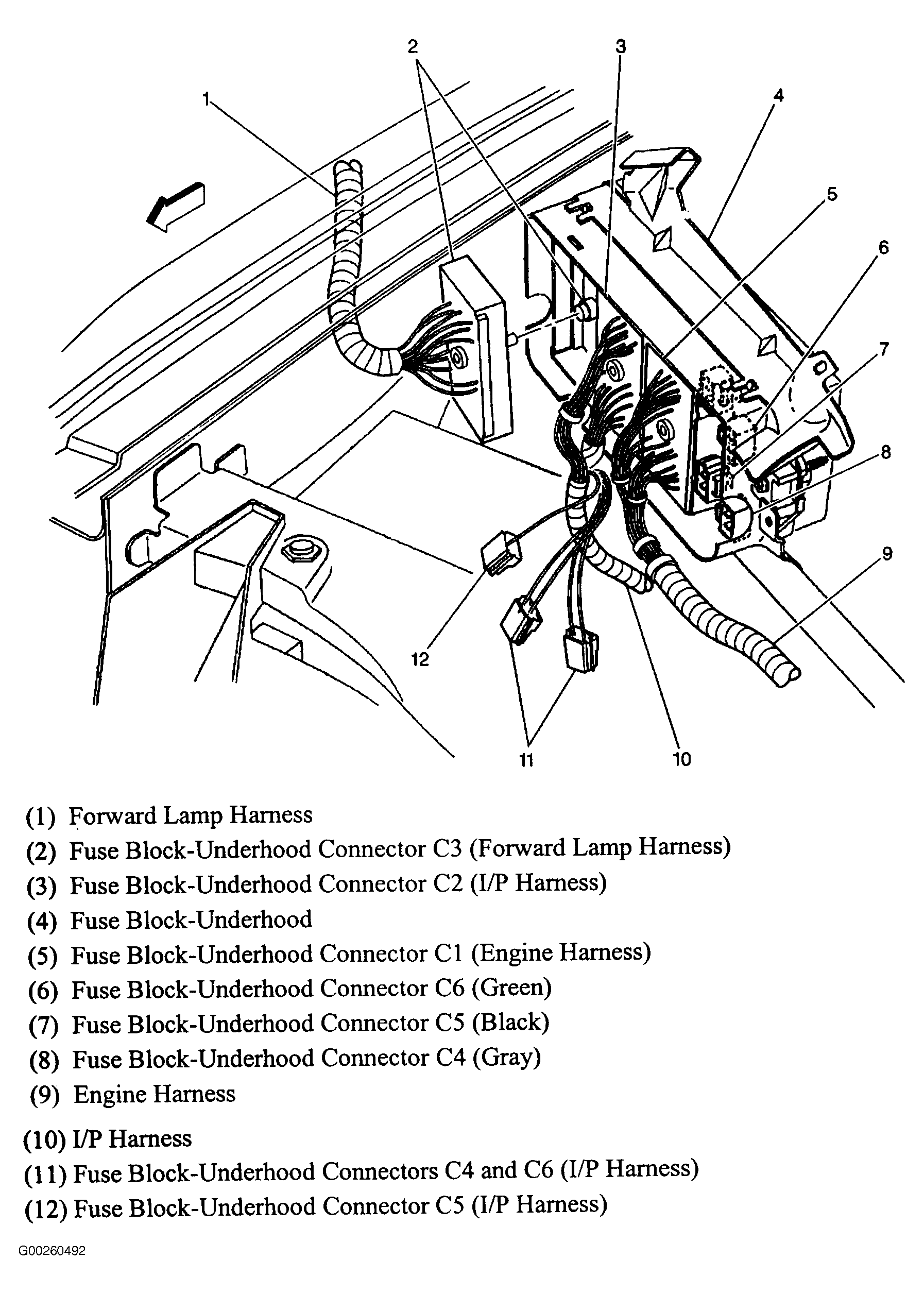

| Underhood Fuse Block Connector C1 (Engine Harness) | On underhood fuse block. See Figure . |
| Underhood Fuse Block Connector C2 (I/P Harness) | On underhood fuse block. See Figure . |
| Underhood Fuse Block Connector C3 (Forward Lamp Harness) | On underhood fuse block. See Figure . |
| Underhood Fuse Block Connector C4 (Gray) | On underhood fuse block. See Figure . |
| Underhood Fuse Block Connector C5 (Black) | On underhood fuse block. See Figure . |
| Underhood Fuse Block Connector C5 (I/P Harness) | Near underhood fuse block. See Figure . |
| Underhood Fuse Block Connector C6 (Green) | On underhood fuse block. See Figure . |
| Underhood Fuse Block Connectors C4 And C6 (I/P Harness) | Near underhood fuse block. See Figure . |
