Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

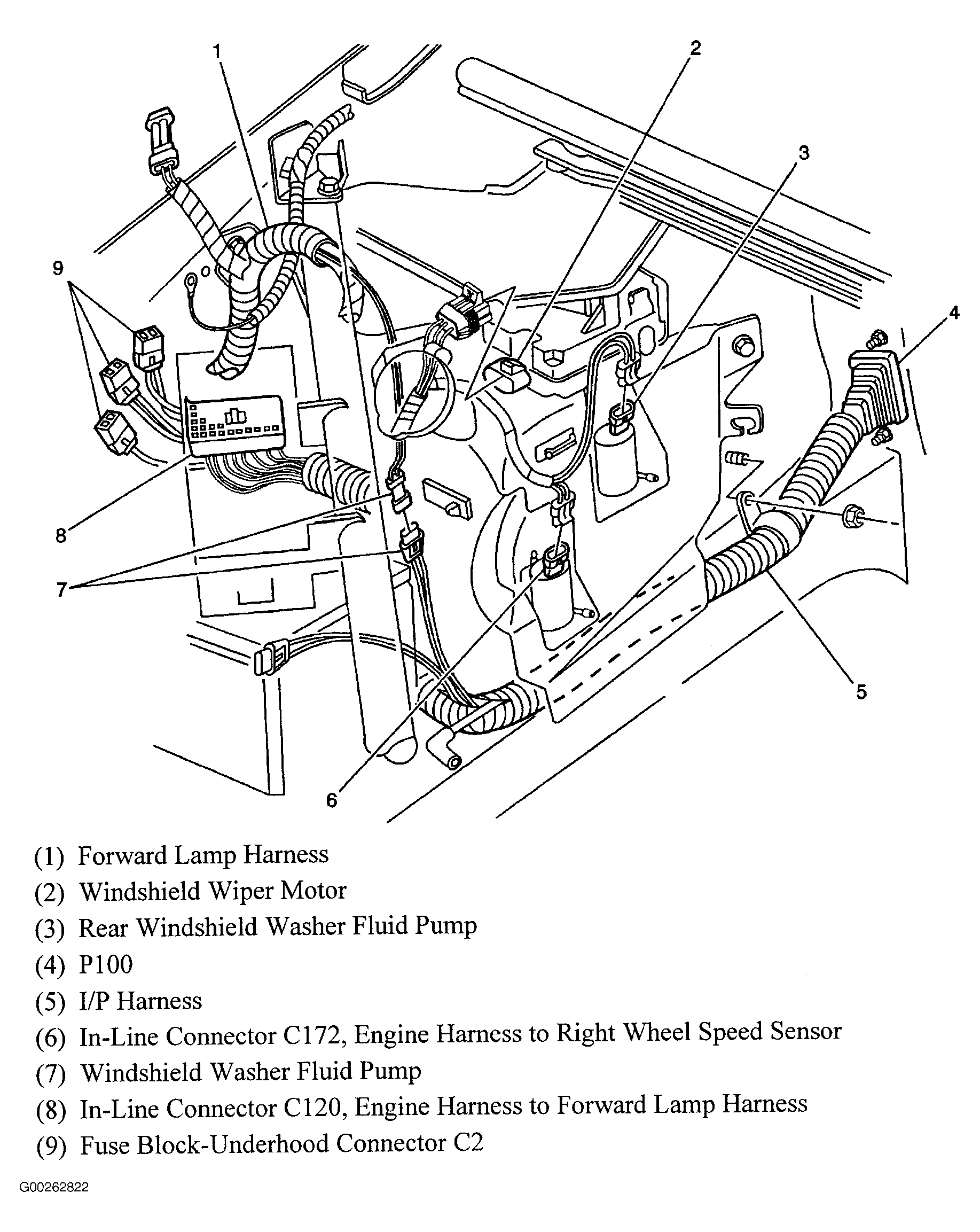

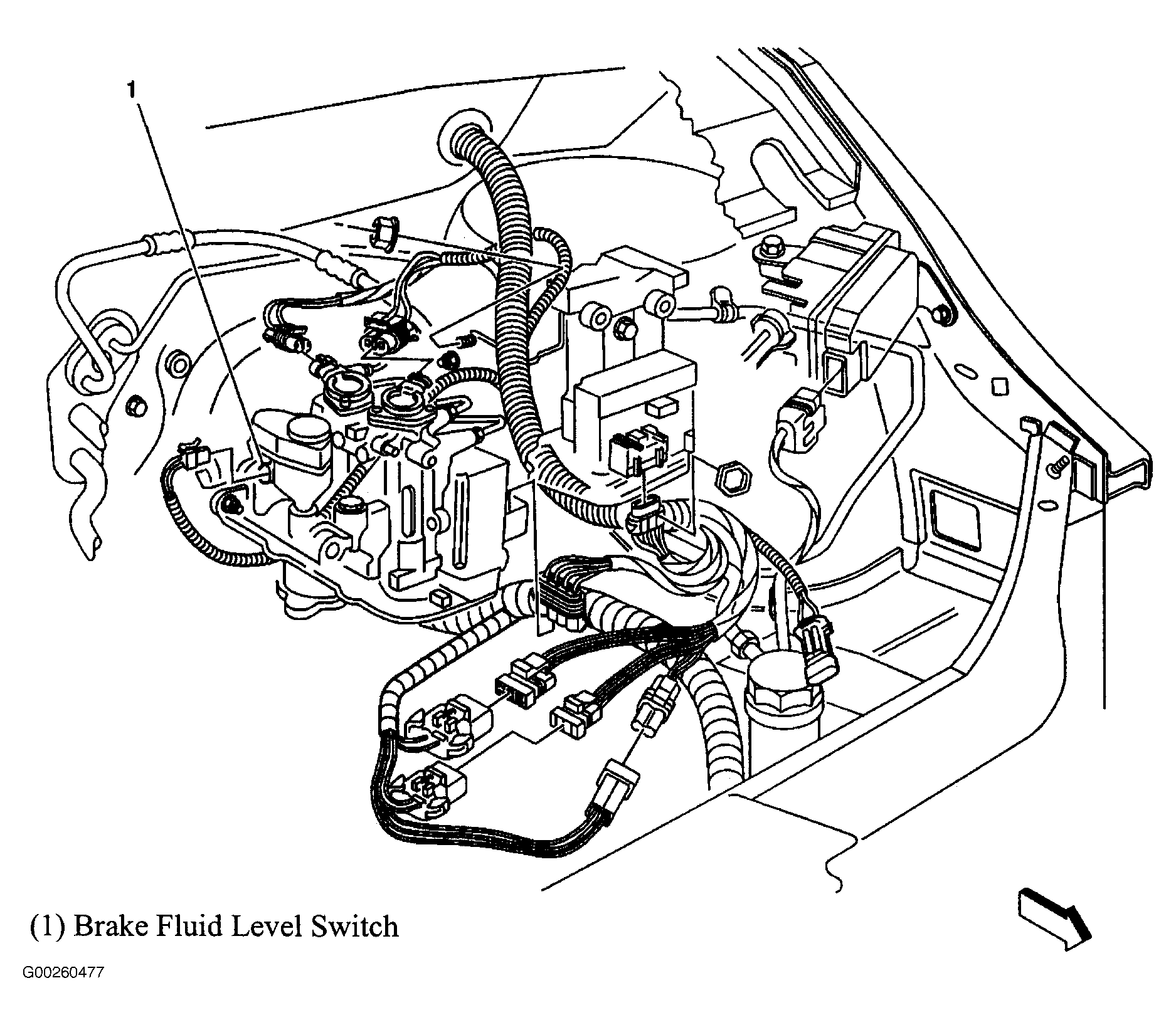

Fig 1: Upper Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

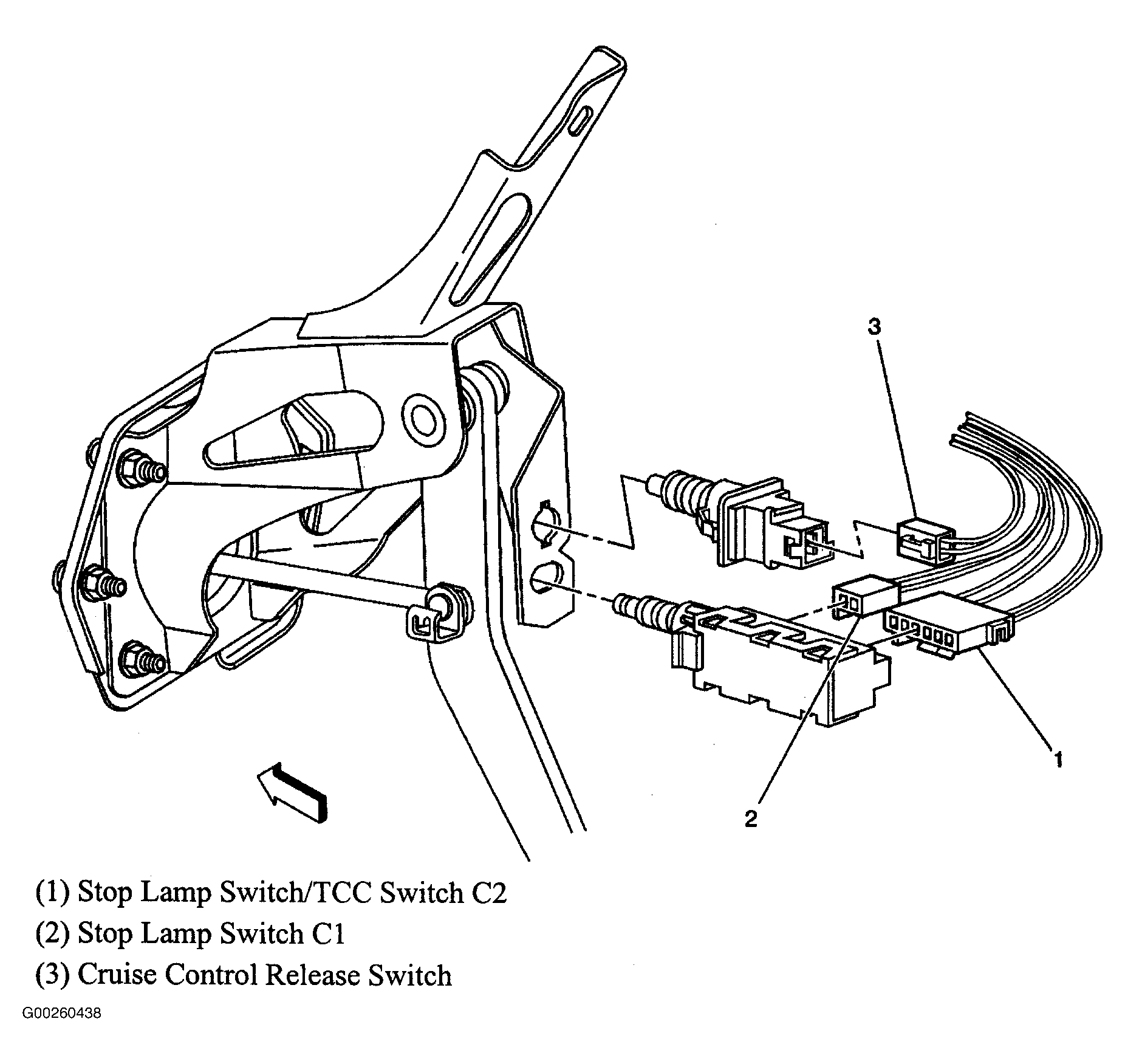

Fig 2: Brake Pedal Bracket
Courtesy of GENERAL MOTORS CORP.
Fig 3: Rear Seat Controls
Courtesy of GENERAL MOTORS CORP.
Fig 4: Top Of Dash
Courtesy of GENERAL MOTORS CORP.

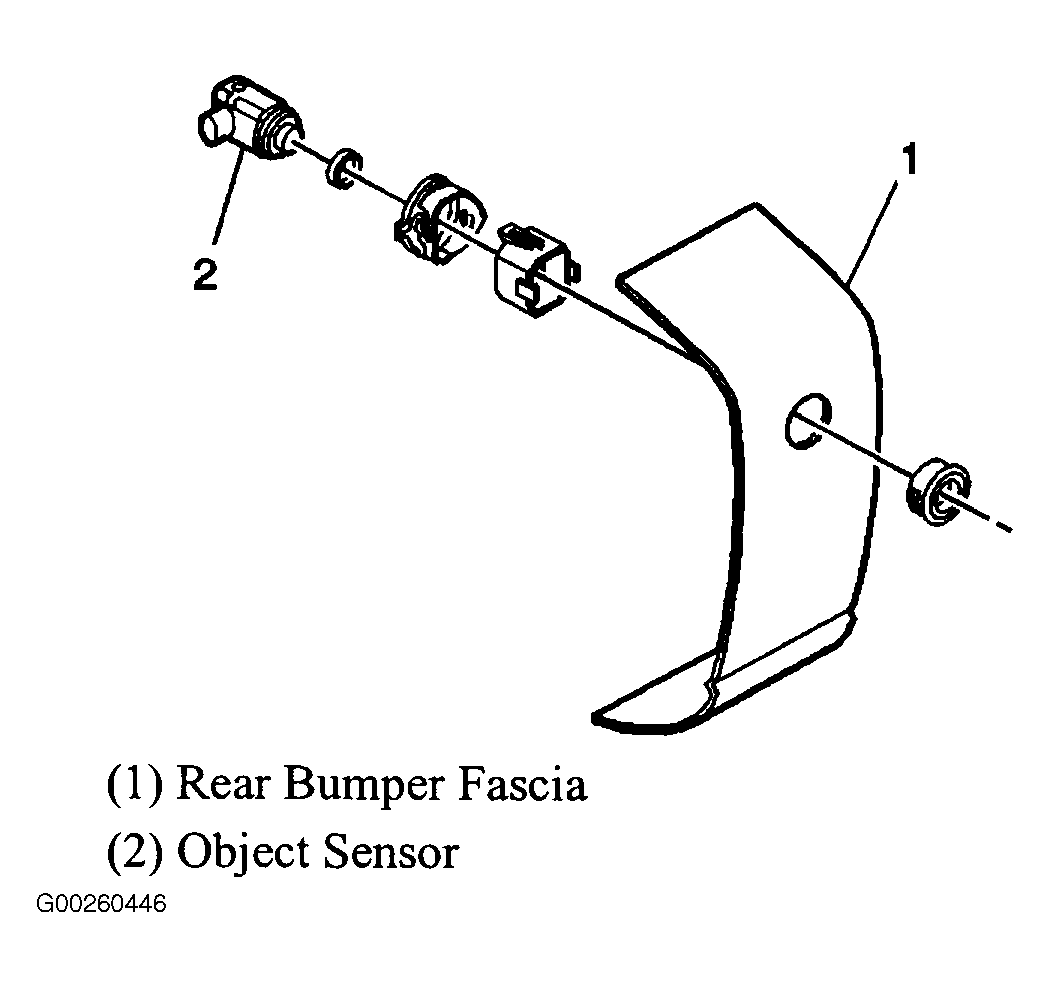

Fig 5: Rear Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 6: Front Of Right Rear Wheelwell
Courtesy of GENERAL MOTORS CORP.

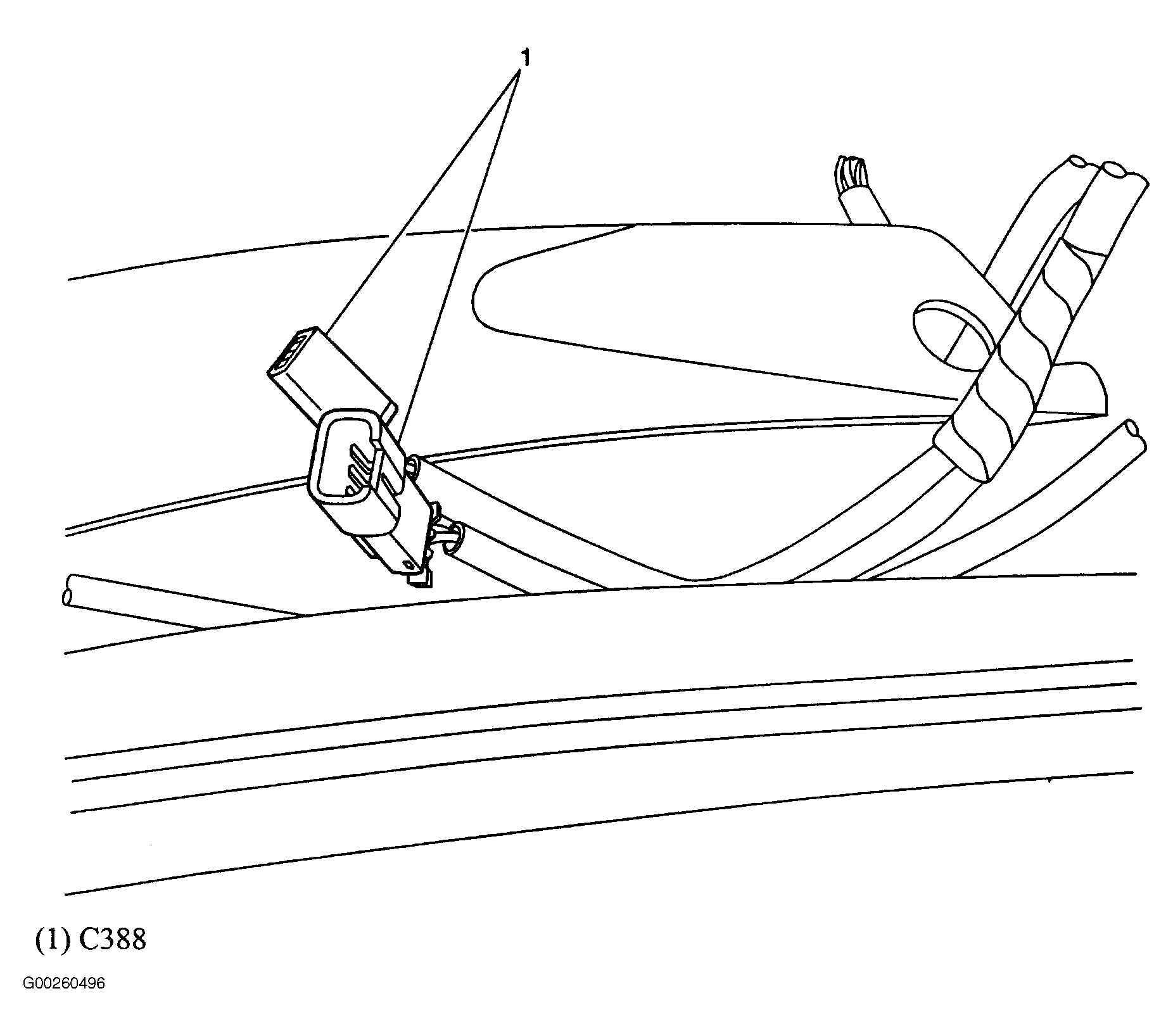

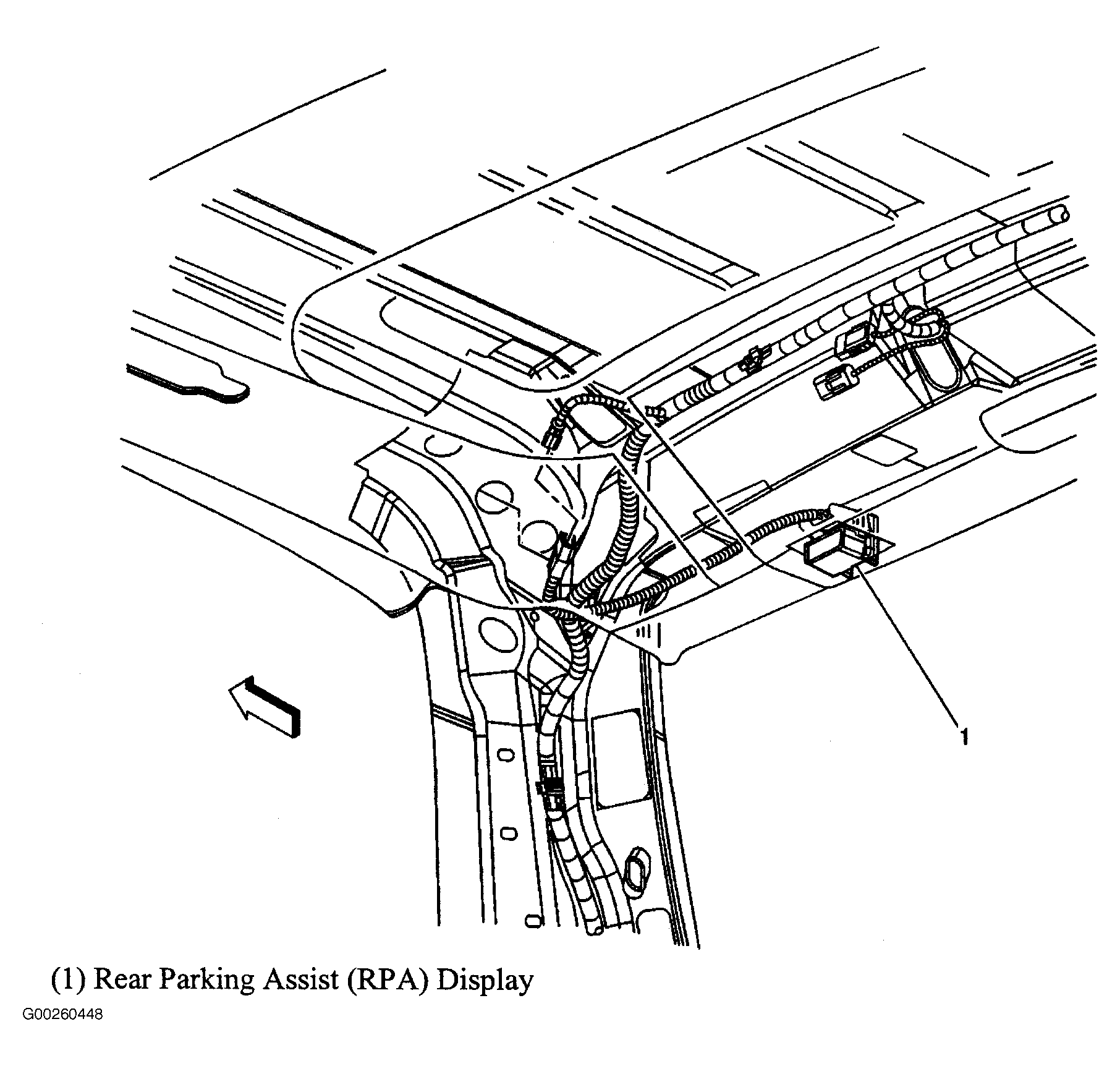

Fig 7: Rear Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.

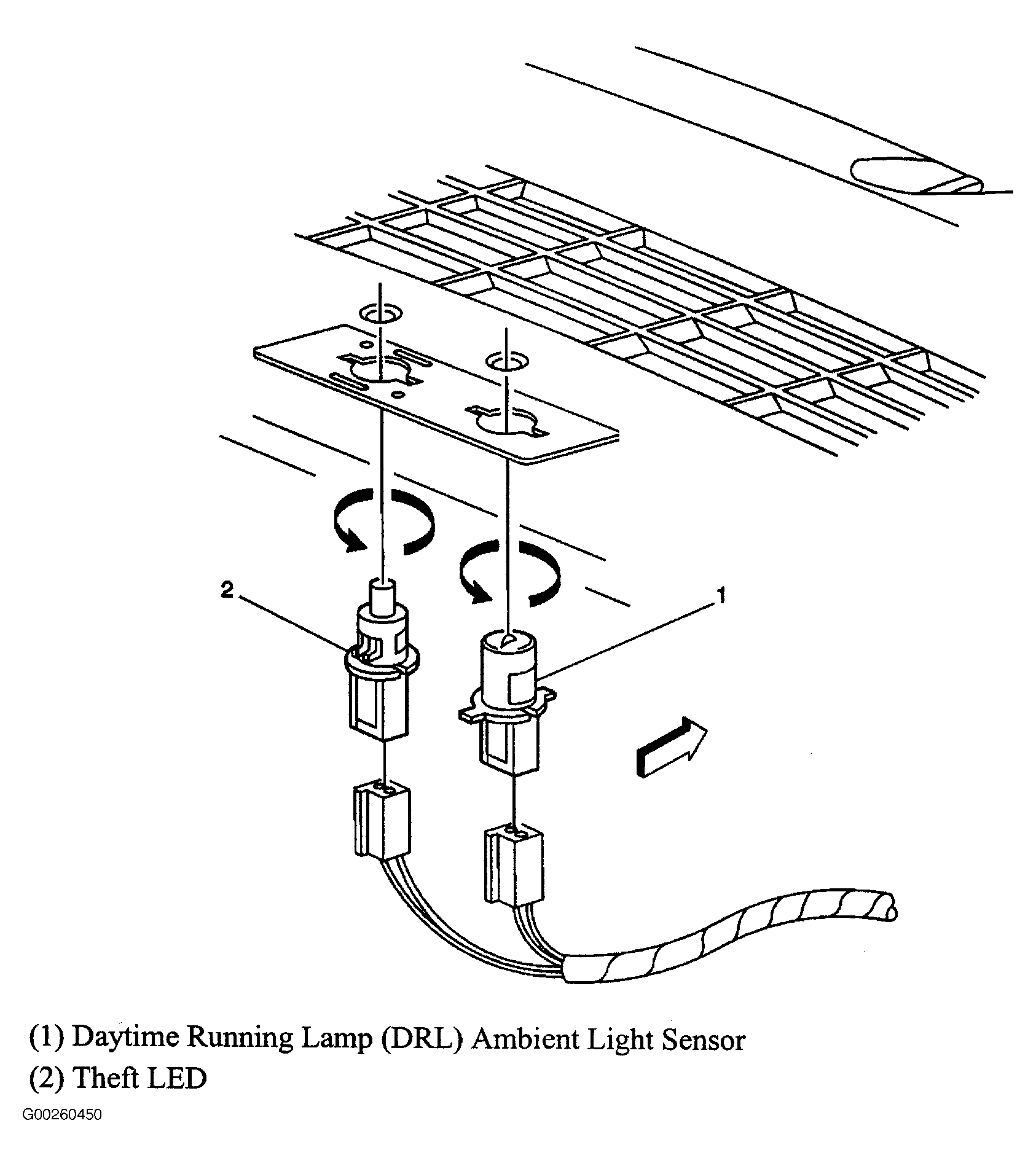

Fig 9: Top Center Of Dash
Courtesy of GENERAL MOTORS CORP.

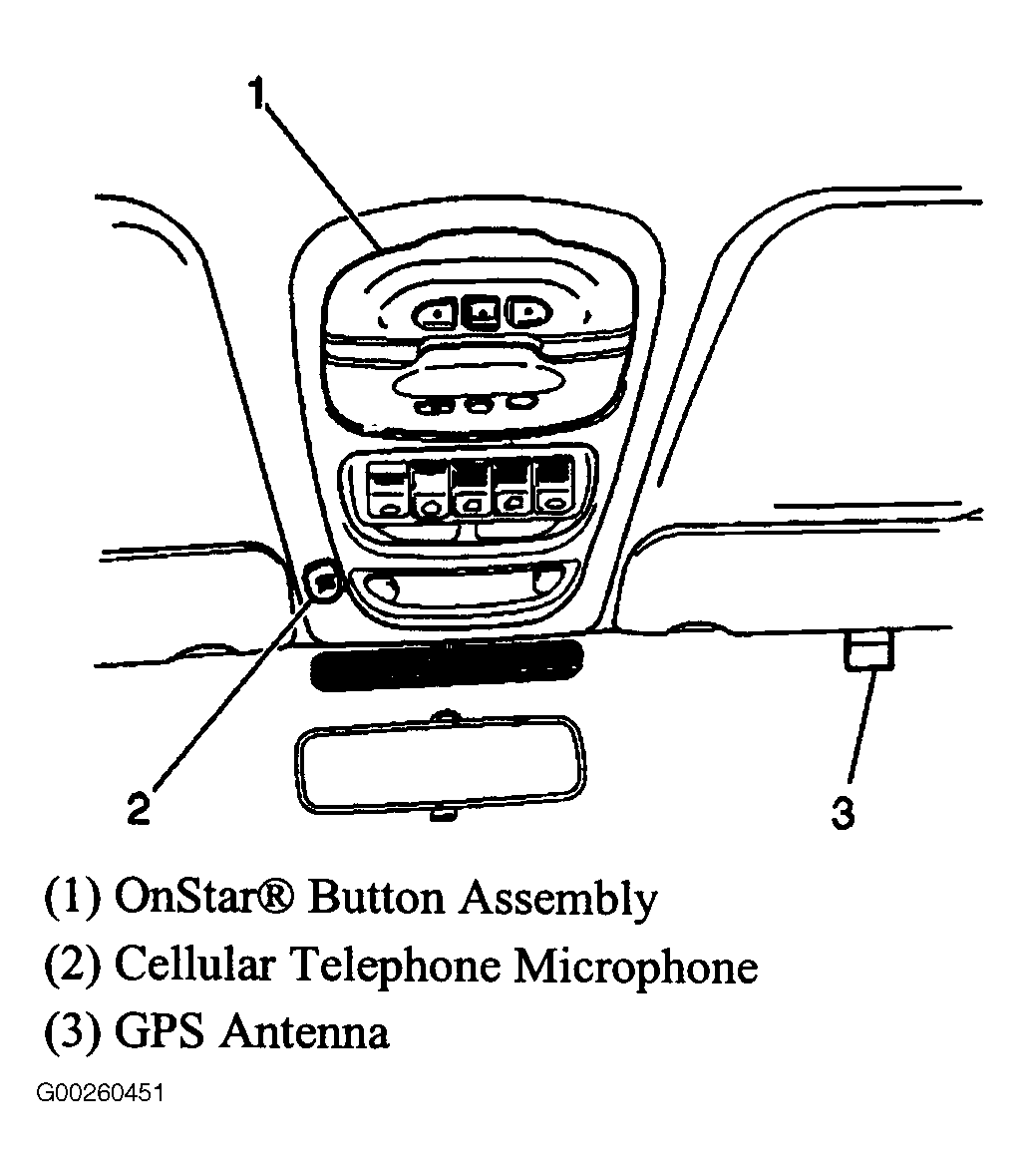

Fig 10: Overhead Console
Courtesy of GENERAL MOTORS CORP.

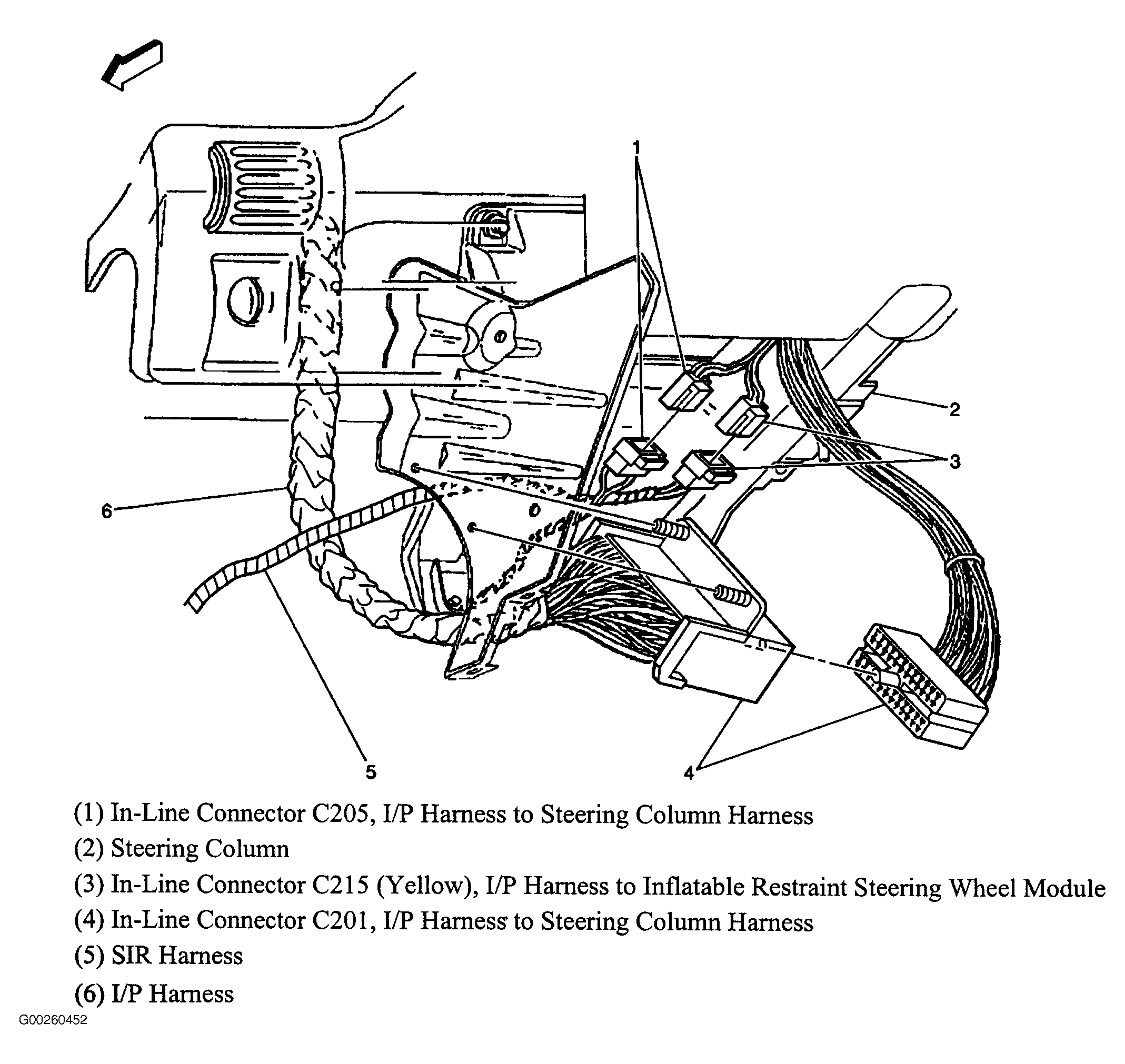

Fig 11: Base Of Steering Column
Courtesy of GENERAL MOTORS CORP.

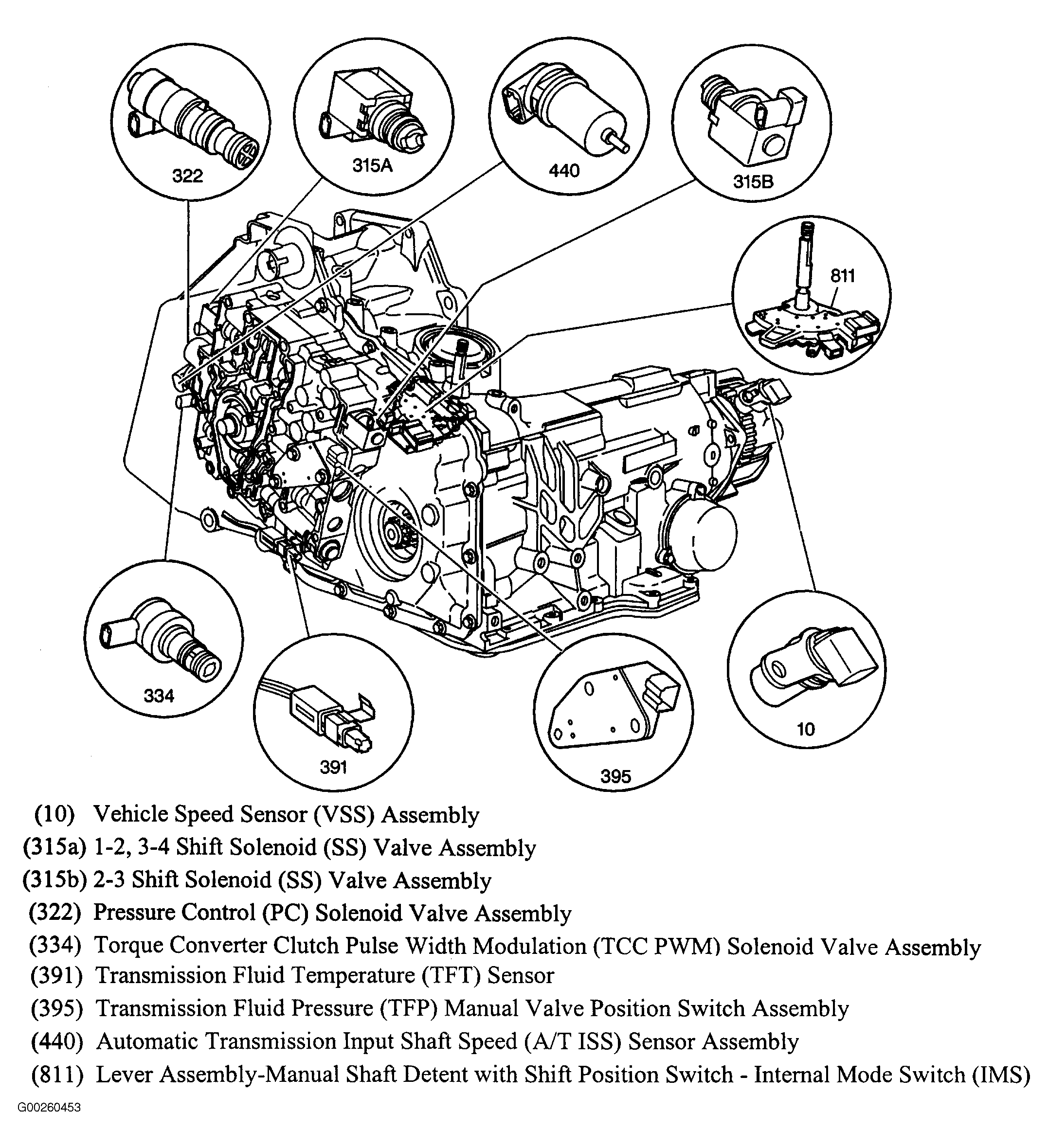

Fig 12: Transmission Components
Courtesy of GENERAL MOTORS CORP.

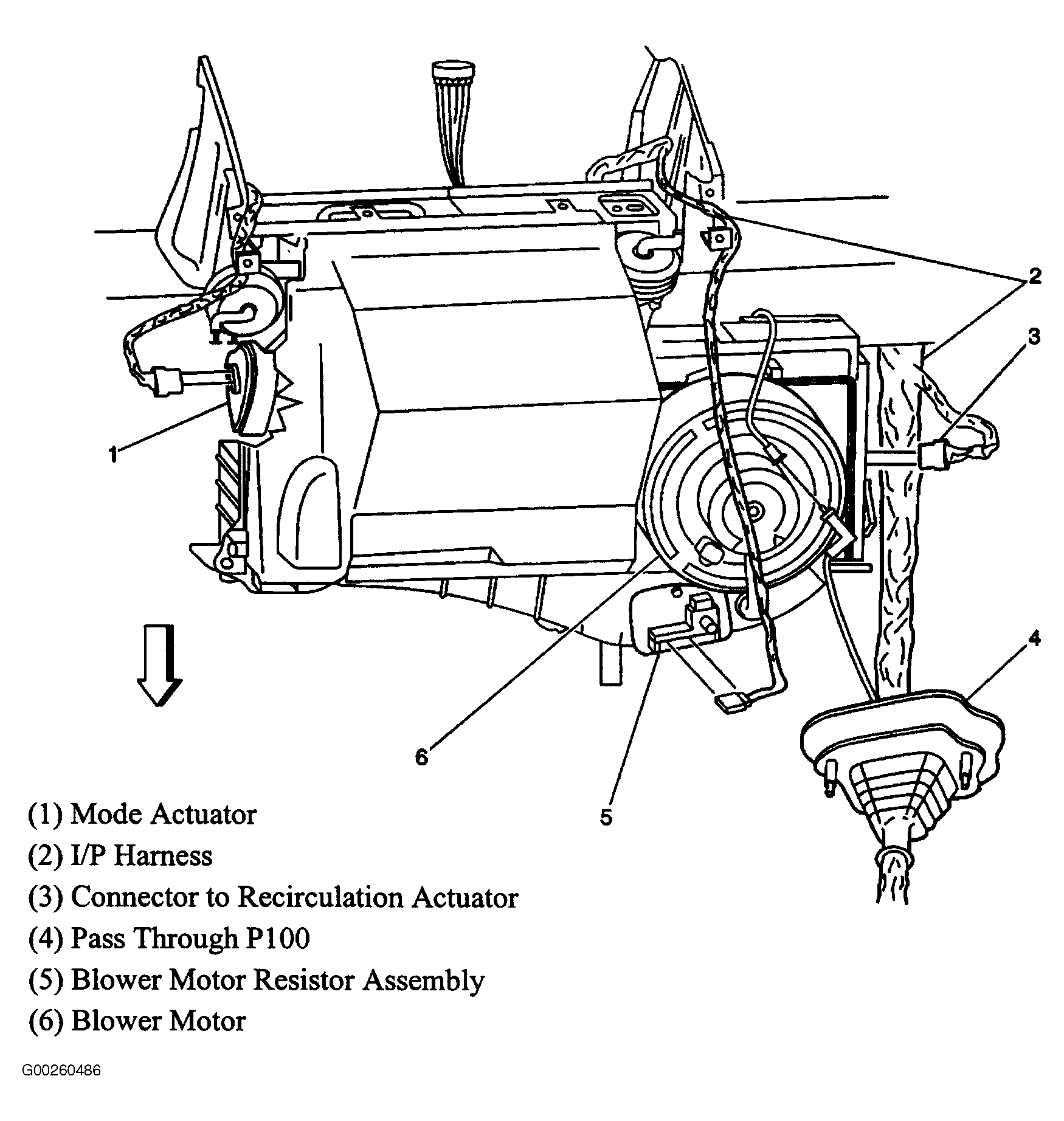

Fig 13: Below Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

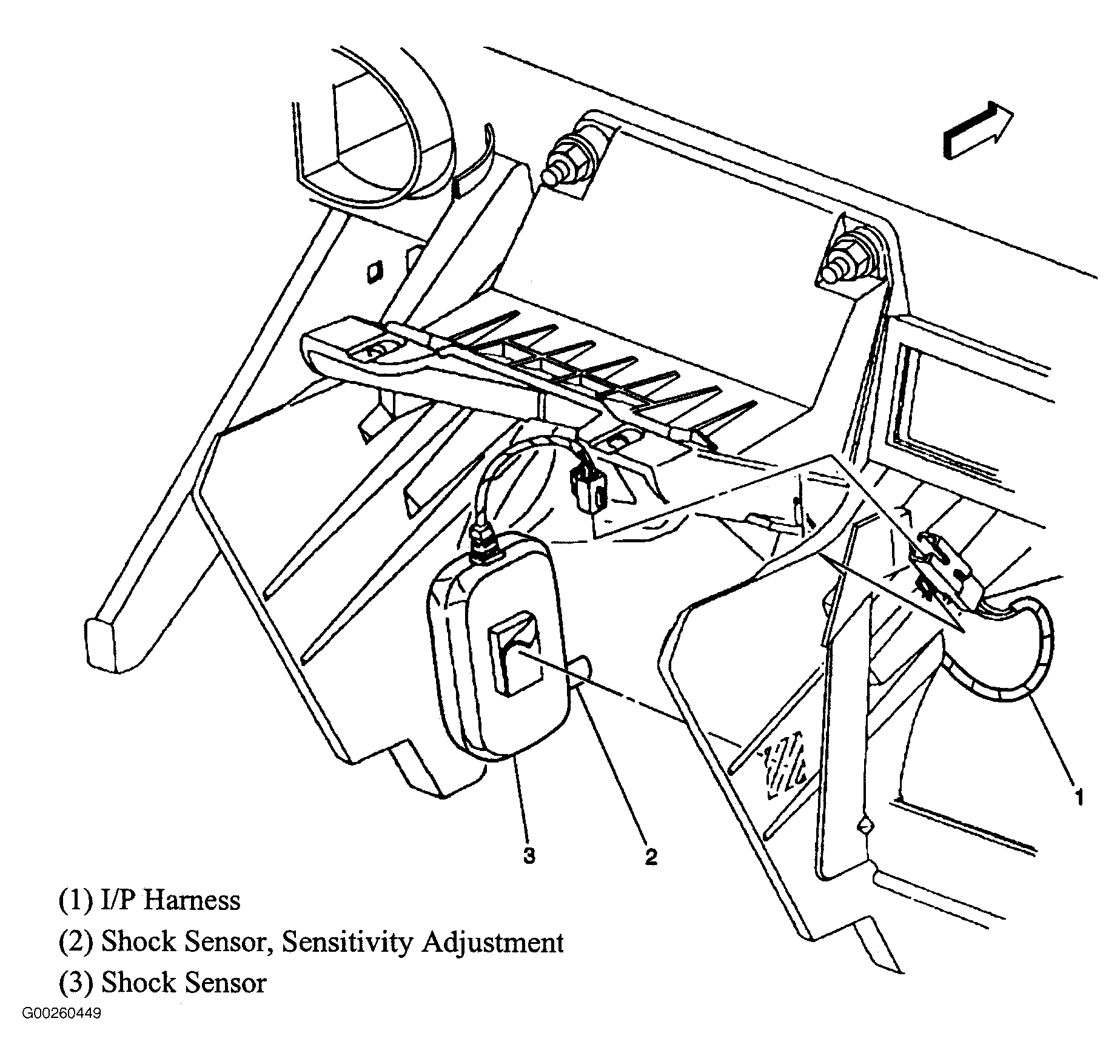

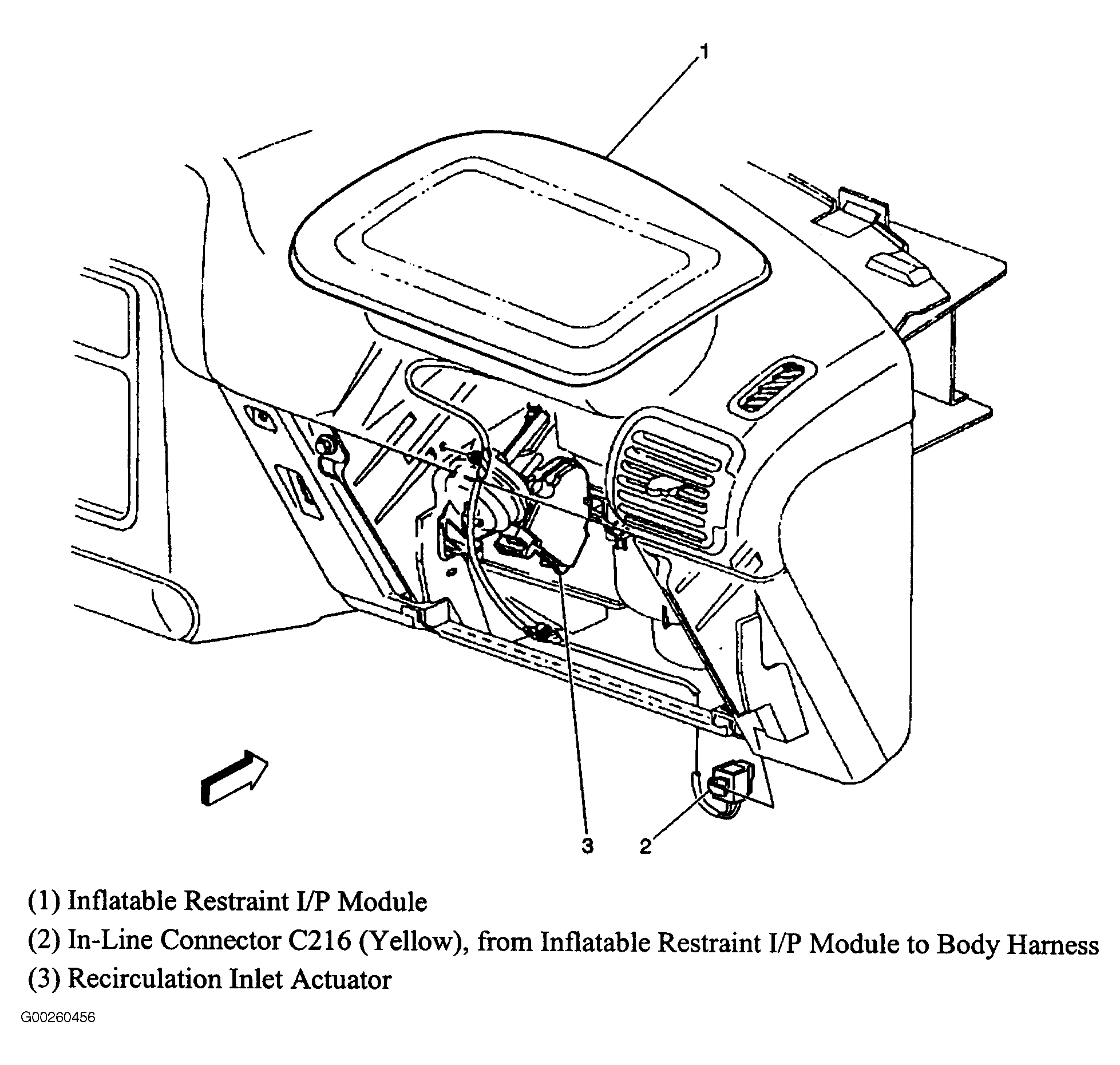

Fig 14: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Below Right Front Seat
Courtesy of GENERAL MOTORS CORP.

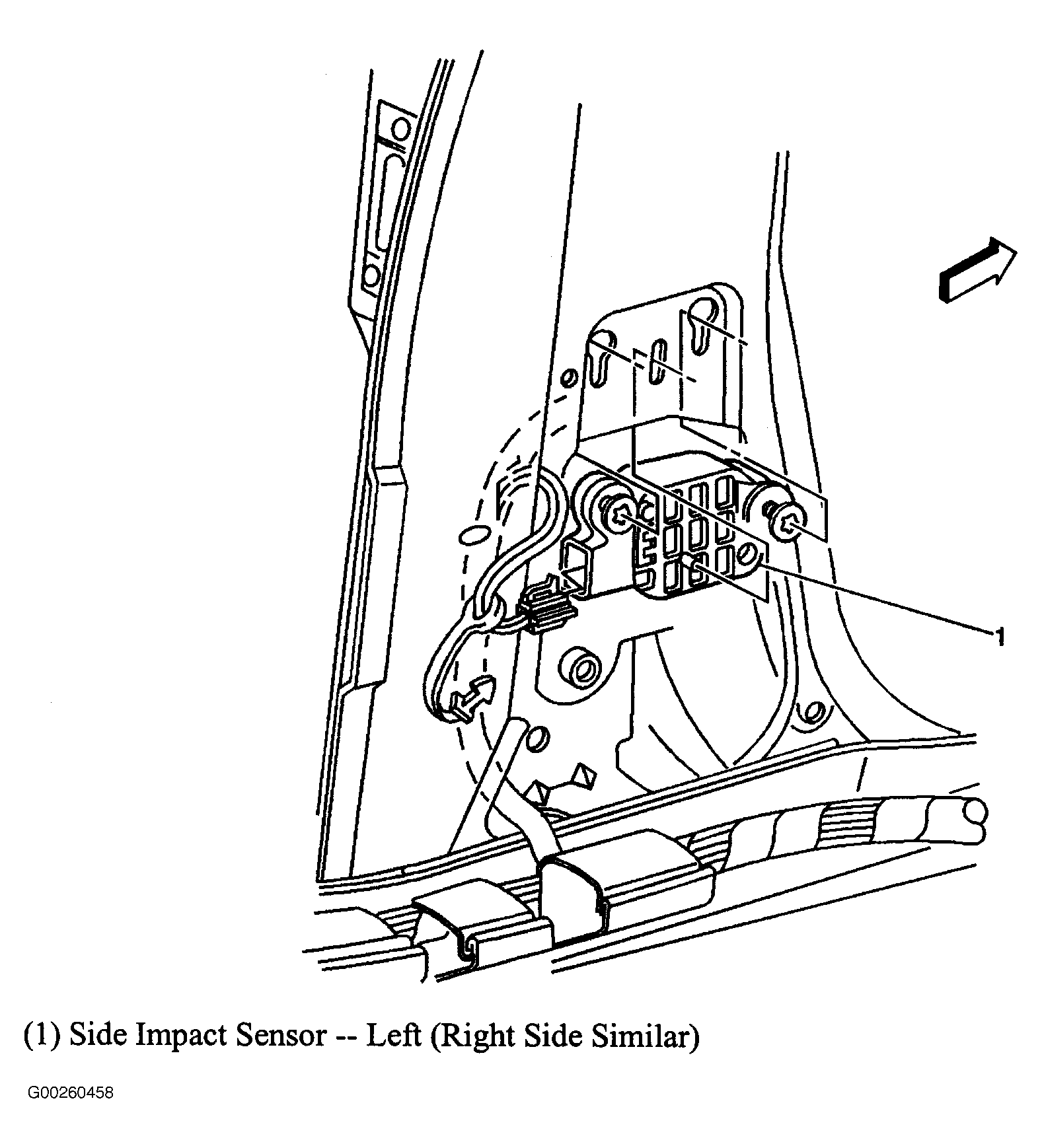

Fig 16: Lower Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

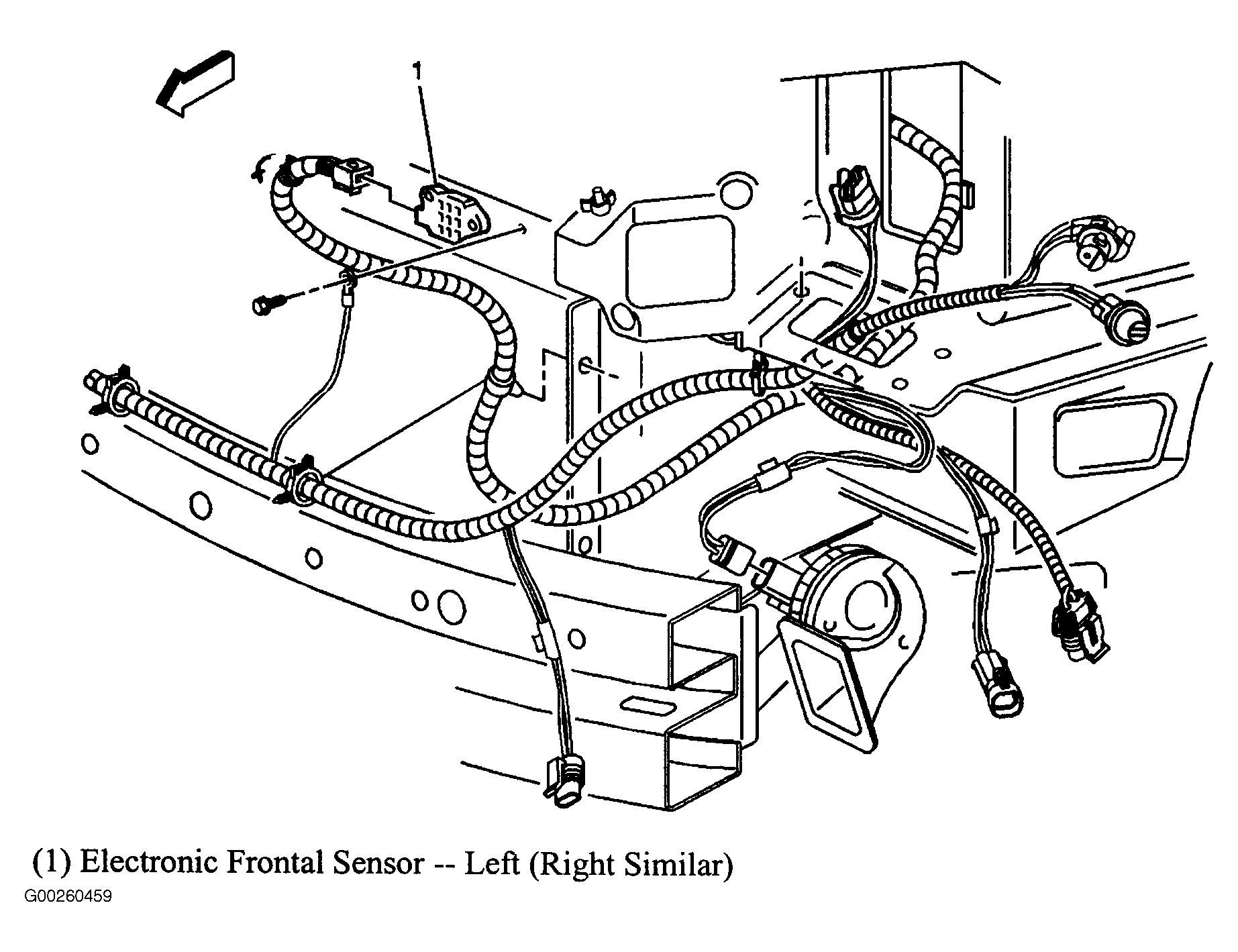

Fig 17: Left Front Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 18: Below Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 19: Below Right Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 20: Front Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

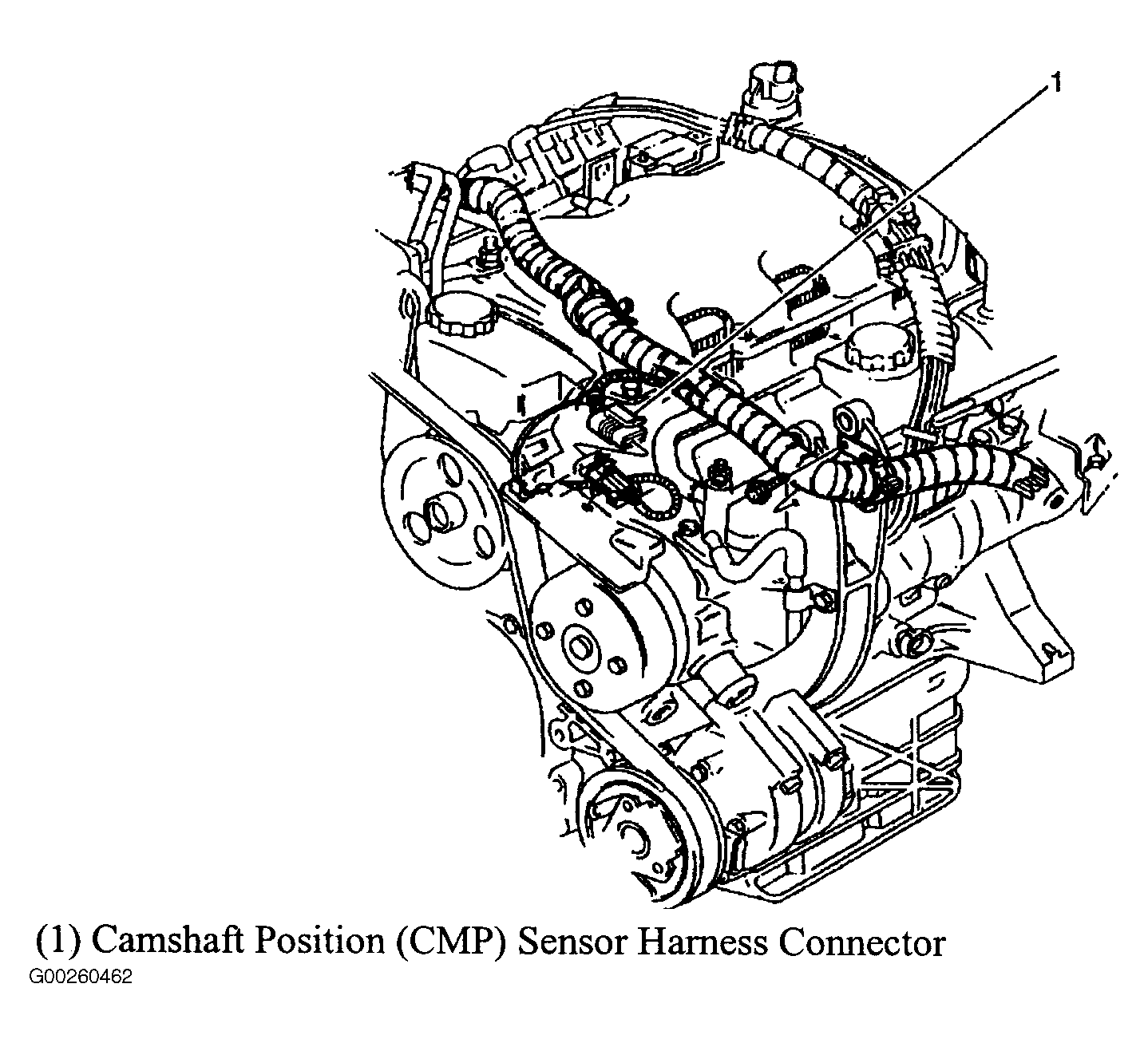

Fig 21: Front Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

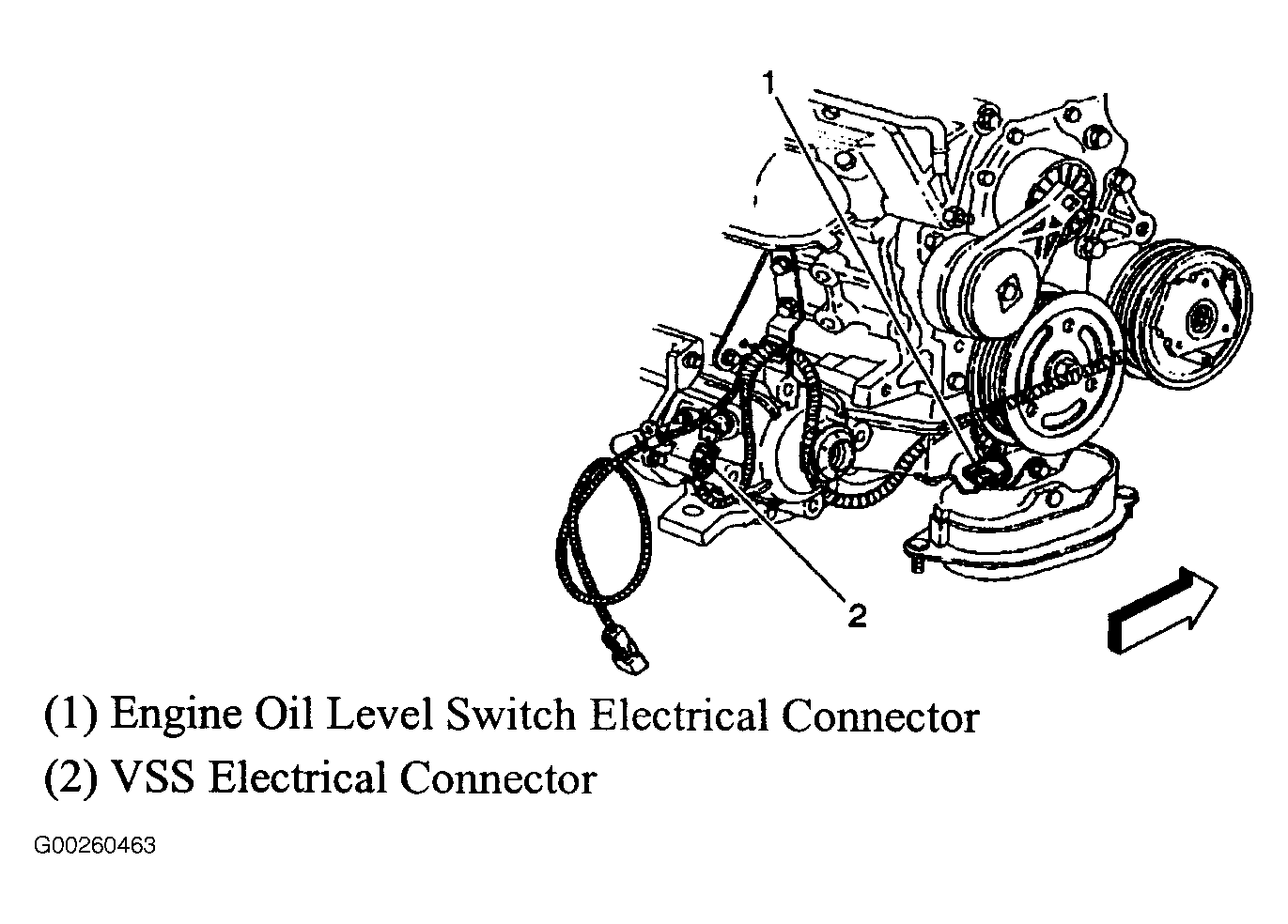

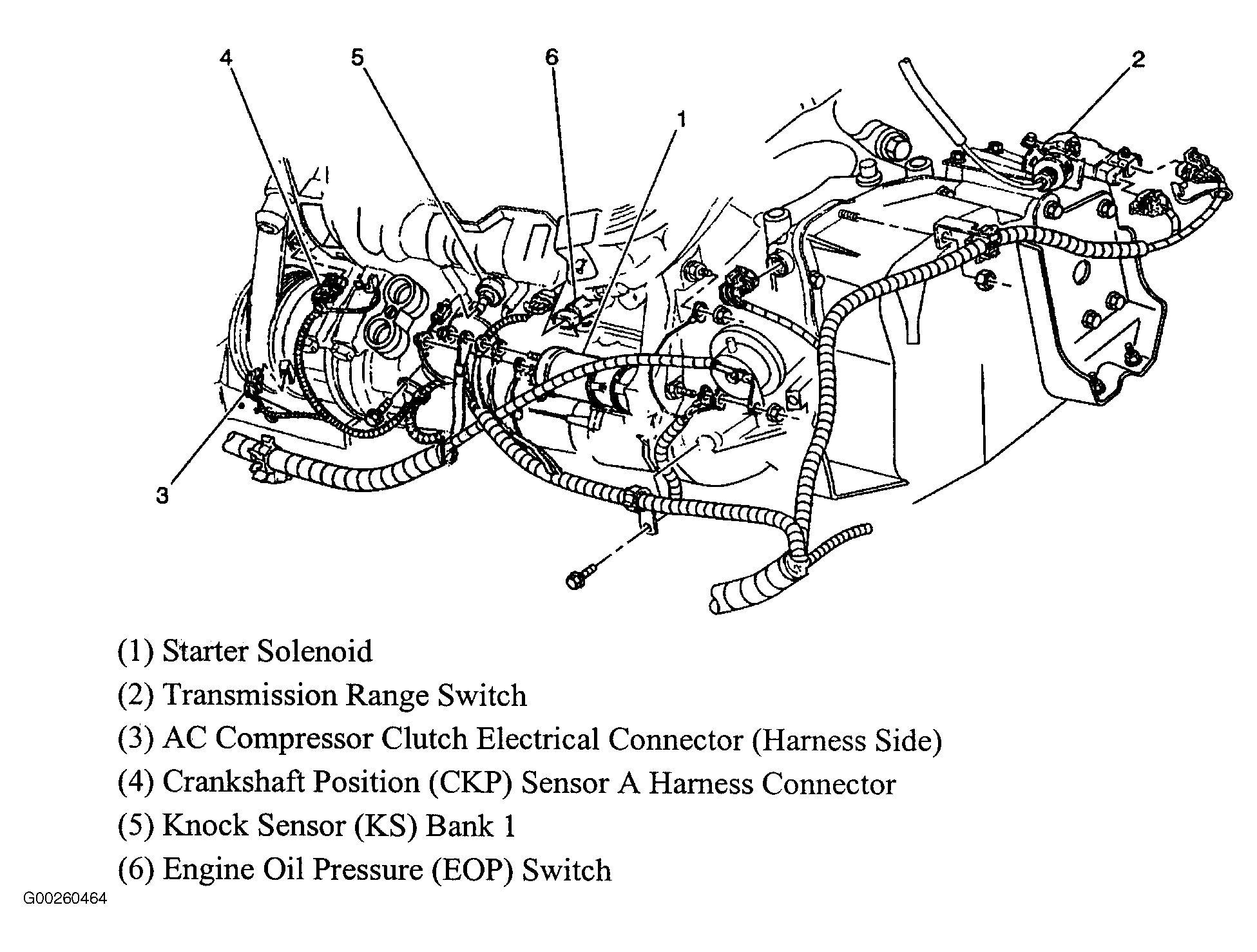

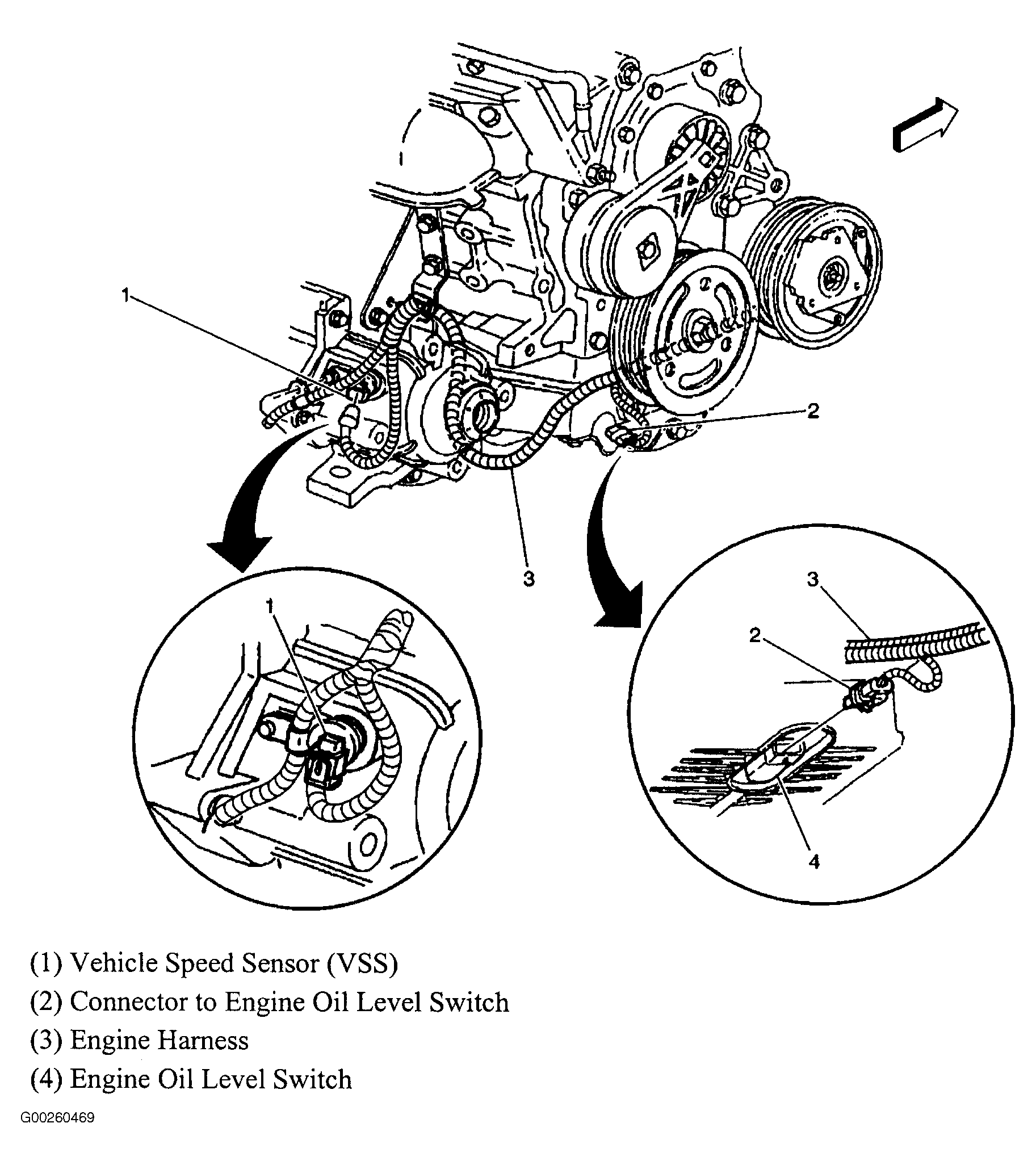

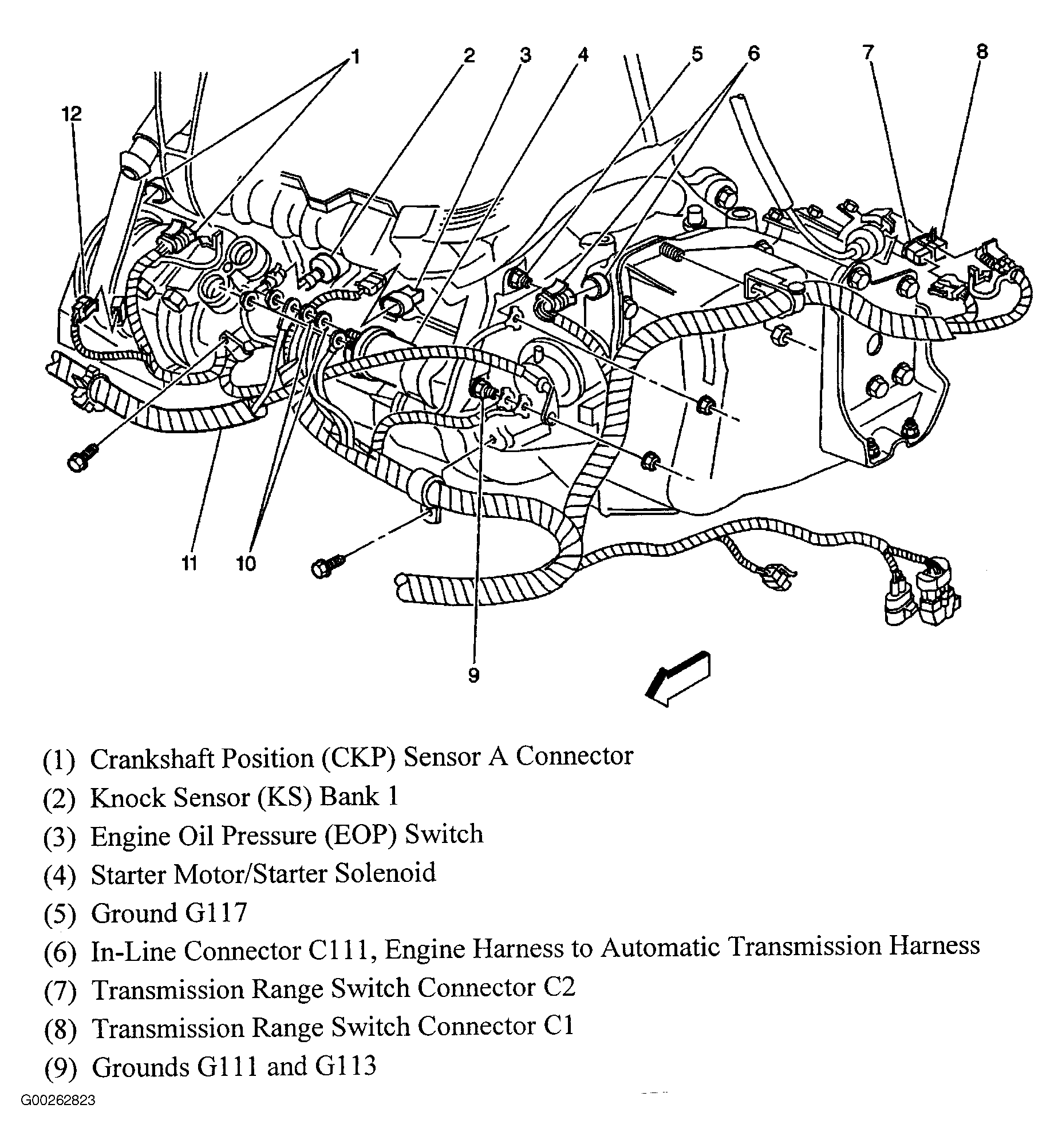

Fig 22: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

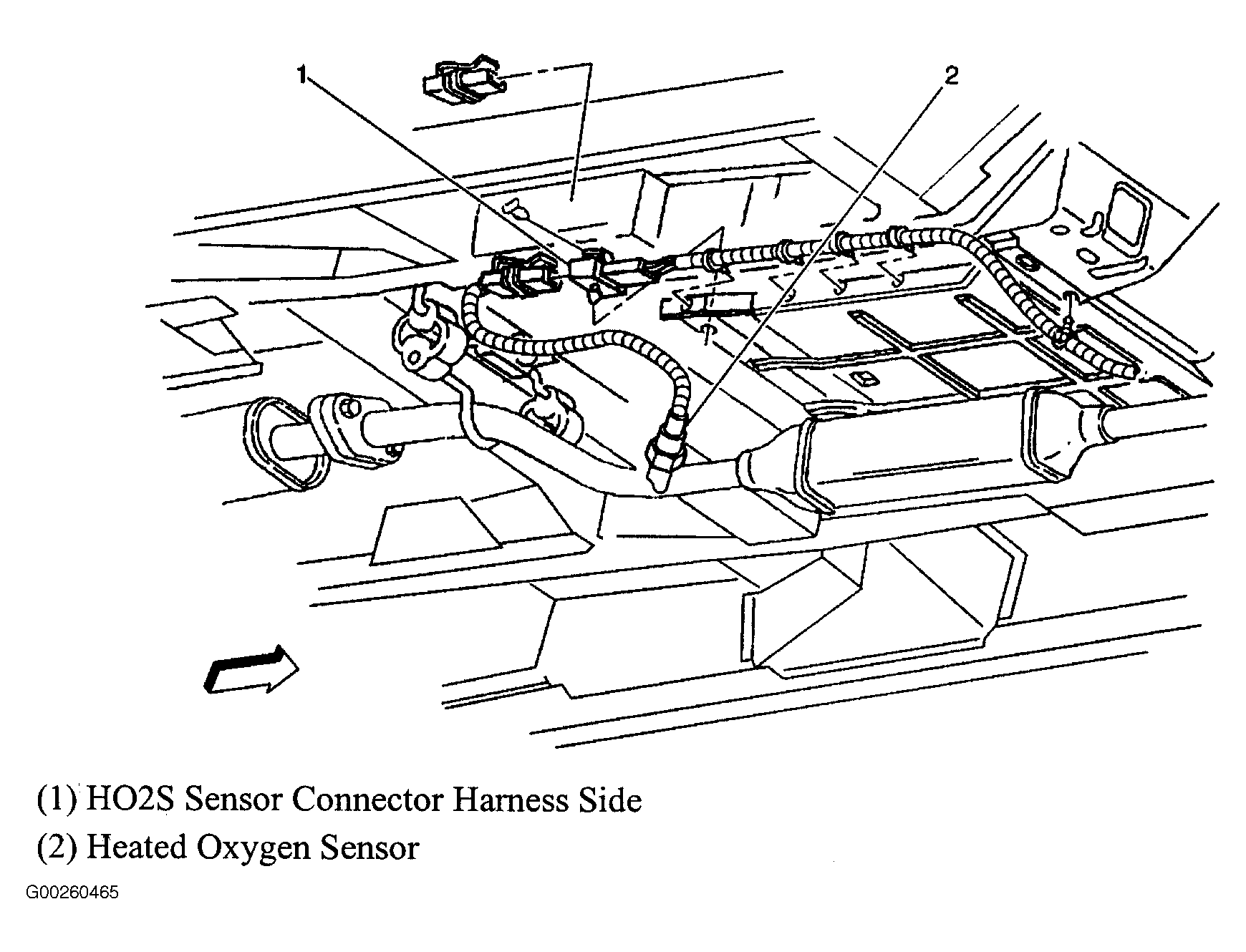

Fig 23: Heated Oxygen (HO2S) Sensor 2
Courtesy of GENERAL MOTORS CORP.
Fig 24: Powertrain Control Module
Courtesy of GENERAL MOTORS CORP.

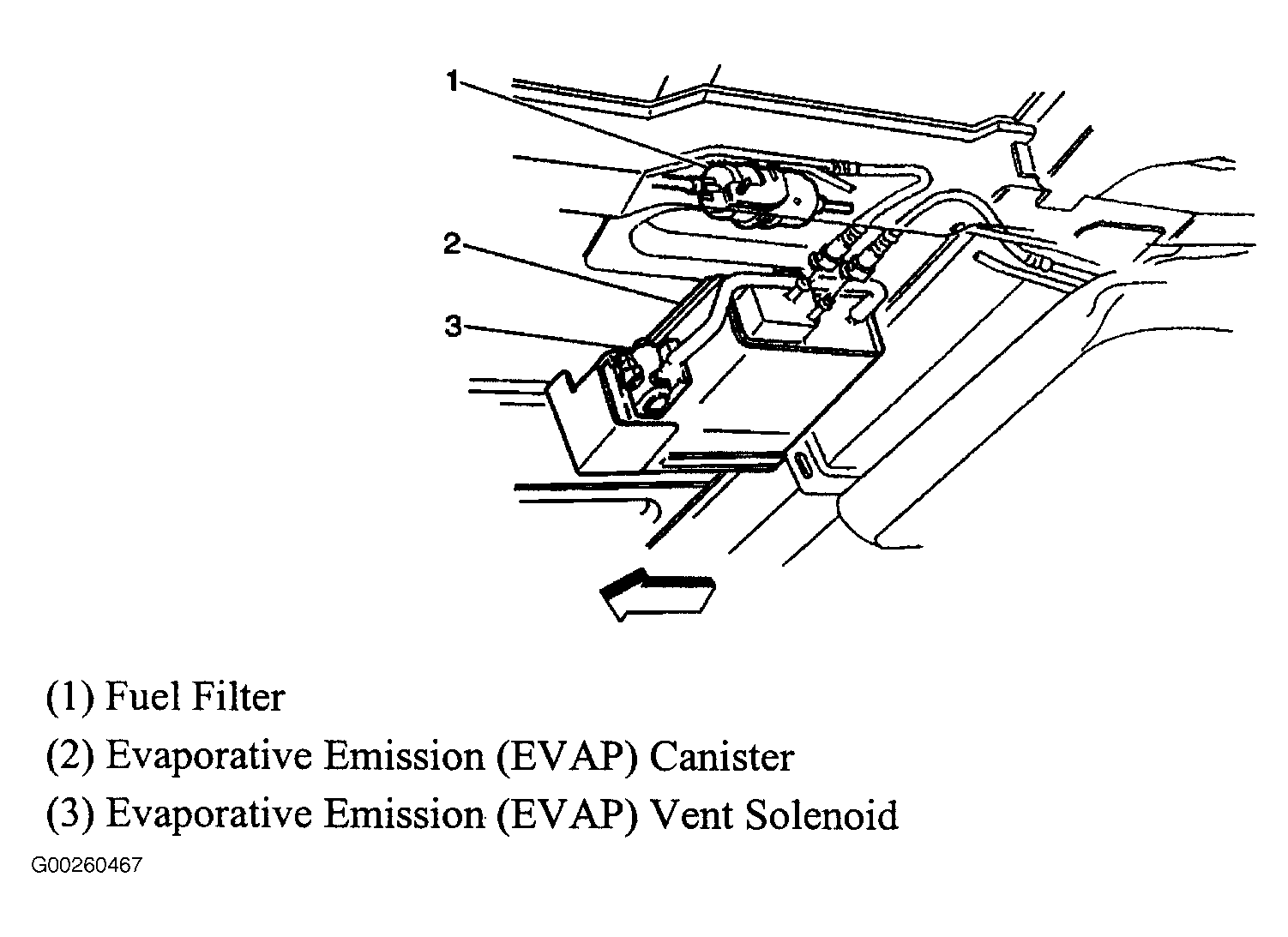

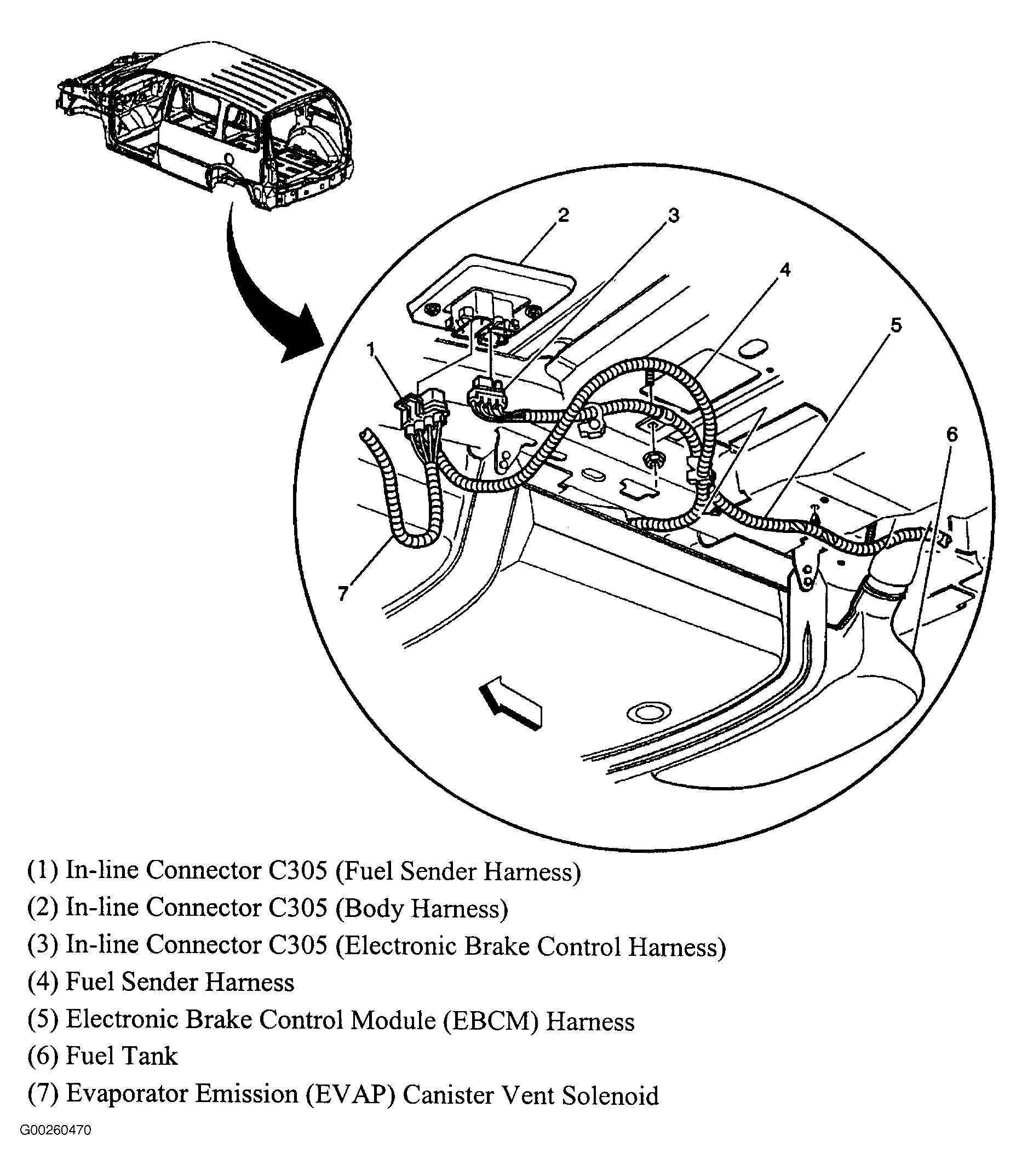

Fig 25: EVAP Canister & Vent Valve
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Below Vehicle, Behind Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 28: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 29: Top Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

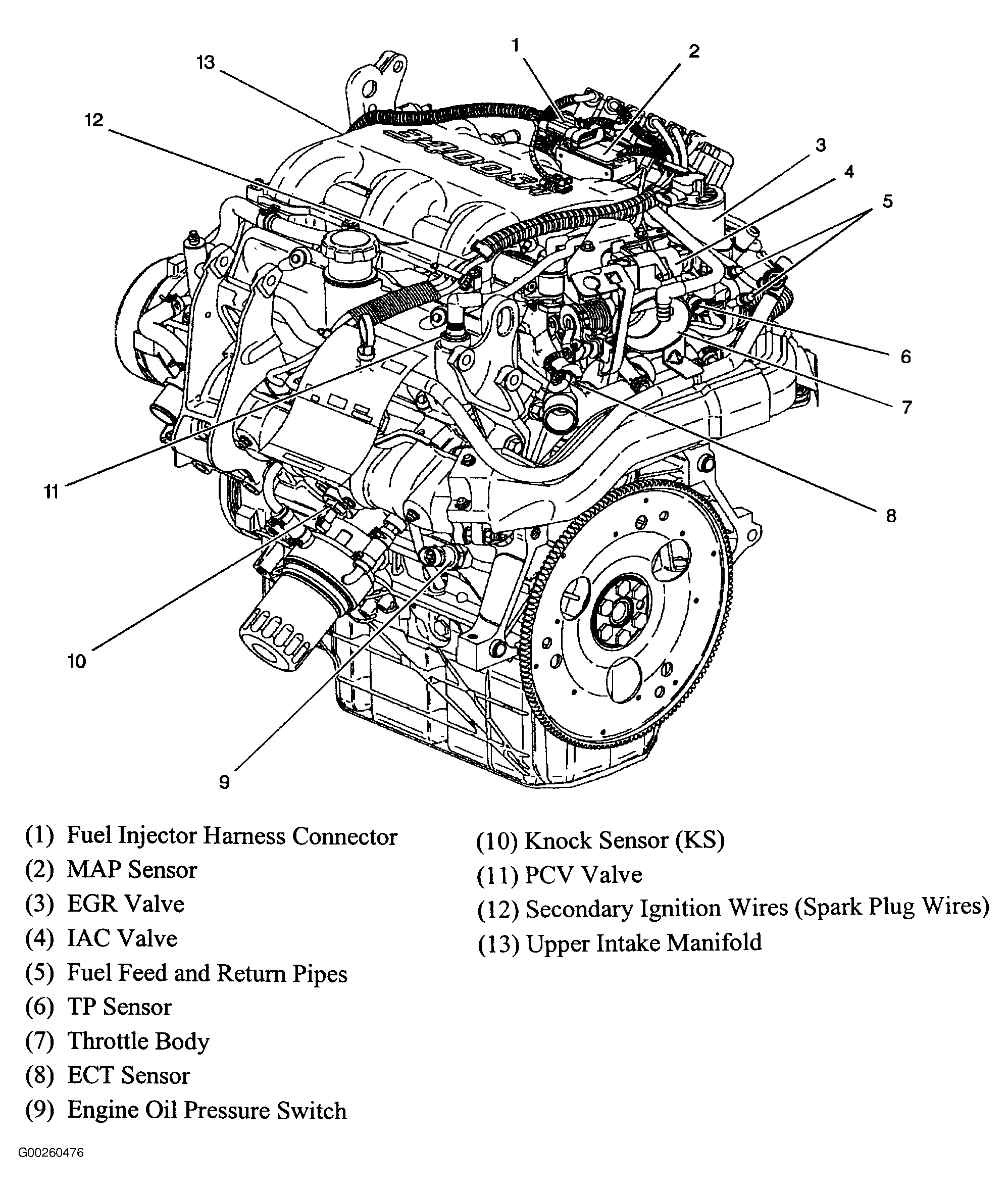

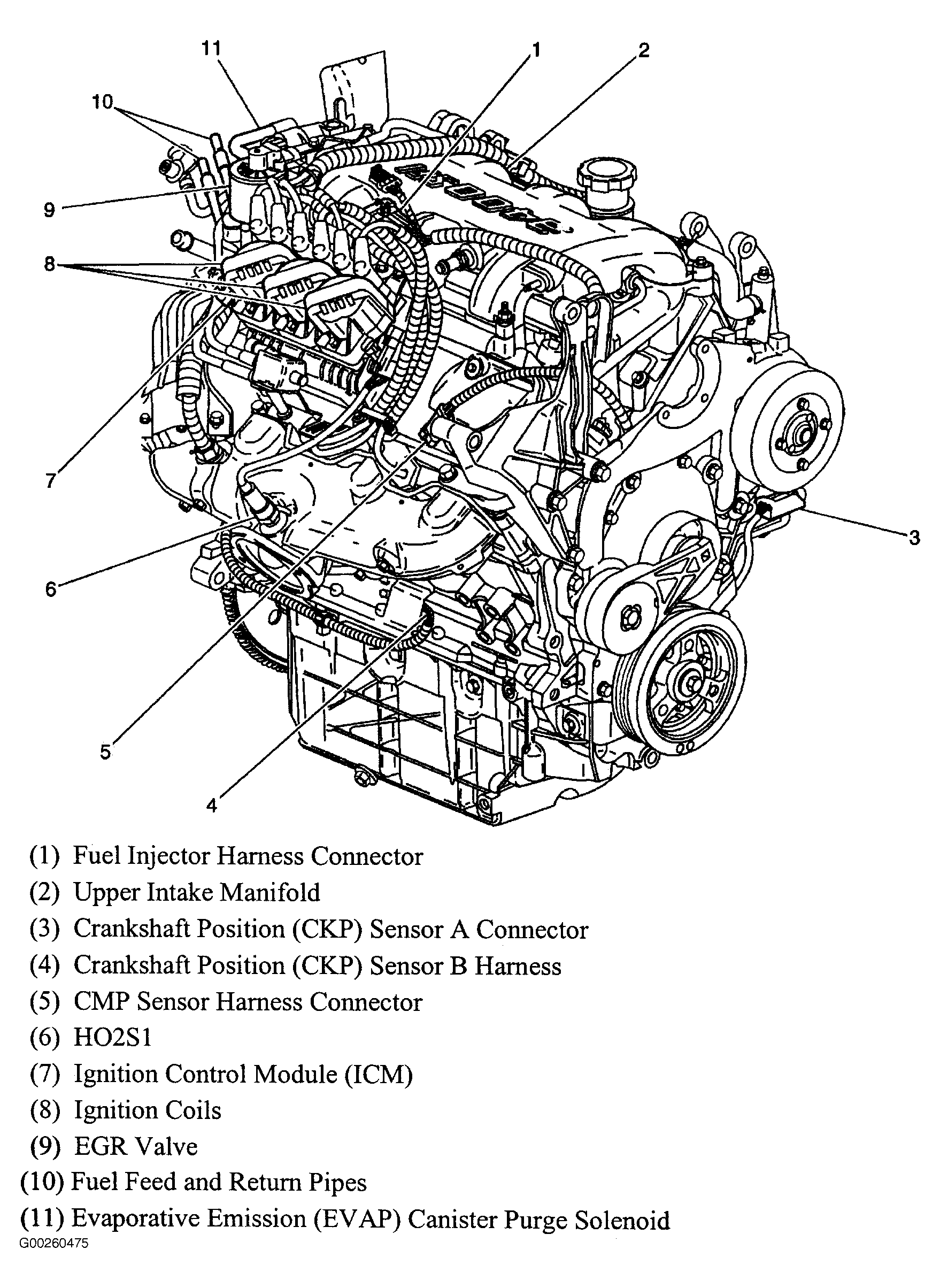

Fig 30: Engine Composite View (Right)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Engine Composite View (Left)
Courtesy of GENERAL MOTORS CORP.

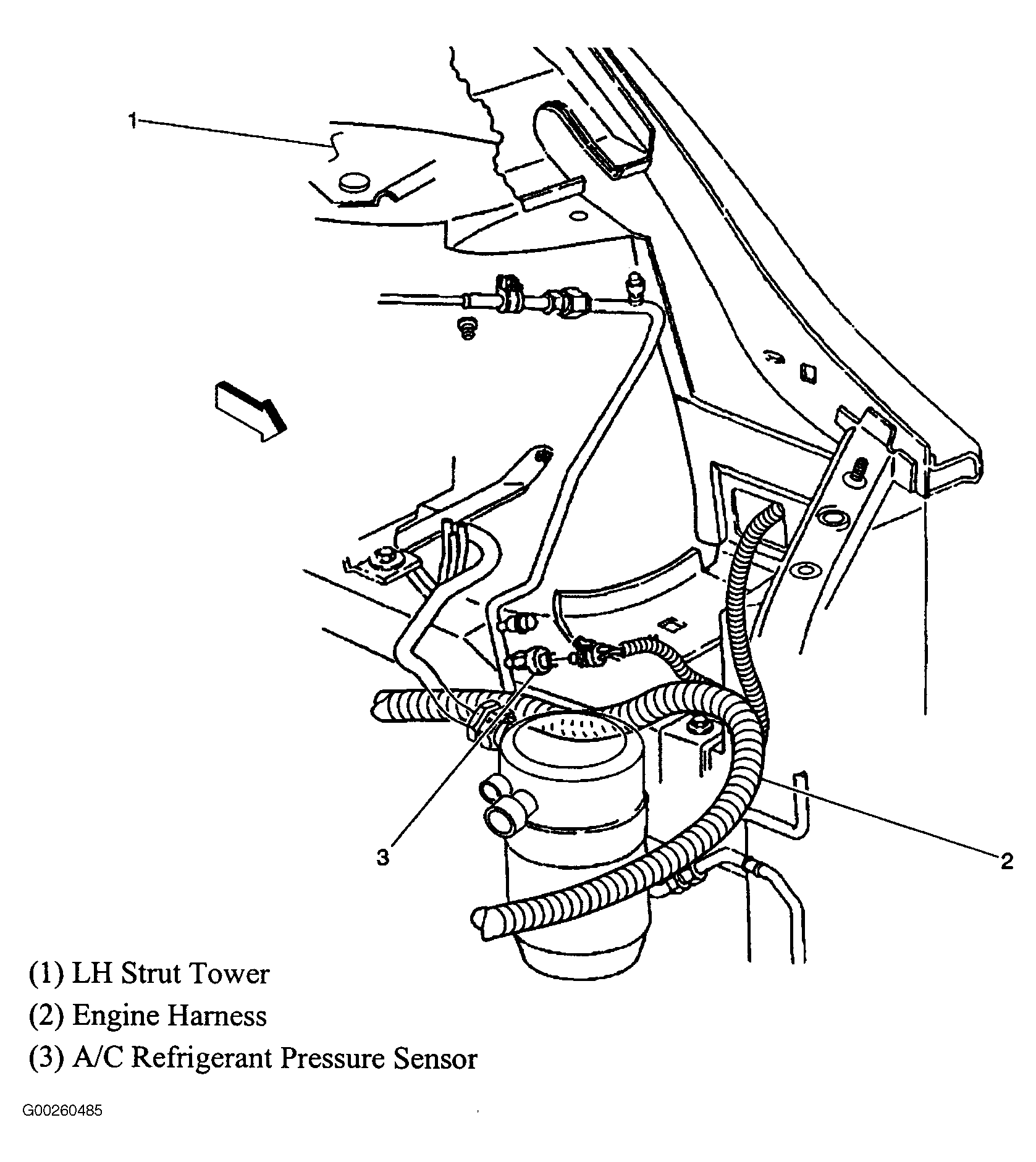

Fig 32: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

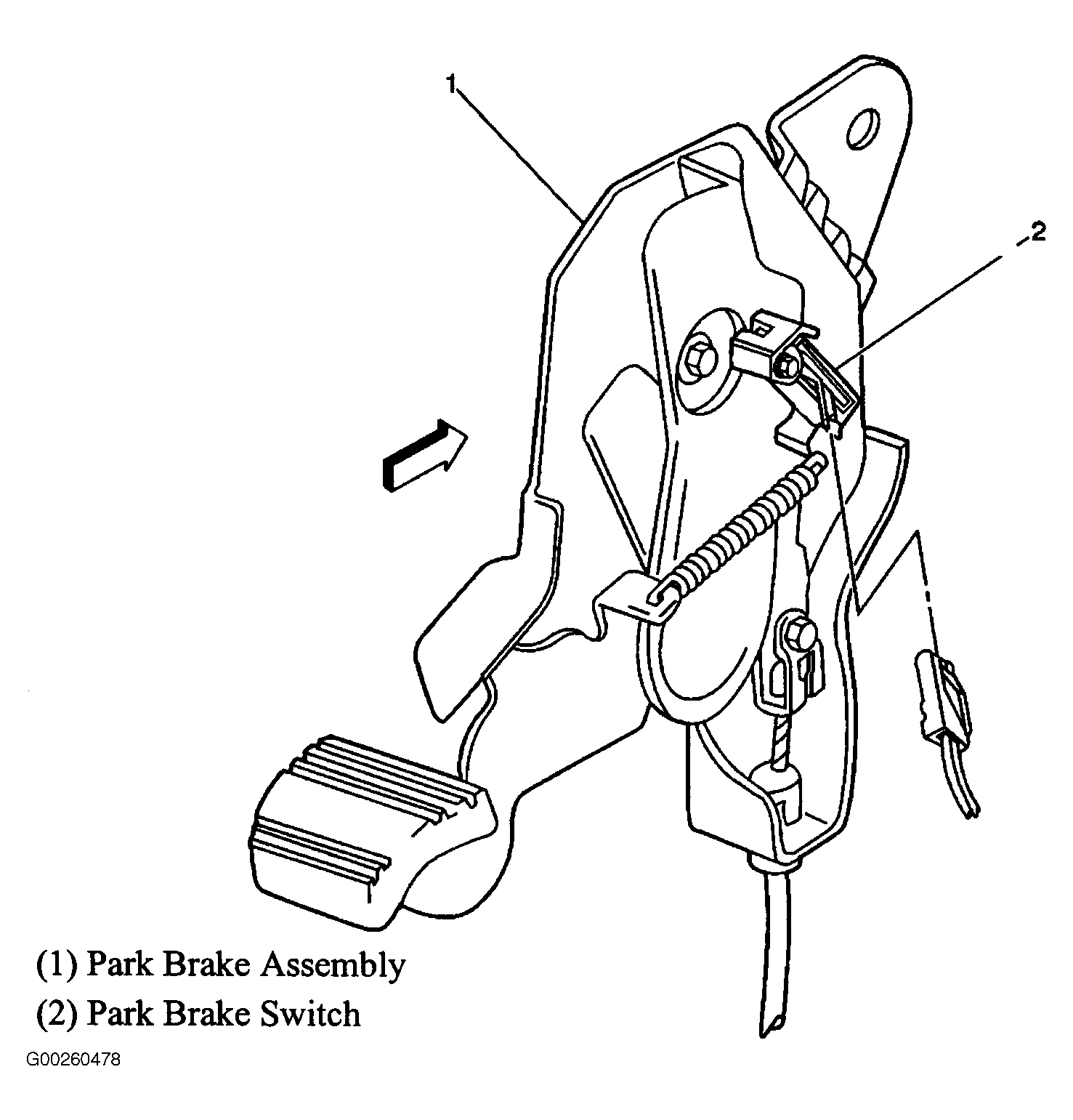

Fig 33: Parking Brake
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

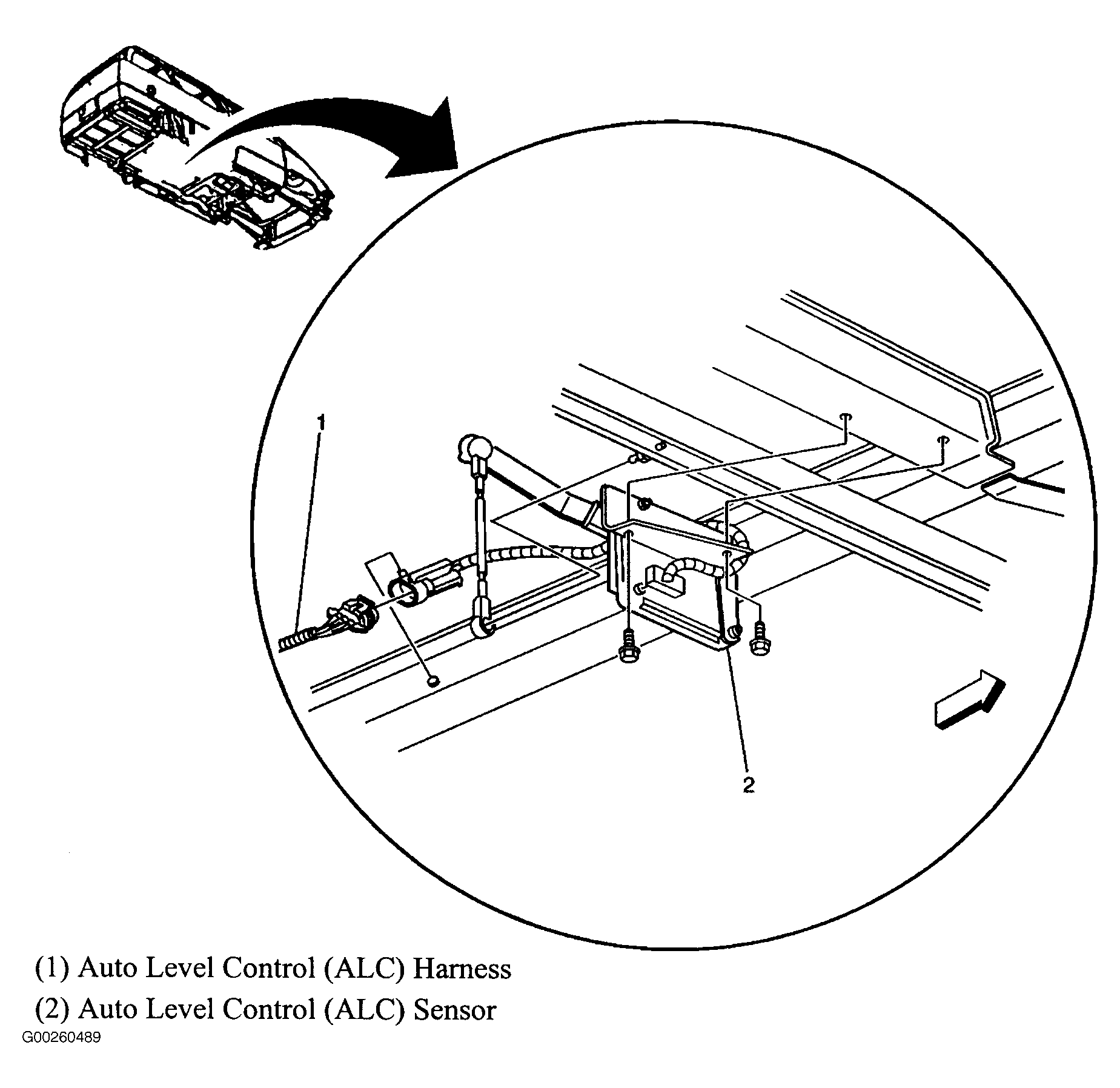

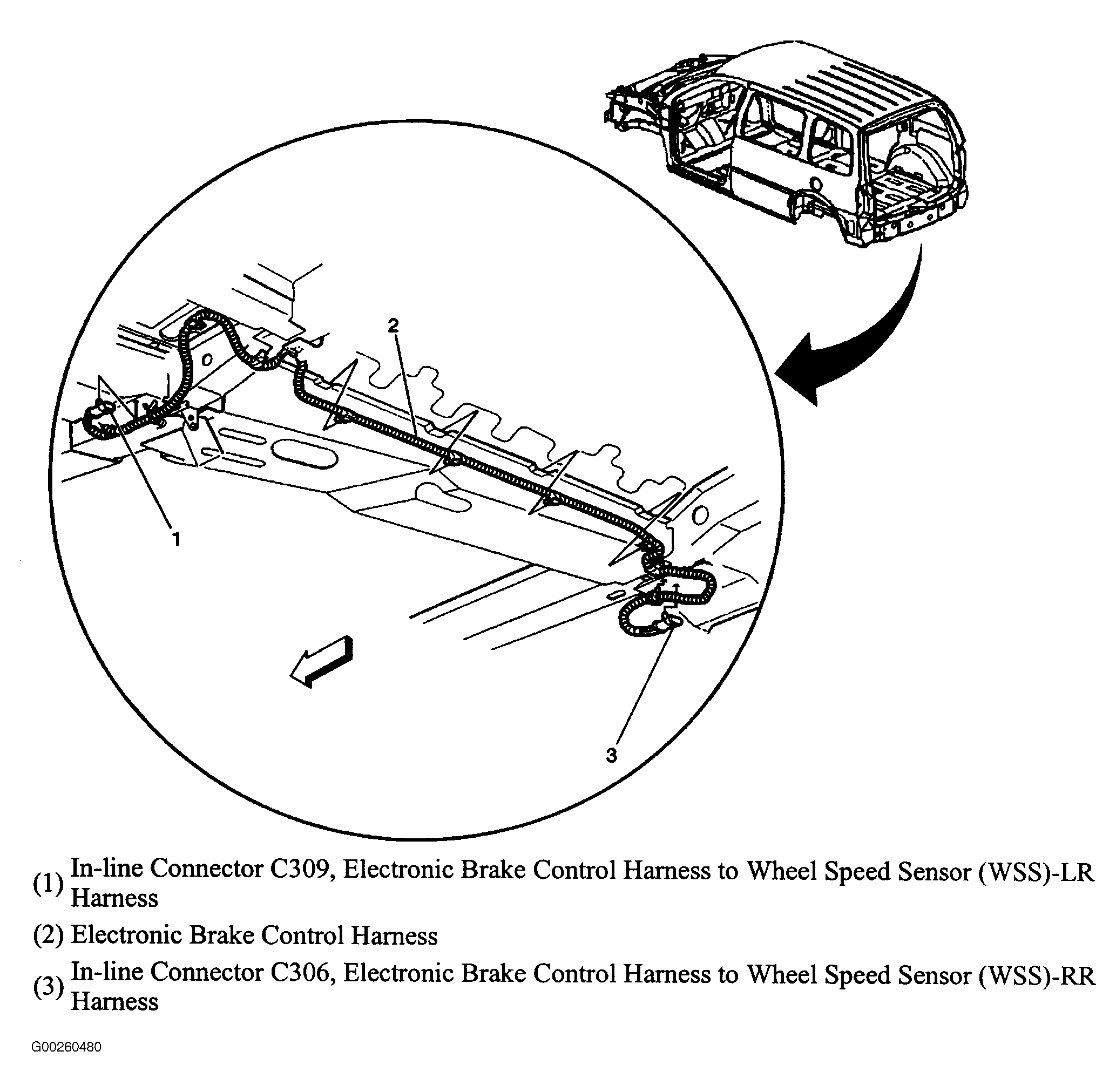

Fig 35: Below Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

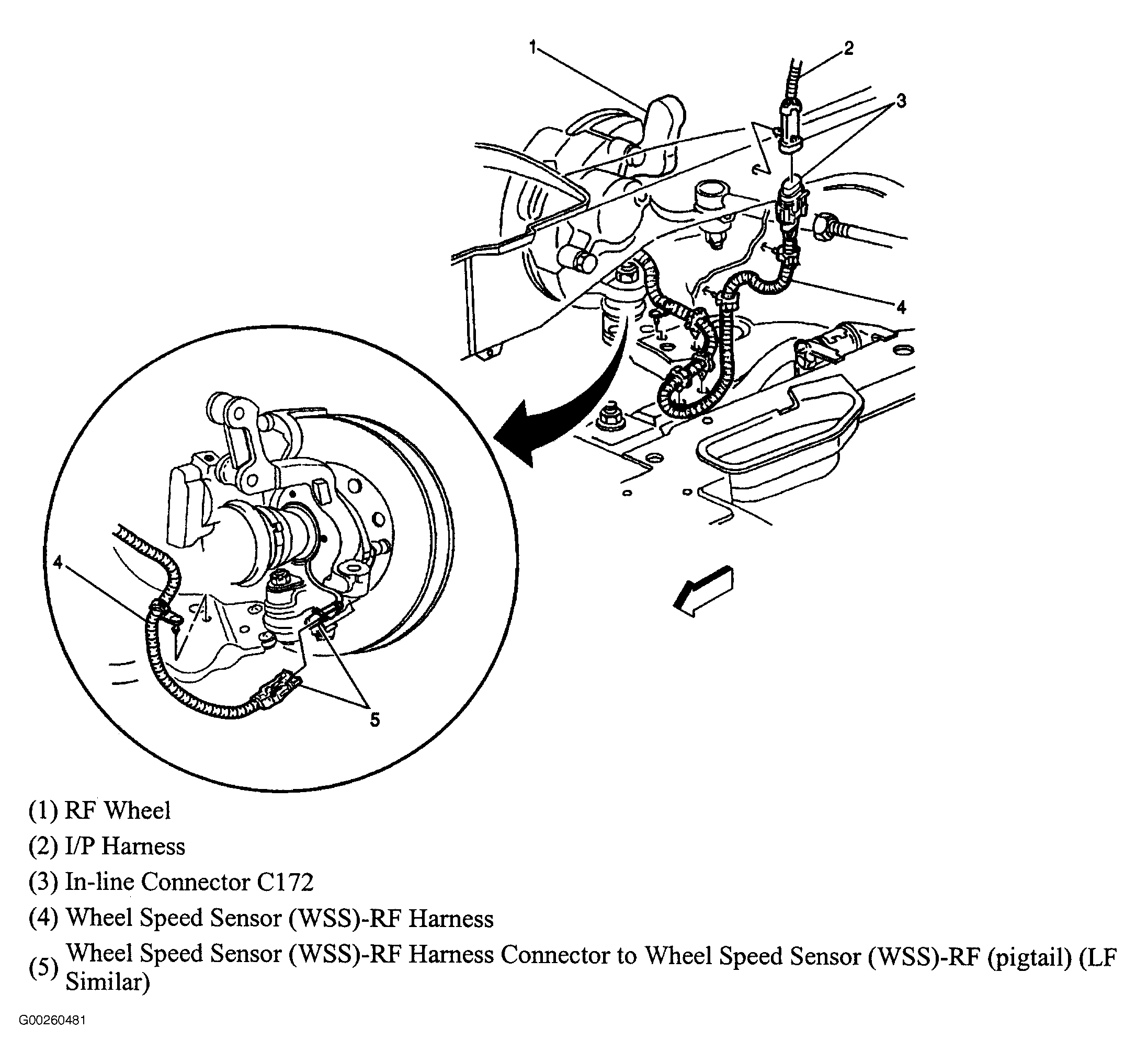

Fig 36: Right Front Wheel
Courtesy of GENERAL MOTORS CORP.

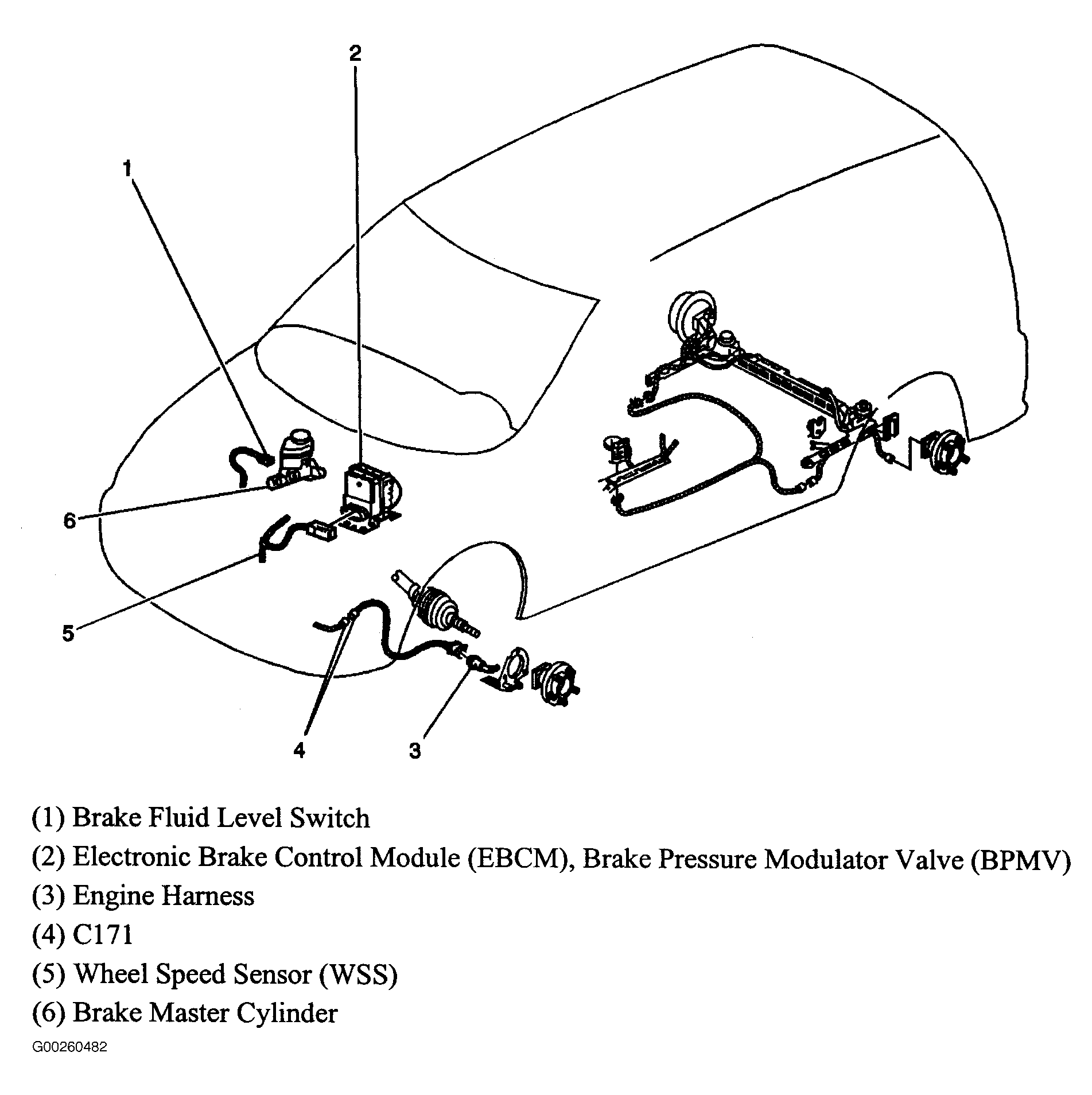

Fig 37: Front Braking Components
Courtesy of GENERAL MOTORS CORP.

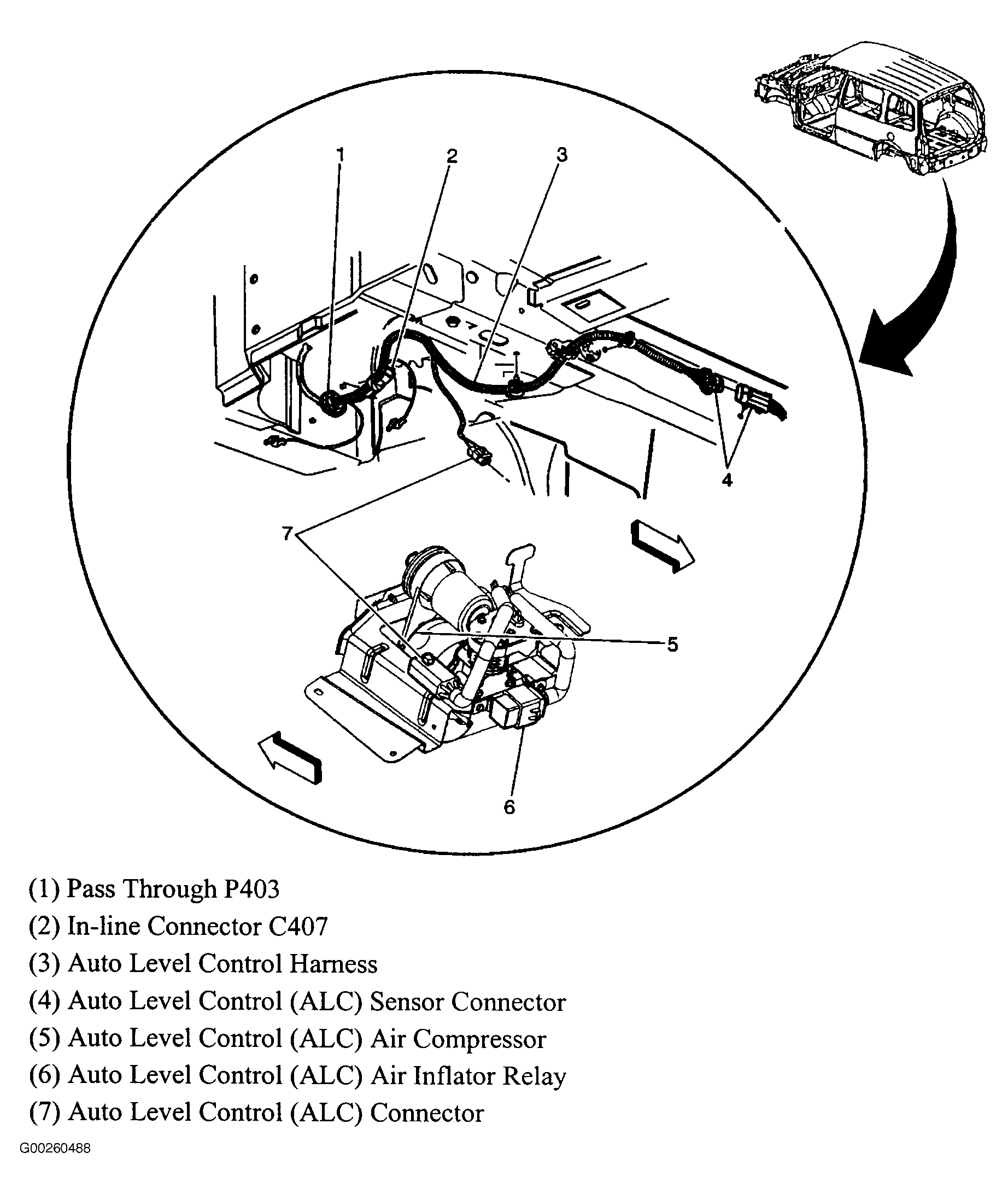

Fig 38: Left Rear Of Vehicle, Behind Wheelwell
Courtesy of GENERAL MOTORS CORP.

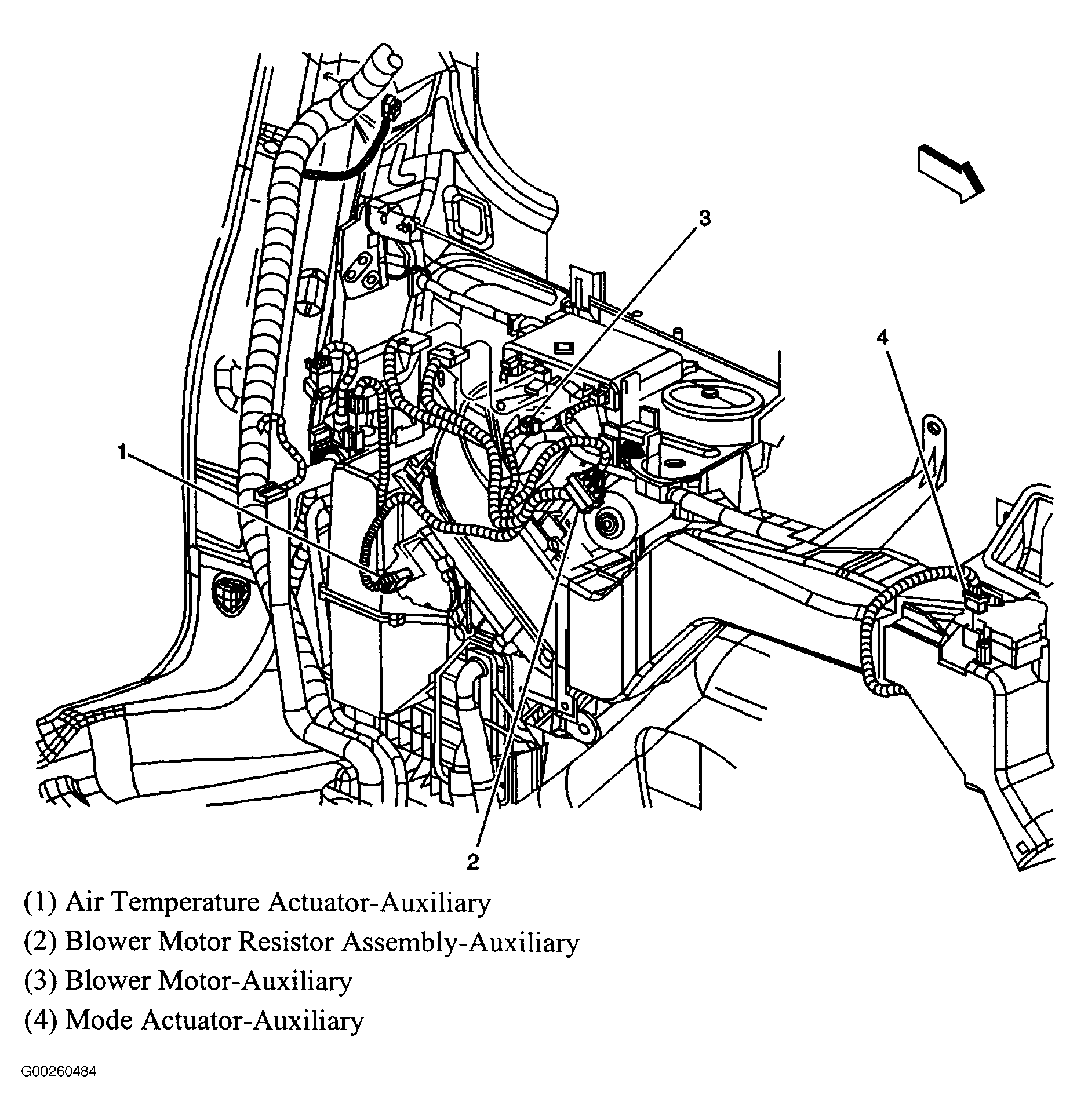

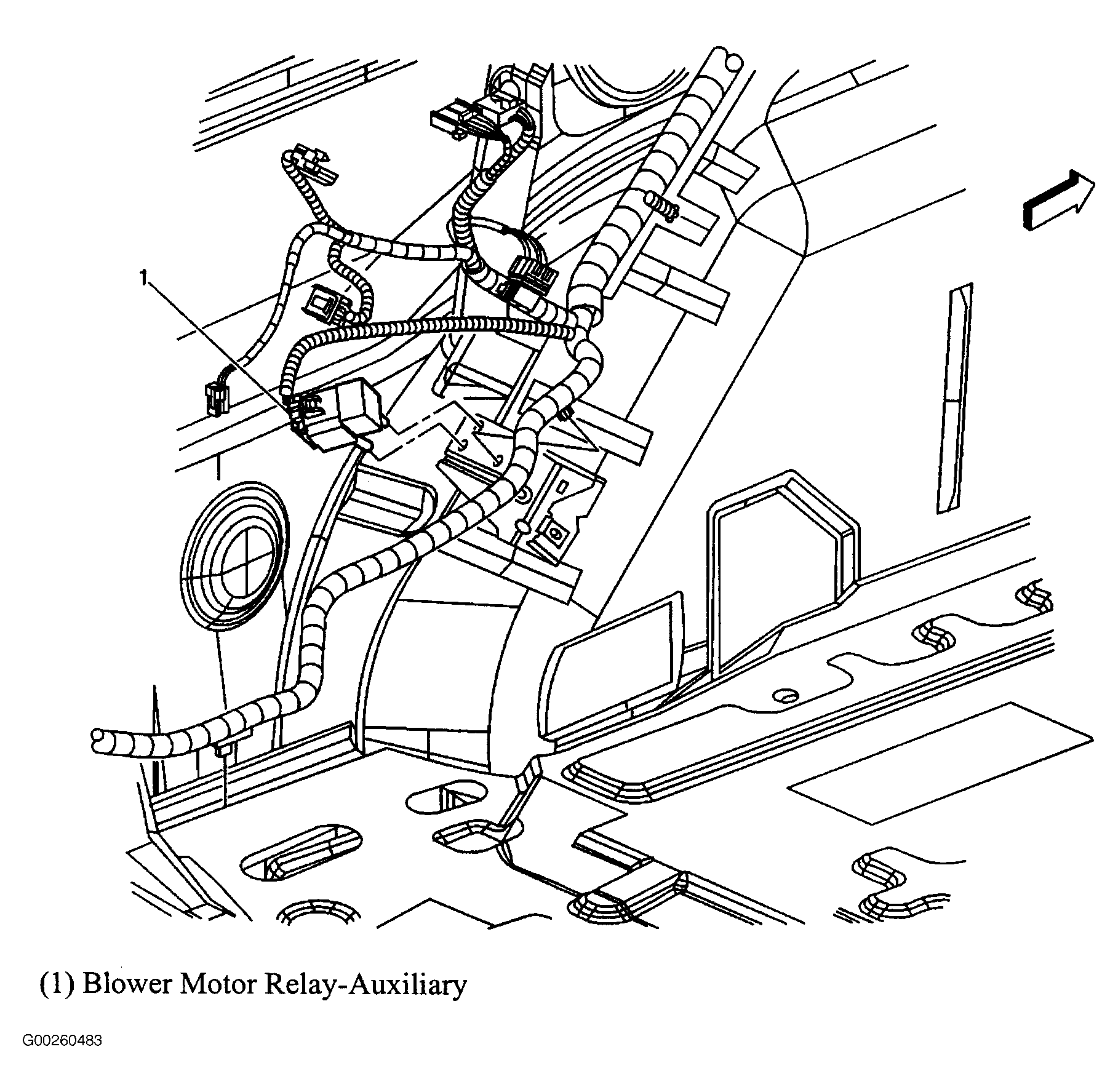

Fig 39: Left Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 40: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Below Left Side Of Vehicle, Behind Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 43: Below Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

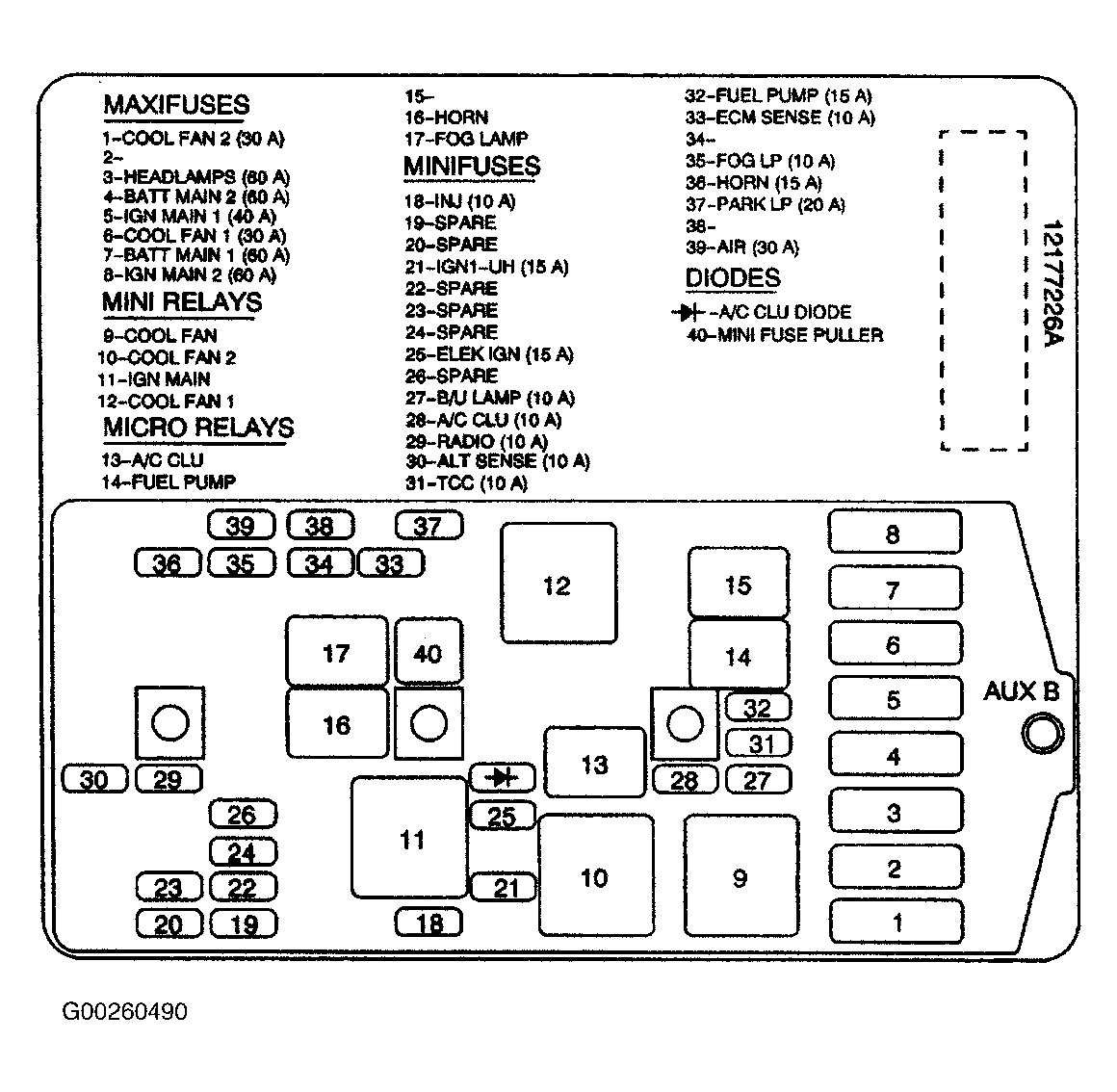

Fig 44: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

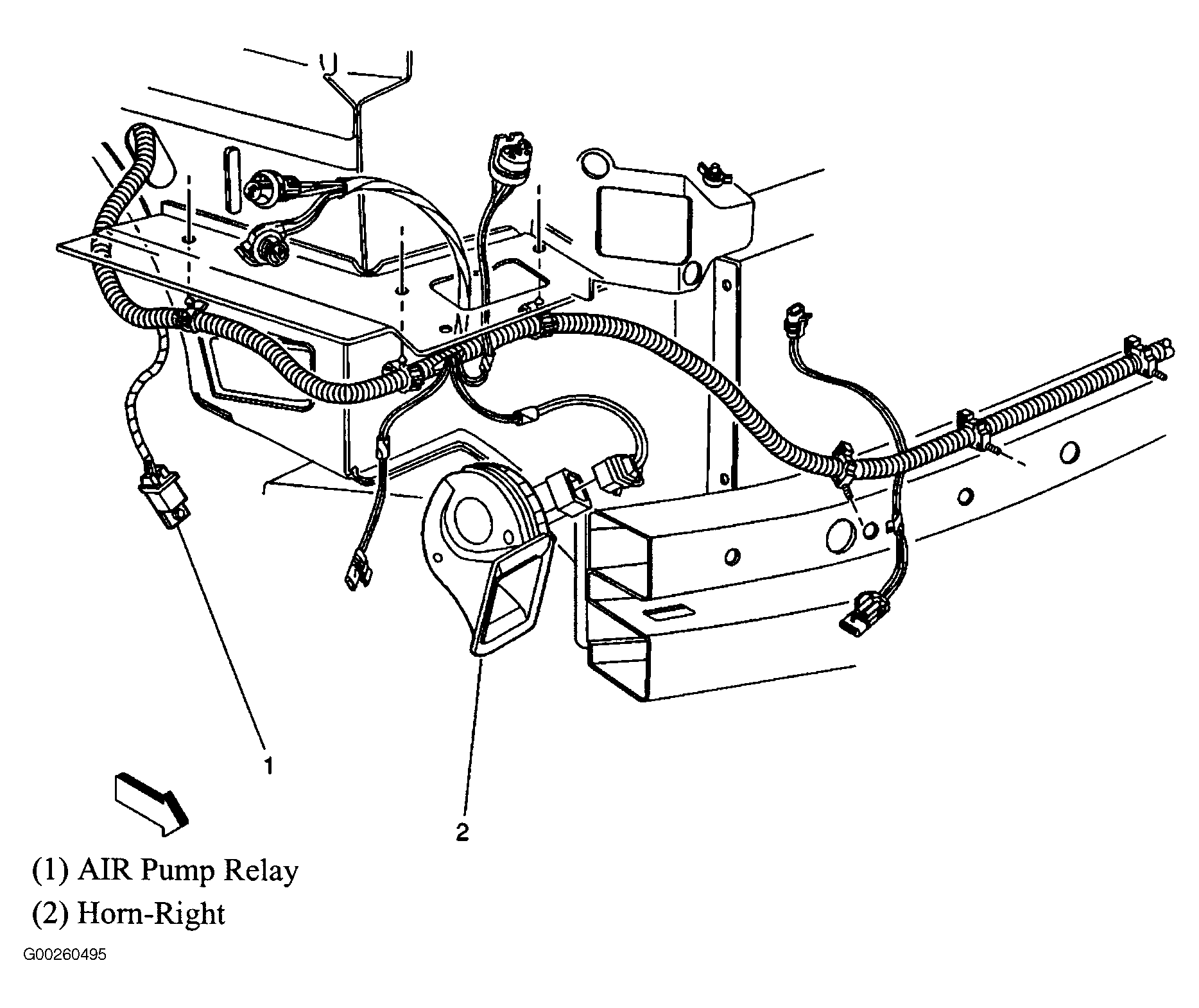

Fig 45: Right Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 46: Top Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

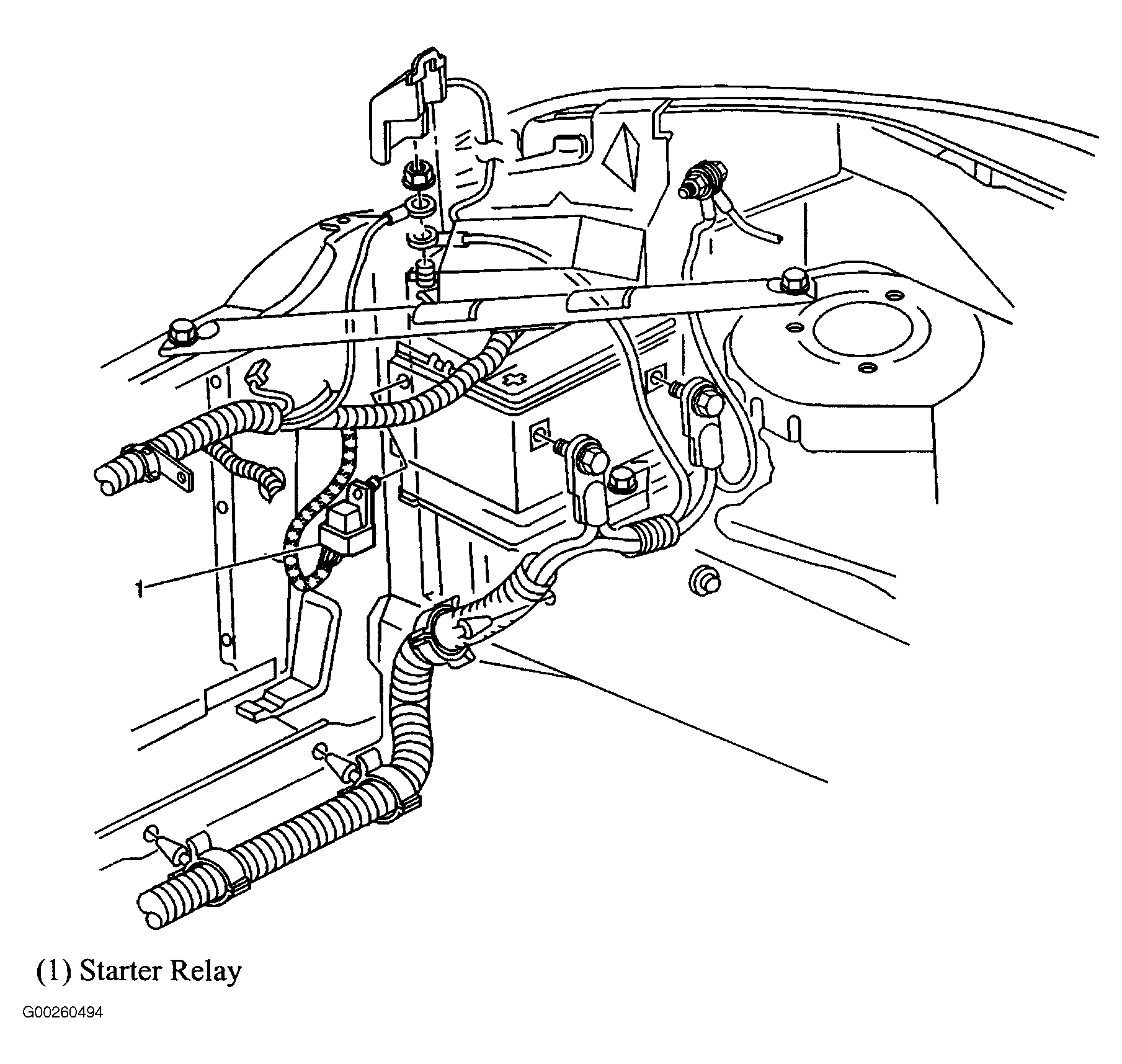

Fig 47: Starter Relay
Courtesy of GENERAL MOTORS CORP.
Fig 48: Lower Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 49: Lower Right Side Of Vehicle, Rear Of Sliding Door
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Vehicle, Rear Of Sliding Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Below Passenger Seat
Courtesy of GENERAL MOTORS CORP.

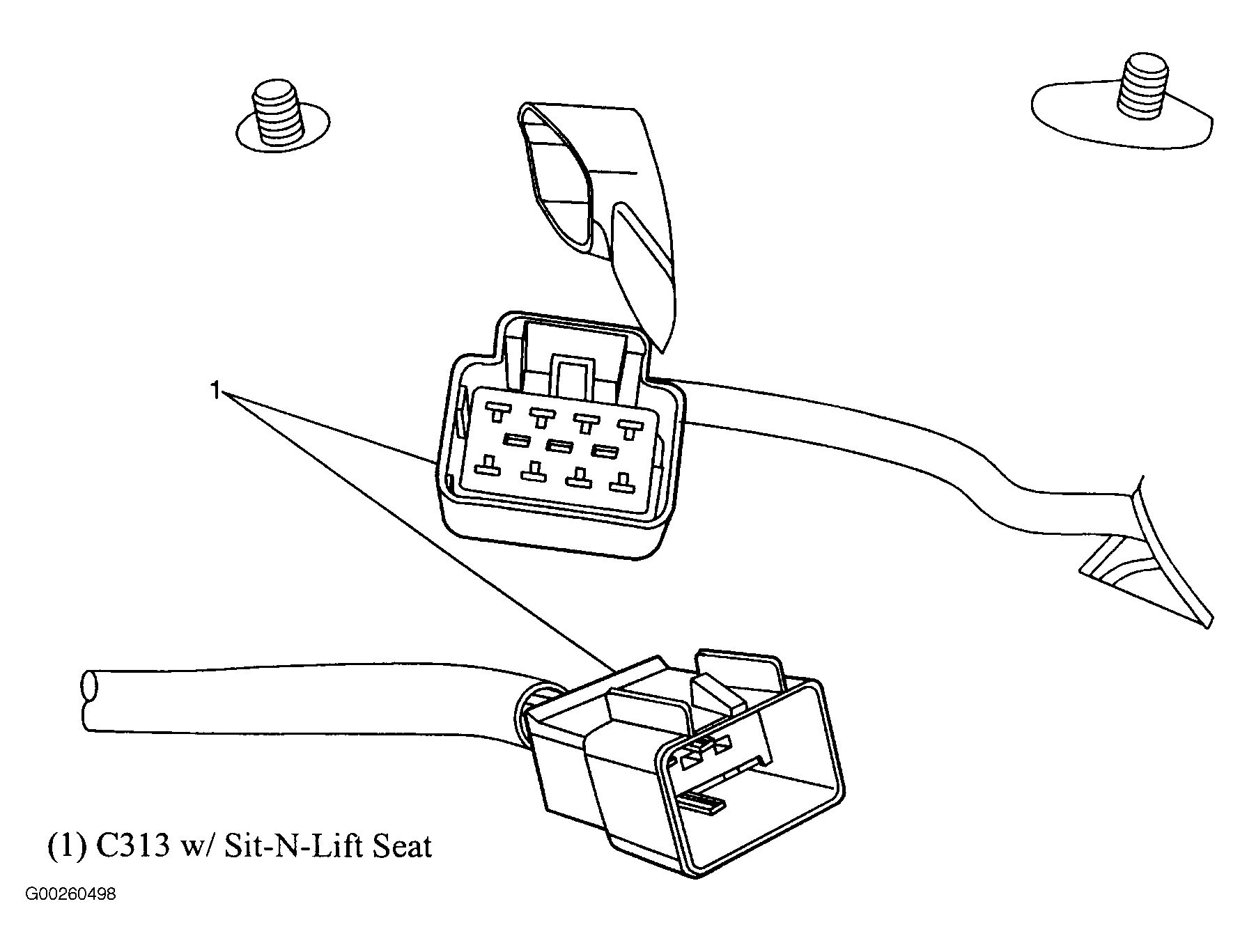

Fig 52: Below Sit-N-Lift Seat
Courtesy of GENERAL MOTORS CORP.
Fig 53: Below Sit-N-Lift Seat
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

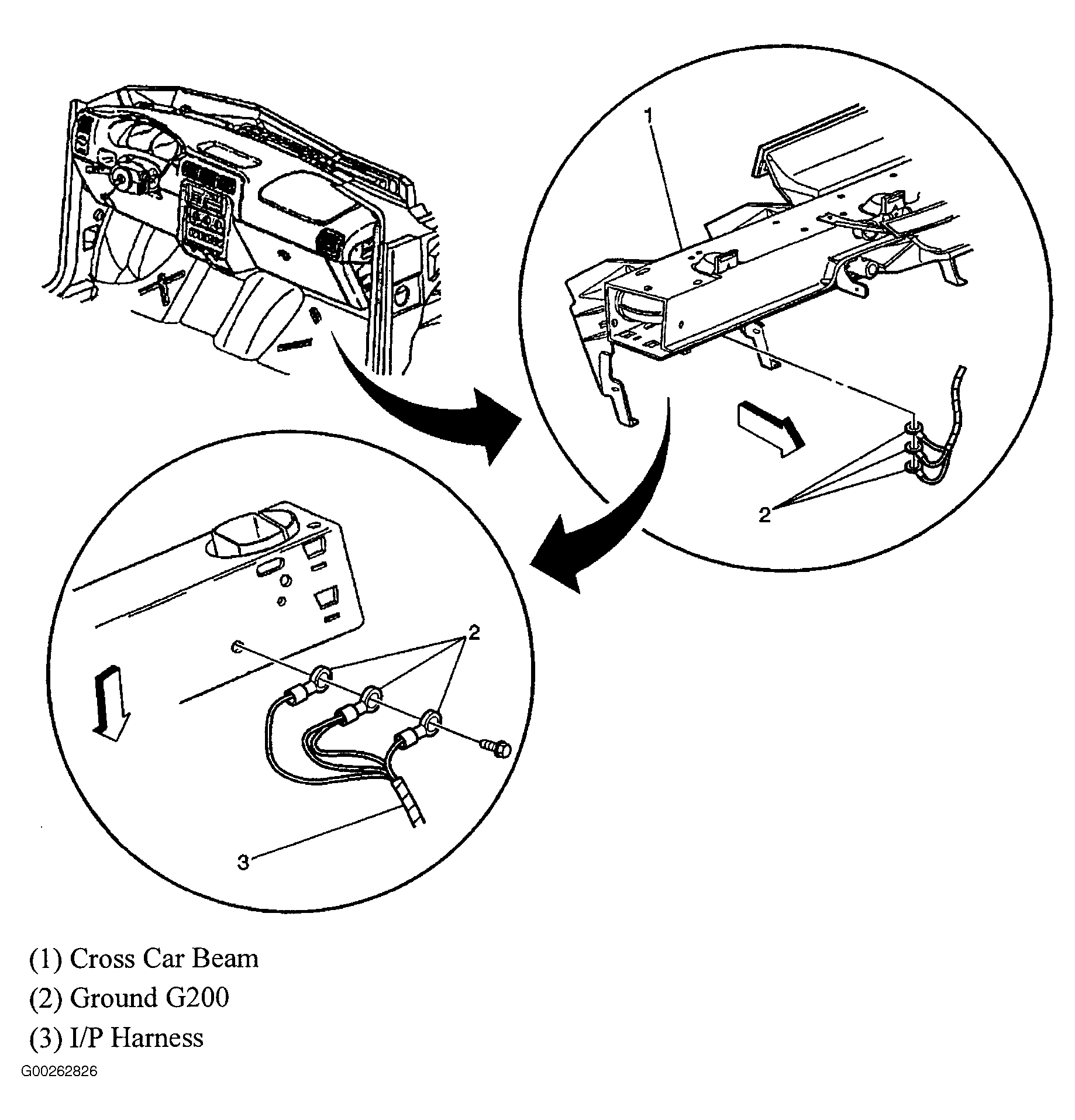

Fig 56: Below Right Side Of Dash, Bottom Of Cross-Car Beam
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Side Of Dash, Left Of Steering Column
Courtesy of GENERAL MOTORS CORP.

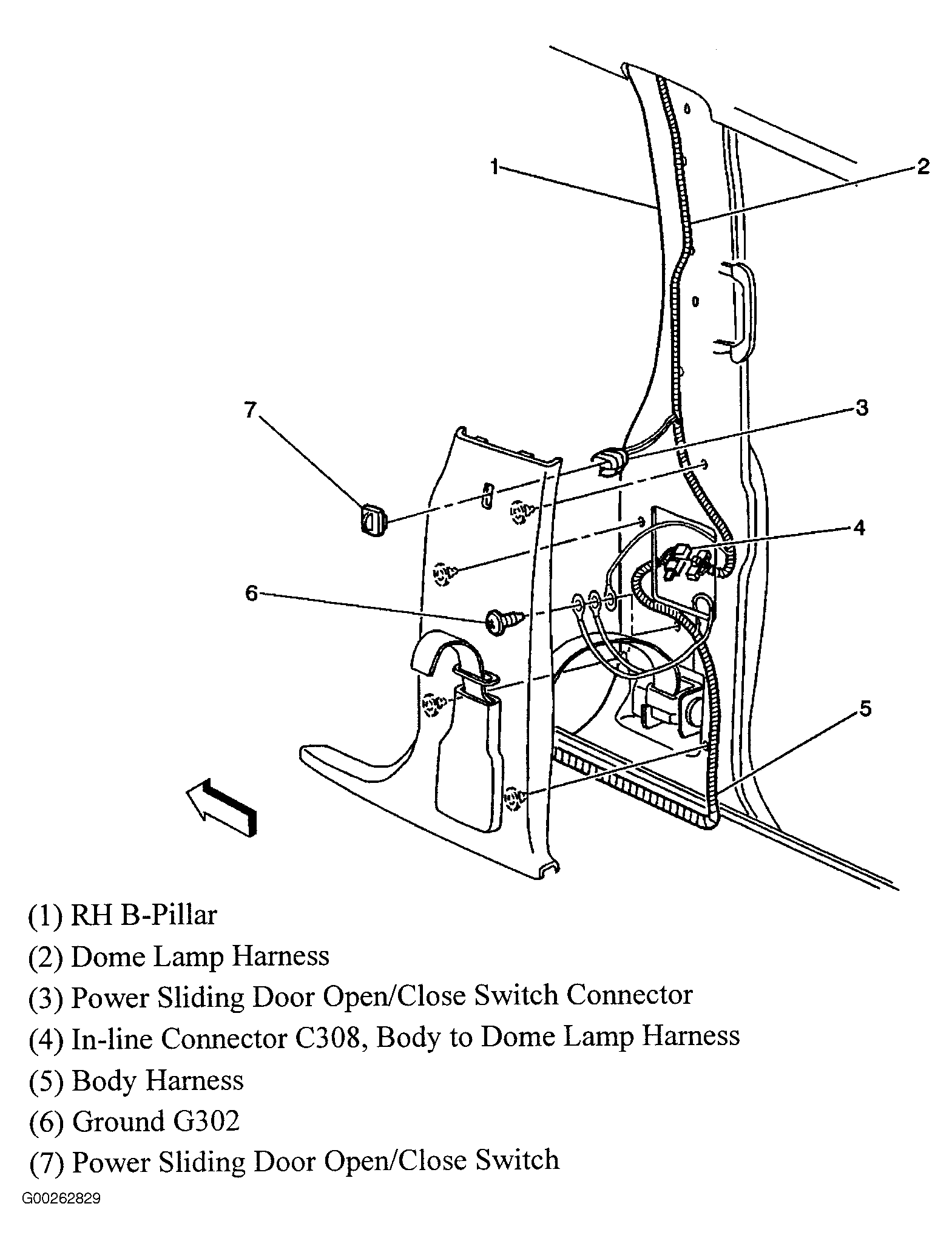

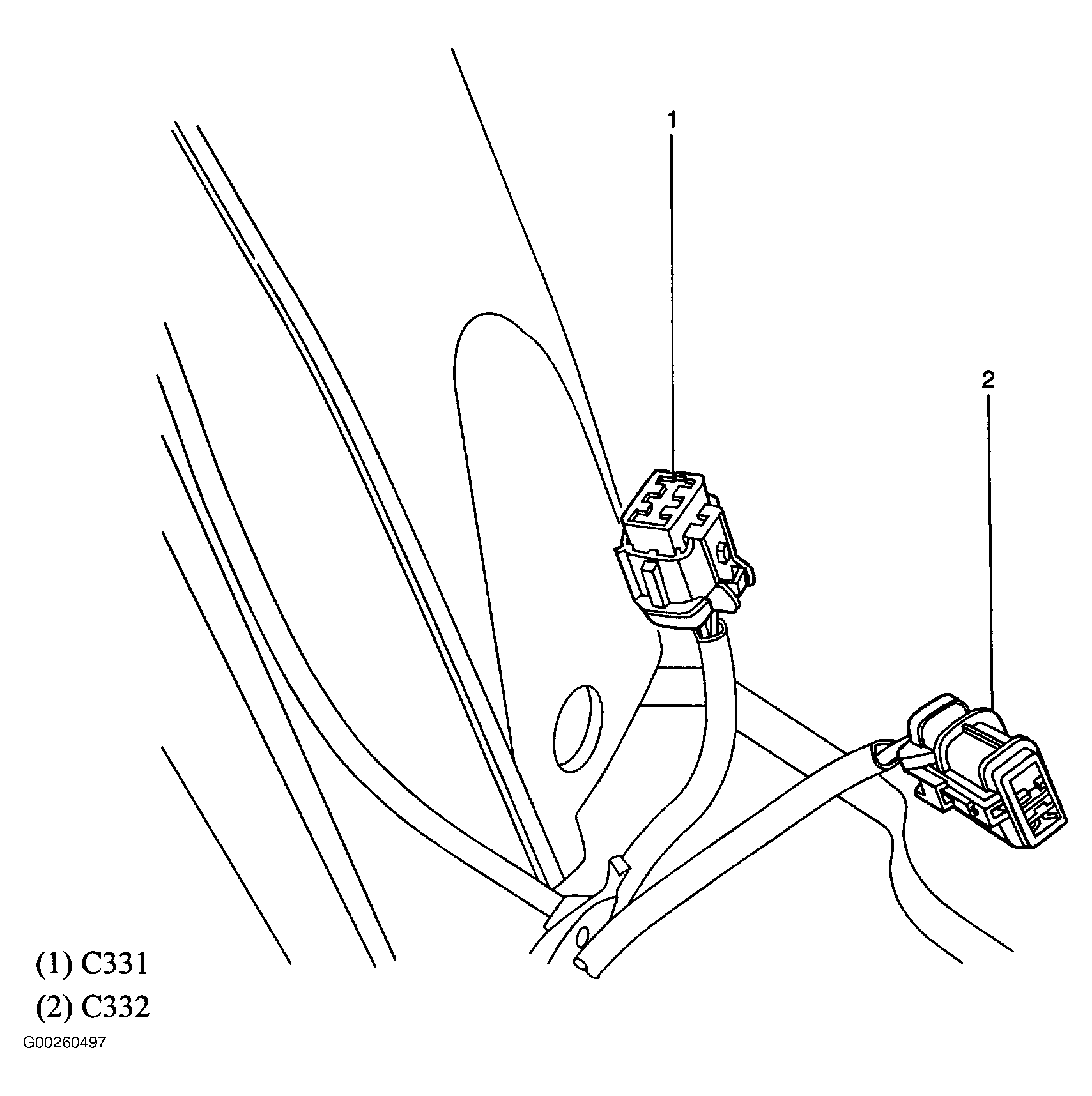

Fig 58: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

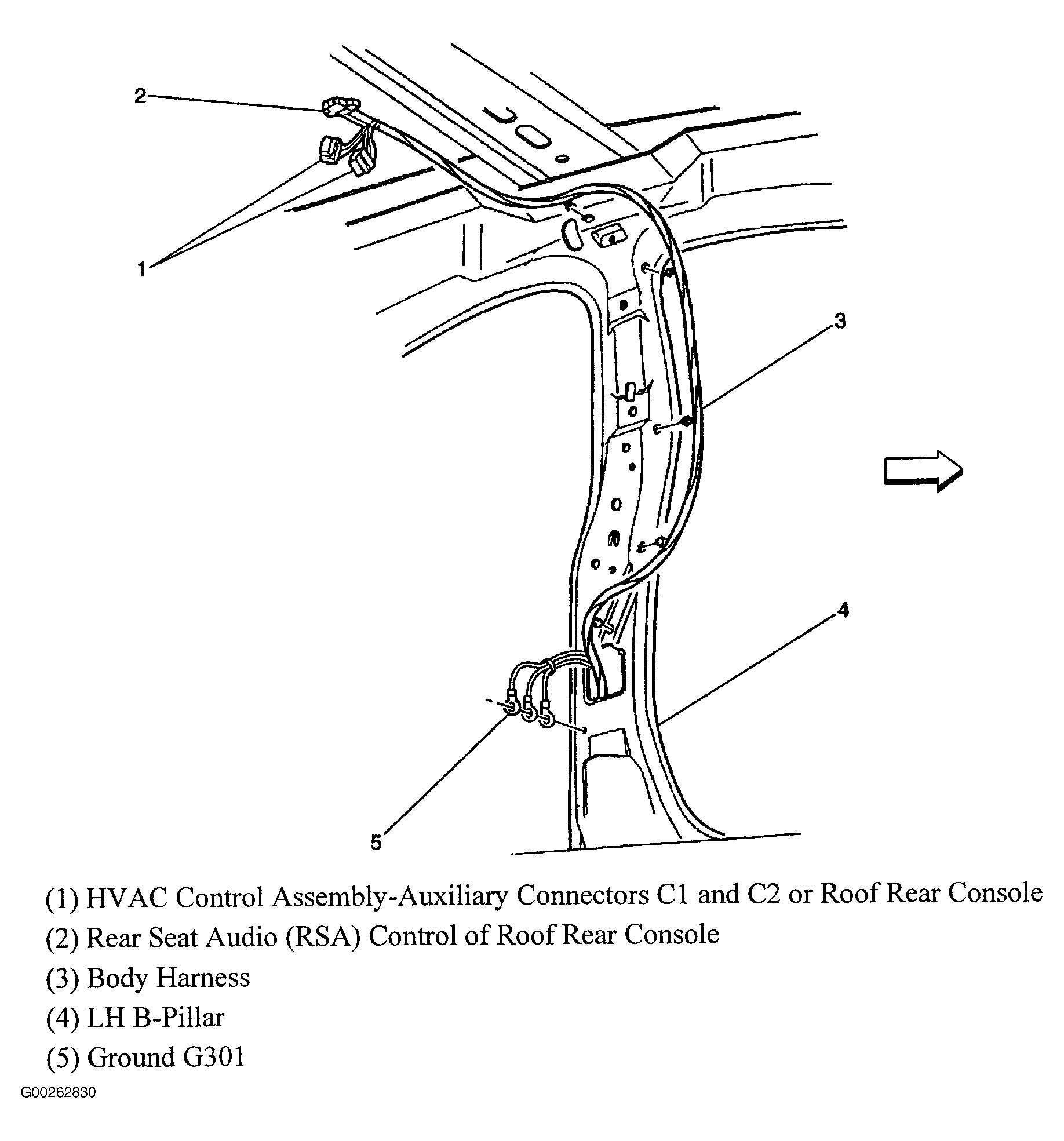

Fig 59: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

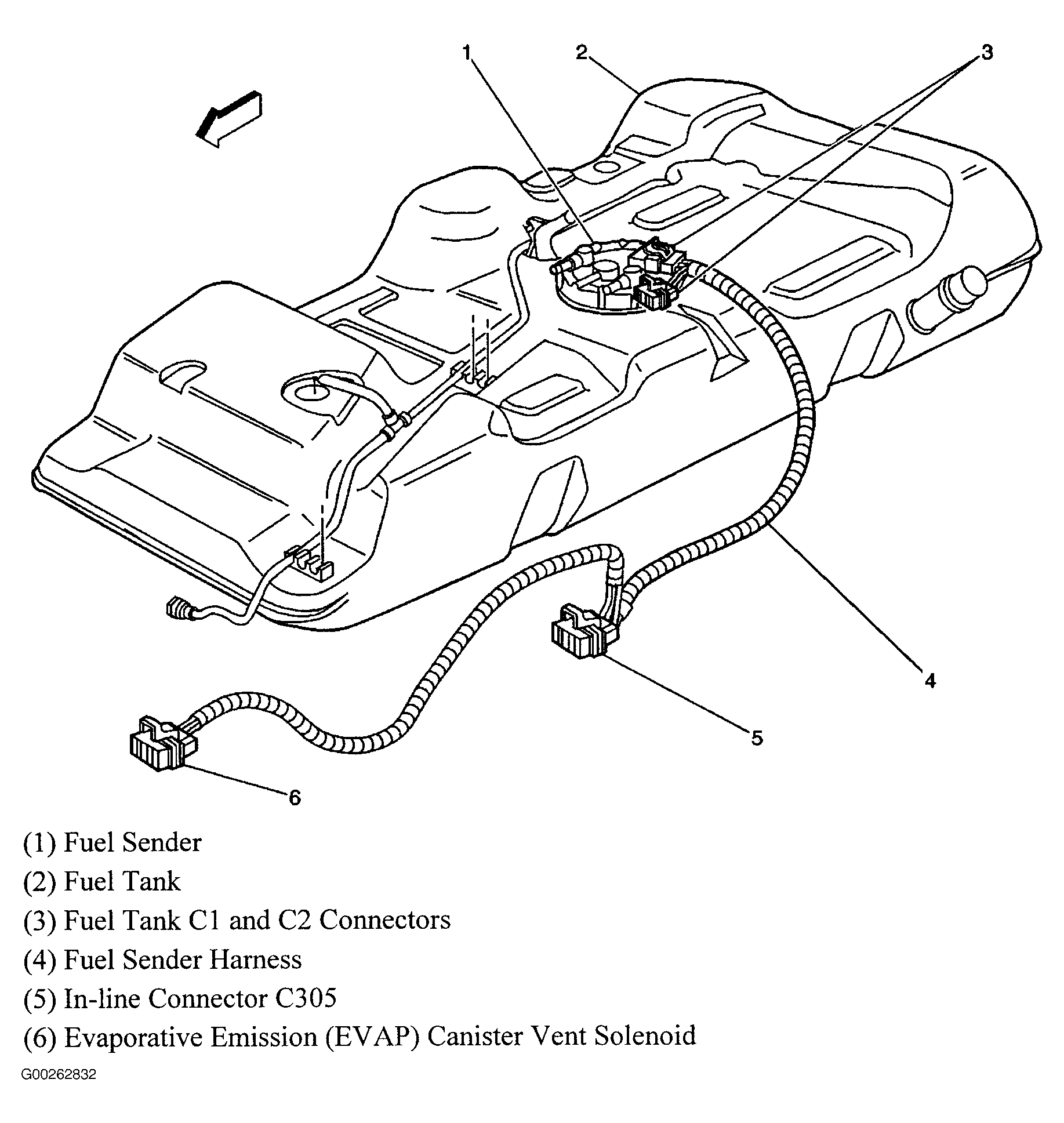

Fig 60: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
