Installation Procedure

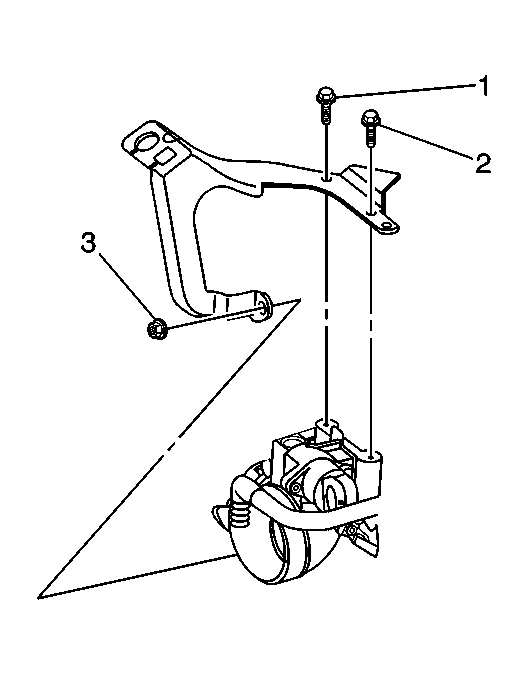

    Fig 1: View Of Accelerator Bracket & Cable
    GM260171Courtesy of GENERAL MOTORS CORP.
  1. Position the accelerator cable bracket on the throttle body.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nut (3) and bolts (1, 2).

    Tighten:

    • Tighten the bolts in sequence (2, 1) to 13 N.m (115 lb in).
    • Tighten the nut in sequence (3) to 10 N.m (89 lb in).

  3. Install the wire harness into the retainer.
  4. Install the air intake duct. Refer to Air Cleaner Intake Duct Replacement .
