Removal Procedure

    Fig 1: Locating Accelerator Controls Cable
    GM12831Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the accelerator cable cross slug from the throttle body lever.
  2. Disconnect the accelerator cable from the accelerator cable bracket.

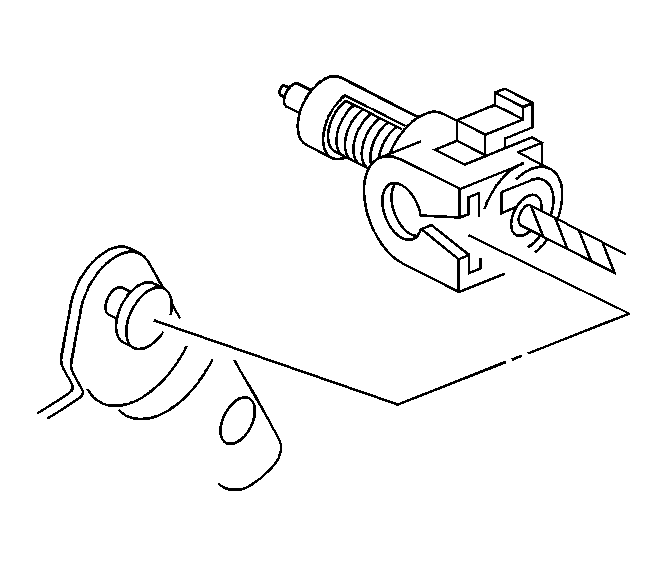

    3. Fig 2: Identifying Cruise Control Cable
    GM319387Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the cruise control cable from the throttle lever and accelerator bracket, if applicable.
  4. Disconnect the air intake duct from the throttle body. Refer to Air Cleaner Intake Duct Replacement .
  5. Disconnect the wire harness from the retainer.
    6. Fig 3: View Of Accelerator Bracket & Cable
    GM260171Courtesy of GENERAL MOTORS CORP.
  6. Remove the nut (3) and bolts (1, 2) holding the accelerator cable bracket to the throttle body.
  7. Remove the accelerator cable bracket.
