Installation Procedure

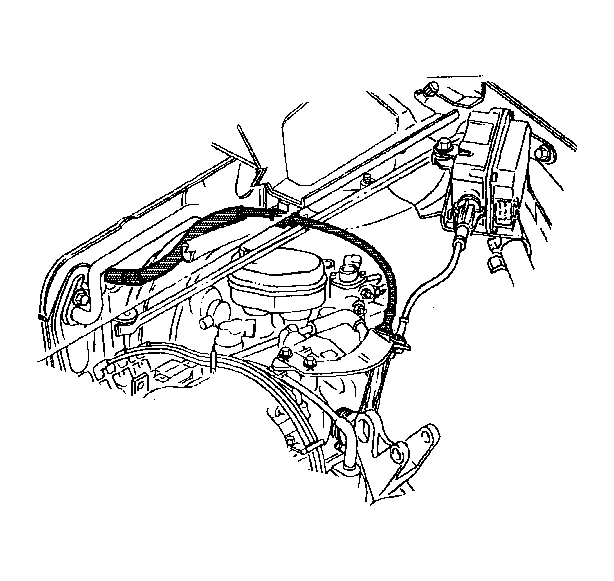

Fig 1: Illustrating Accelerator Cable Routing

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not route flexible components (hoses, wires, conduits, etc.) within 50 mm (2 in) of moving parts unless flexible components can be securely fastened. This is necessary in order to prevent possible interference and damage to the component.

Install the accelerator cable into the vehicle using routing noted during removal.

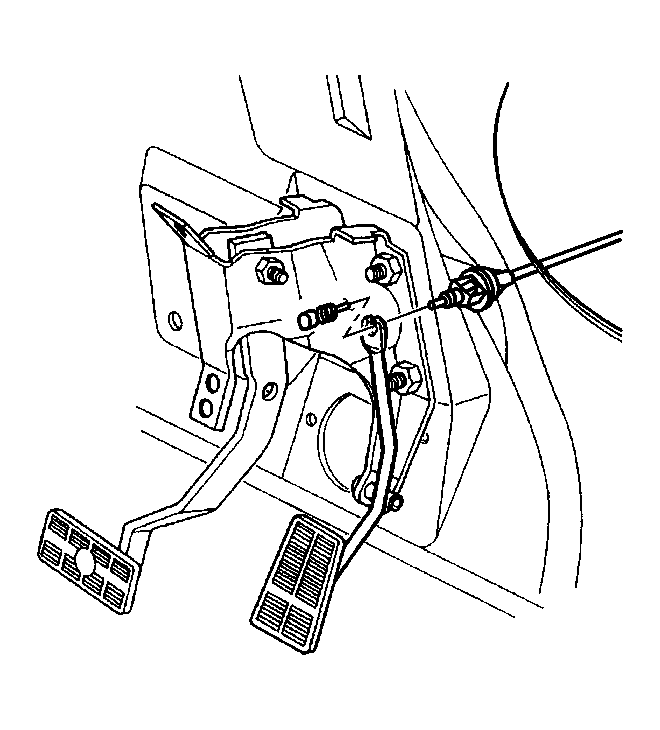

Fig 2: View of Accelerator Pedal Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the accelerator cable through the slot in the accelerator pedal lever.
Seat the snap retainer in the accelerator pedal lever.

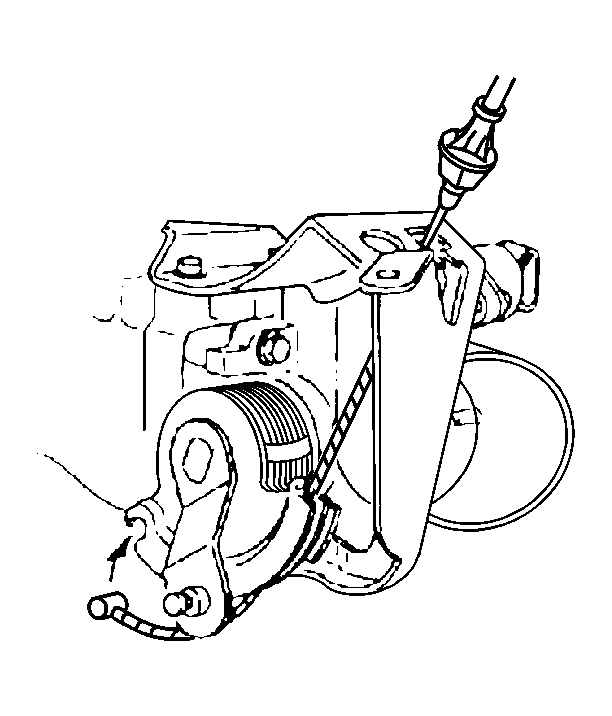

Fig 3: Locating Accelerator Controls Cable

Courtesy of GENERAL MOTORS CORP.

Connect the accelerator cable to the throttle body lever.
Connect the accelerator cable to the accelerator cable bracket.
Inspect and check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal.
Install the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges, and Console.
