Installation Procedure

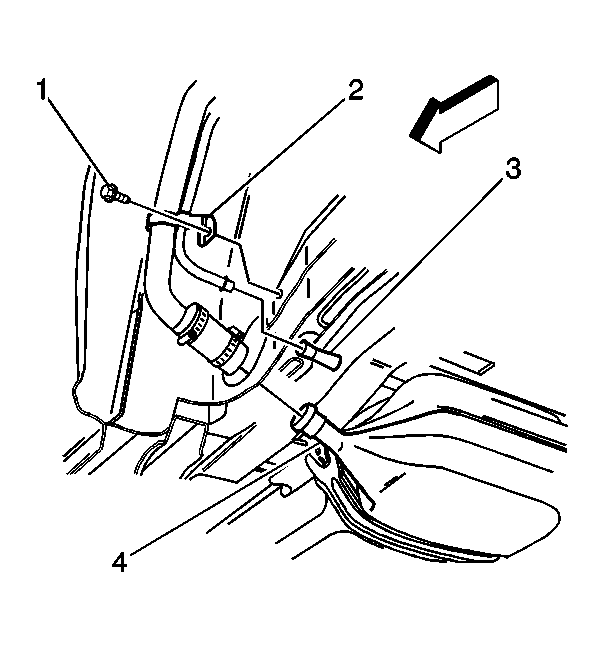

    Fig 1: Locating Fuel Filler Pipe Components
    GM724404Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the fuel filler pipe and hose to the fuel tank (4). Fully seat the fill hose to the stop on the tank.

    Tighten:  Tighten the fuel filler pipe clamp to 2.5 N.m (22 lb in).

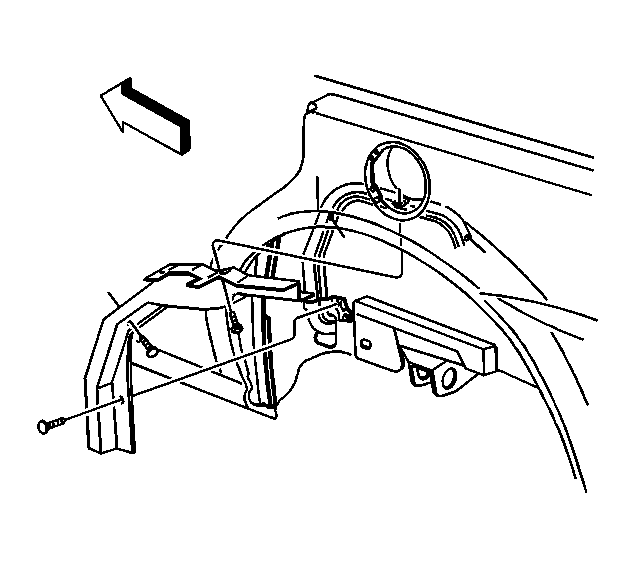

    2. Fig 2: Locating Fuel Filler Pipe To Fuel Fill Pocket Bolts
    GM724421Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel filler pipe attaching screw to the wheelhouse panel.

    Tighten:  Tighten the fuel filler pipe attaching screw to 25 N.m (18 lb ft).

  3. Install the fuel filler pipe attaching nut to the wheelhouse panel.

    Tighten:  Tighten the fuel filler pipe attaching nut to 10 N.m (89 lb in).

  4. Install the fuel filler pipe shield.
  5. Lower the vehicle.
  6. Install the fuel filler pipe to fuel fill pocket bolts.
  7. Refill the fuel tank.
  8. Install the fuel filler cap.
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  10. Inspect for fuel leaks.
