Installation Procedure

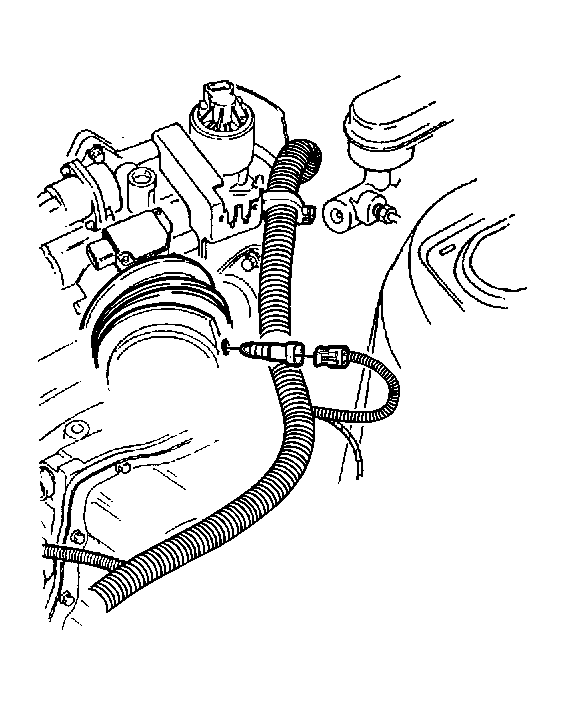

    Fig 1: Removing/Installing Intake Air Temperature (IAT) Sensor
    GM12347Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor (snap into place).
  2. Connect the IAT sensor electrical connector.
