Engine Controls Schematics

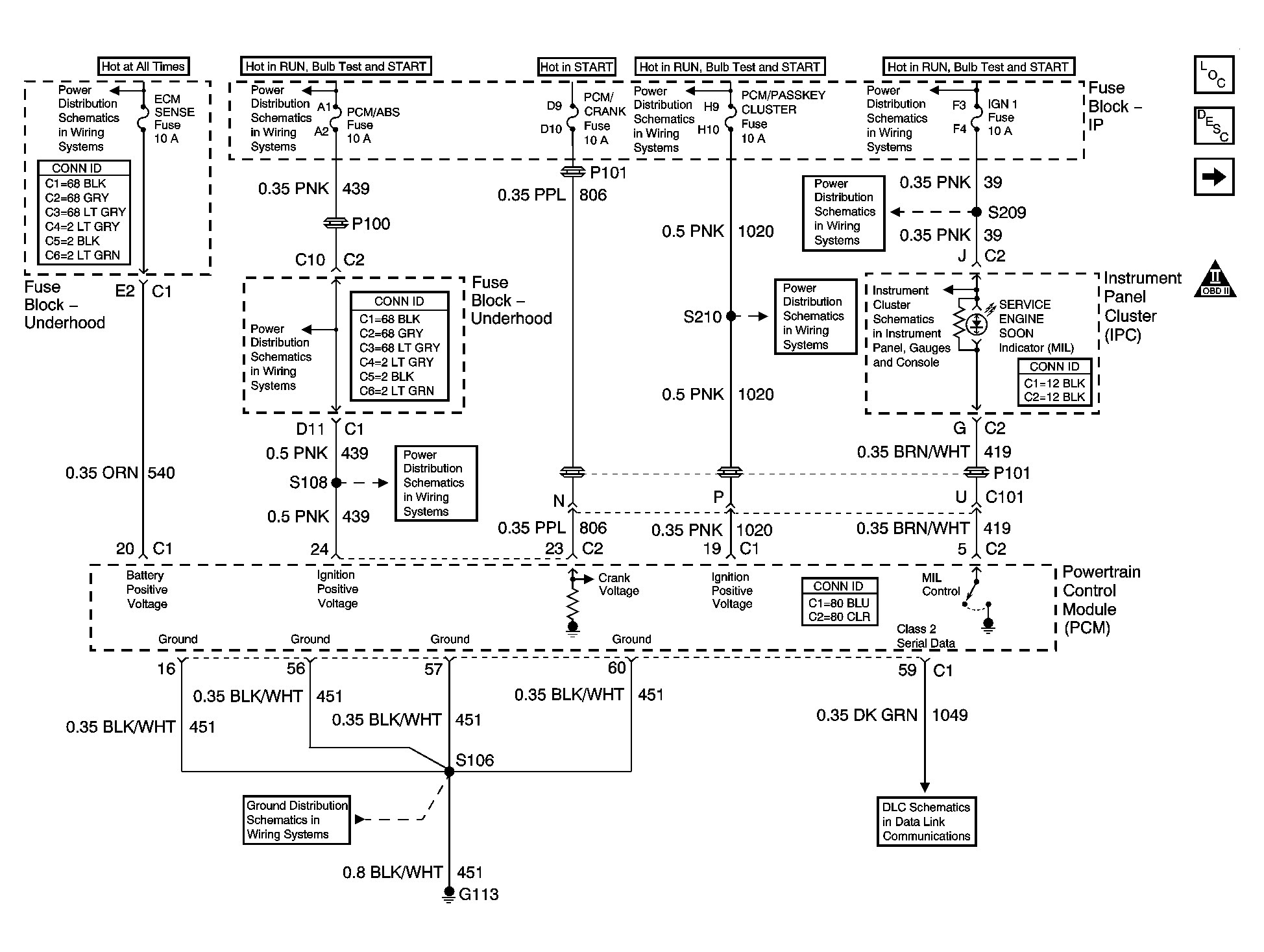

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

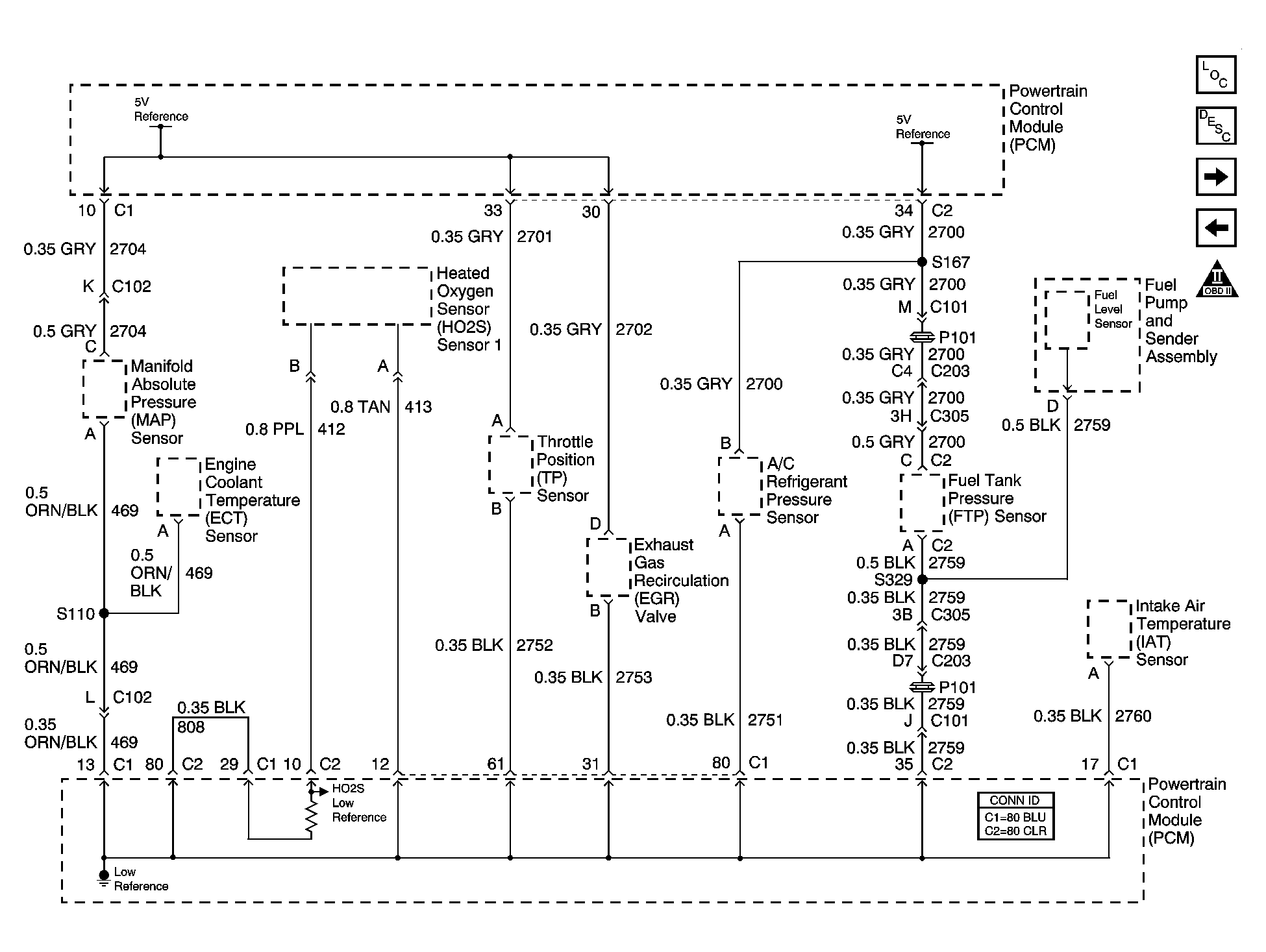

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

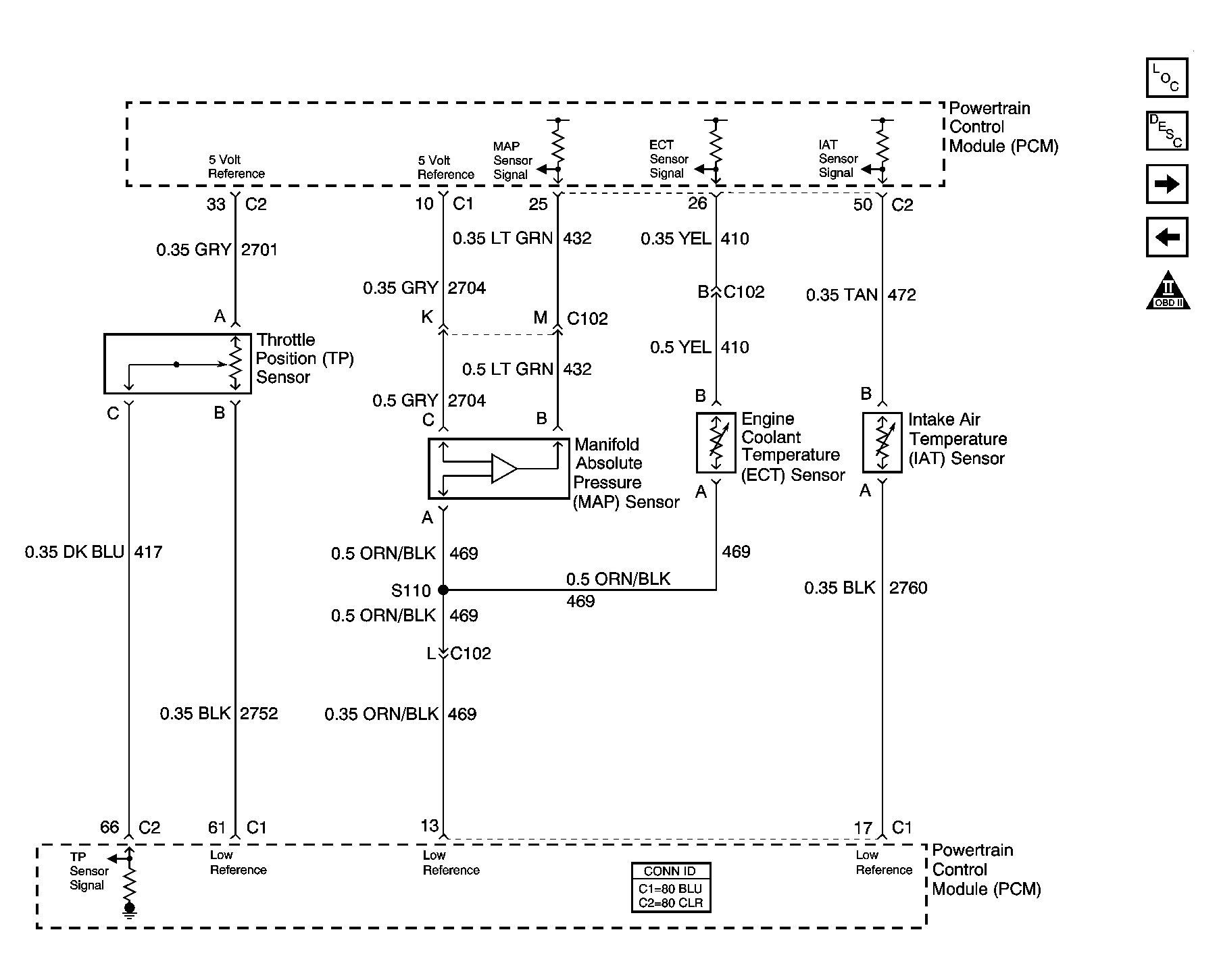

Fig 3: Engine Data Sensors - Pressure and Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

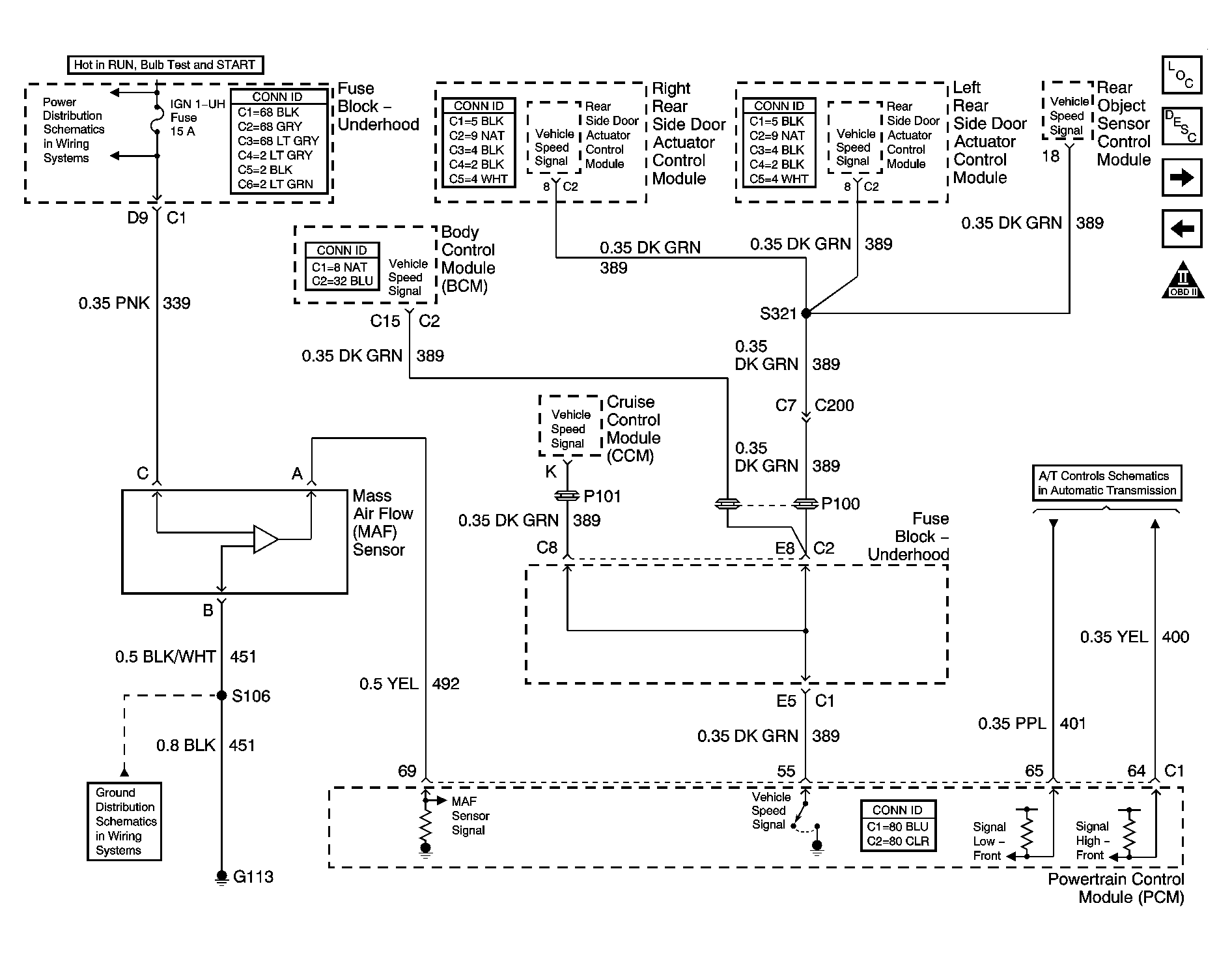

Fig 4: Engine Data Sensors - MAF and VSS Schematic

Courtesy of GENERAL MOTORS CORP.

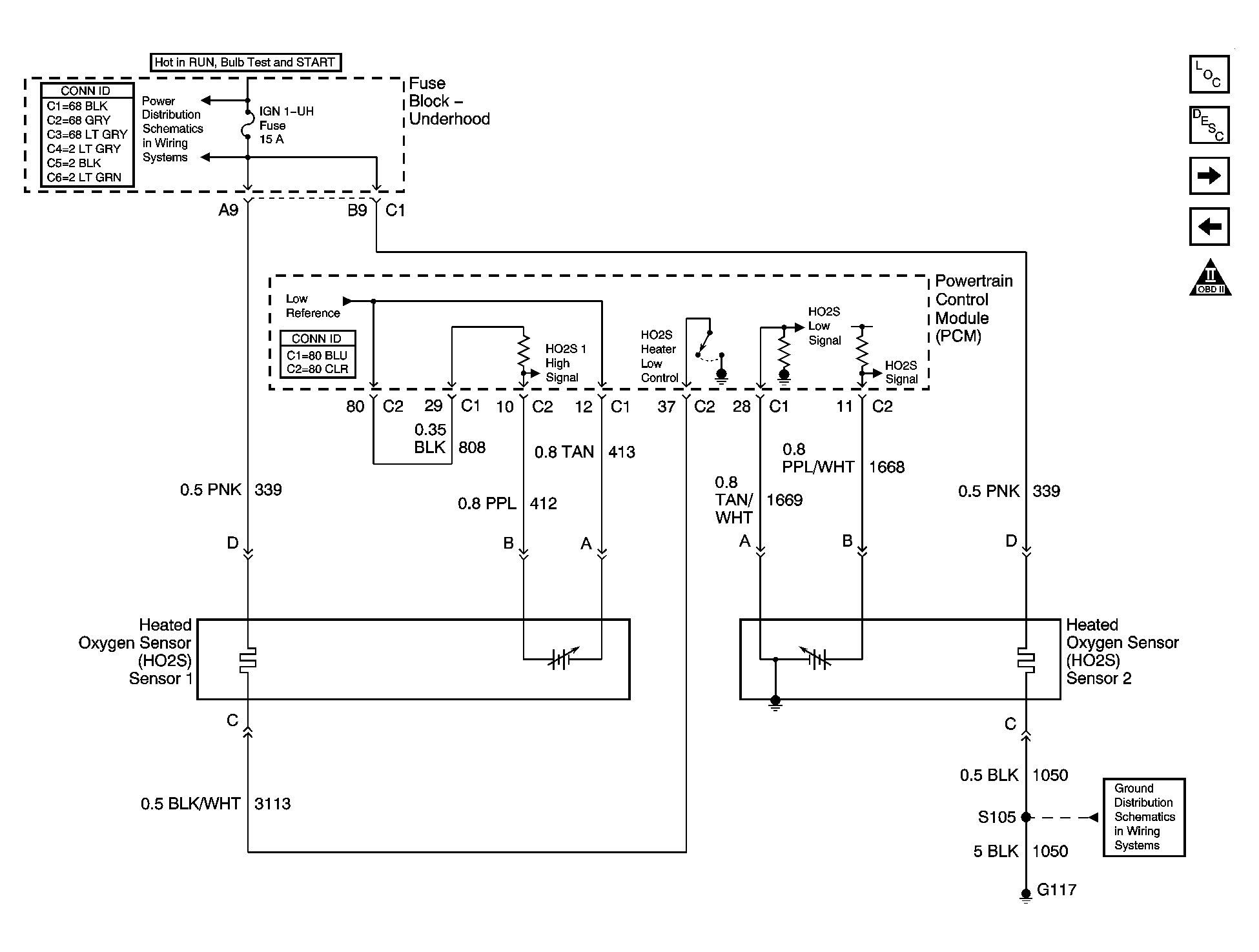

Fig 5: Engine Data Sensors - HO2S Schematic

Courtesy of GENERAL MOTORS CORP.

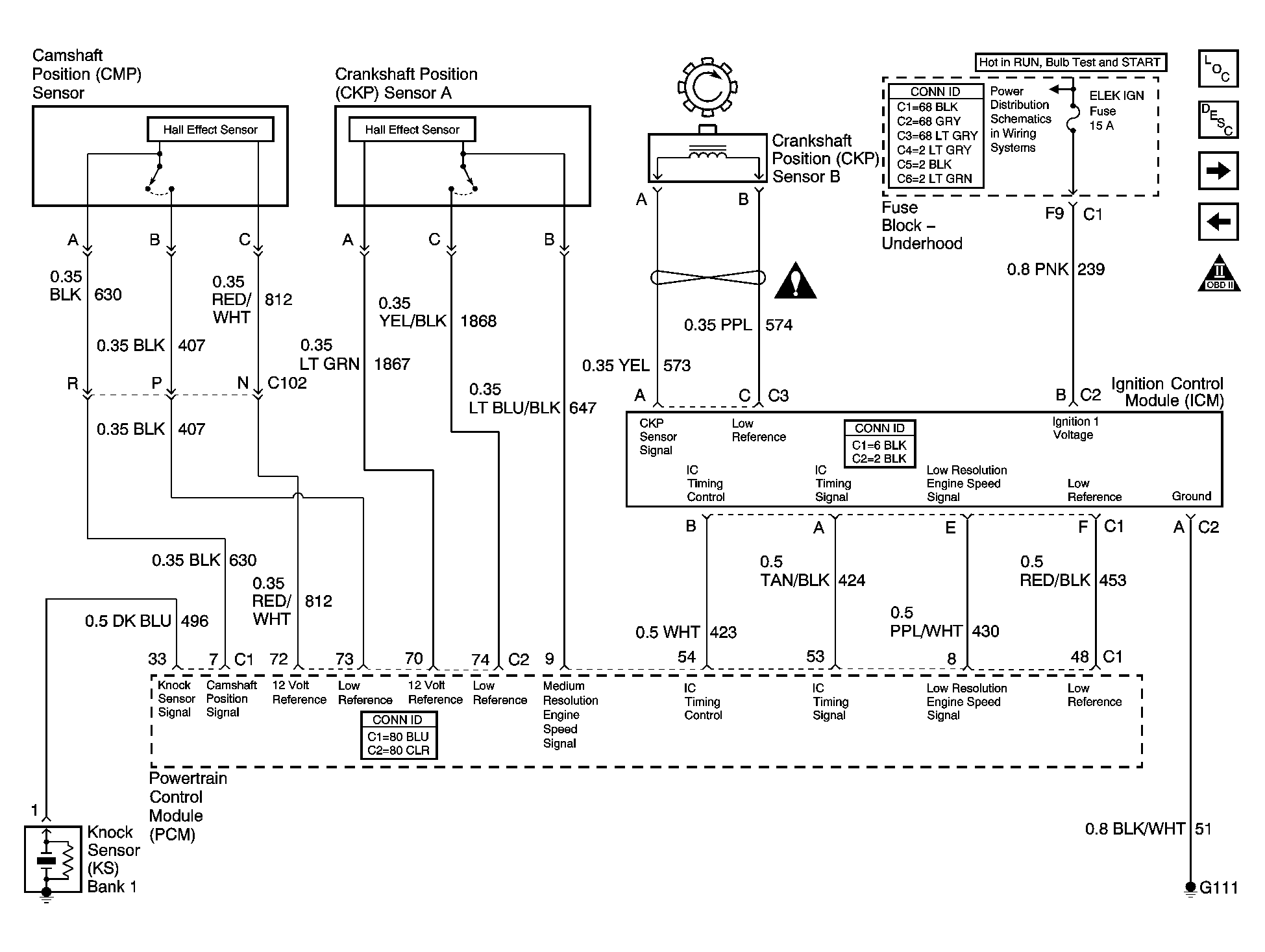

Fig 6: Ignition Controls - Ignition System and Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

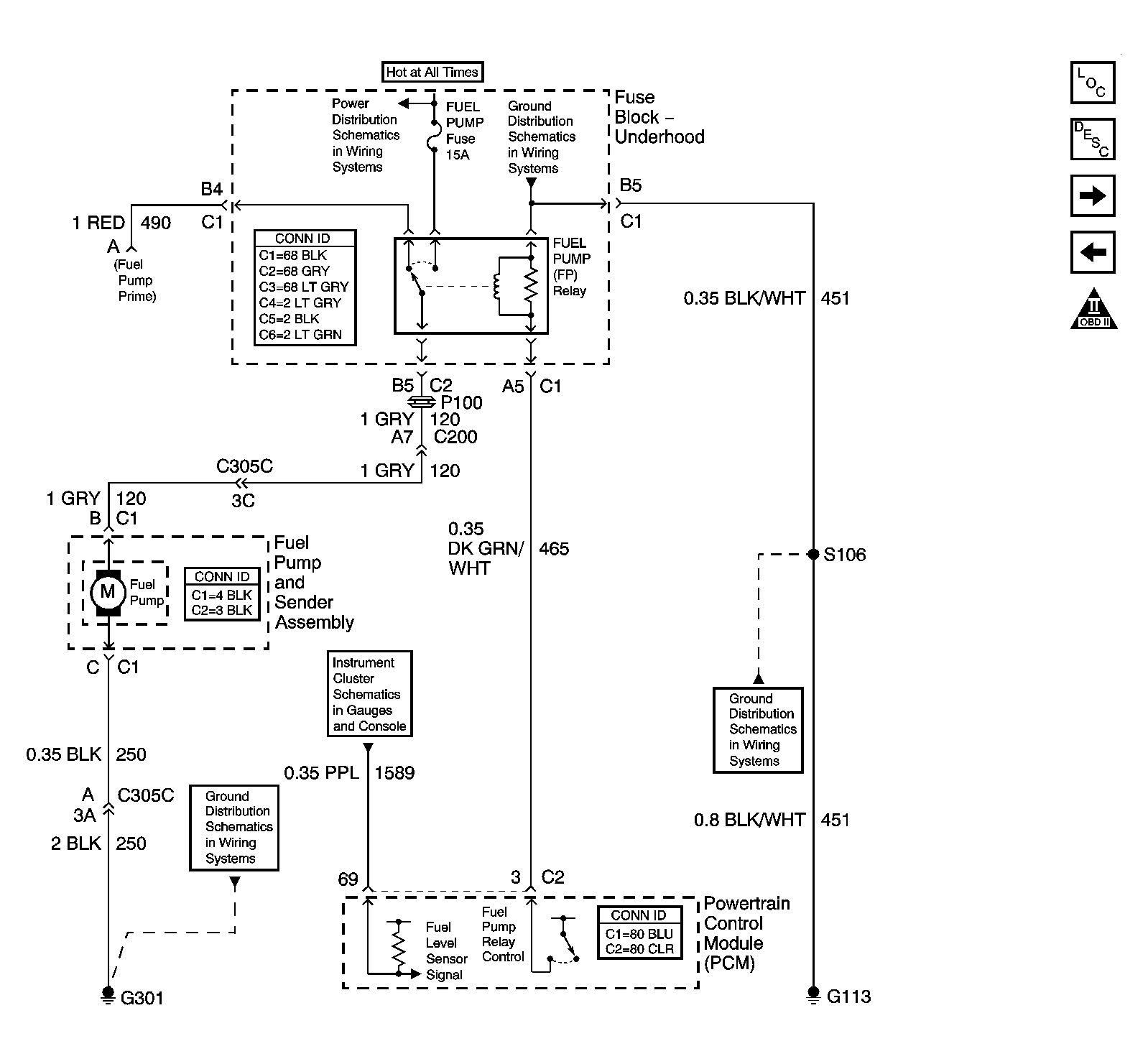

Fig 7: Fuel Controls - Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

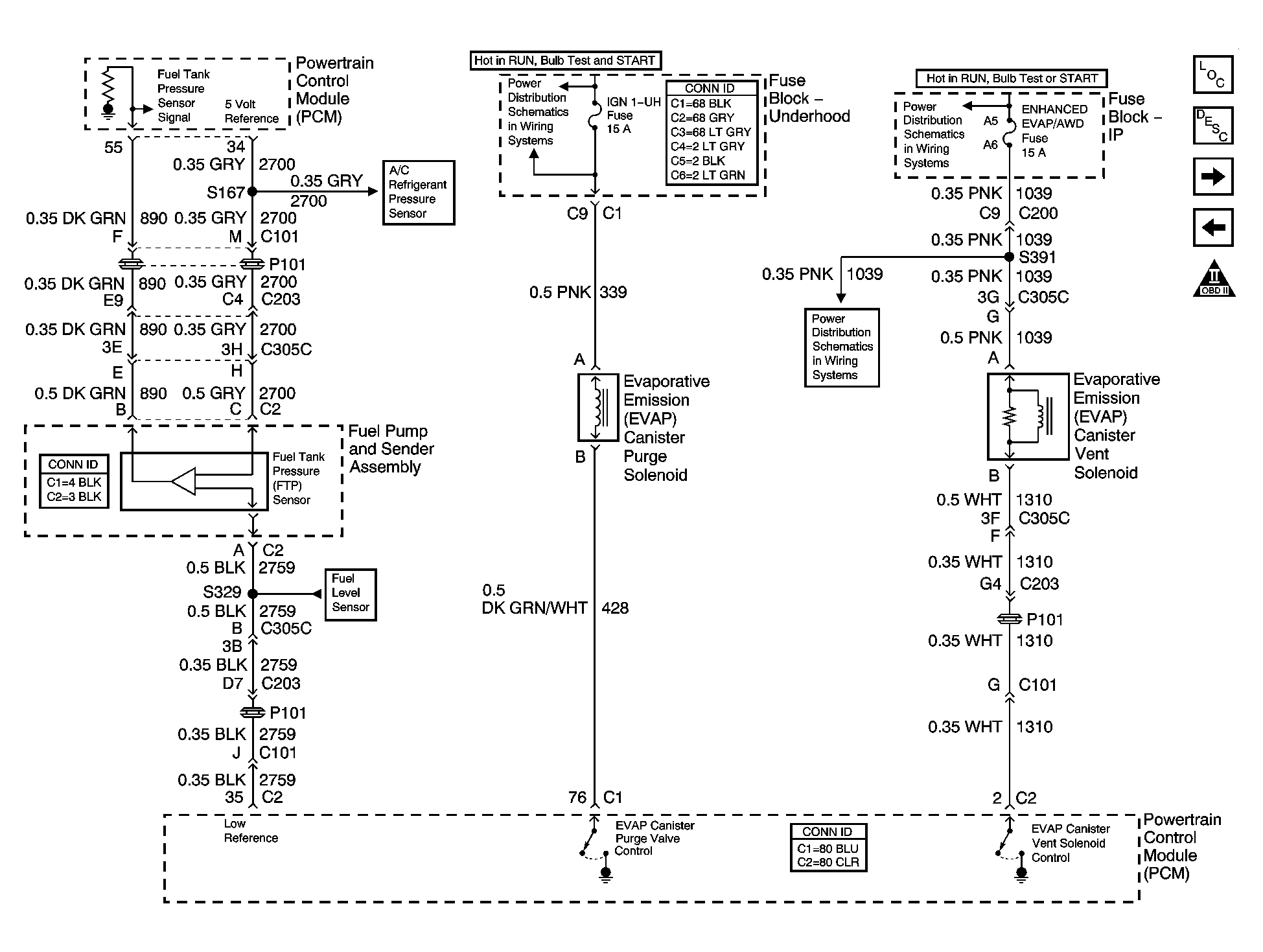

Fig 8: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

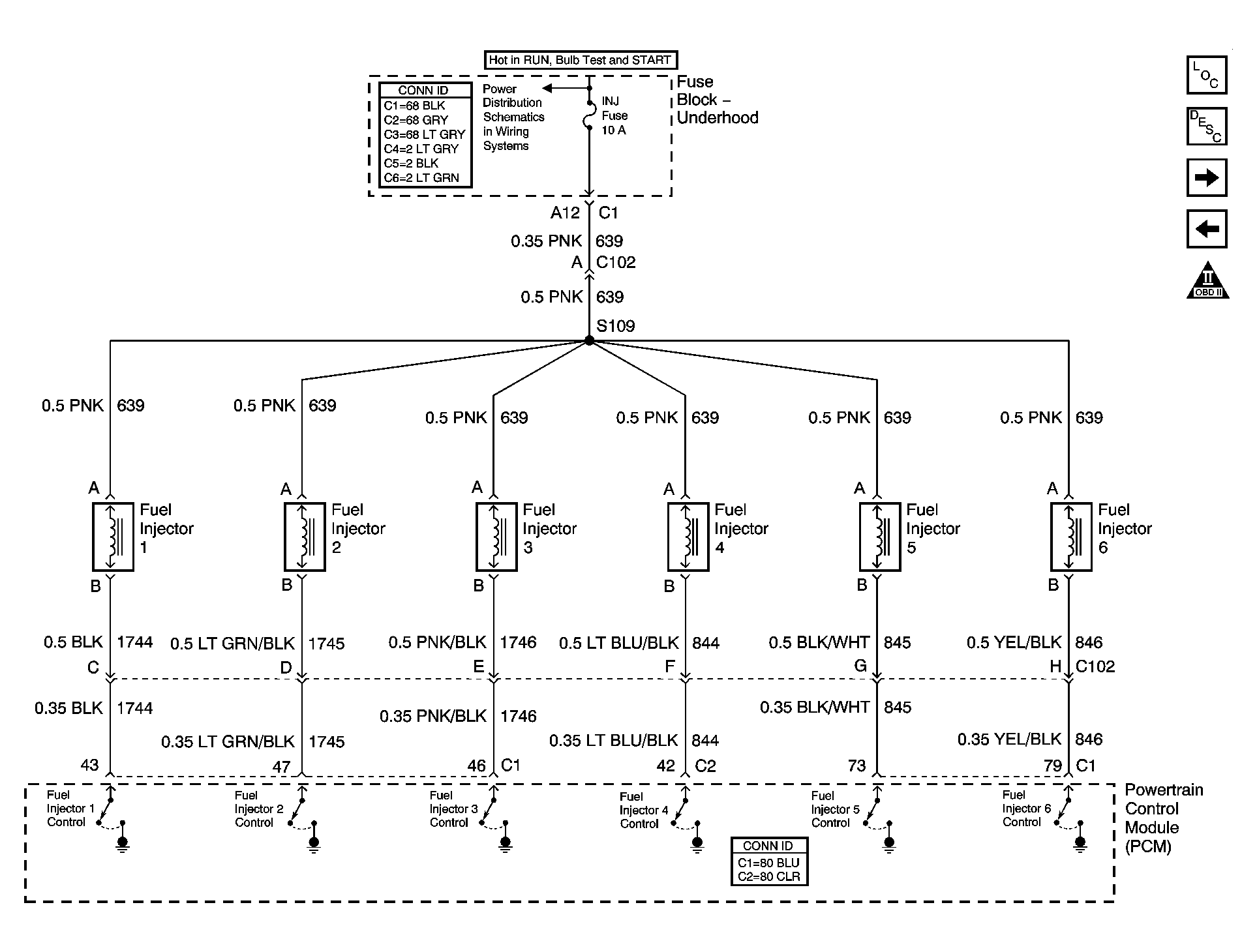

Fig 9: Fuel Control - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

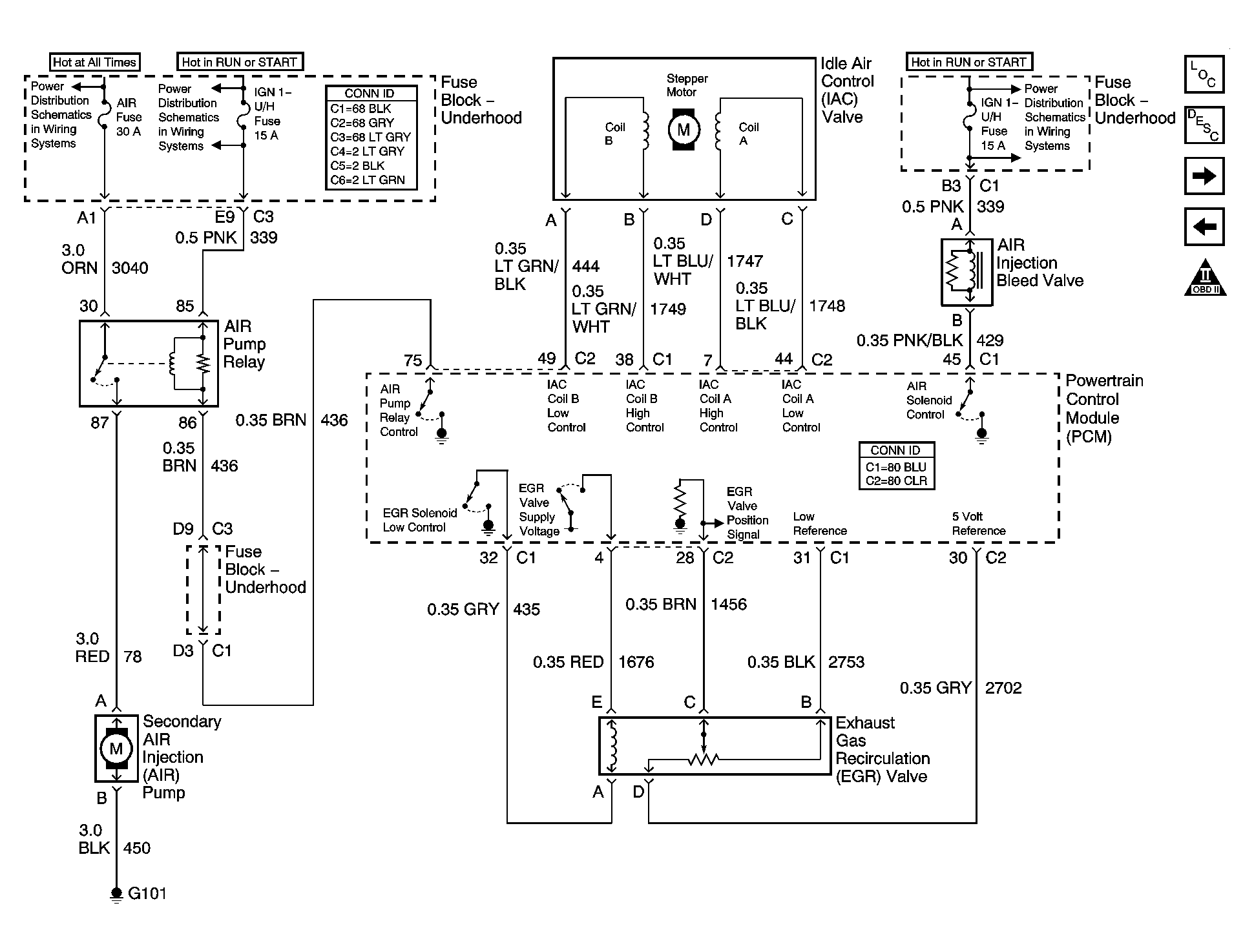

Fig 10: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

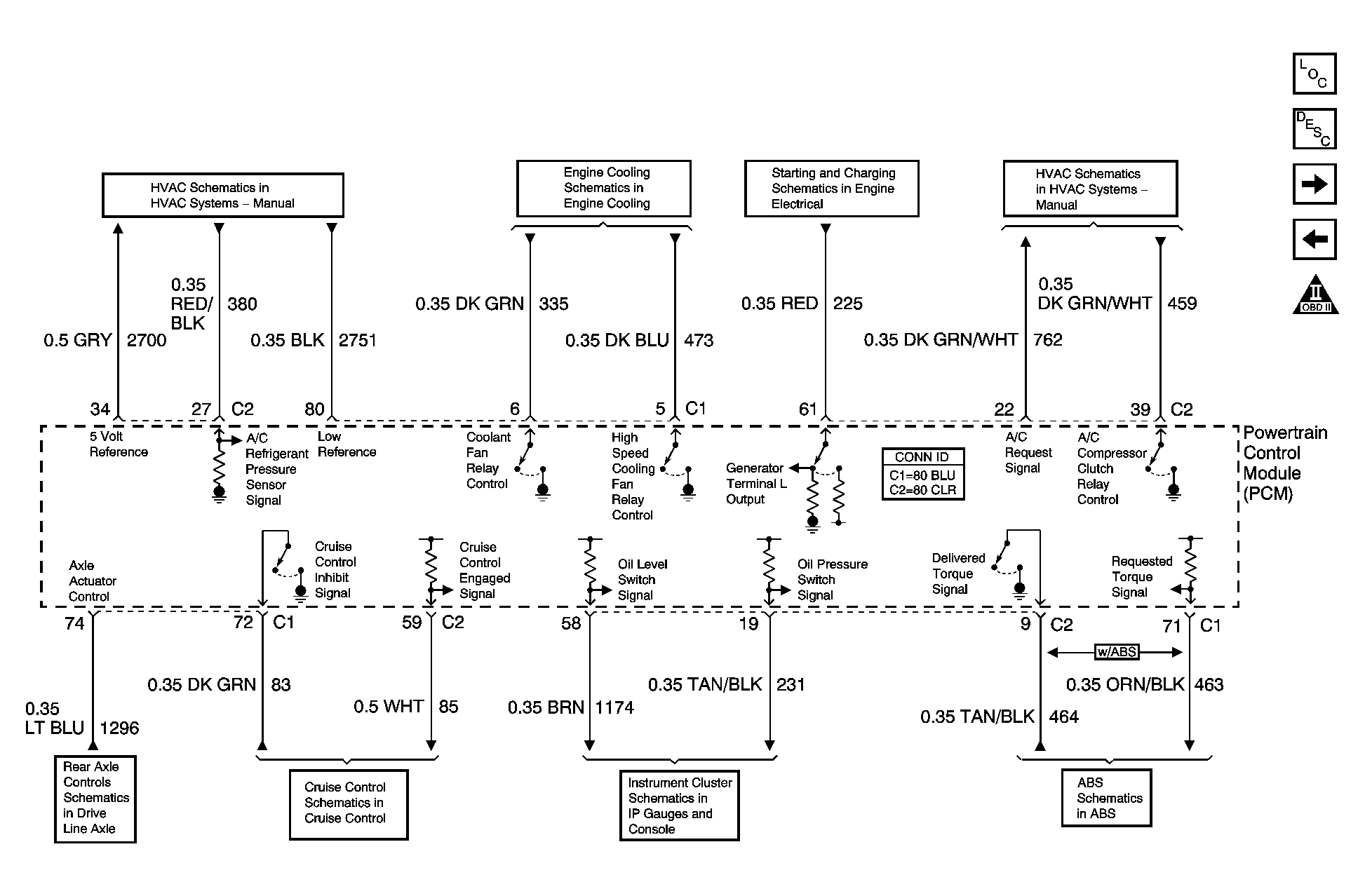

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

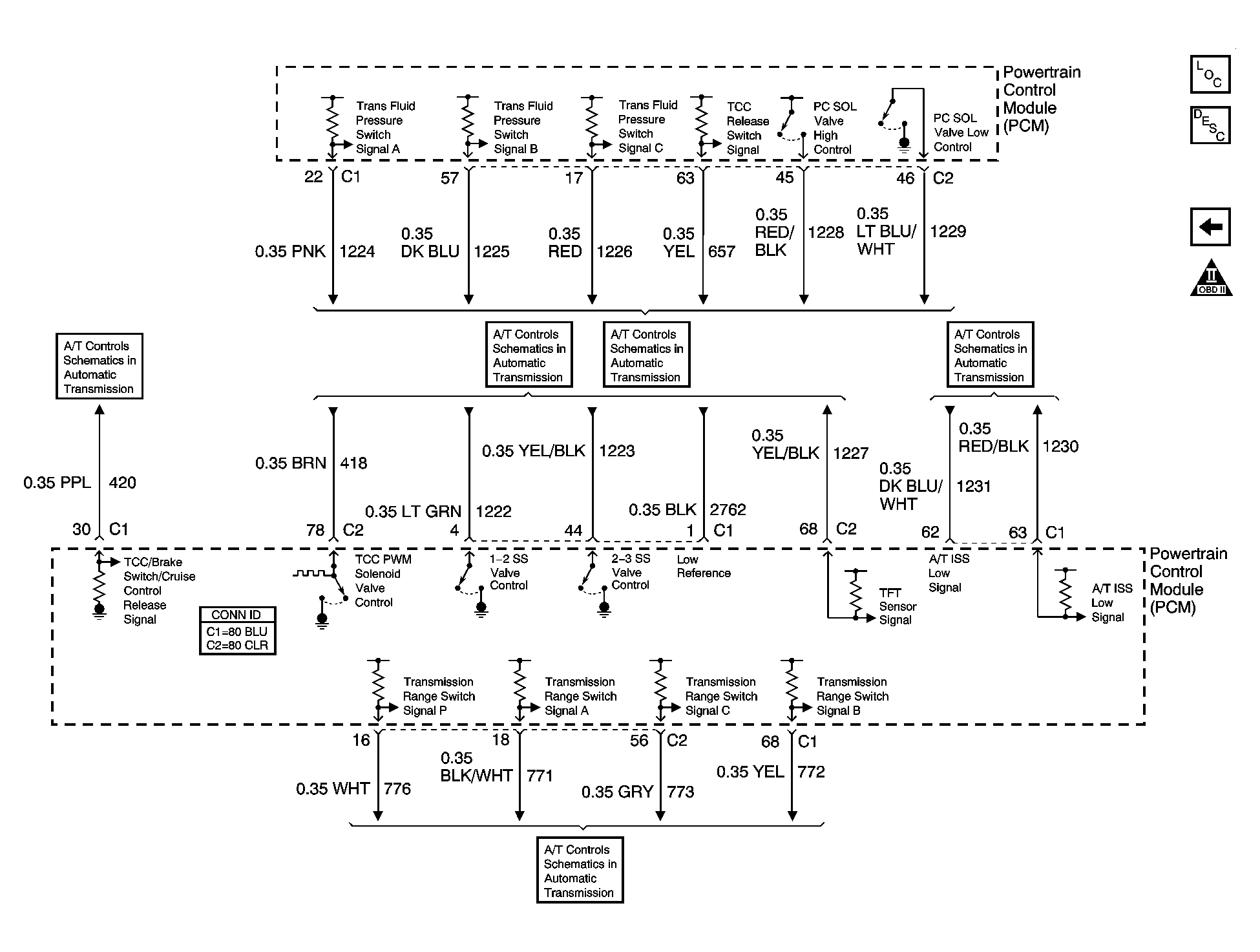

Fig 12: Transmission Controls Schematic

Courtesy of GENERAL MOTORS CORP.
