Fuel Hose/Pipes Routing Diagram

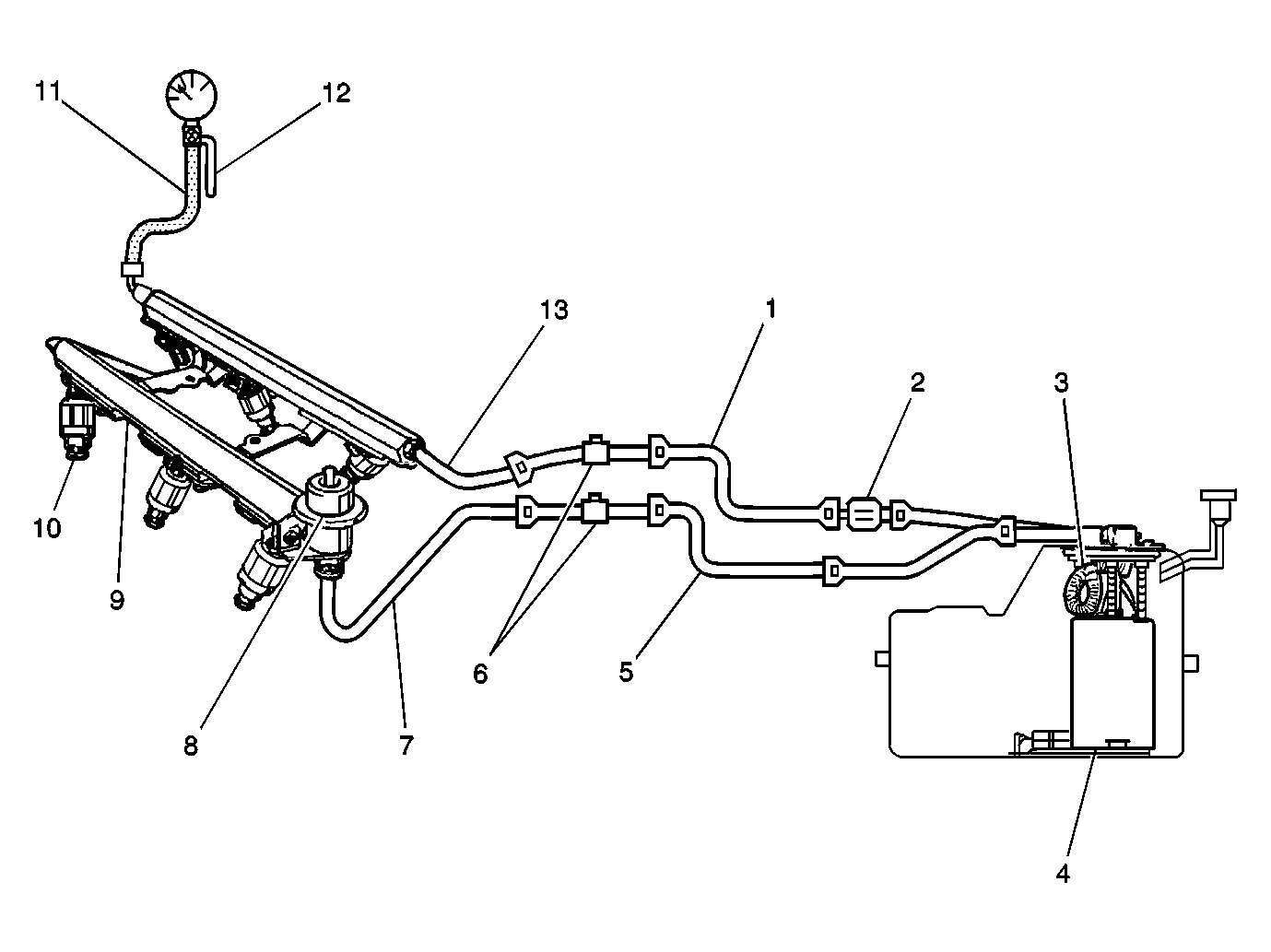

Fig 1: Fuel Hose/Pipes Routing Diagram
GM689463Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Return Pipe Rear
2 Fuel Filter
3 Fuel Pump Module
4 Fuel Strainer
5 Fuel Feed Pipe Rear
6 Fuel Line Shut-off Adapters
7 Fuel Feed Pipe Front
8 Fuel Pressure Regulator
9 Fuel Rail
10 Fuel Injector
11 Fuel Pressure Gage
12 Bleed Hose
13 Fuel Return Pipe Front
