Inflatable Restraint Roof Rail Module

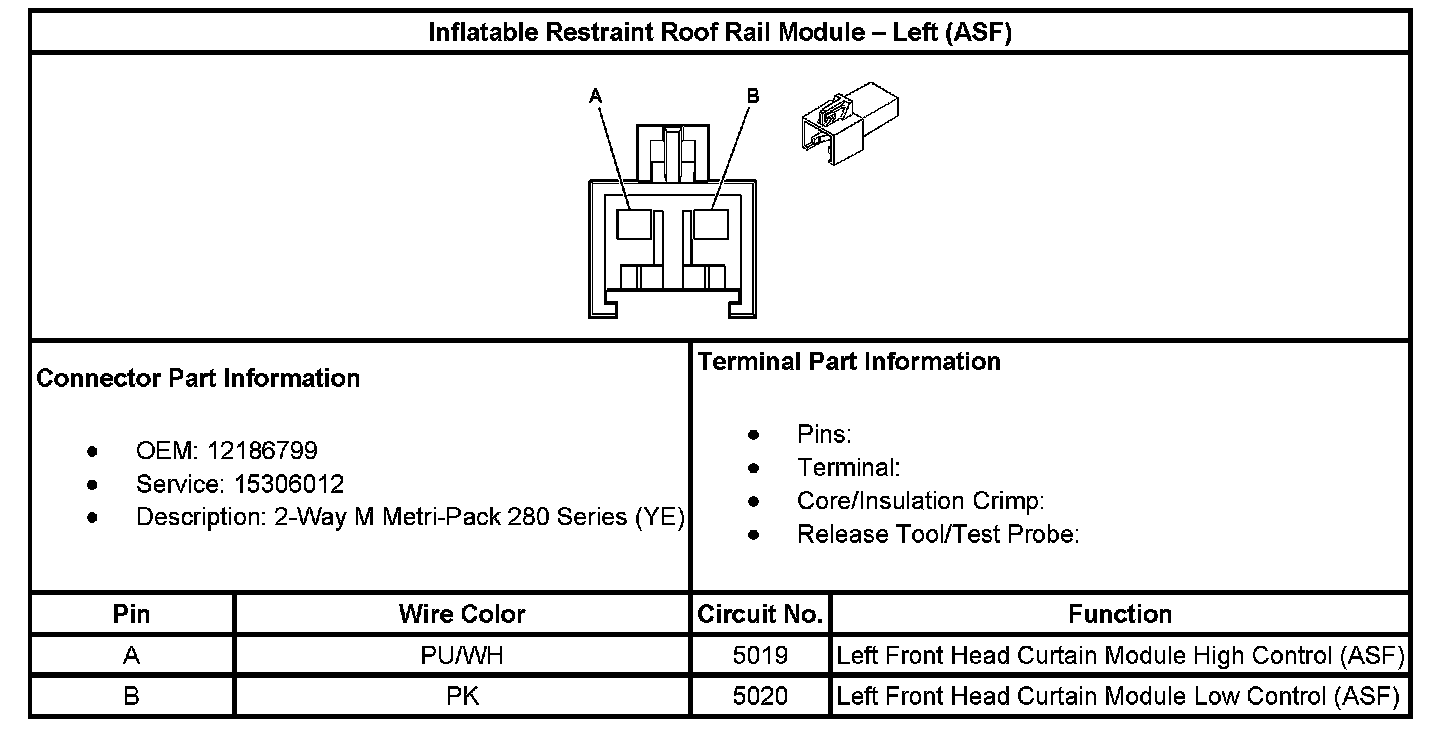

Inflatable Restraint Roof Rail Module - Left (With RPO Code ASF):

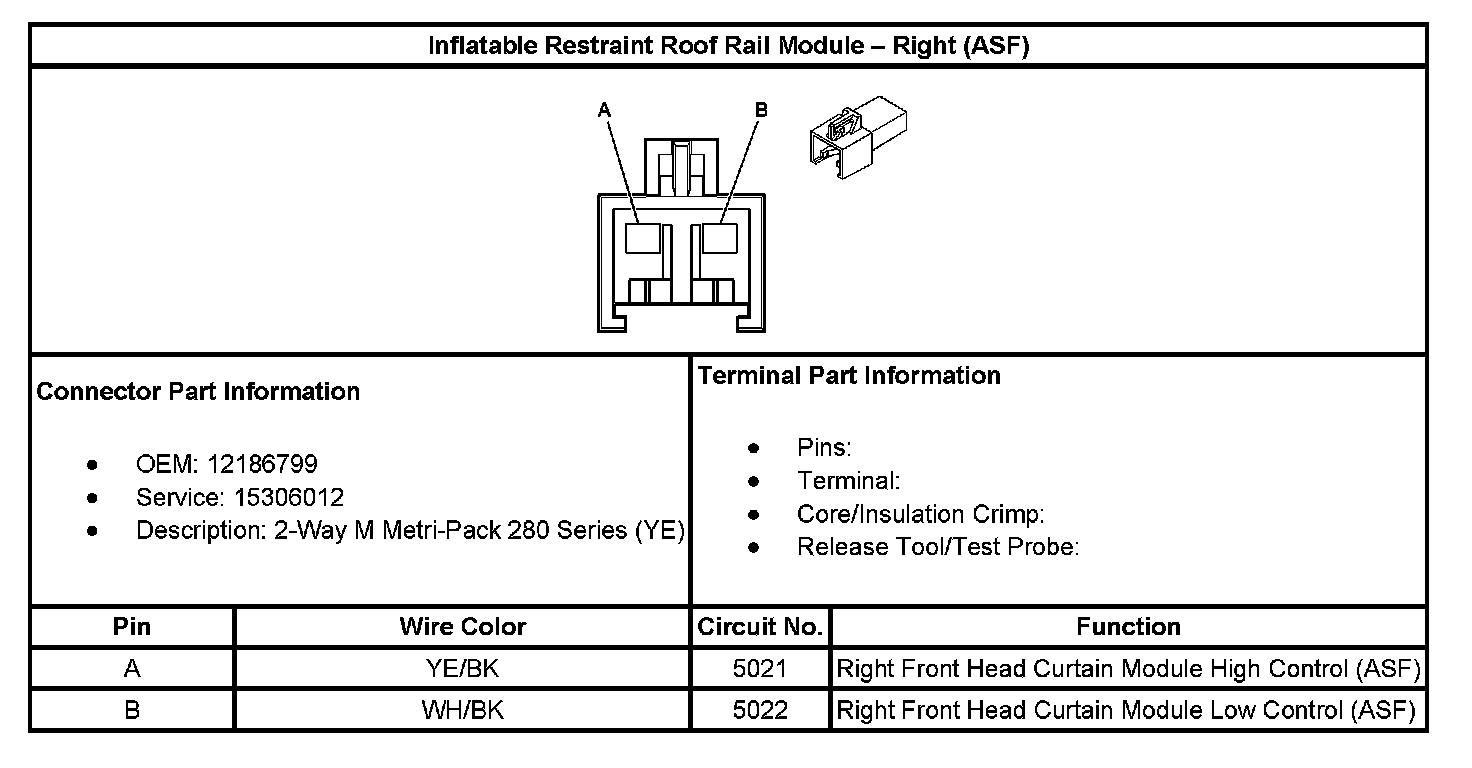

Inflatable Restraint Roof Rail Module - Right ((With RPO Code ASF):
