Control Assembly, HVAC

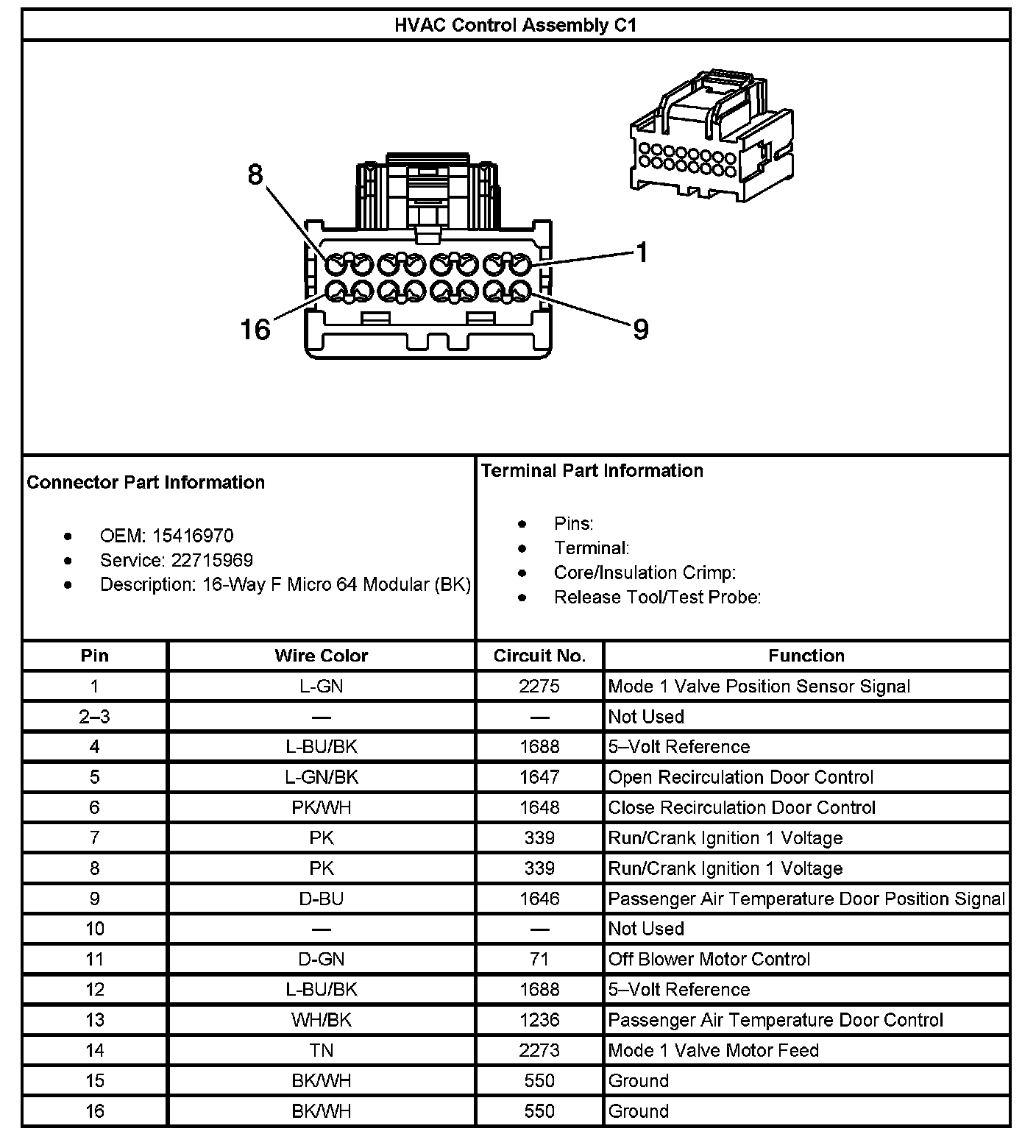

HVAC Control Assembly C1:

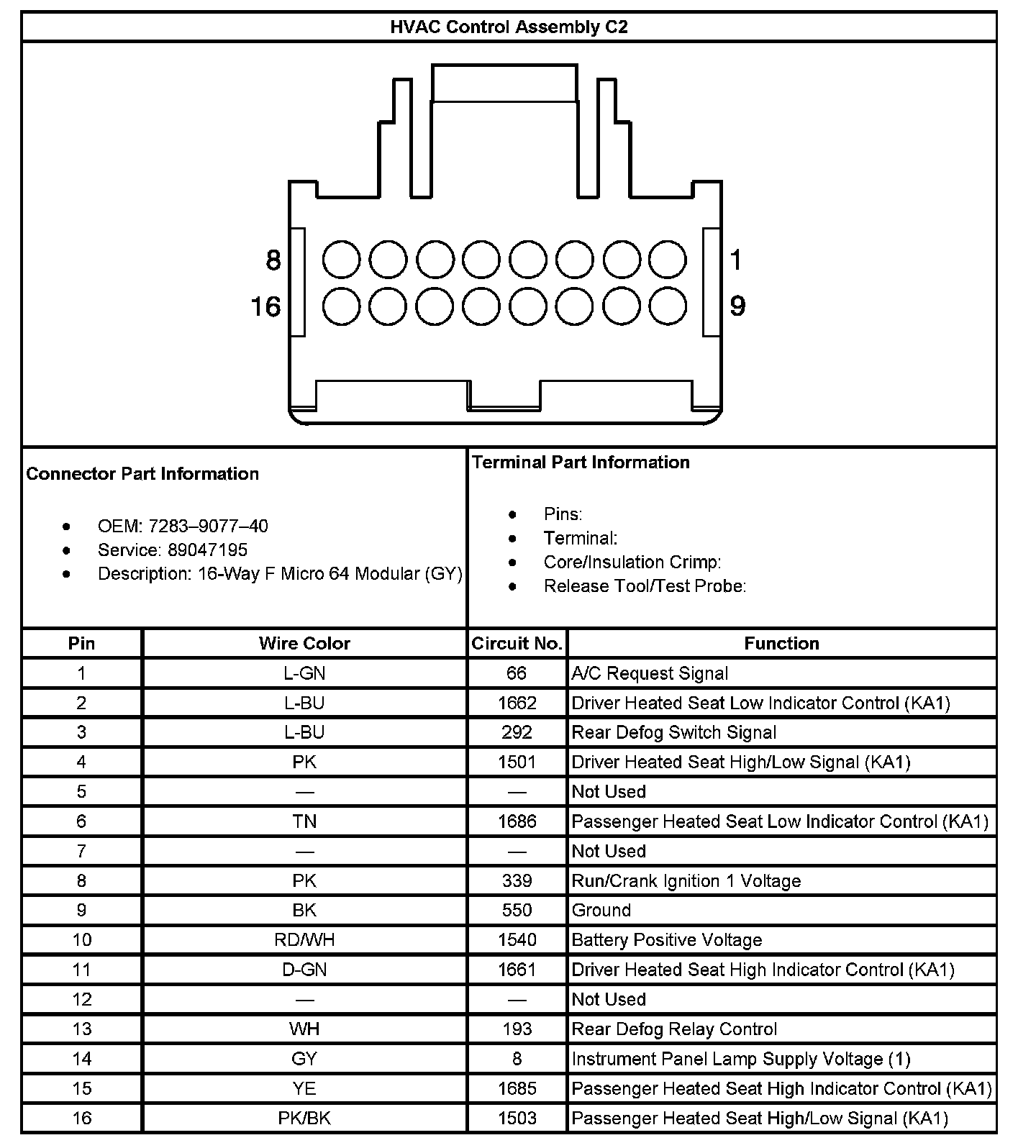

HVAC Control Assembly C2:

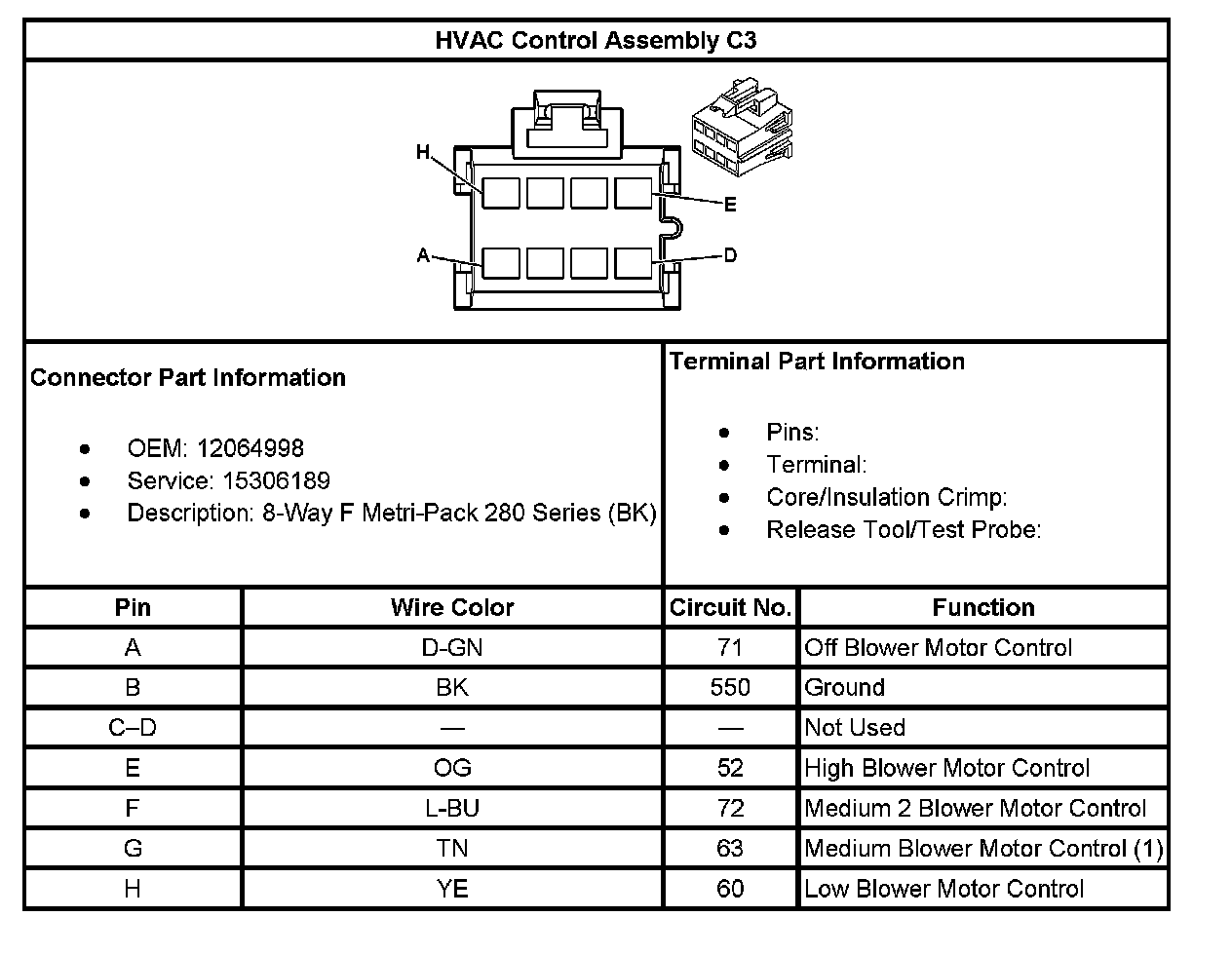

HVAC Control Assembly C3:
