Door Switch

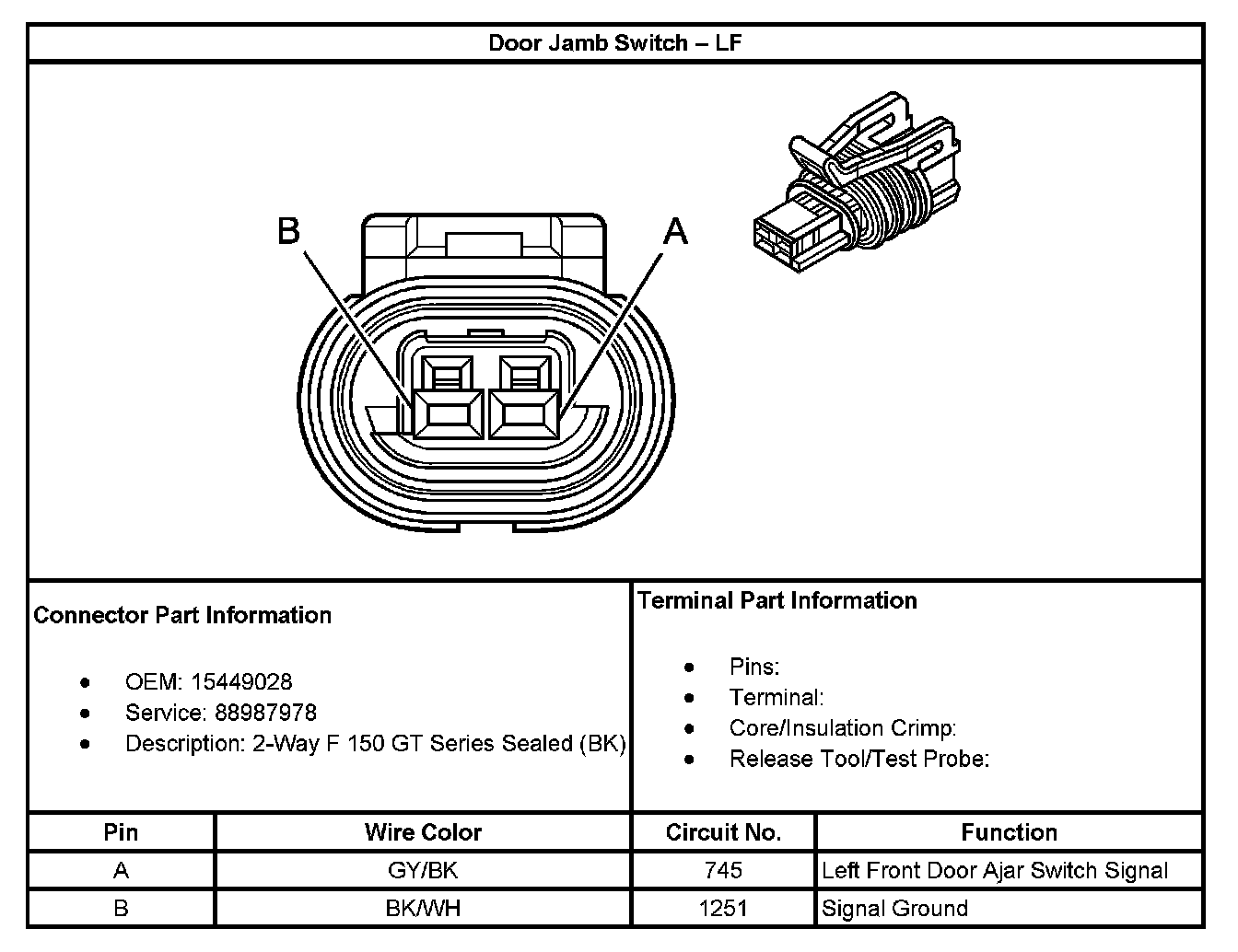

Door Jamb Switch - LF:

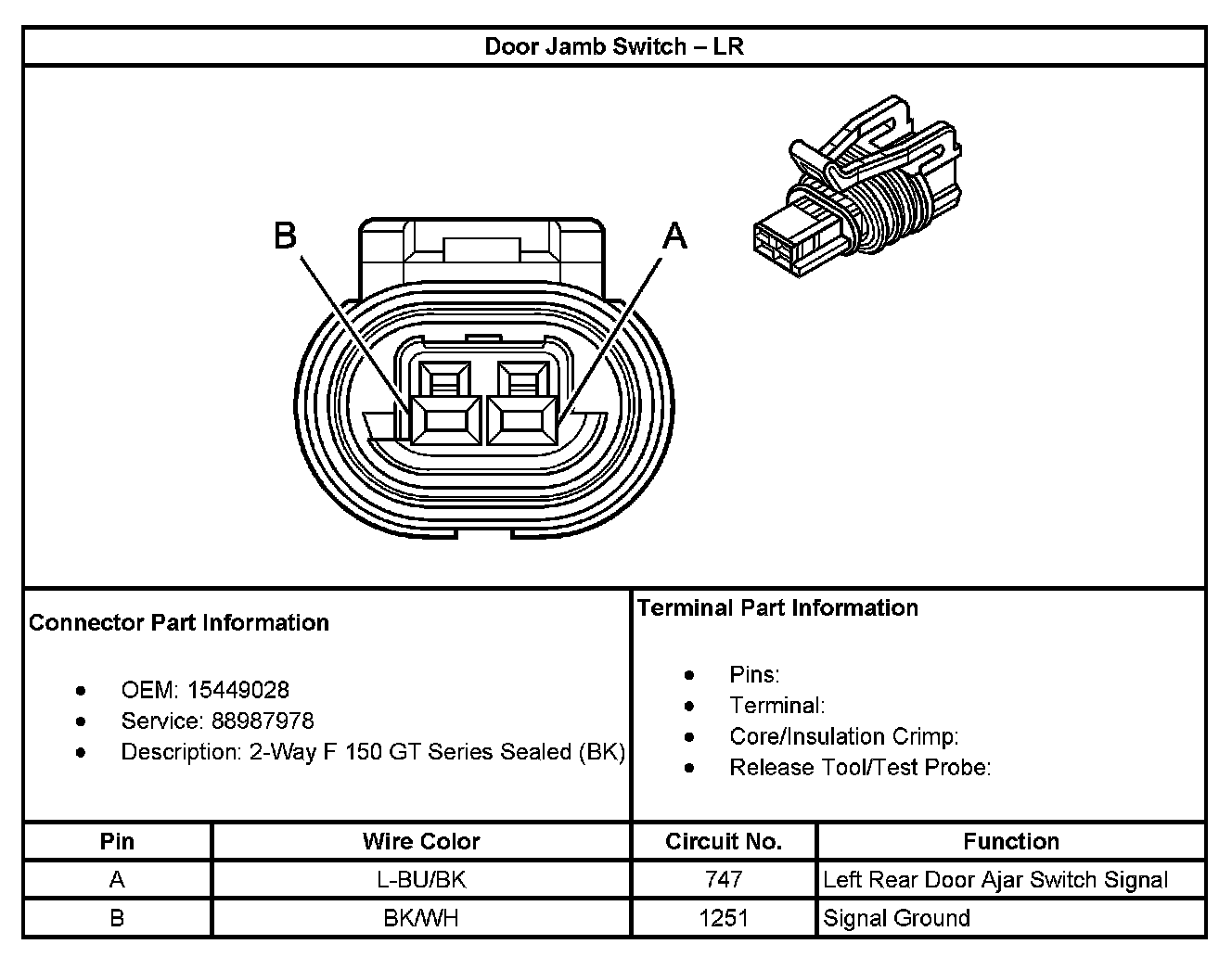

Door Jamb Switch - LR:

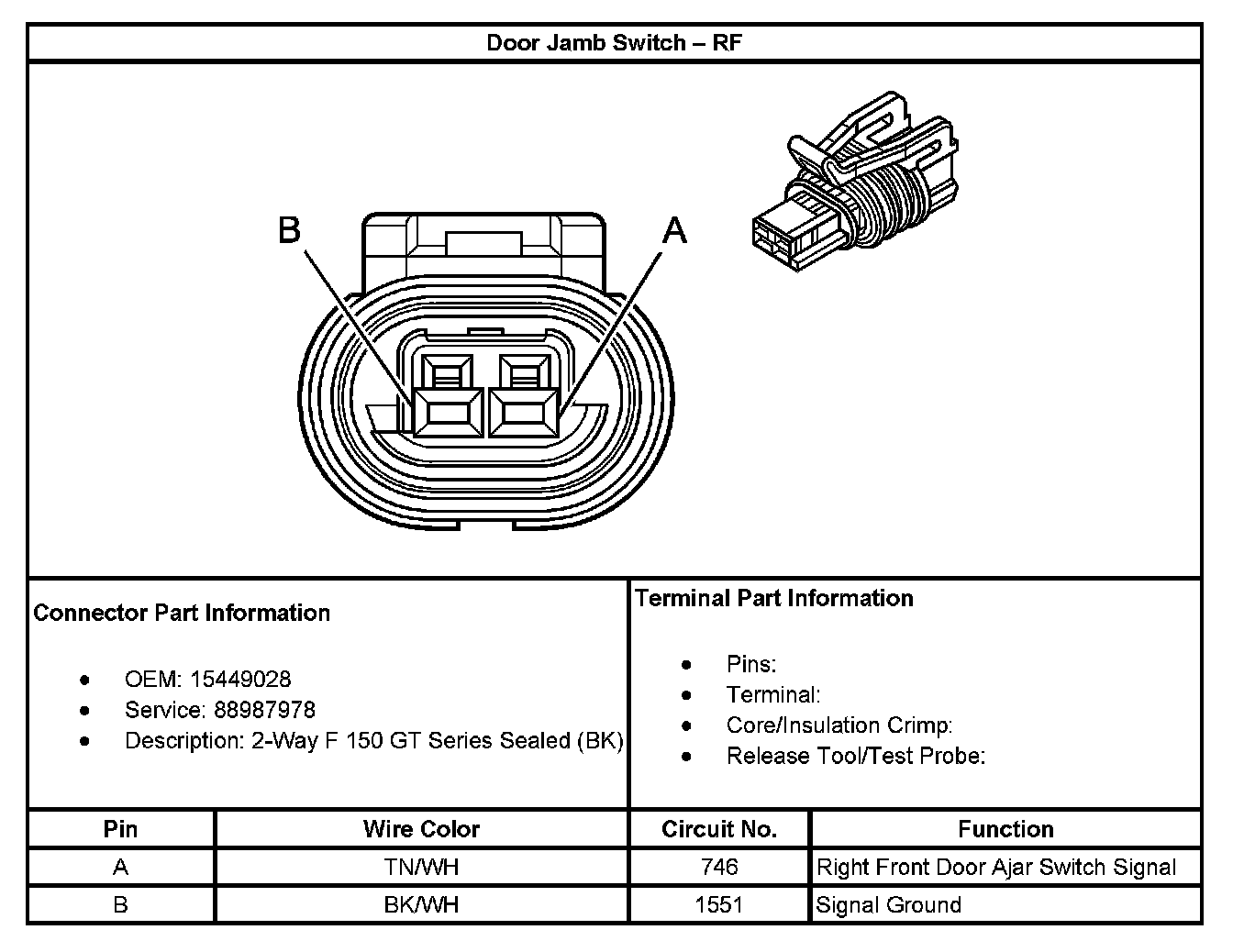

Door Jamb Switch - RF:

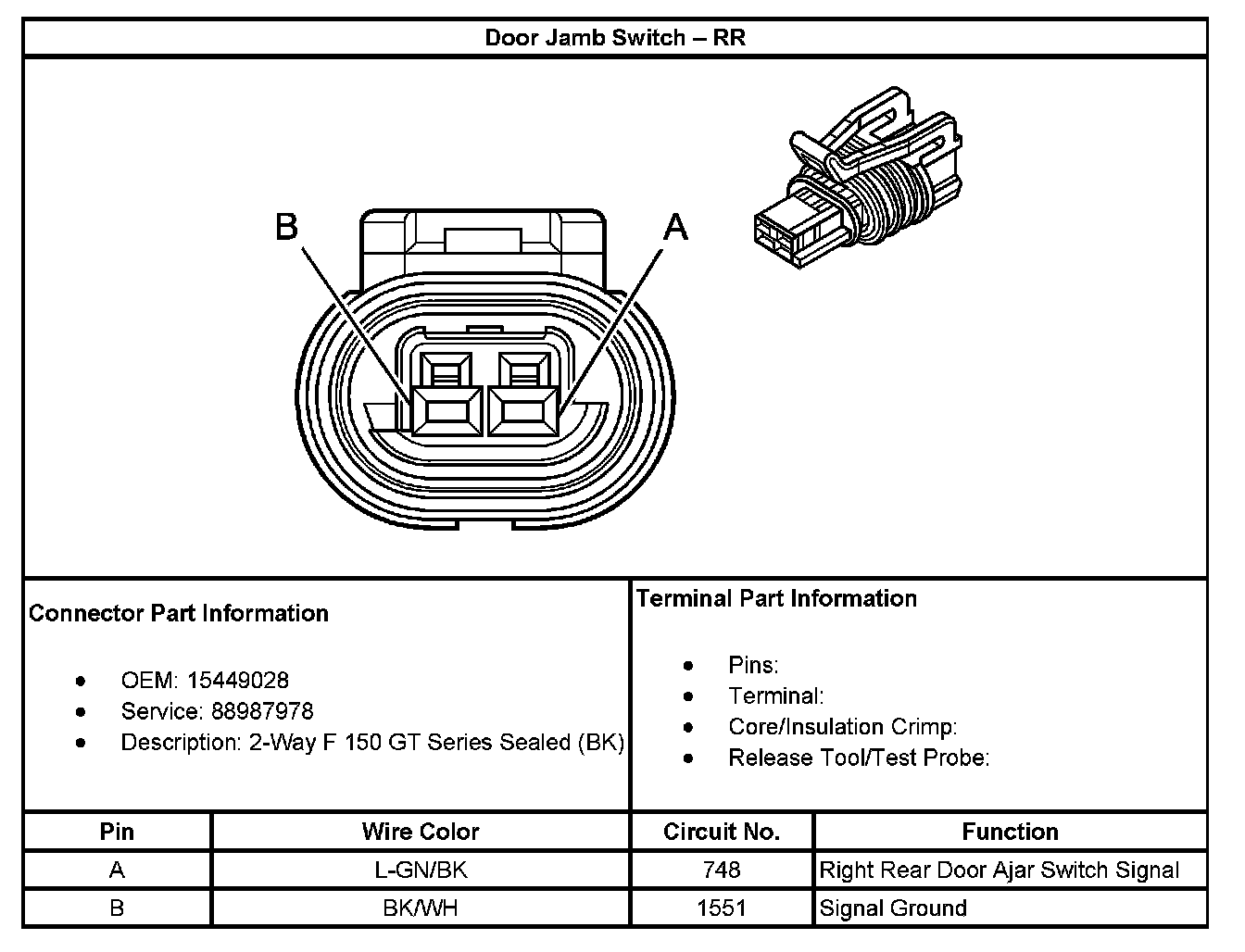

Door Jamb Switch - RR:
