Fuse Block - Underhood C2

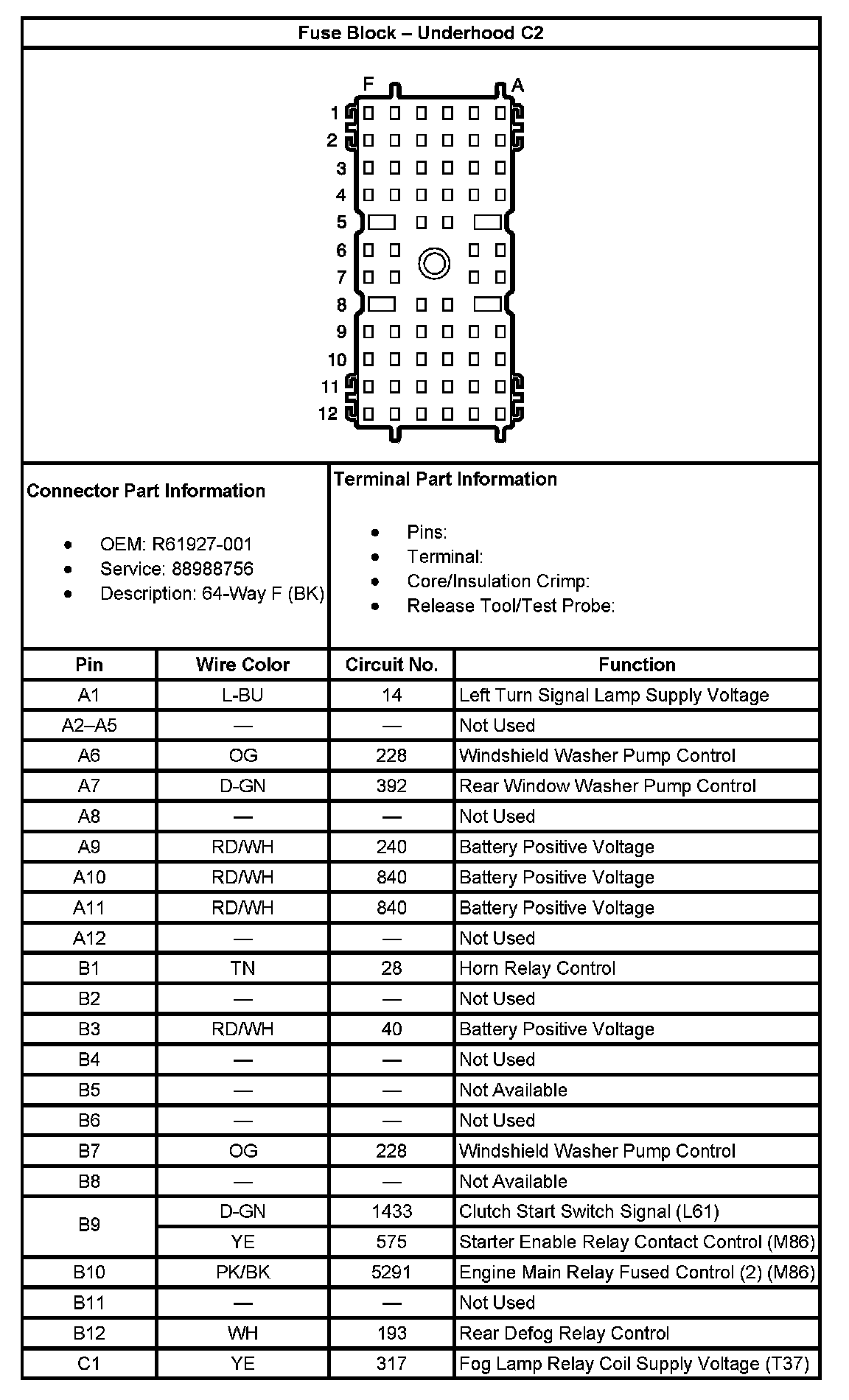

Fuse Block - Underhood C2 (Part 1):

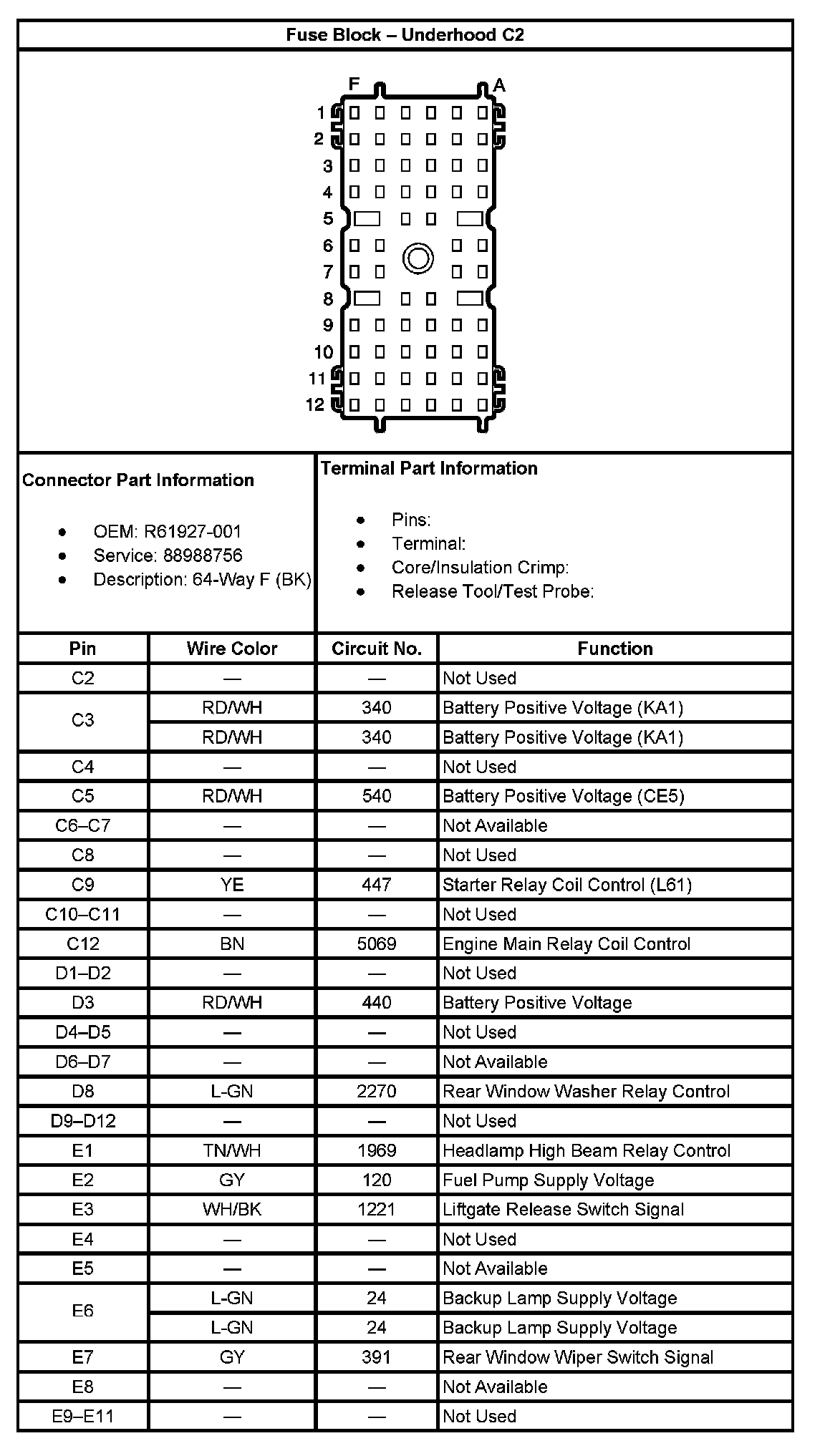

Fuse Block - Underhood C2 (Part 2):

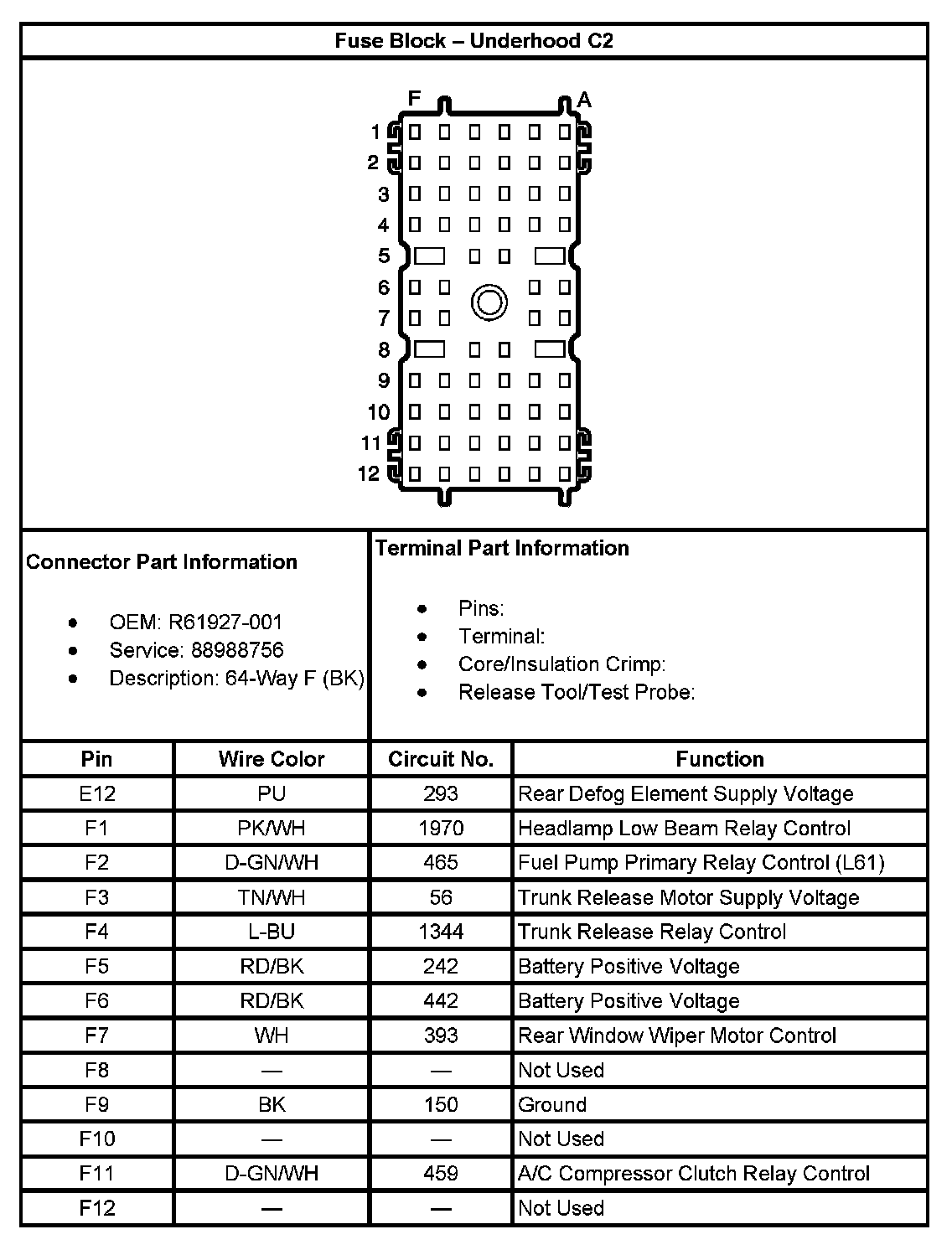

Fuse Block - Underhood C2 (Part 3):
