Inflatable Restraint Side Impact Sensor

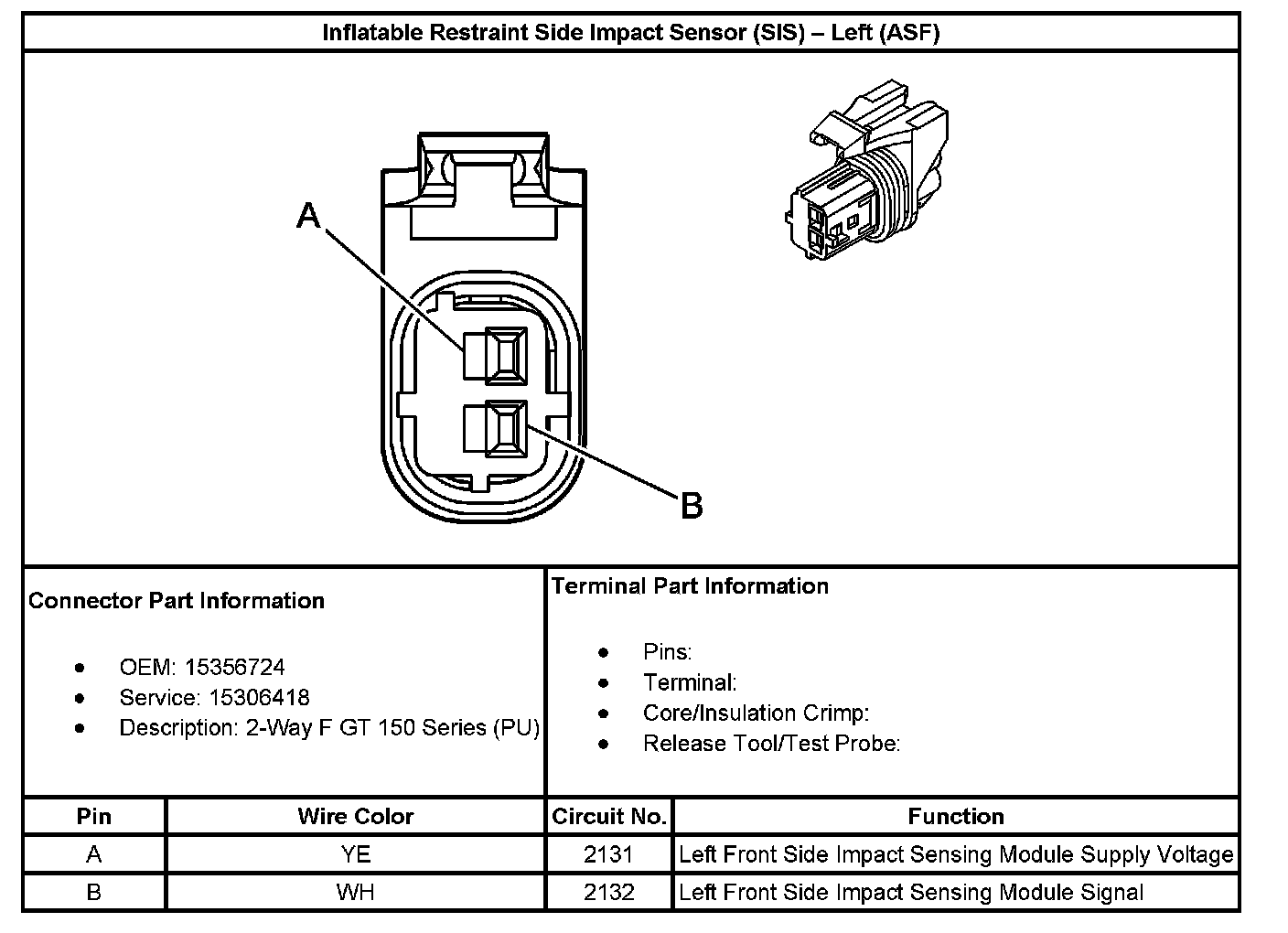

Inflatable Restraint Side Impact Sensor (SIS) - Left (With RPO Code ASF):

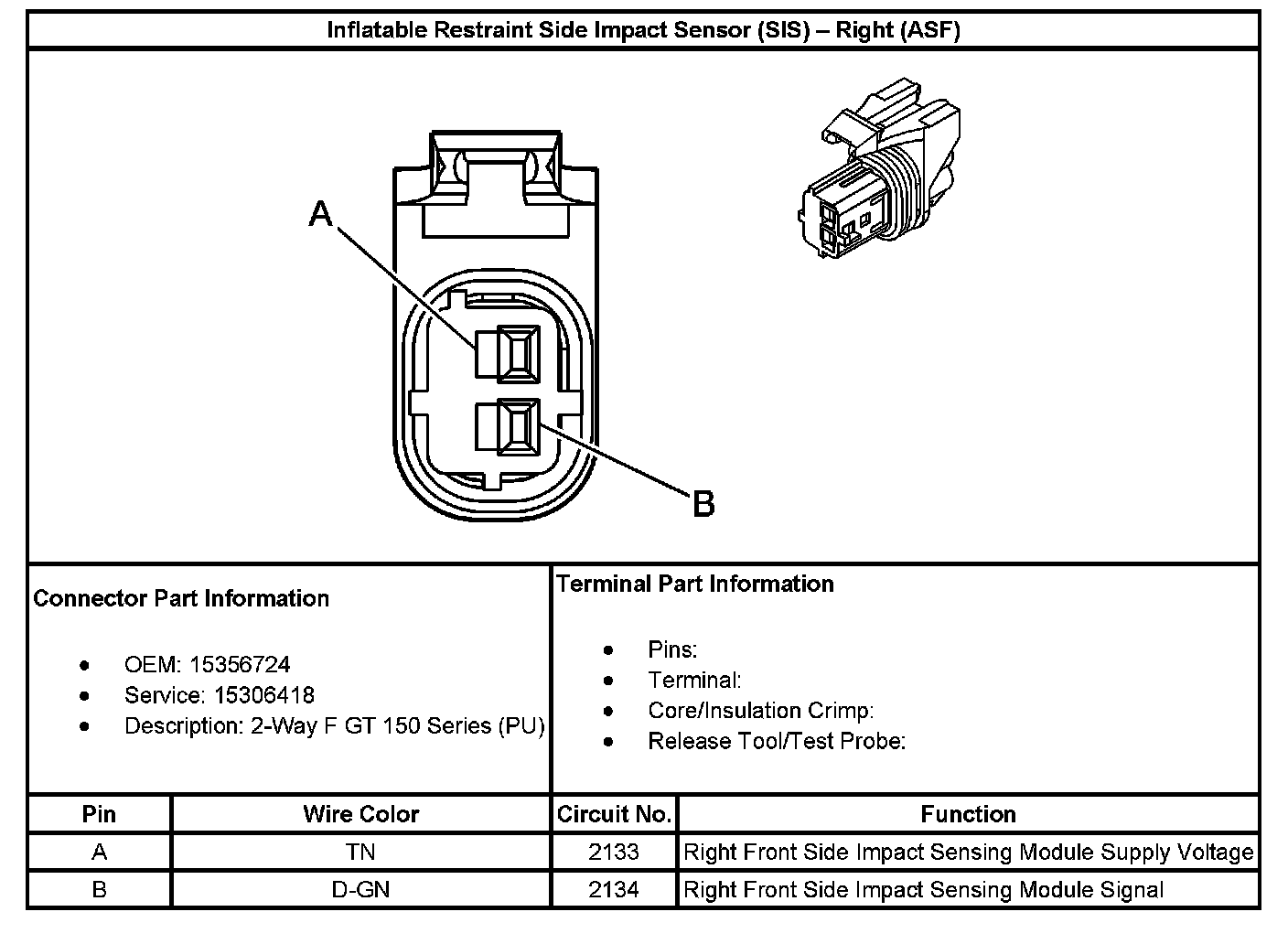

Inflatable Restraint Side Impact Sensor (SIS) - Right (With RPO Code ASF):
