System Diagram

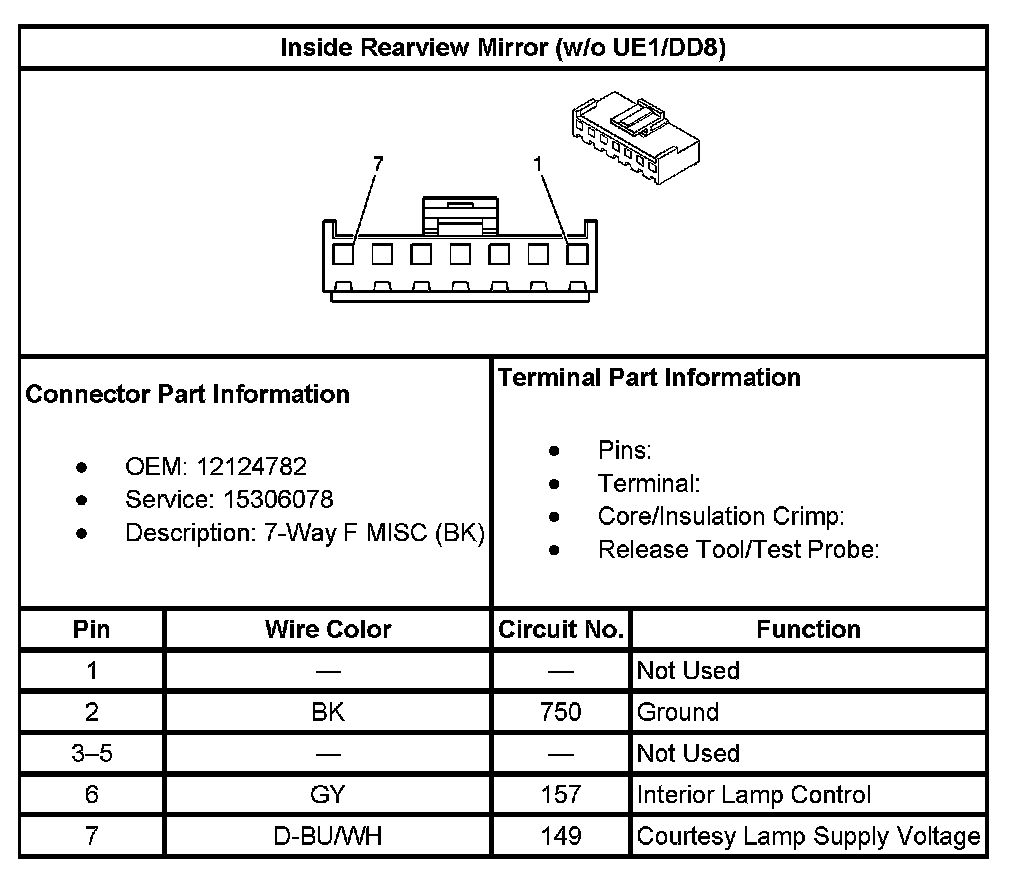

Inside Rearview Mirror (Without RPO Code UE1/DD8):

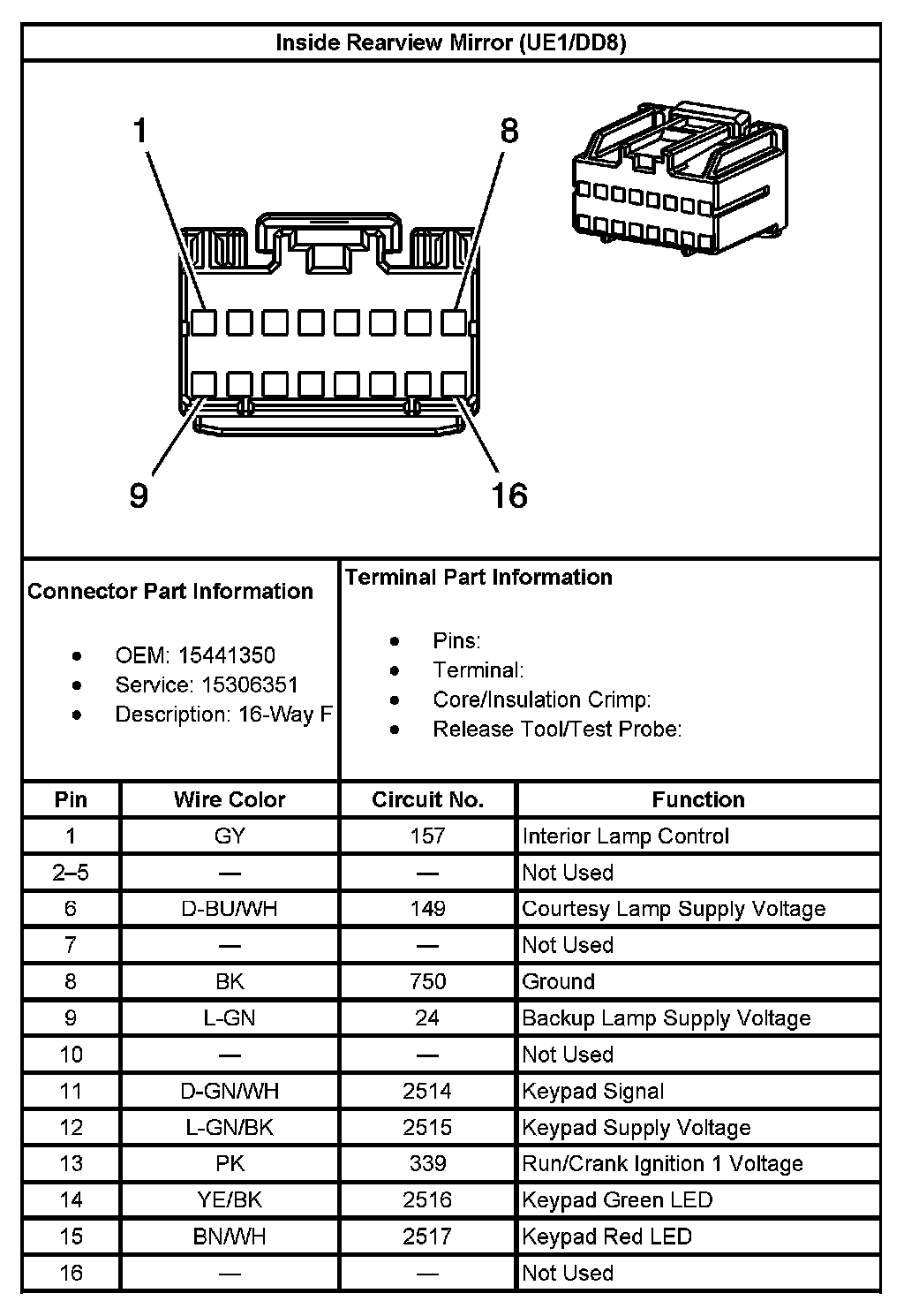

Inside Rearview Mirror (With RPO Code UE1/DD8):
