Seat Temperature Element

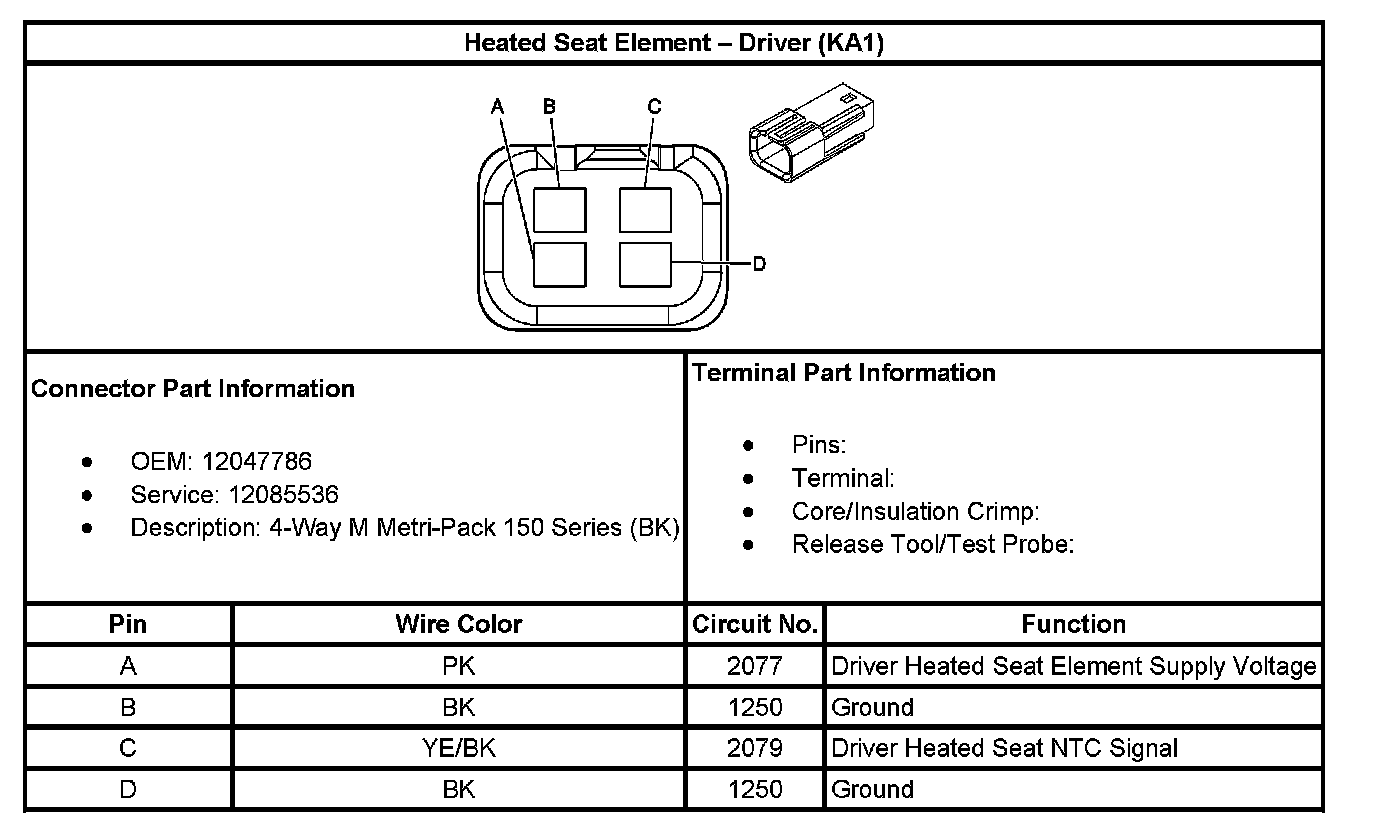

Heated Seat Element - Driver (With RPO Code KA1):

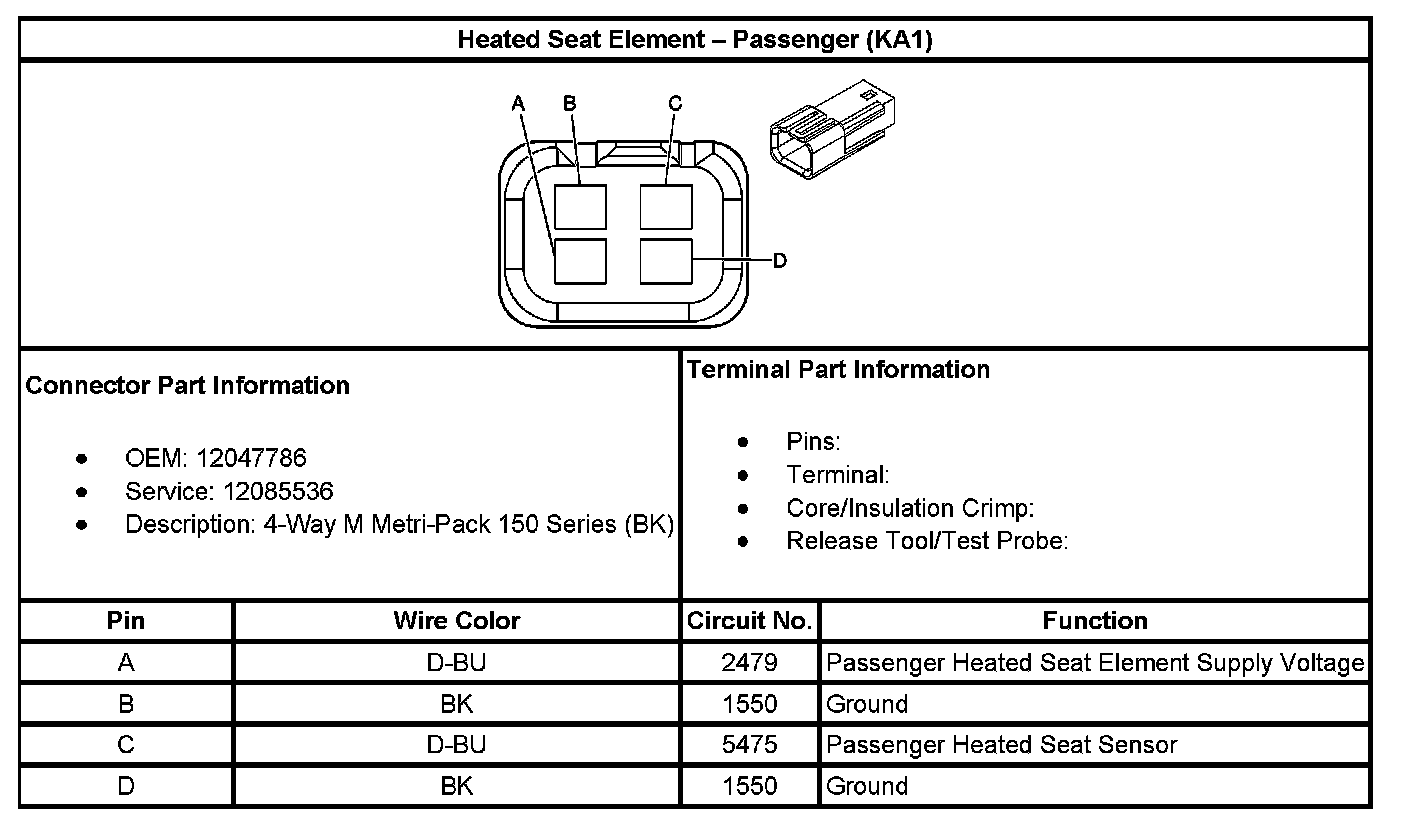

Heated Seat Element - Passenger (With RPO Code KA1):
