Power Steering Control Module (PSCM) C1
Power Steering System Connector End Views
Power Steering Control Module (PSCM) C1

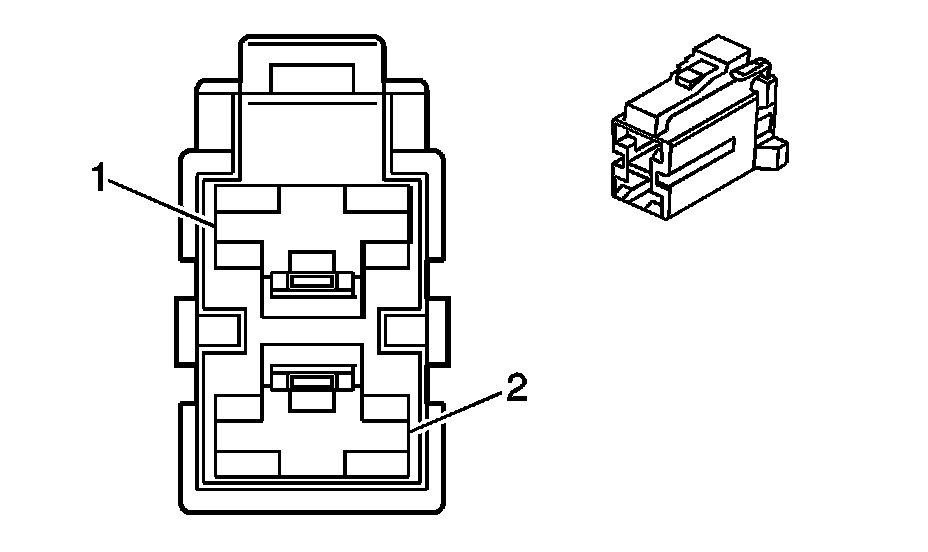

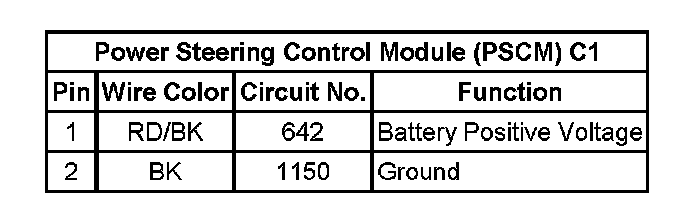

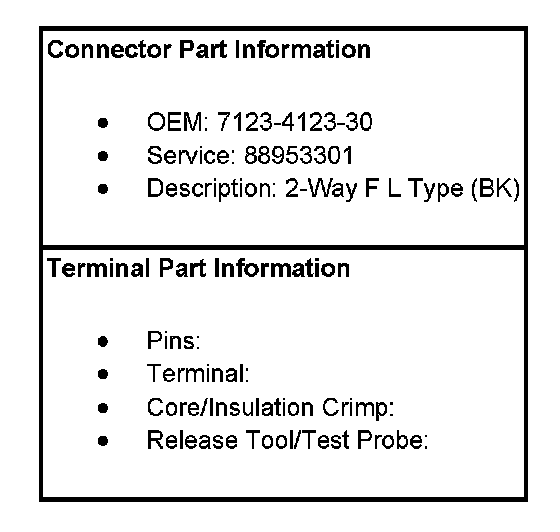

Power Steering Control Module (PSCM) C1:
