Power Steering Control Module (PSCM) C2

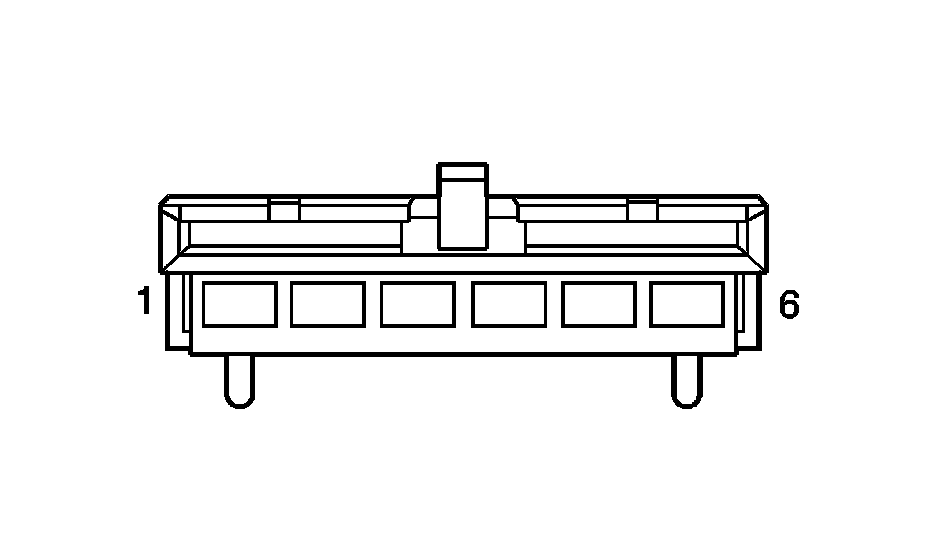

Power Steering System Connector End Views

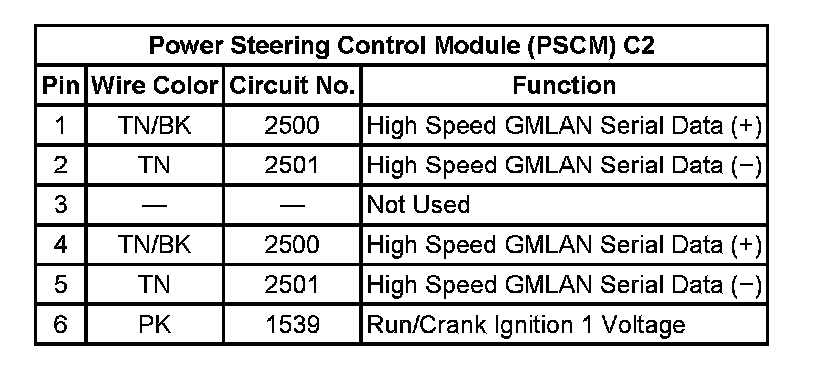

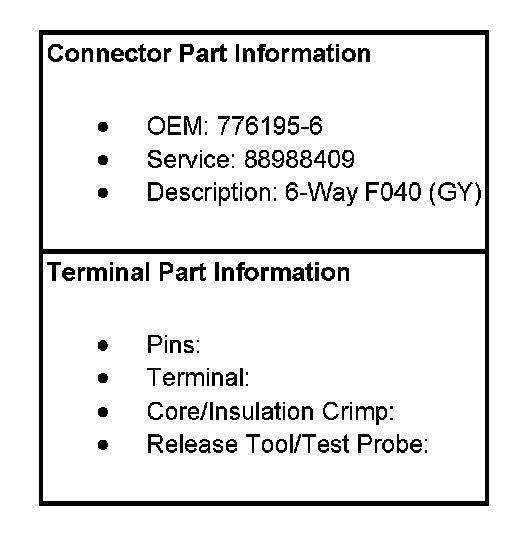

Power Steering Control Module (PSCM) C2:
