Exhaust Manifold and Components

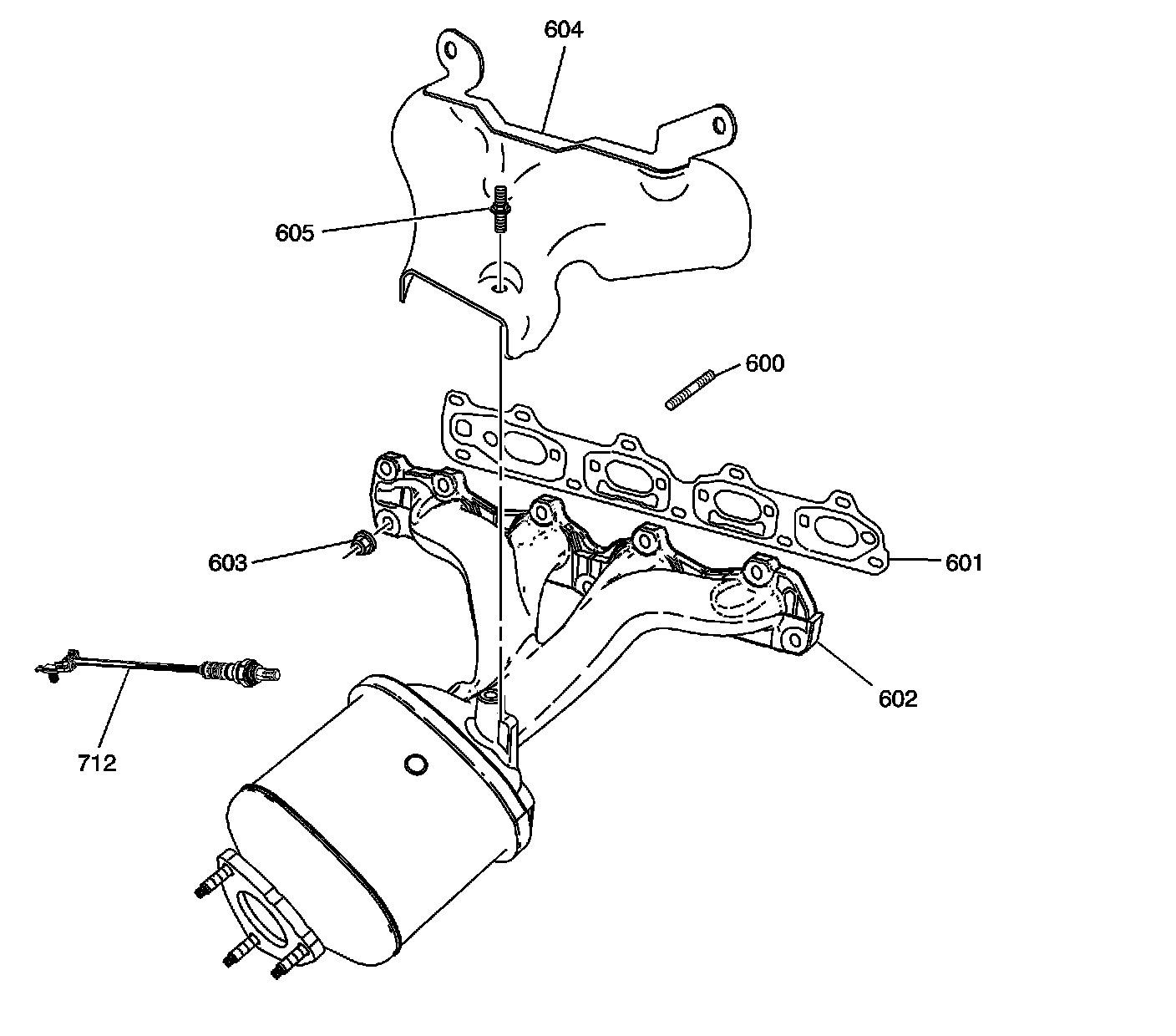

Disassembled Views

Exhaust Manifold and Components:

600 - Exhaust Manifold Stud
601 - Exhaust Manifold Gasket
602 - Exhaust Manifold and Catalytic Converter Assembly
603 - Exhaust Manifold Nut
604 - Exhaust Manifold Heat Shield
605 - Exhaust Manifold Heat Shield Stud
712 - Oxygen Sensor
