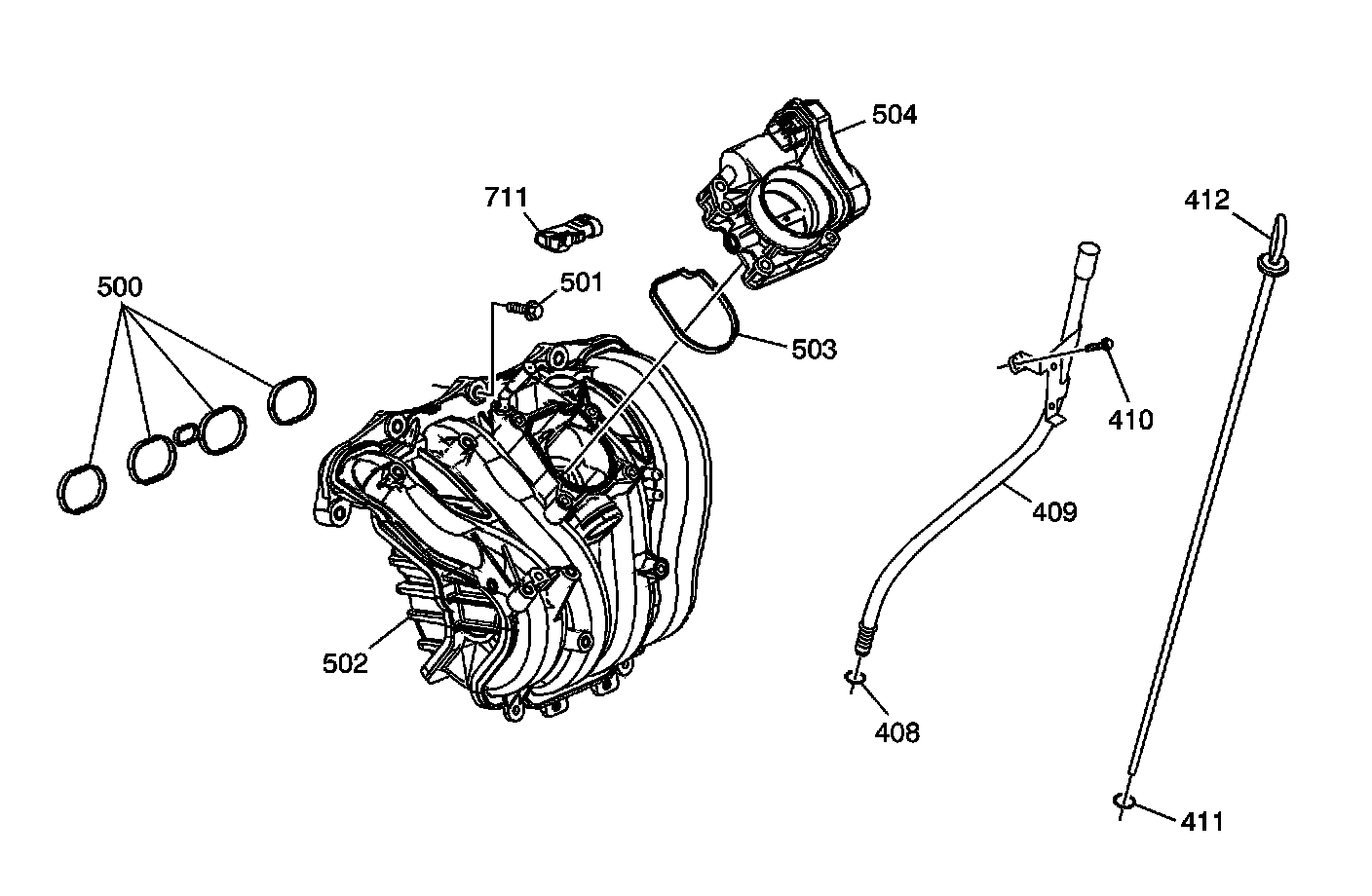

Intake Manifold and Components

Disassembled Views

Intake Manifold and Components:

408 - Oil Indicator Tube O-Ring
409 - Oil Indicator Tube
410 - Oil Indicator Tube Bolt
411 - Oil Indicator O-Ring
412 - Oil Indicator
500 - Intake Manifold Gasket
501 - Intake Manifold Bolt
502 - Intake Manifold
503 - Throttle Body Gasket
504 - Throttle Body
711 - Map Sensor
