Fuse Block: Service and Repair

UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK BRACKET REPLACEMENT

REMOVAL PROCEDURE

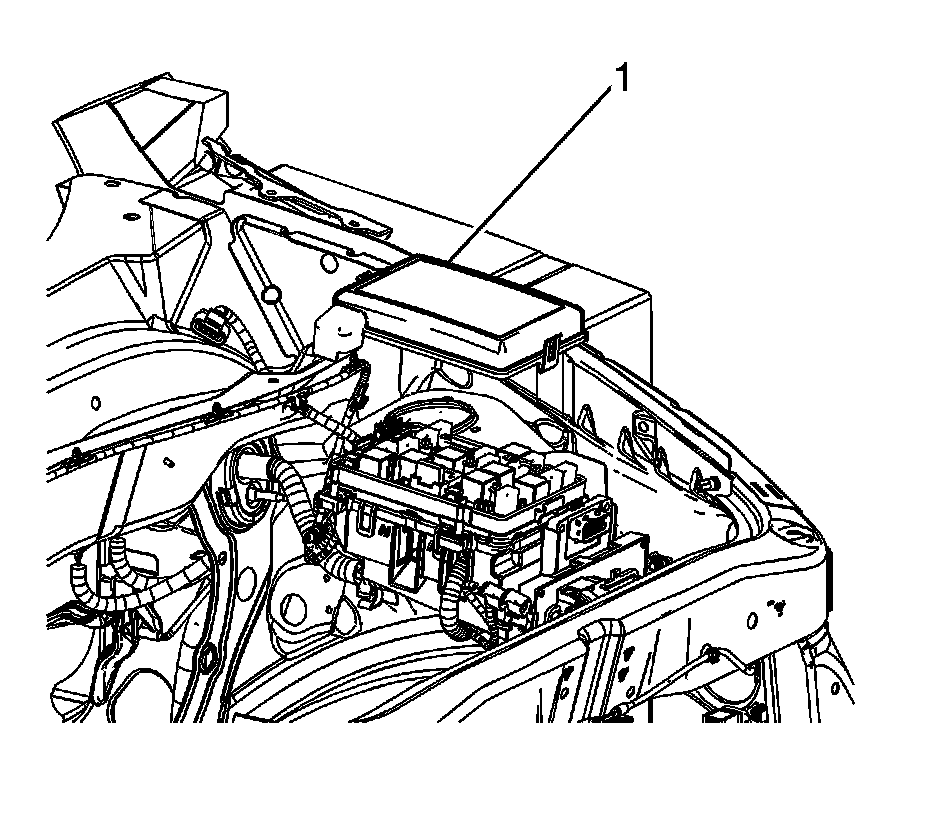

1. Remove the electrical center cover (1).




2. Disconnect the positive battery cable from junction box.

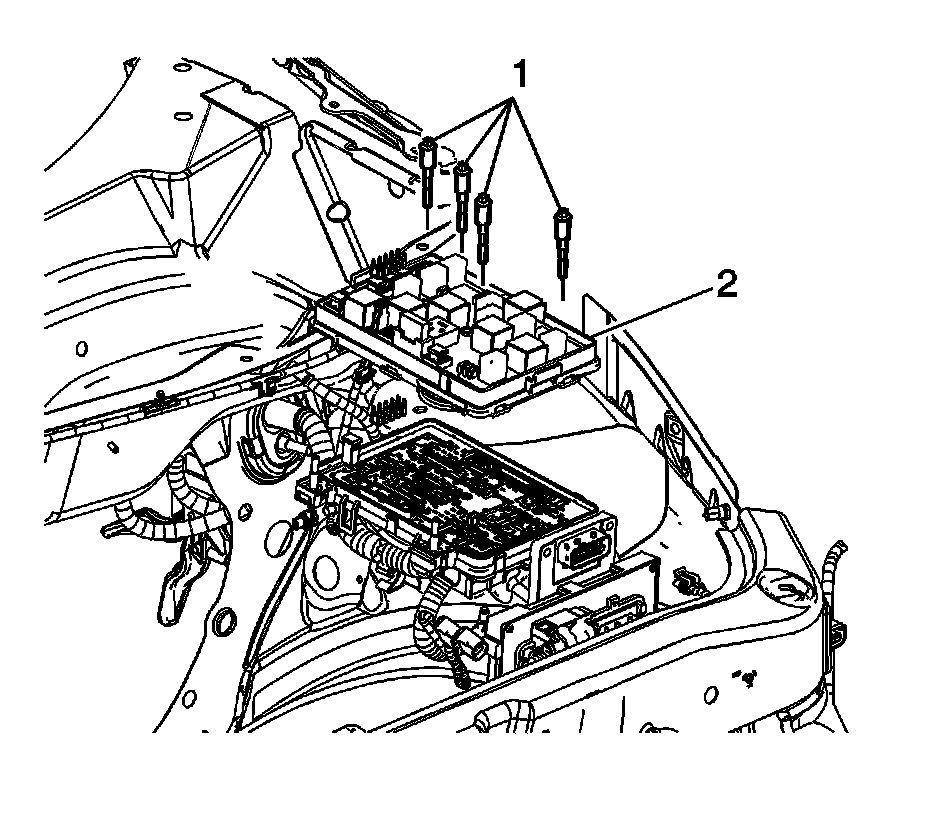

3. Remove the fasteners (1) securing the electrical center board (2).
4. Unlock the tabs on the electrical center board.
5. Lift up on the electrical center board.

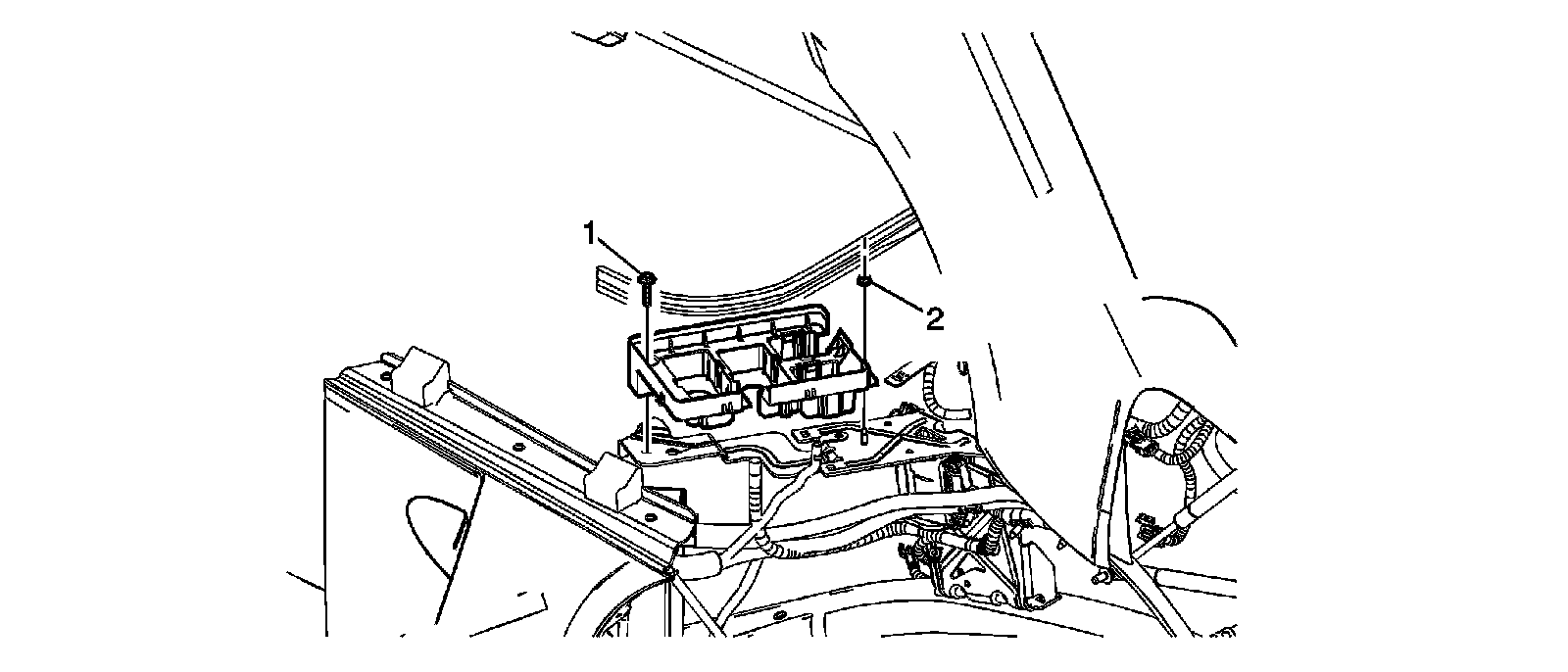

6. Remove the fasteners (1) and (2) that secure the electrical center to vehicle.

INSTALLATION PROCEDURE




1. Install fasteners (1) and (2) securing the electrical center to vehicle.

NOTE: Refer to Fastener Notice.

Tighten the fasteners to 10 N.m (86 lb in).




2. Install the fasteners (1) securing the electrical center board (2).

Tighten the fasteners to 7 N.m (62 lb in).

3. Connect the positive battery cable.




4. Install the electrical center cover (1).
