Crankshaft Position Sensor: Service and Repair

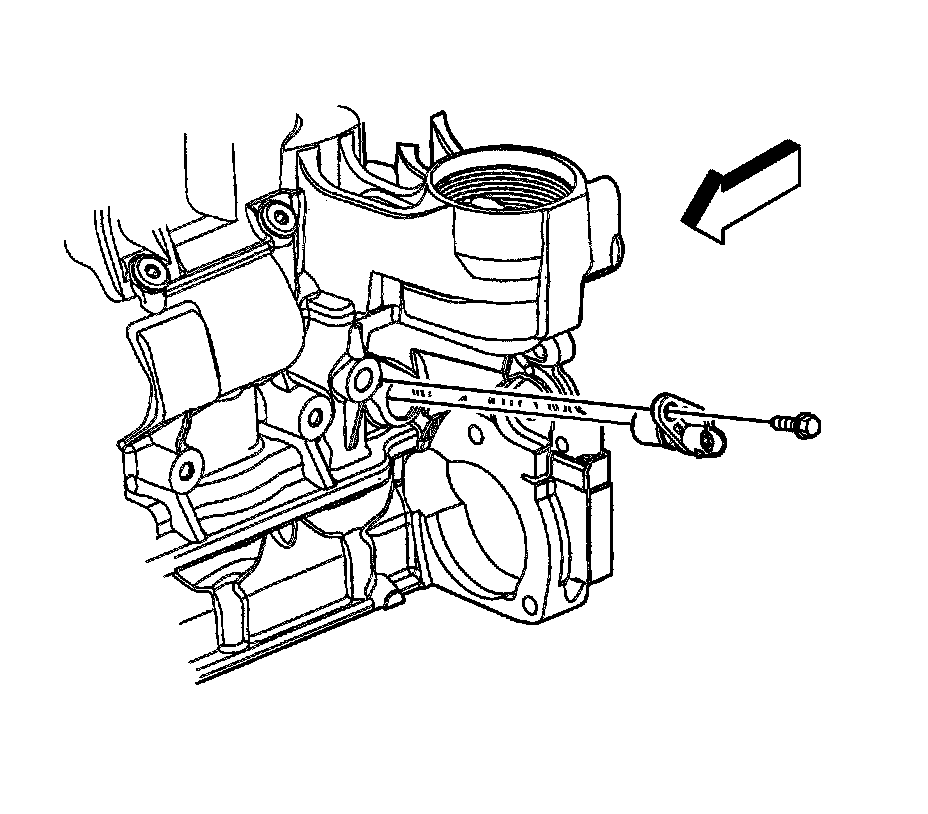

CRANKSHAFT POSITION (CKP) SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the crankshaft position (CKP) sensor electrical connector.




2. Remove the CKP sensor bolt.
3. Remove the CKP sensor.

INSTALLATION PROCEDURE




1. Inspect the CKP sensor O-ring and lubricate with a mineral based grease.
2. Gently insert the CKP sensor into the block.
3. Install the CKP sensor bolt.

NOTE: Refer to Fastener Notice.

Tighten the bolt to 10 N.m (89 lb in).




4. Connect the CKP sensor electrical connector.
5. Perform the CKP system variation learn procedure. Refer to CKP System Variation Learn Procedure.
