Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement
Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

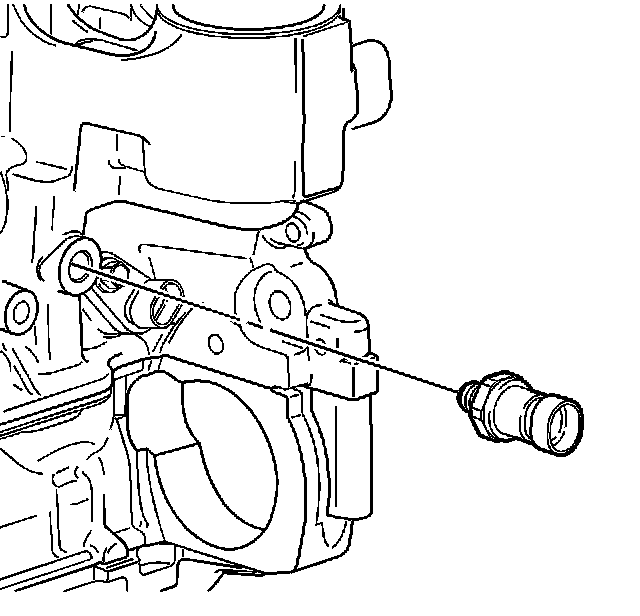

2. Disconnect the oil pressure sensor electrical connector (5).





3. Remove the engine oil pressure sensor.

Installation Procedure





1. Notice: Refer to Fastener Notice.

Install the engine oil pressure sensor.
Tighten the sensor to 22 Nm (16 ft. lbs.).





2. Disconnect the oil pressure sensor electrical connector (5).
3. Lower the vehicle.
