Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

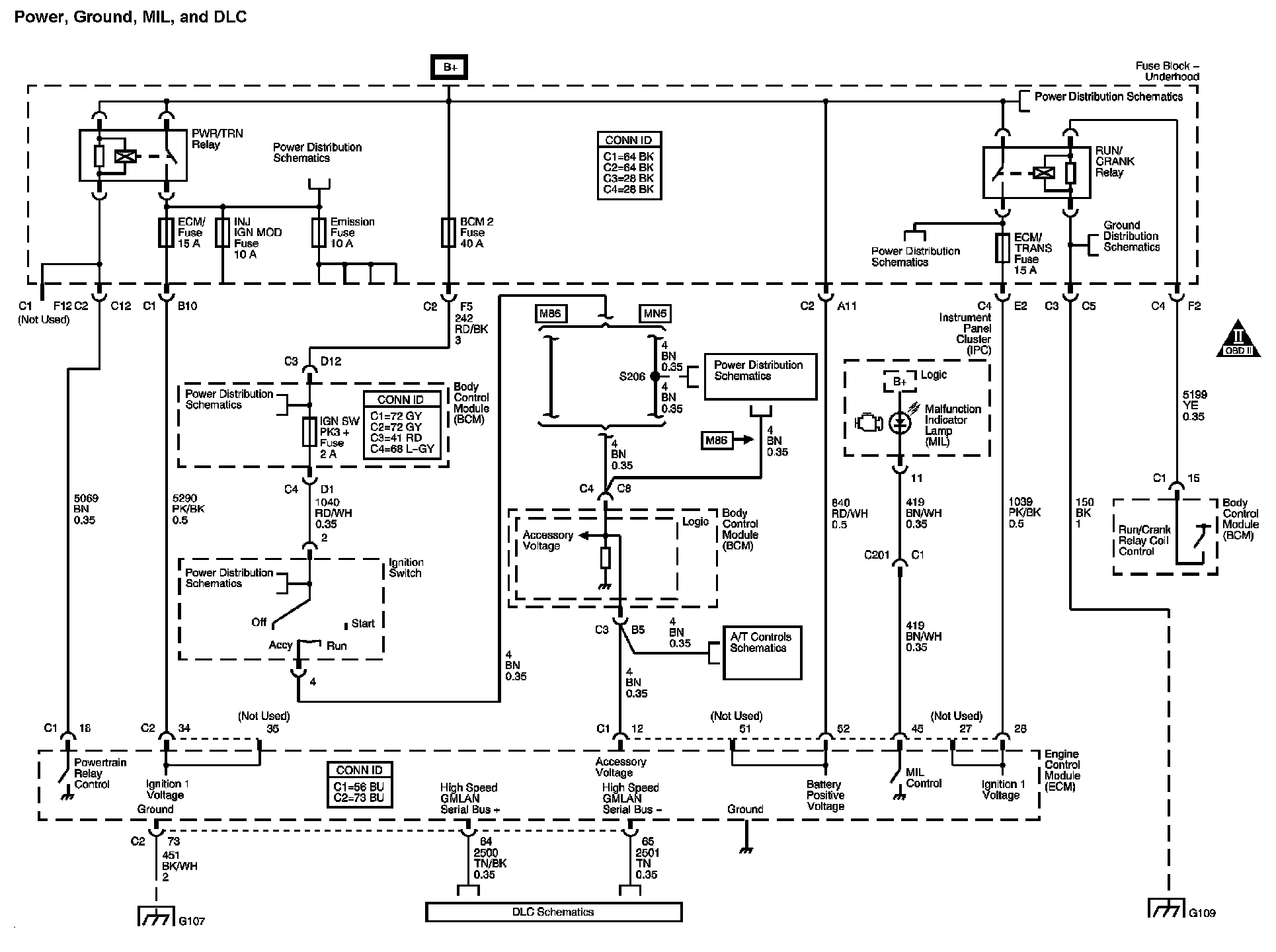

Power, Ground, MIL, and DLC

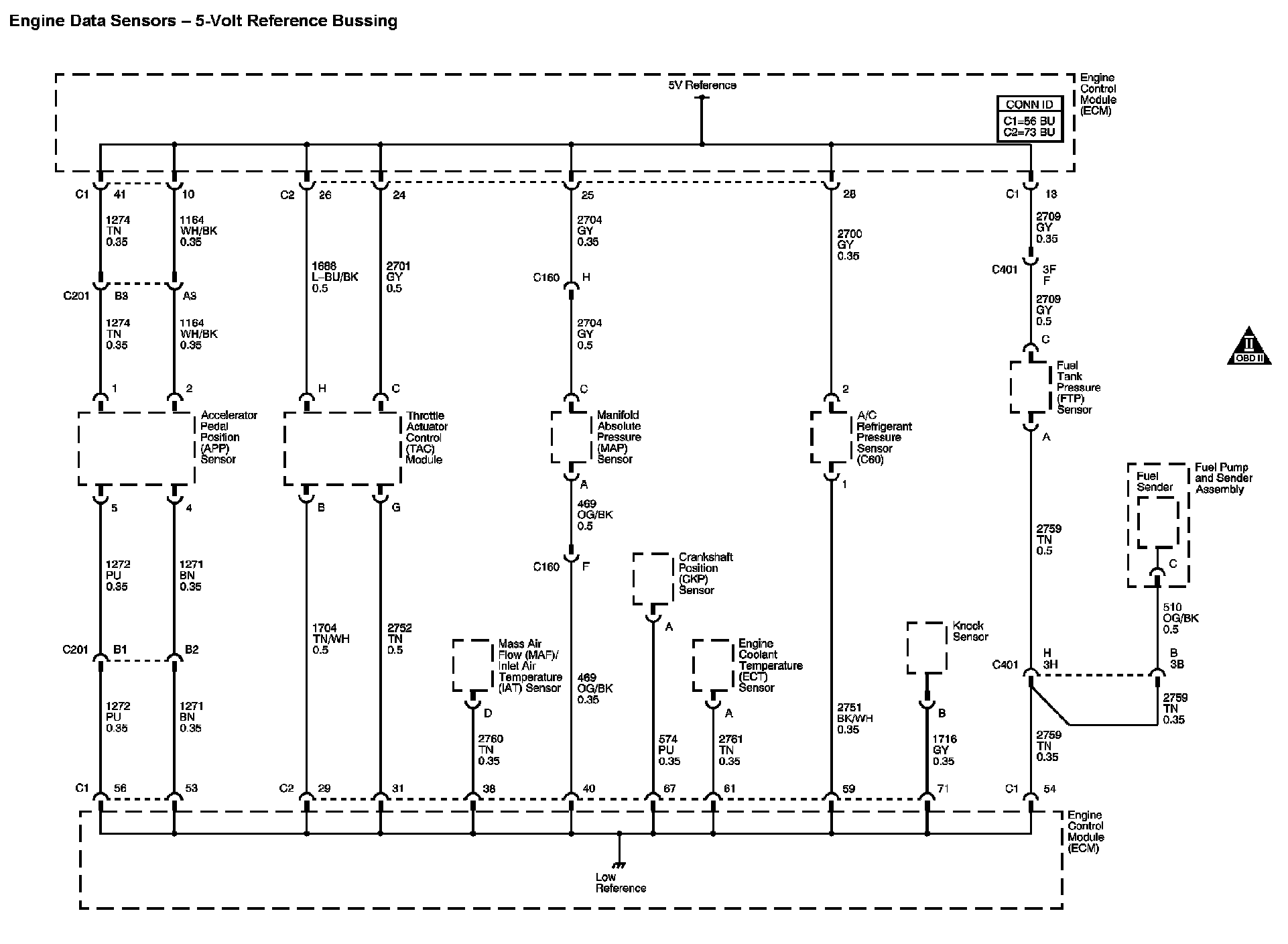

Engine Data Sensors - 5-volt Reference Bussing

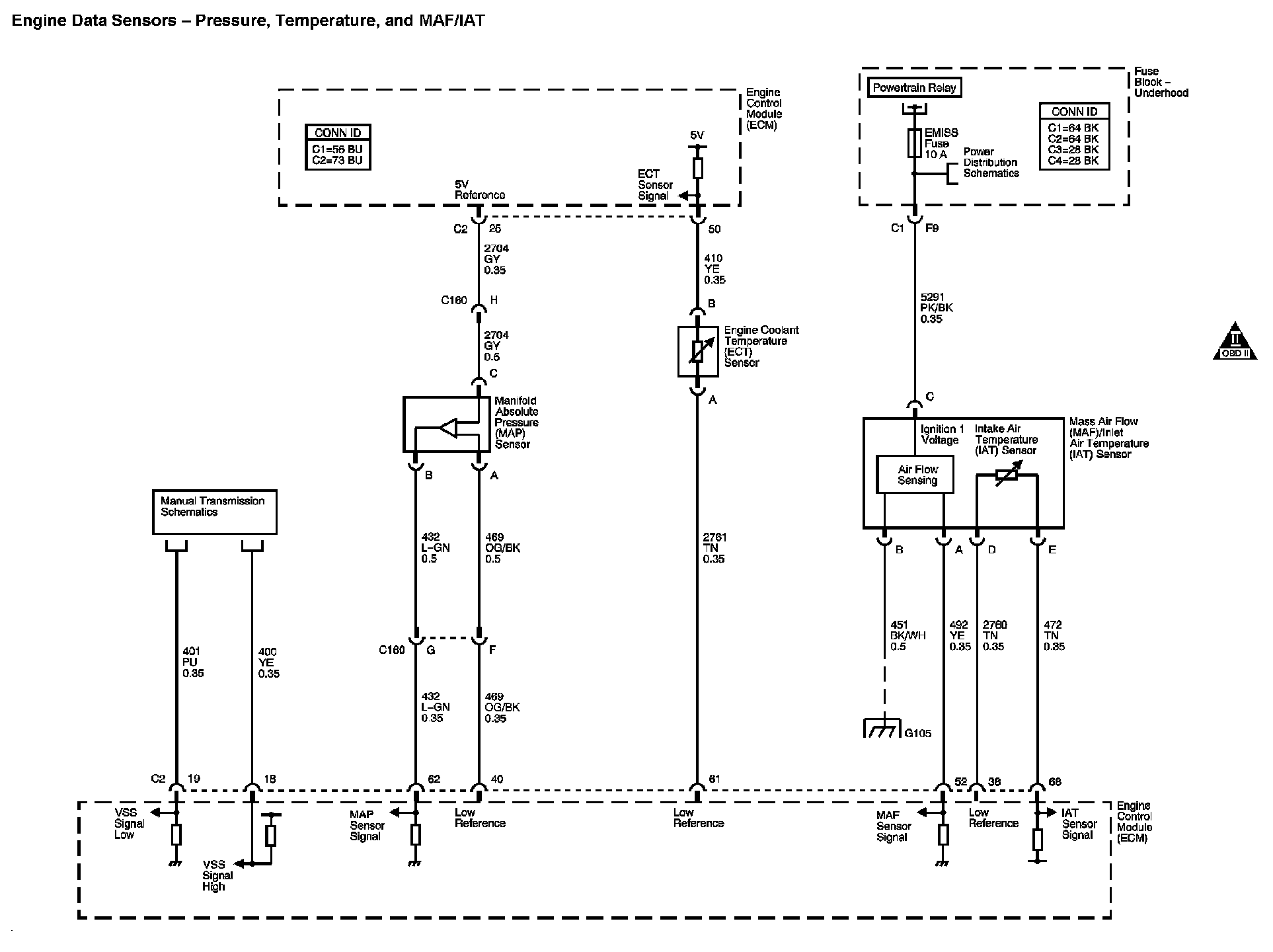

Engine Data Sensors - Pressure, Temperature, and MAF/IAT

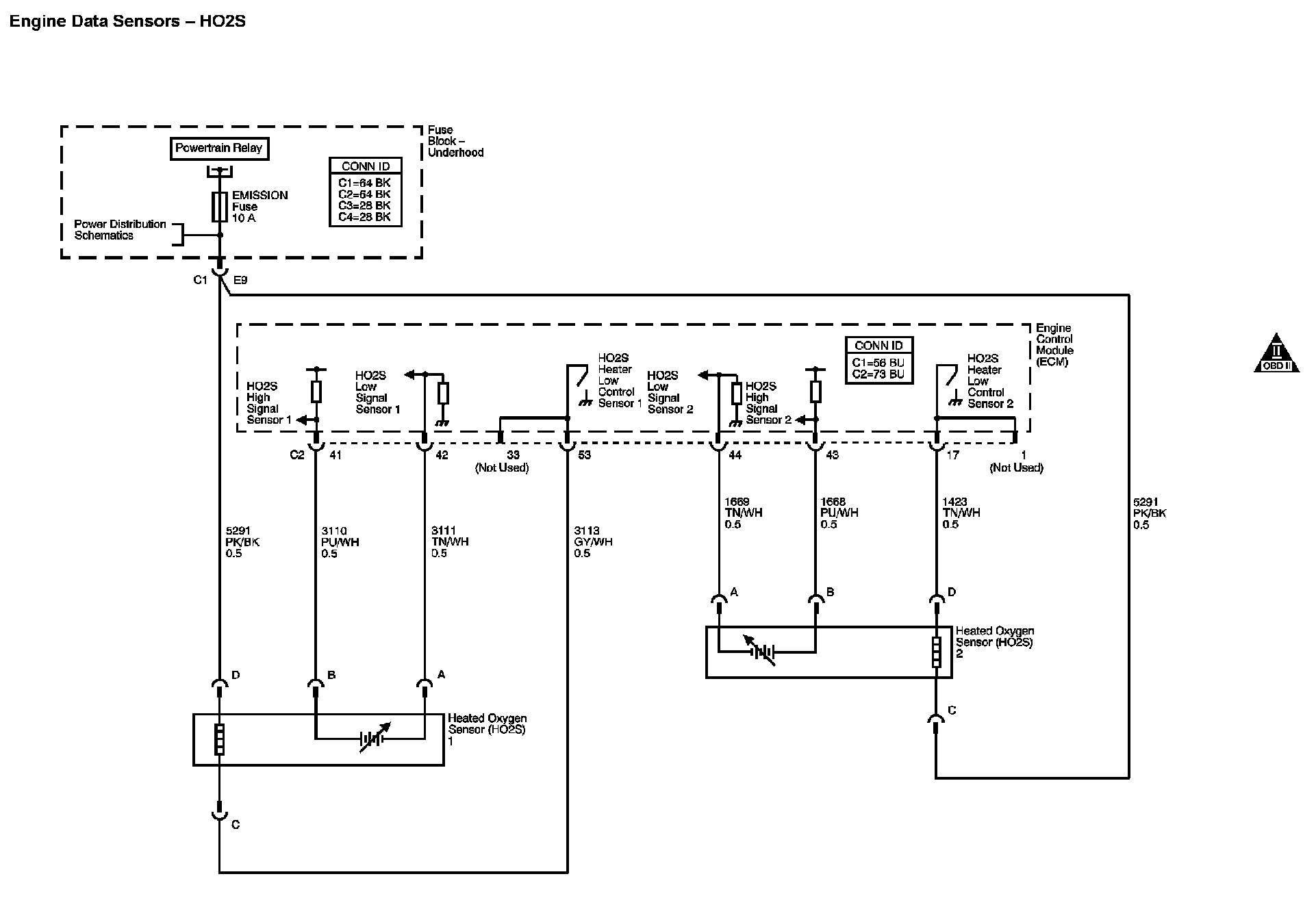

Engine Data Sensors - HO2S

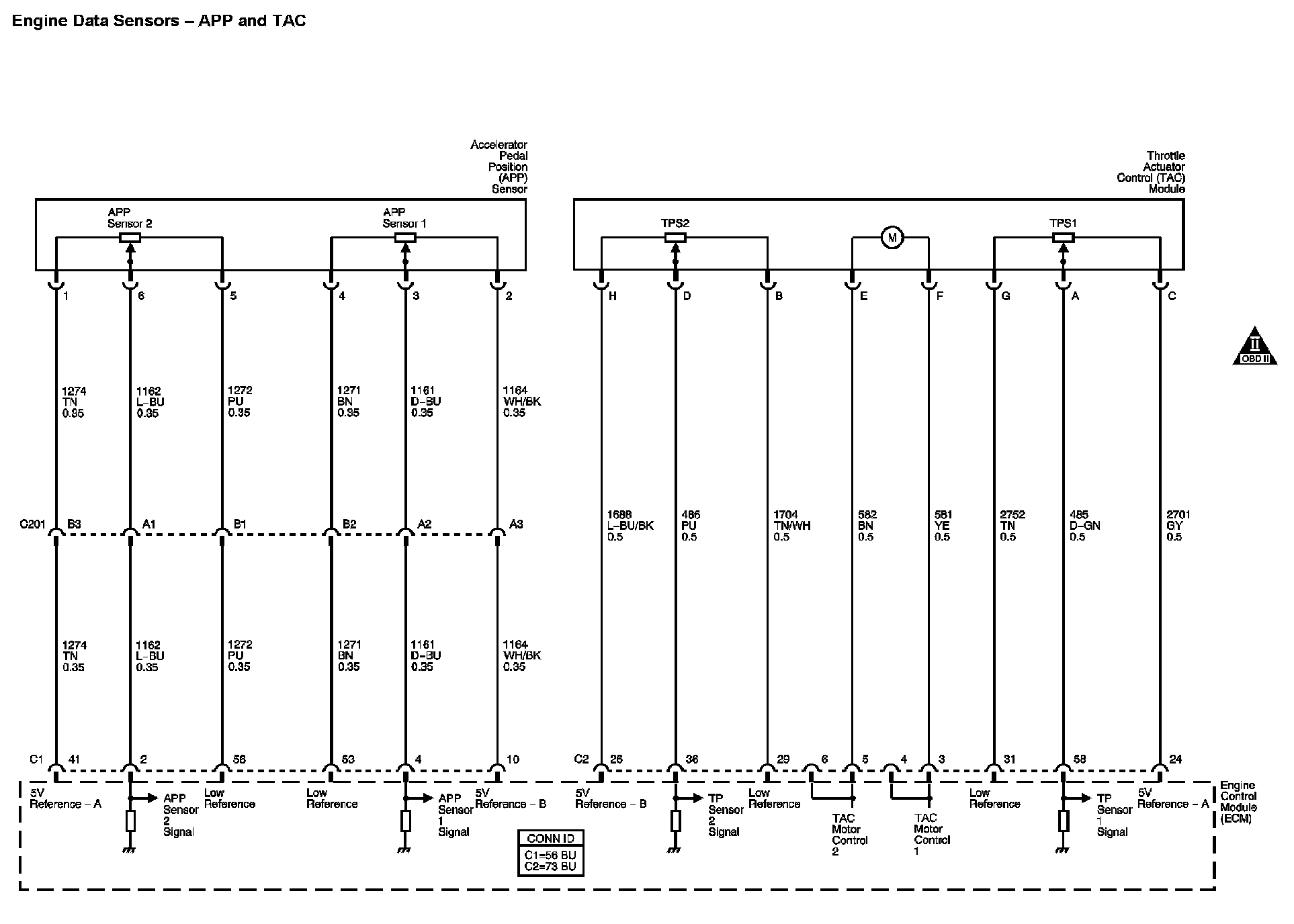

Engine Data Sensors - APP and TAC

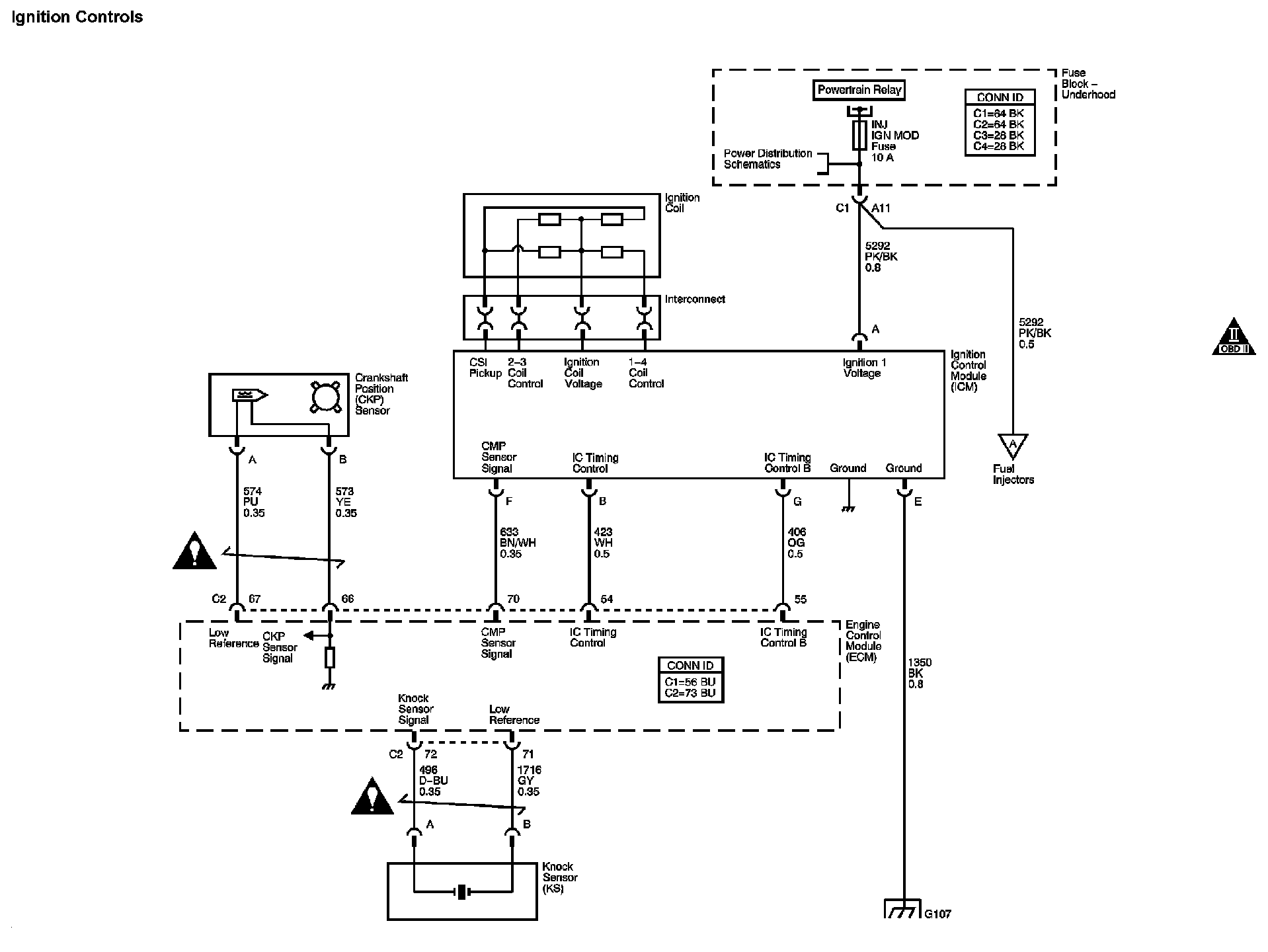

Ignition Controls

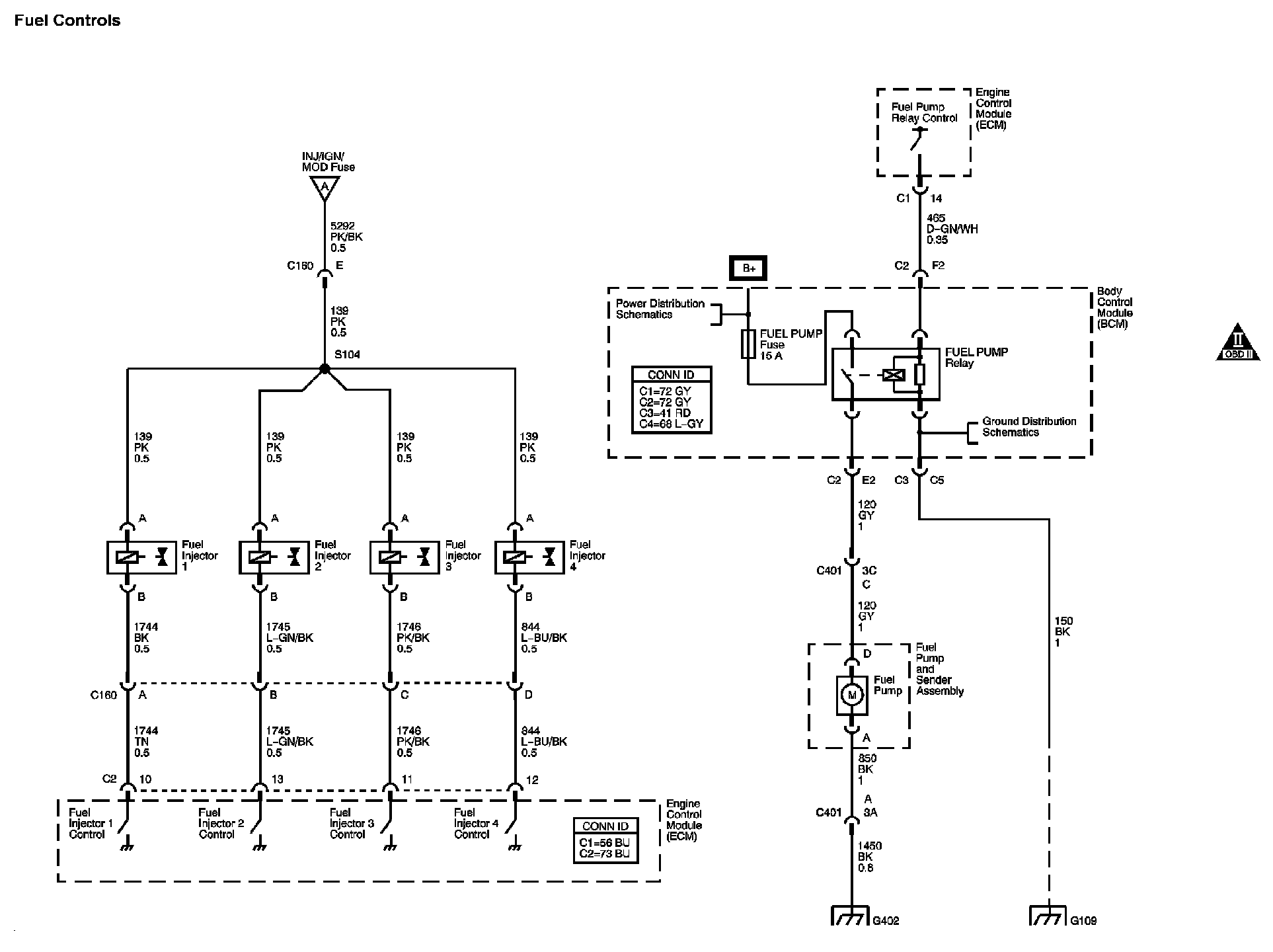

Fuel Controls

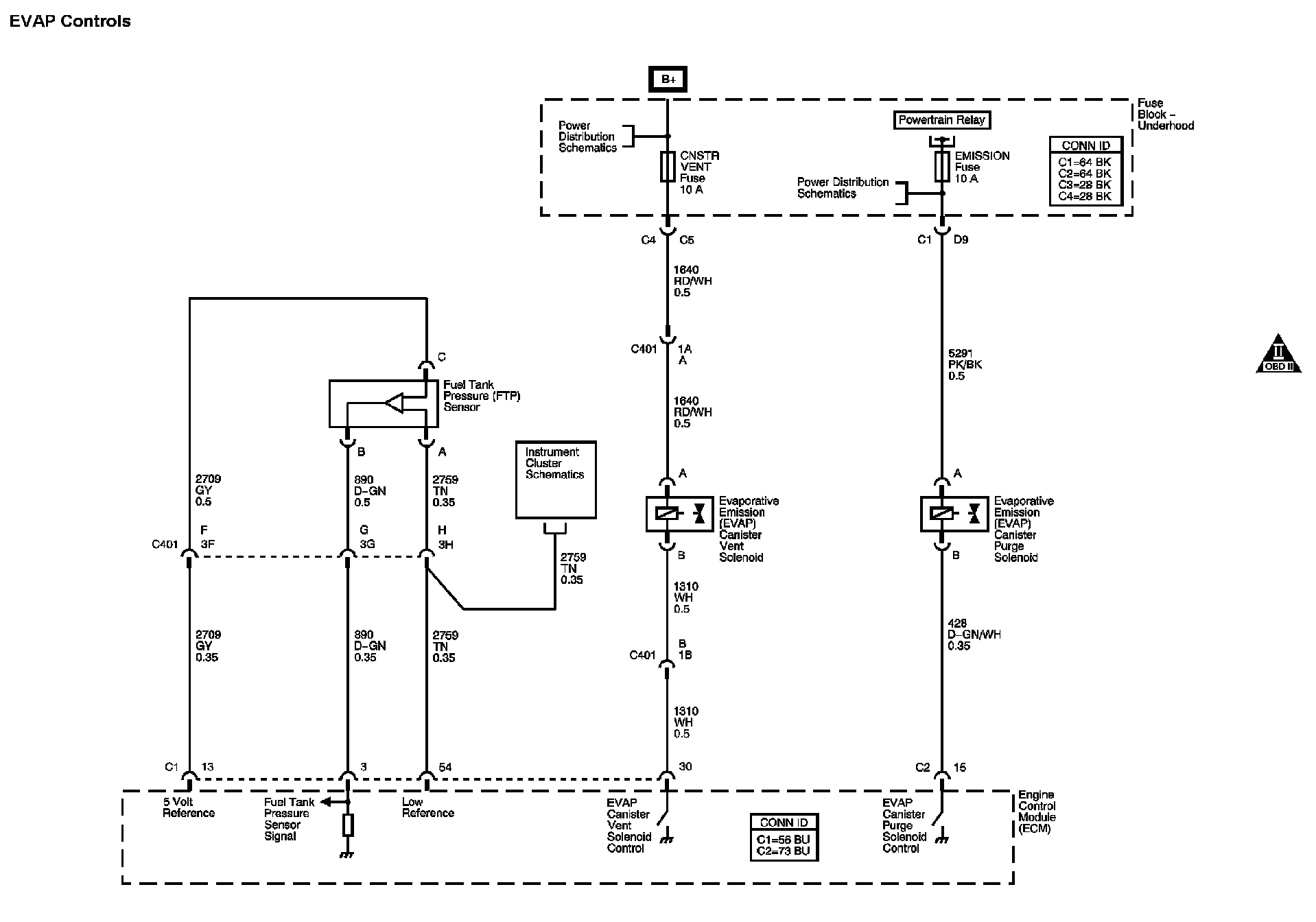

EVAP Controls

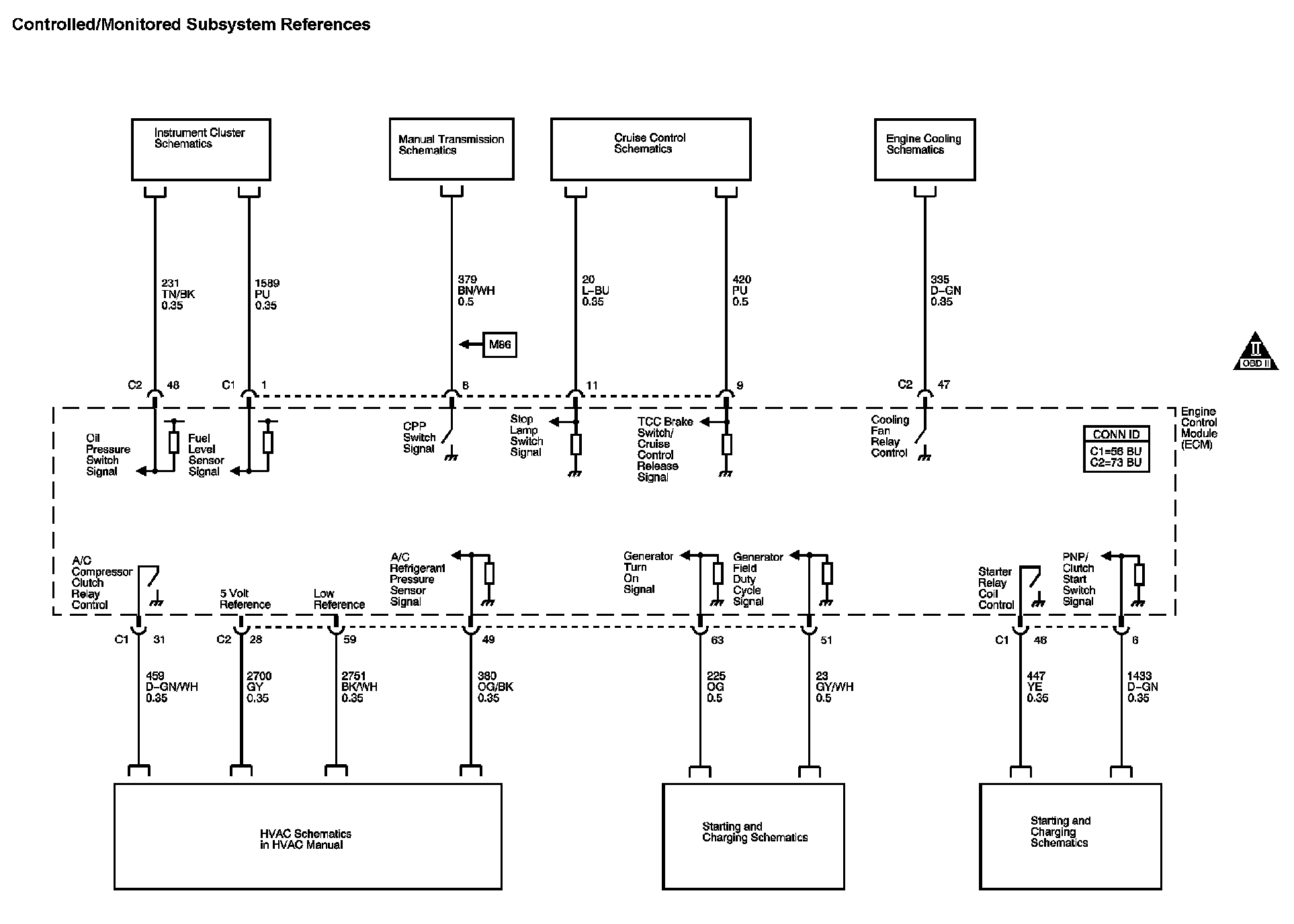

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
