Ignition Control Module: Service and Repair

IGNITION CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

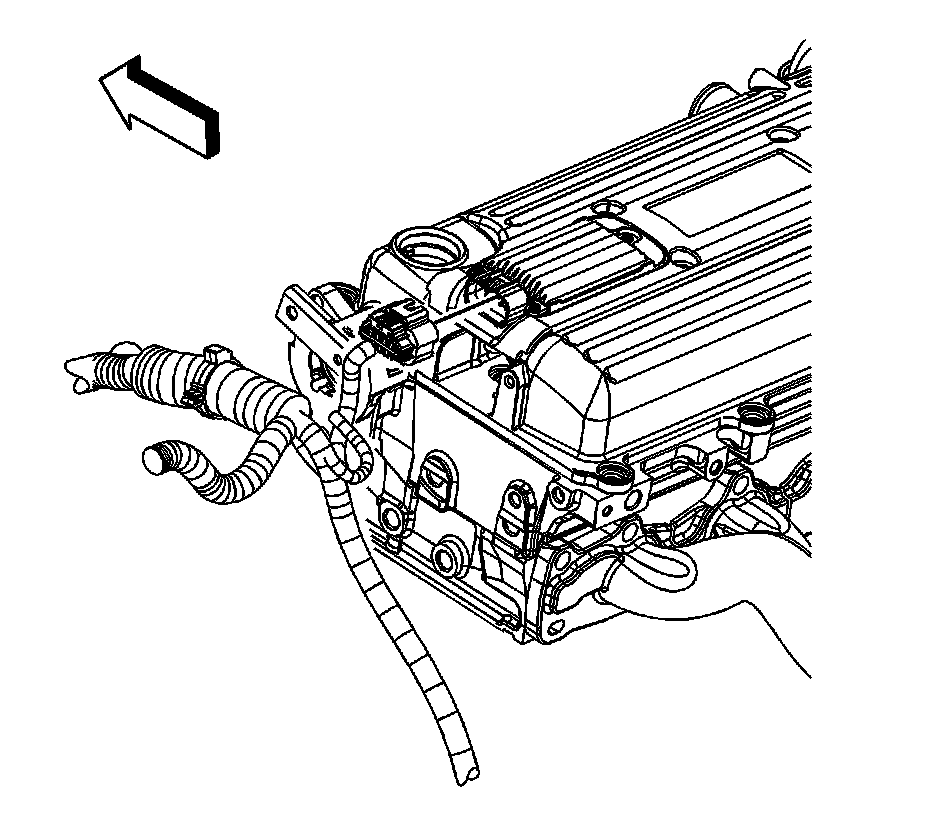

1. Disconnect the ignition control module electrical connector.

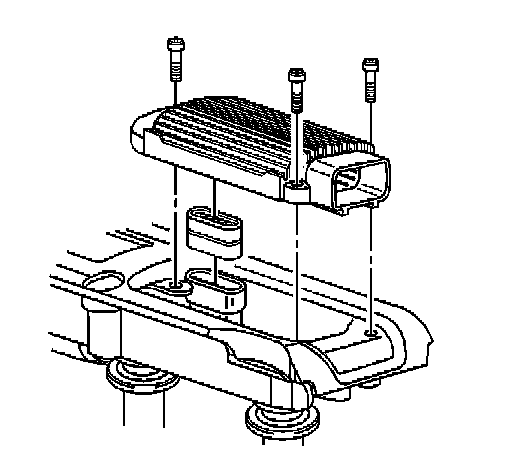

2. Remove the ignition control module screws.
3. Remove the ignition control module from the ignition coil housing.

INSTALLATION PROCEDURE




1. Install the ignition control module in the ignition coil housing.

IMPORTANT: Make sure the interconnect and seal are lined up before module installation.

2. Install the ignition control module screws.

NOTE: Refer to Fastener Notice.

Tighten the screws to 1.5 N.m (13 lb in).




3. Connect the ignition control module electrical connector.
