Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REPLACEMENT

REMOVAL PROCEDURE

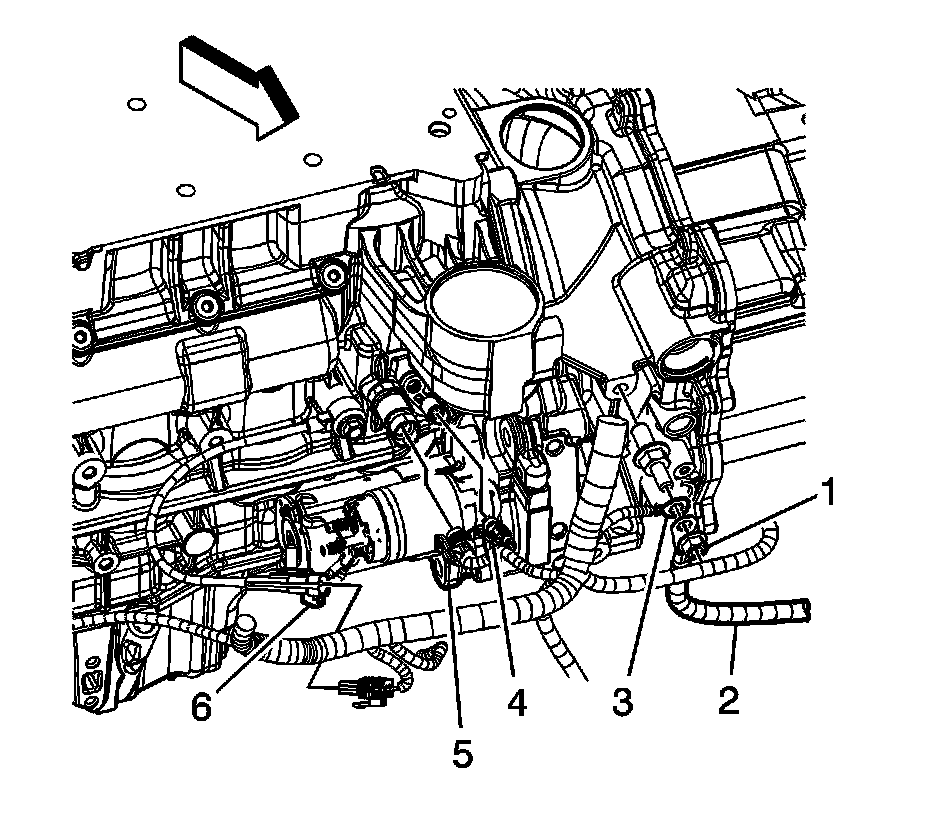

1. Disconnect the knock sensor (KS) harness electrical connector (6).

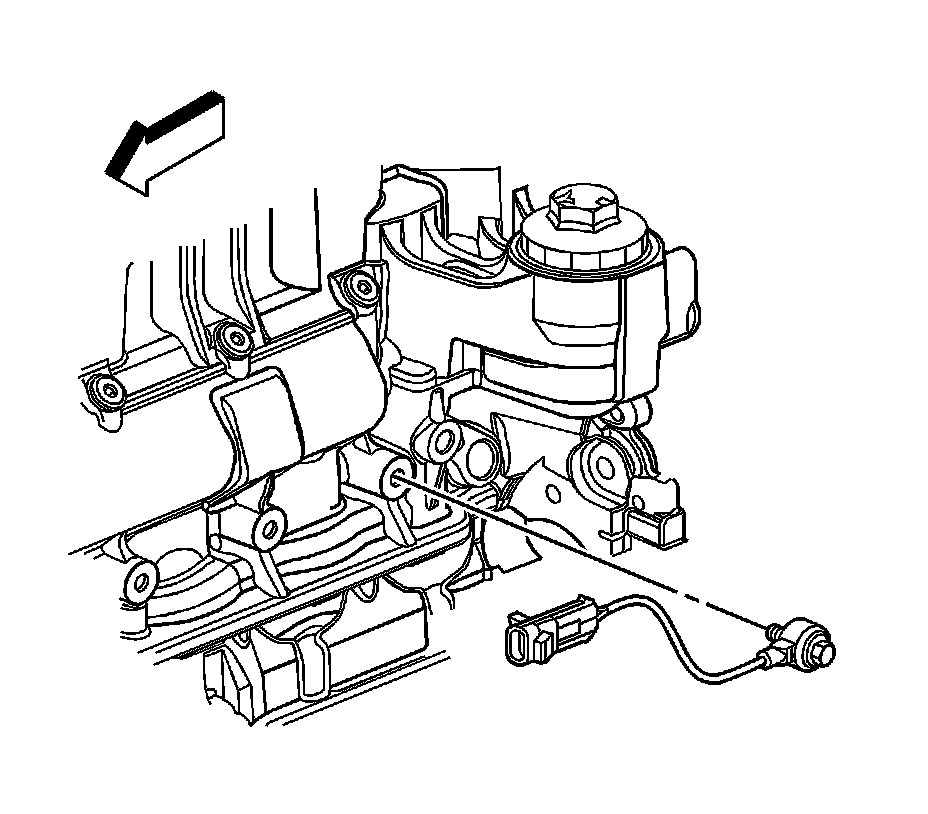

2. Remove the KS bolt.
3. Remove the KS.

INSTALLATION PROCEDURE




1. Install the KS.
2. Install the KS bolt.

NOTE: Refer to Fastener Notice.

Tighten the bolt to 25 N.m (18 lb ft).




3. Connect the KS harness electrical connector (6).
