Engine Control Module (ECM)

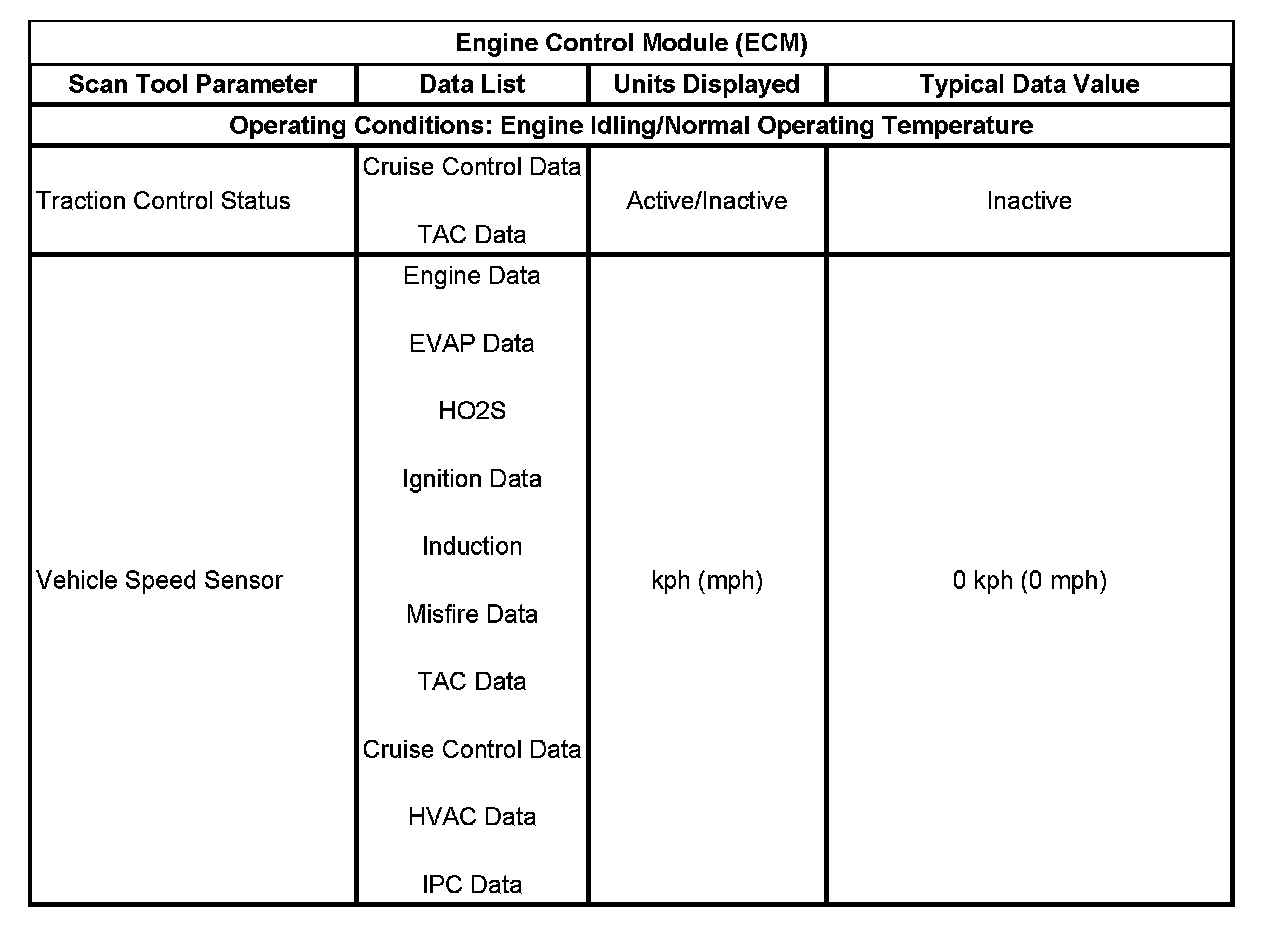

Engine Control Module (ECM) (Part 1):

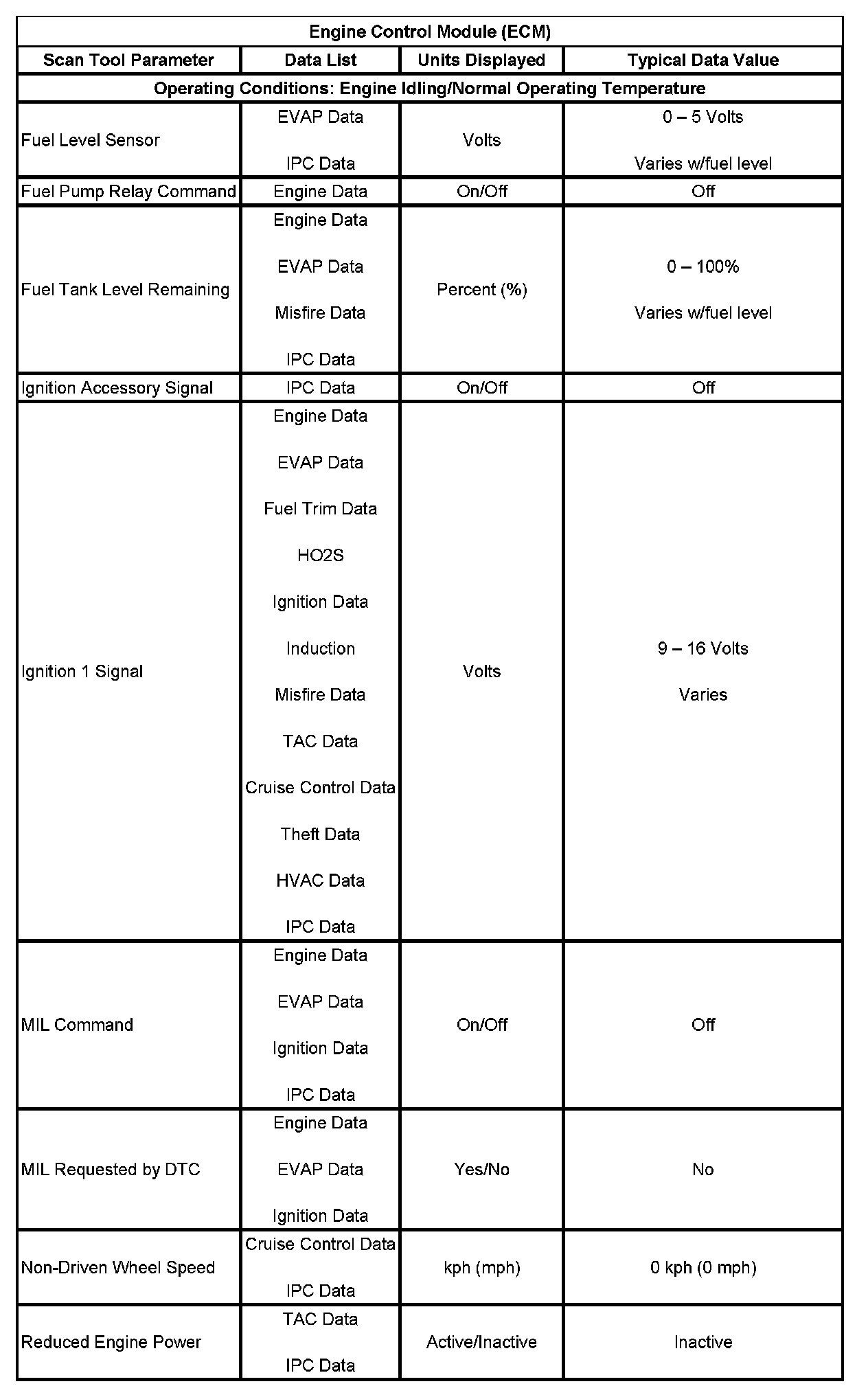

Engine Control Module (ECM) (Part 2):

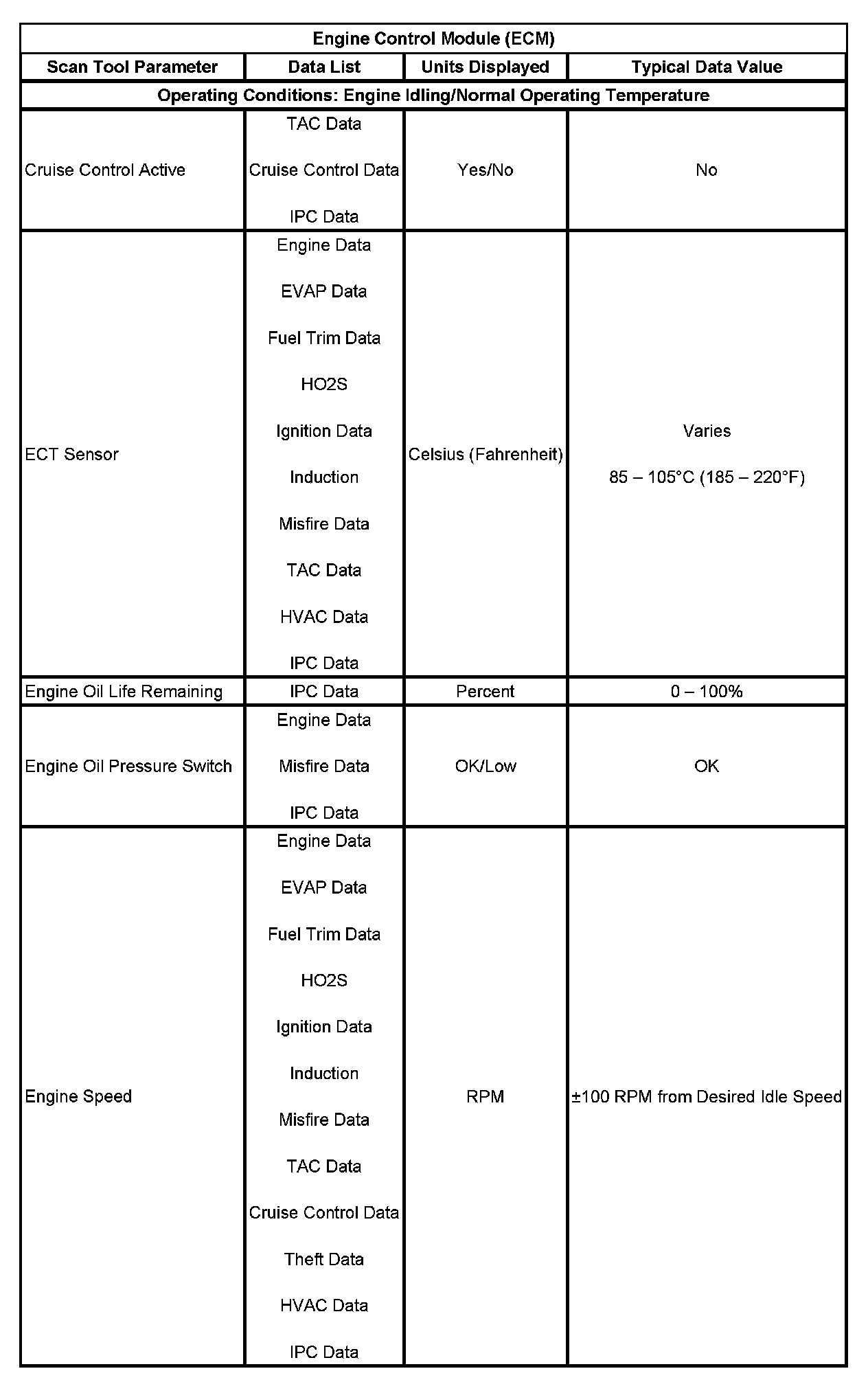

Engine Control Module (ECM) (Part 3):
