A/T Shift Lock Control Solenoid

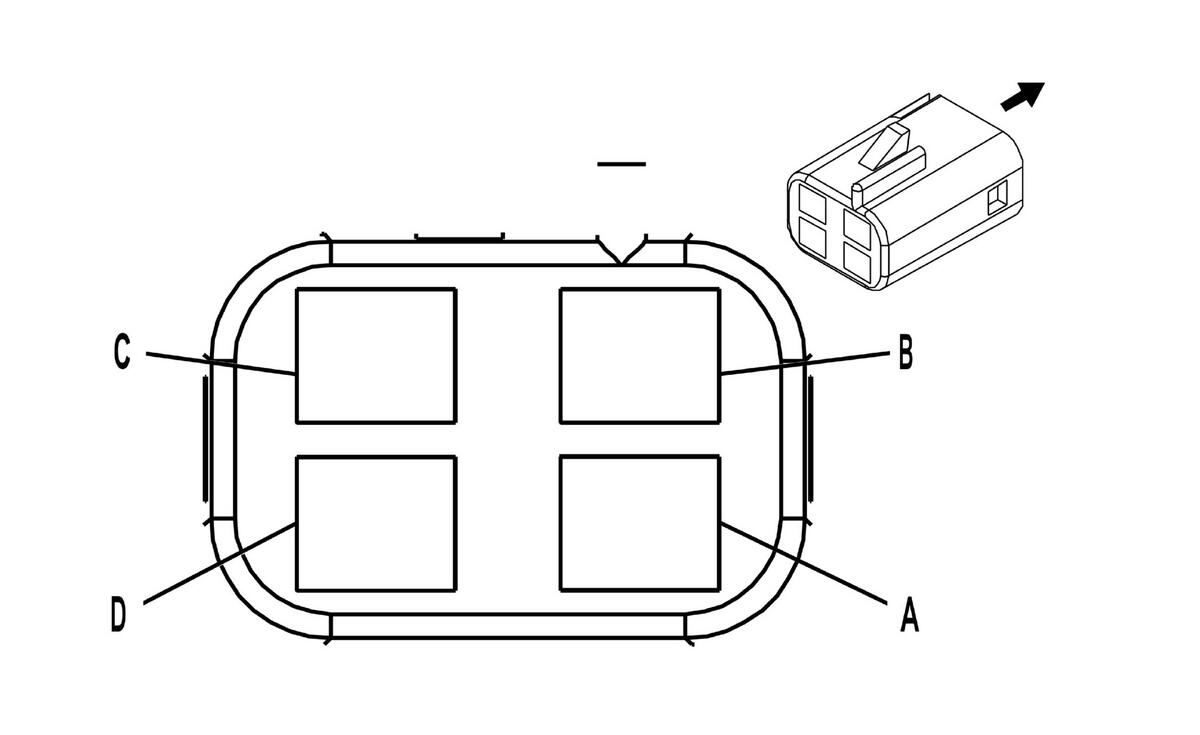

Fig 1: Seat Connectors End Views
GM39660Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Shift Lock Control Connector End Views

Connector Part Information
  • OEM: 12047785
  • Service: 12102900
  • Description: 4-Way F M/P 150 (BK)
Terminal Part Information
  • Pins:
  • Terminal:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
A/T Shift Lock Control Solenoid

Pin Wire Color Circuit No. Function
A GY 8 Instrument Panel Lamp Supply Voltage (1)
B D-GN/WH 1135 Brake Transmission Shift Interlock Solenoid Supply Voltage
C D-GN/WH 1932 Shift Select Switch Park Signal
D BK 1250 Ground
