Instrument Panel Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

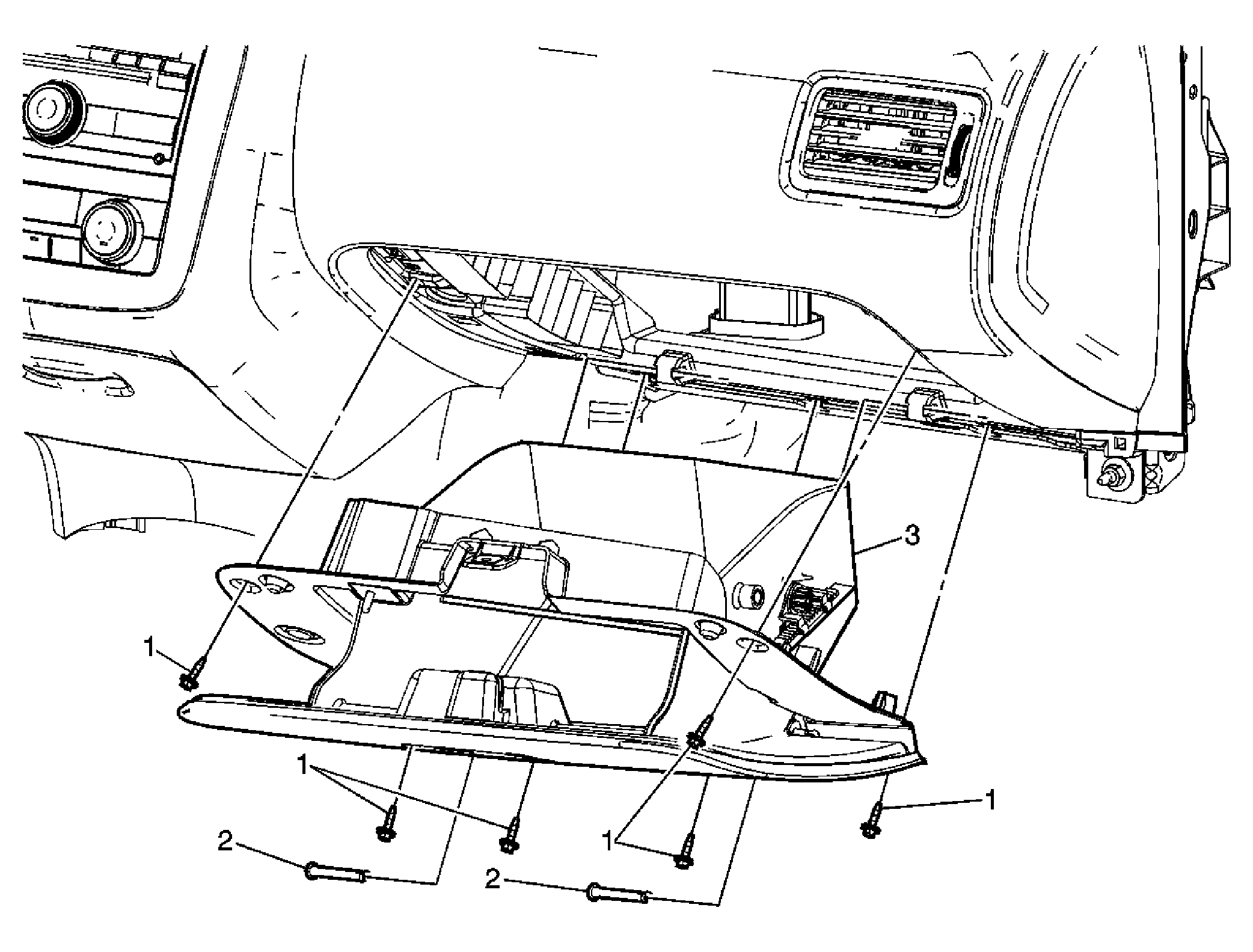

Fig 1: Locating Instrument Panel Compartment Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Door Opening Frame Screws (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in) Tip: Remove the instrument panel compartment door assembly (3). Refer to Instrument Panel Compartment Door Replacement .
2	Instrument Panel Compartment Lamp Switch Tip: Use a small flat-bladed tool to release the switch from the door opening frame. Disconnect the electrical connector.
