Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

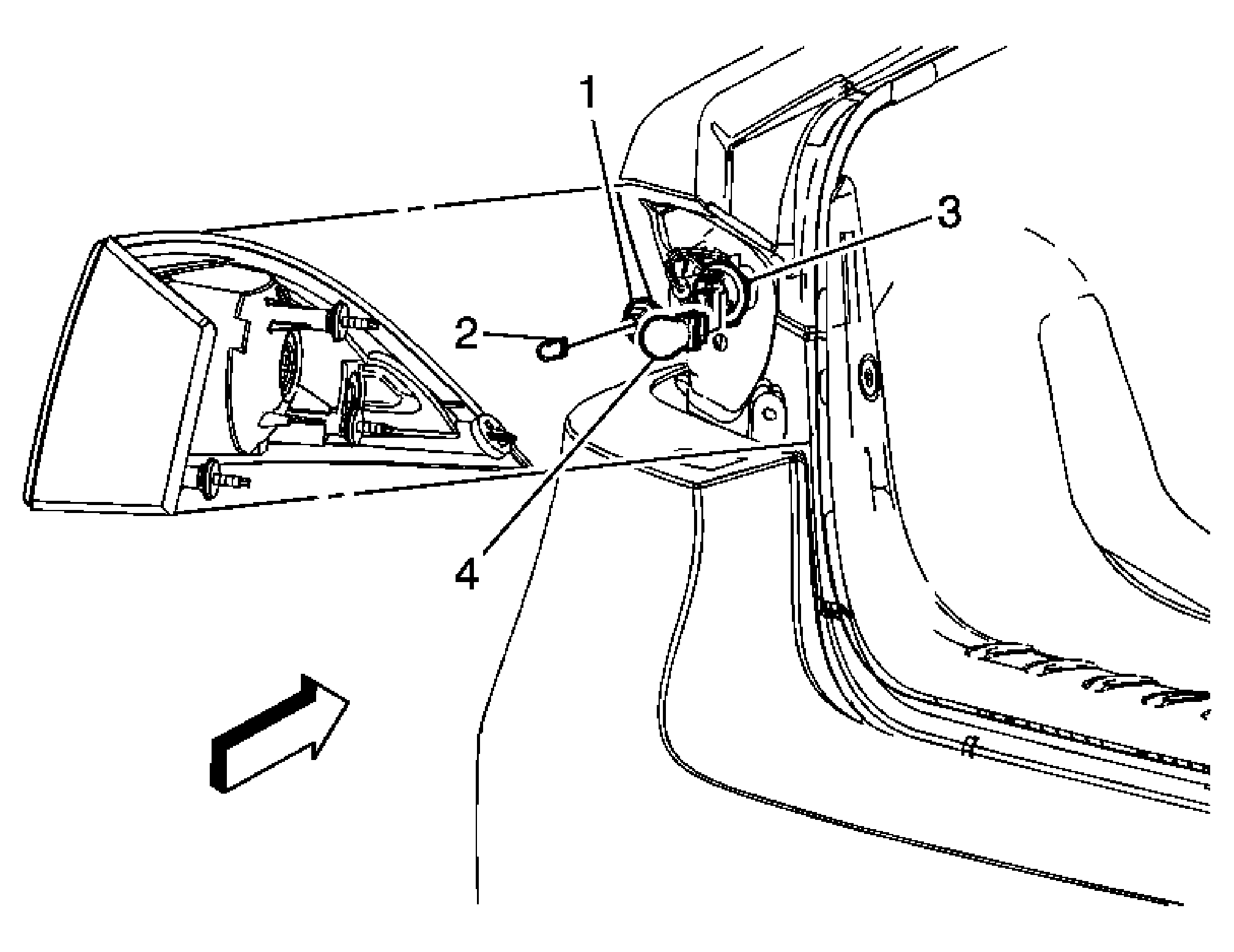

Fig 1: Removing/Installing Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement .
1	Rear Side Marker Lamp Bulb Socket
2	Rear Side Marker Lamp Bulb Tip: Pull the bulb straight from the bulb socket.
3	Stop and Turn Signal Lamp Bulb Socket
4	Stop and Turn Signal Lamp Bulb Tip: Pull the bulb straight from the bulb socket.
