Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

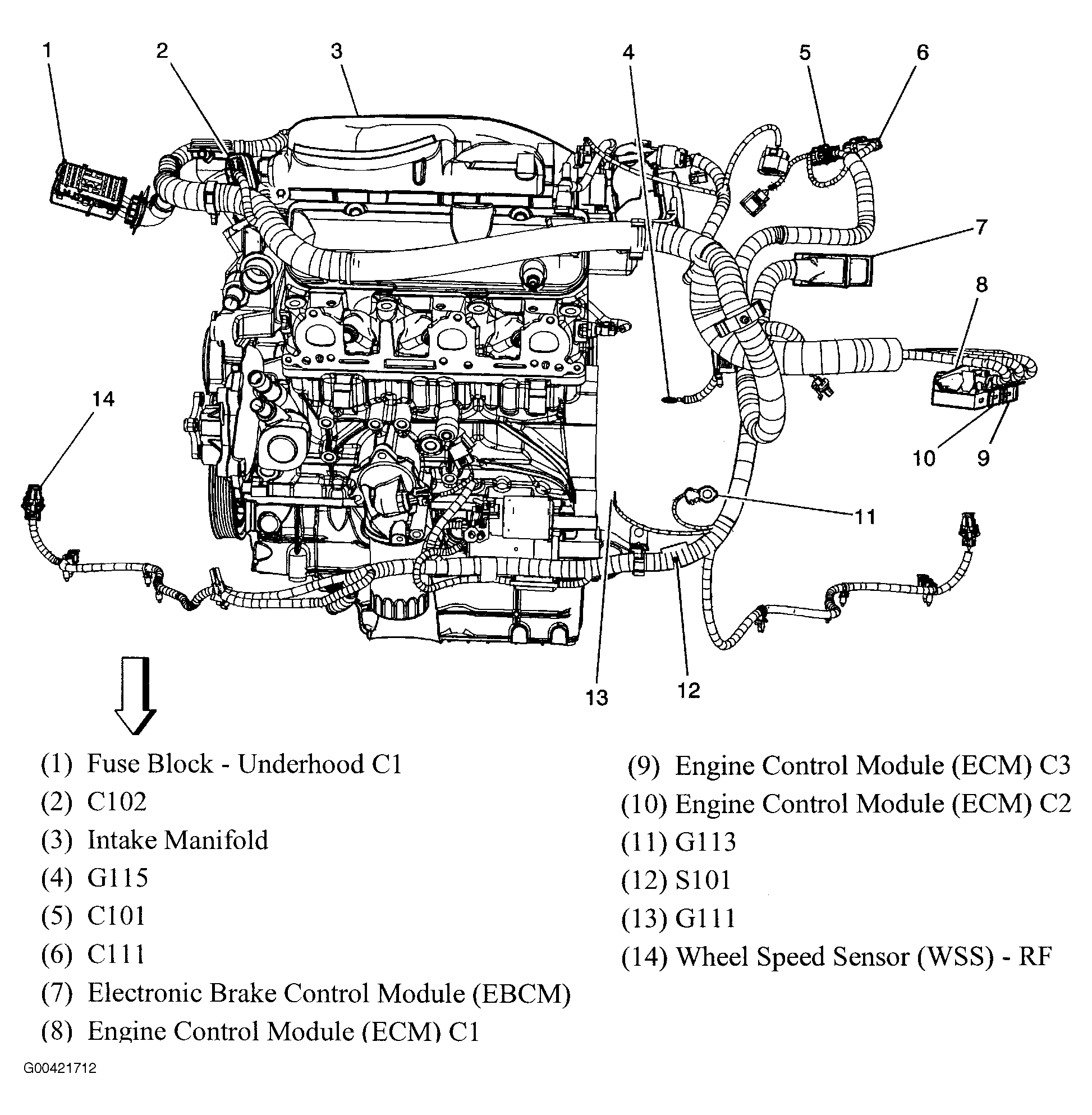

Fig 1: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Rear Hub Assembly
Courtesy of GENERAL MOTORS CORP.

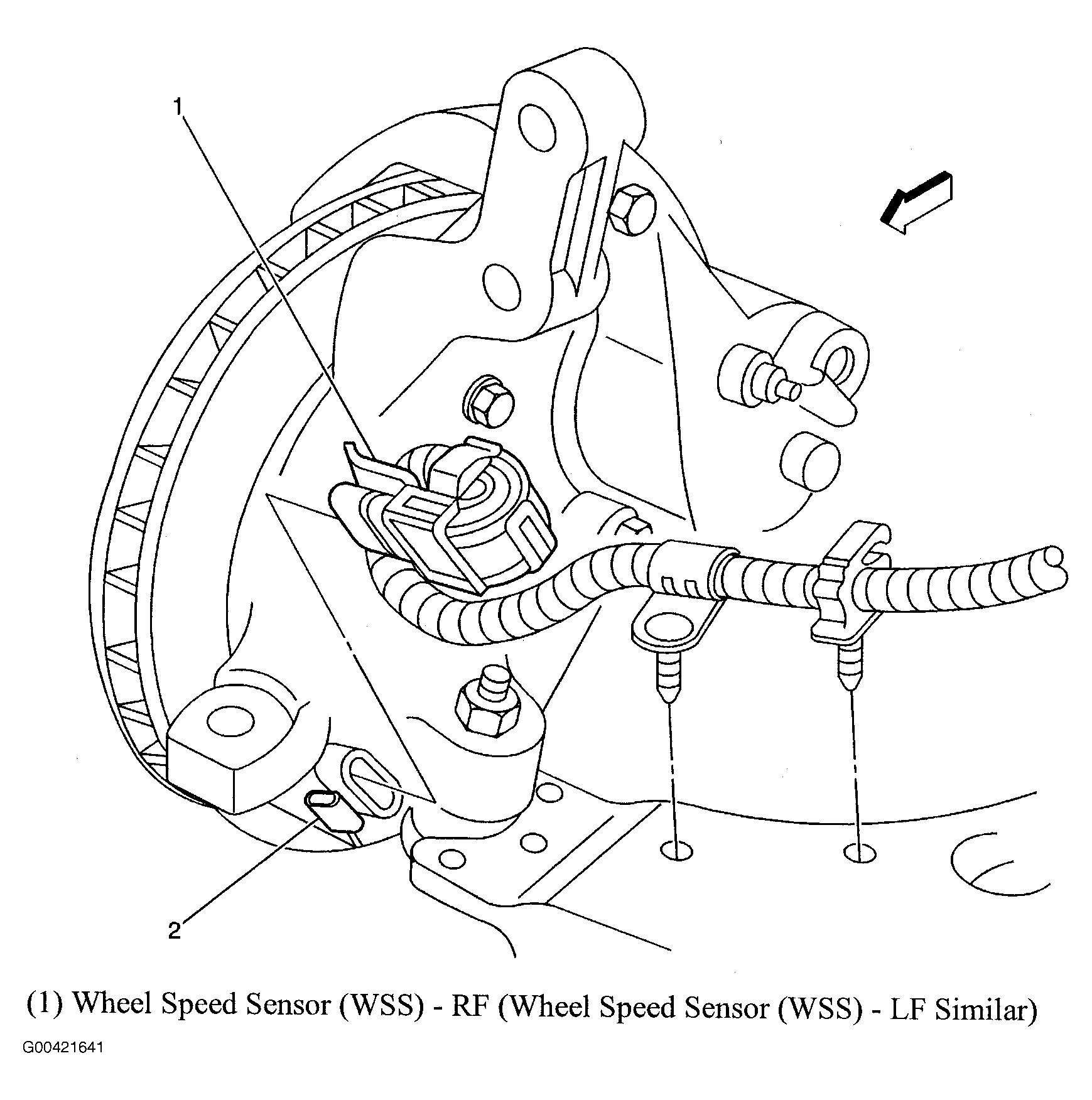

Fig 3: Right Front Hub Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 4: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Body Rear End Component Views
Courtesy of GENERAL MOTORS CORP.

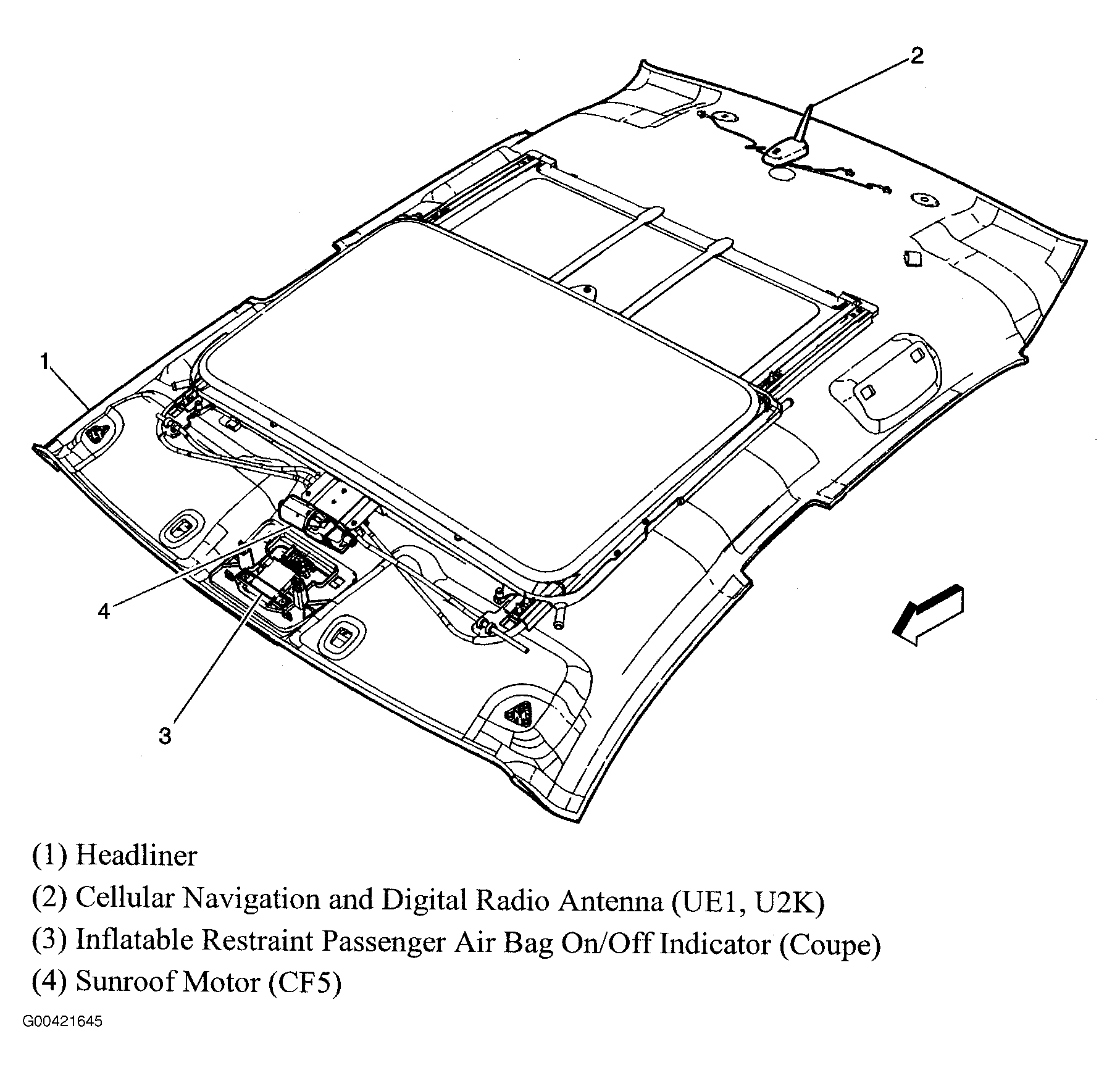

Fig 7: Headliner Components
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

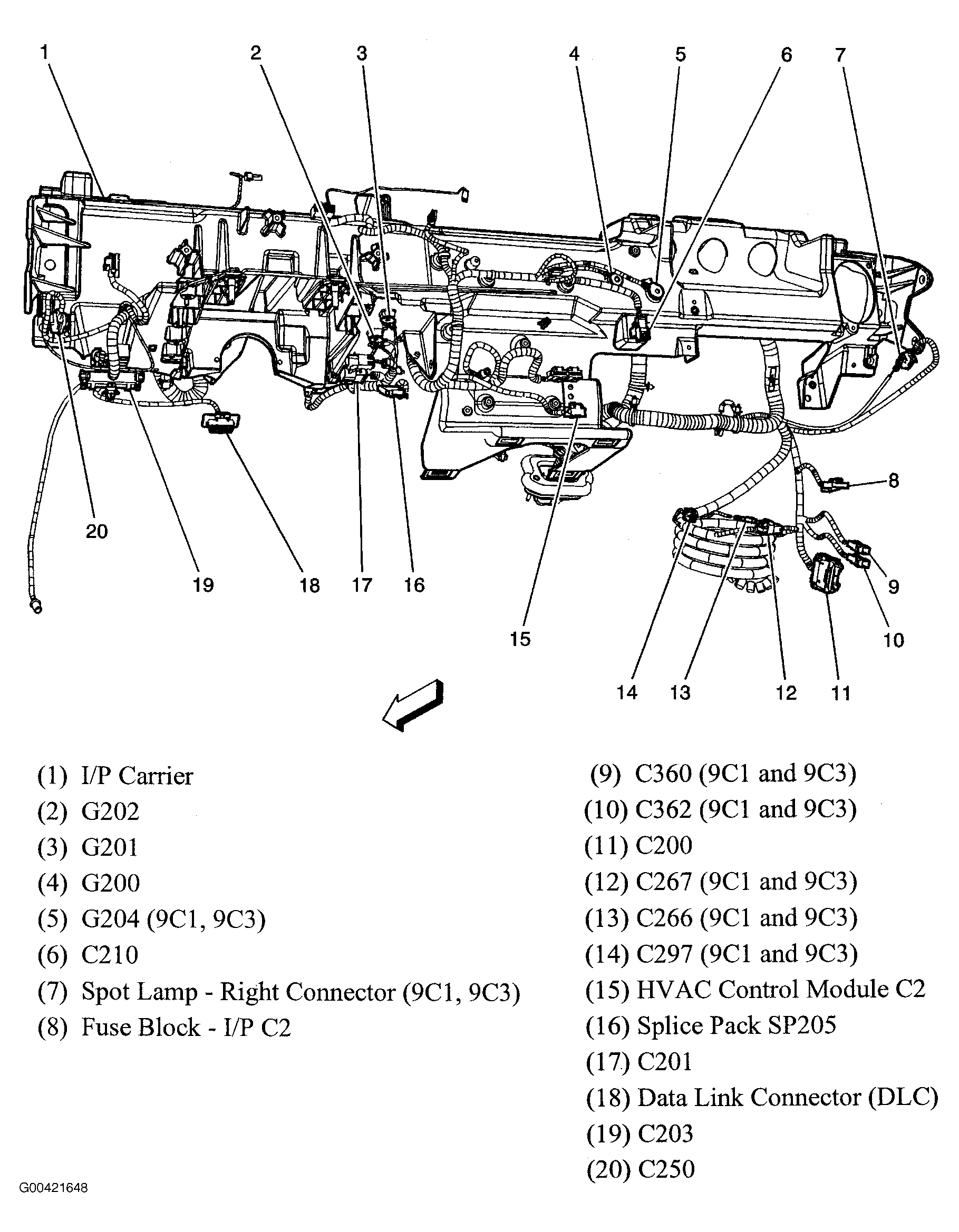

Fig 10: Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 11: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 12: Driver Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

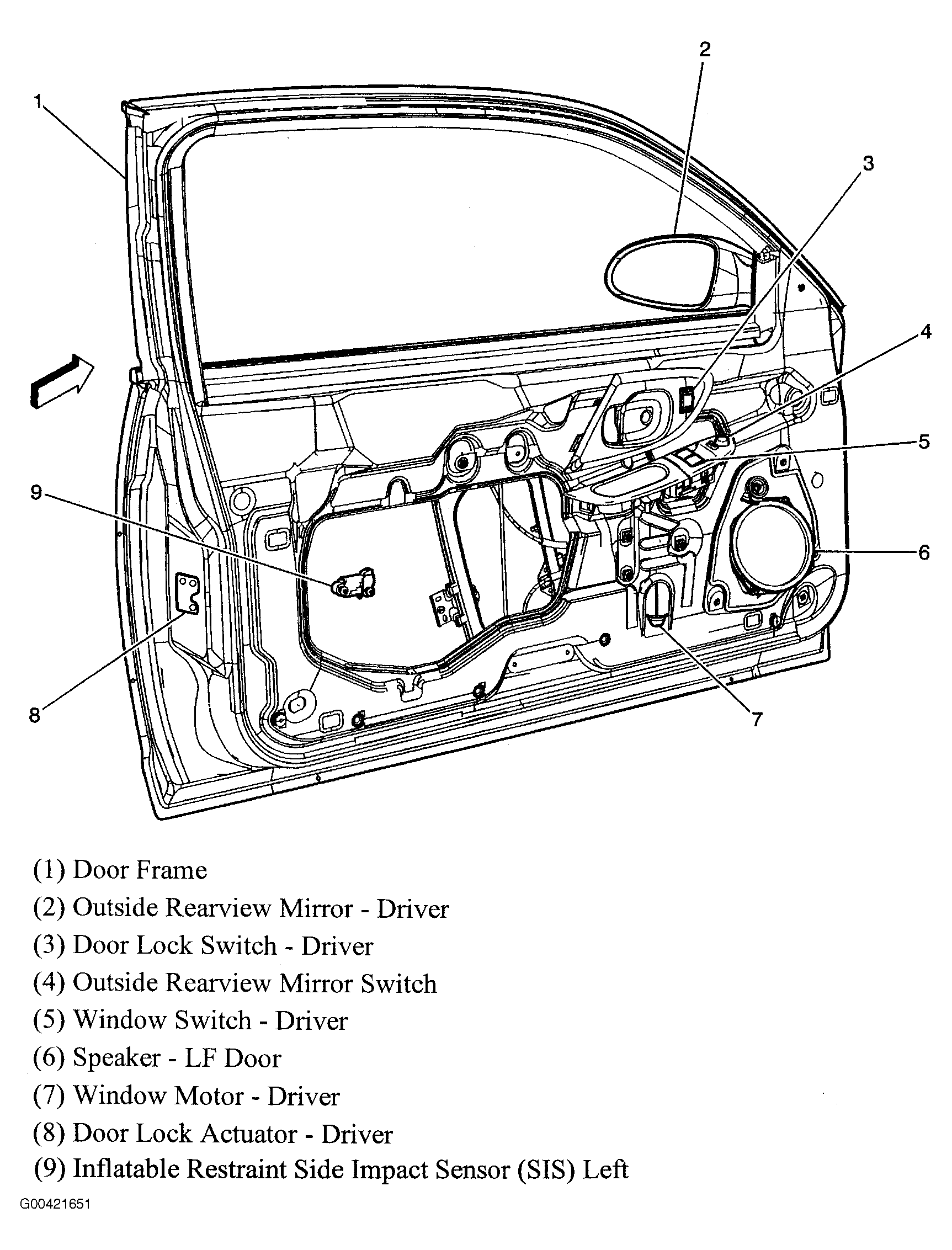

Fig 13: Left Front Door (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Front Passenger Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Right Front Door Components (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Rear Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Right Rear Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Top Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Top Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Side Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Exhaust
Courtesy of GENERAL MOTORS CORP.
Fig 24: Pedal Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 25: Fuel Tank Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 26: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Top Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

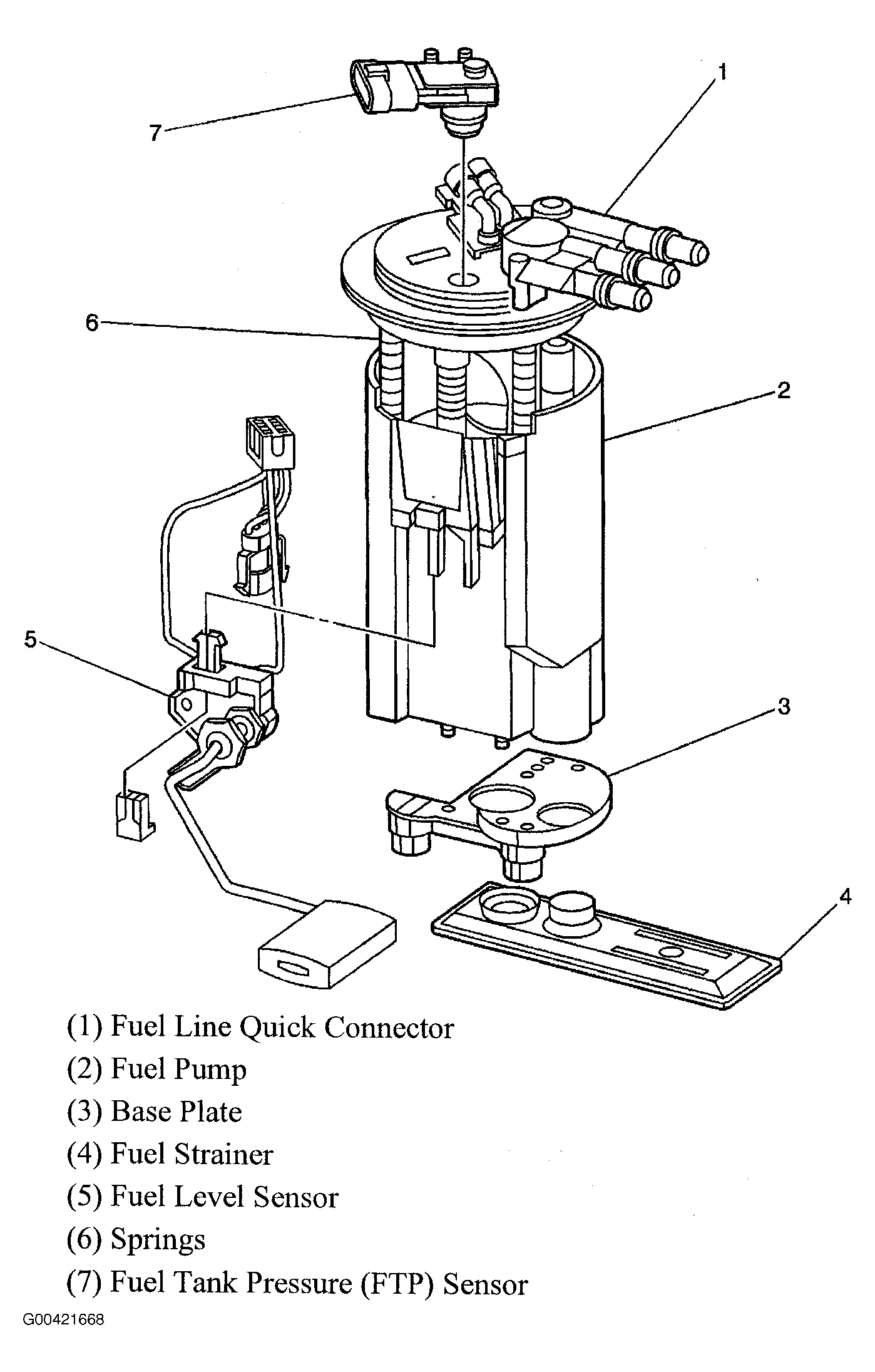

Fig 30: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 31: Cooling System Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 32: Lower Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Of Engine Assembly (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Front Of Vehicle (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Interior Overview
Courtesy of GENERAL MOTORS CORP.
Fig 37: Dash Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

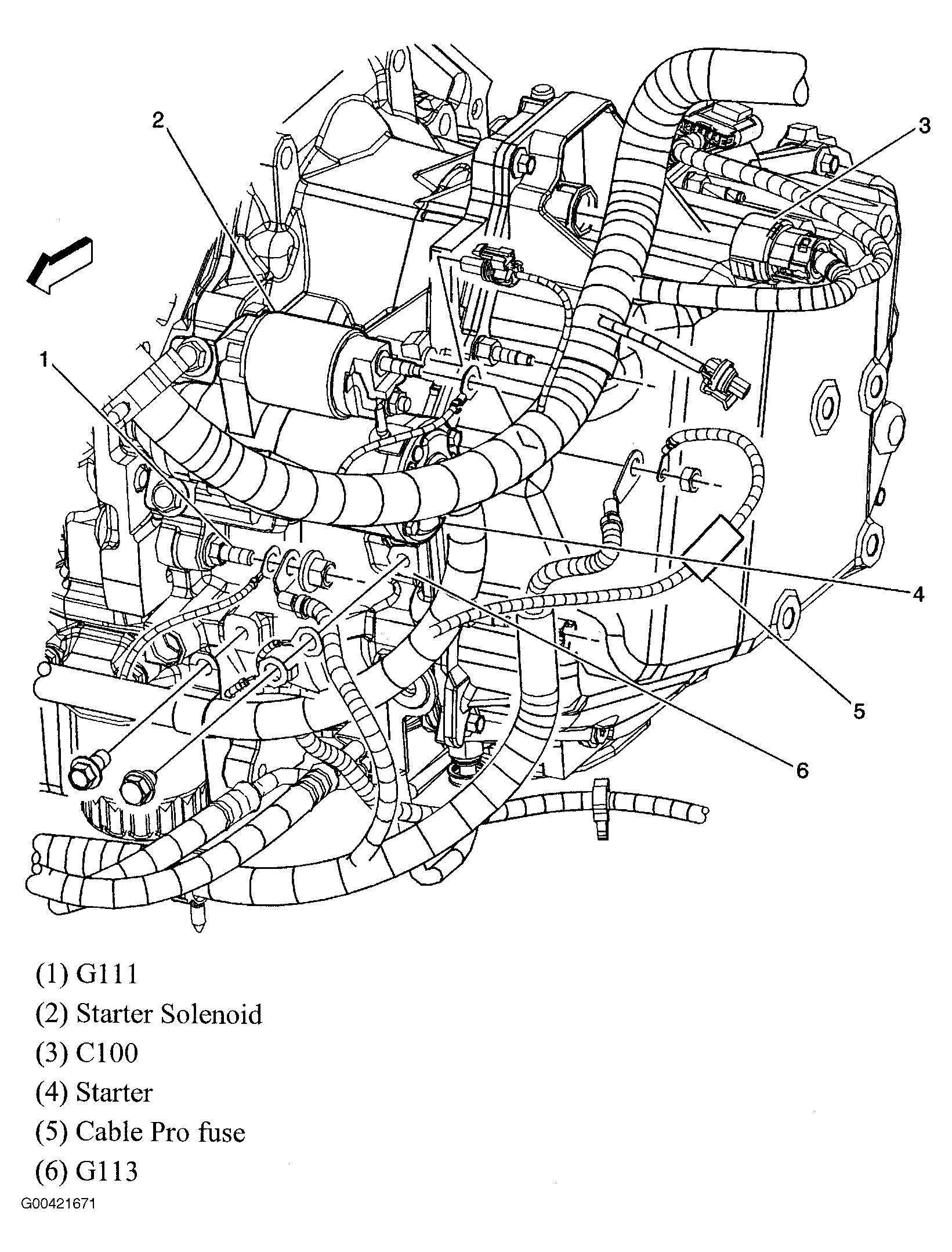

Fig 40: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 41: HVAC Components
Courtesy of GENERAL MOTORS CORP.

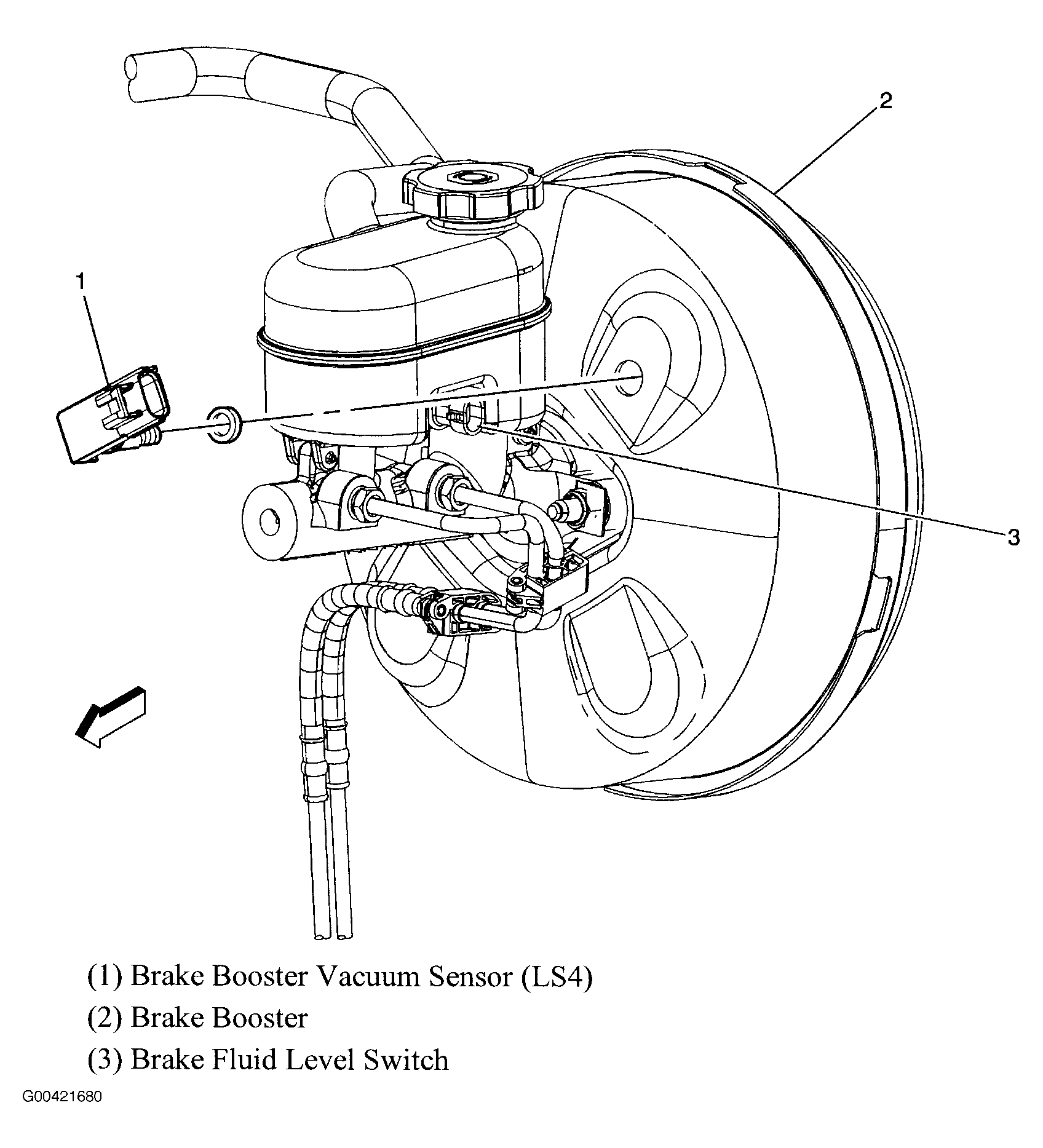

Fig 42: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Side Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 45: Upper Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 46: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 47: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Front Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 50: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 51: Passenger's Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 52: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 53: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 54: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 55: Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 56: Driver's Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 57: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 58: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 59: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 60: Wheel Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Side Of Transmission (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 65: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 67: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 68: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.

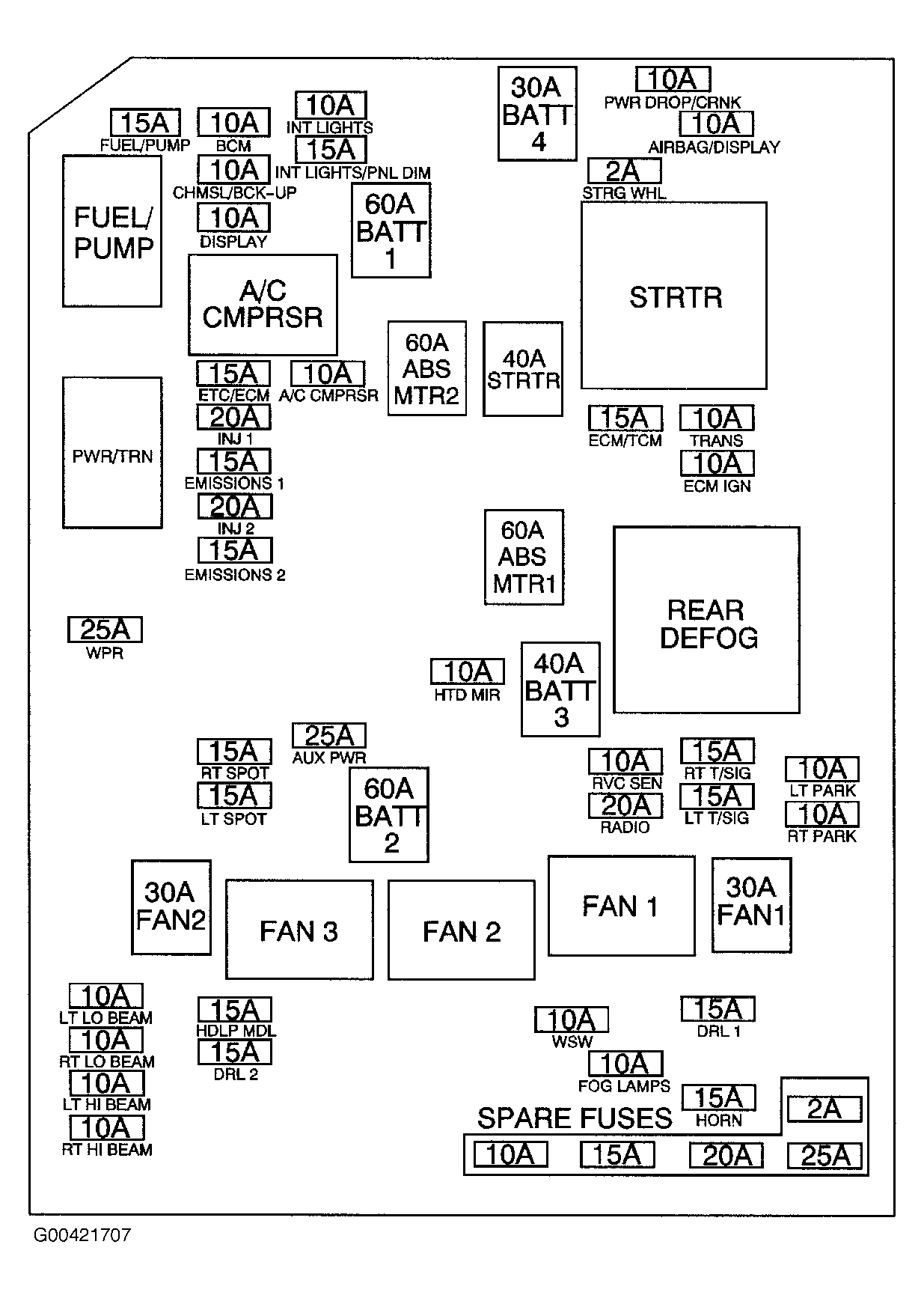

Fig 69: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 70: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

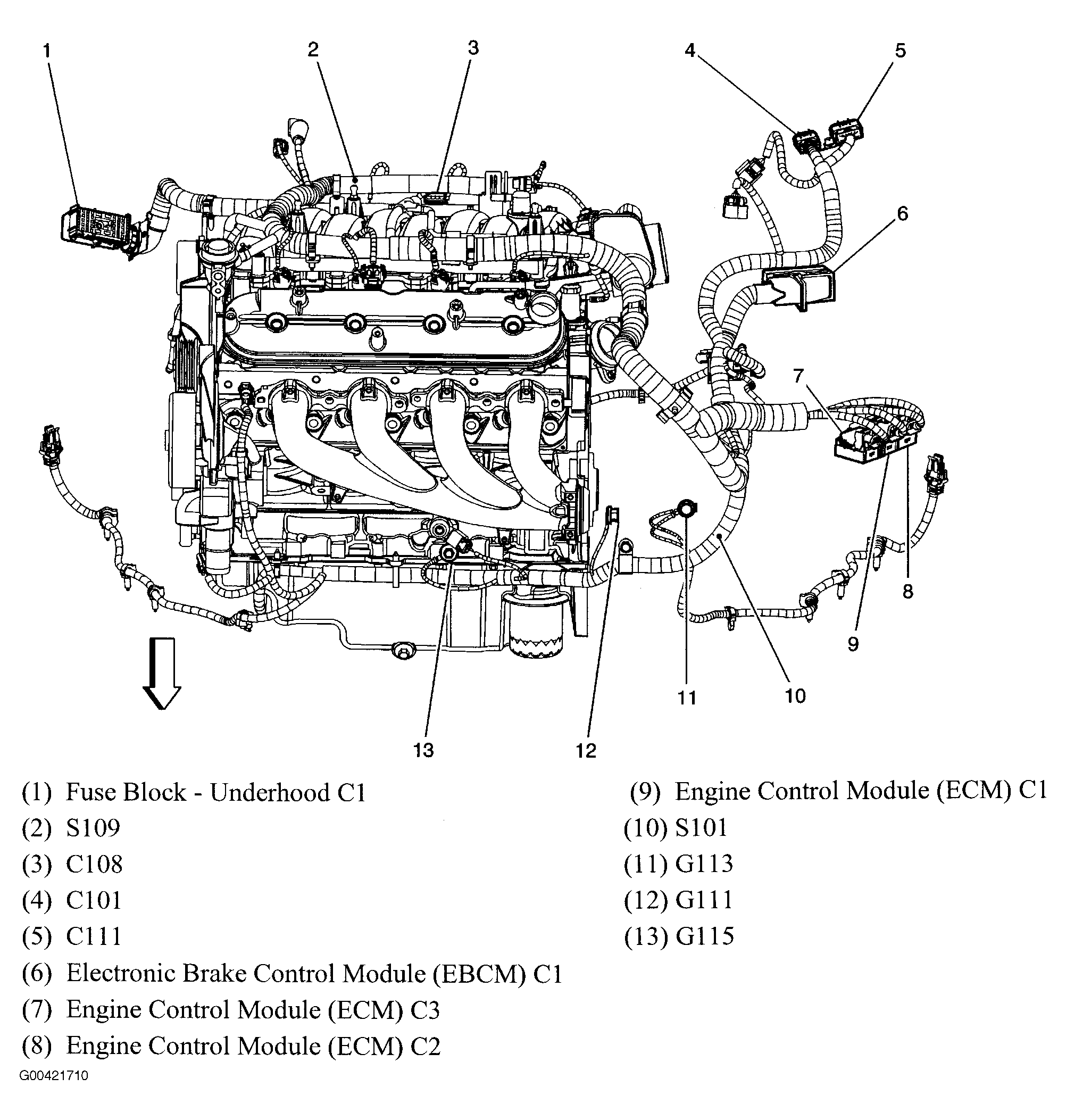

Fig 72: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 75: Right Side Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 77: Floor Pan (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 79: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 80: Rear Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 81: Rear Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 82: Driver's Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Front Passenger Door Harness (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 84: Left Rear Door Harness (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Right Rear Door Harness (Sedan)
Courtesy of GENERAL MOTORS CORP.

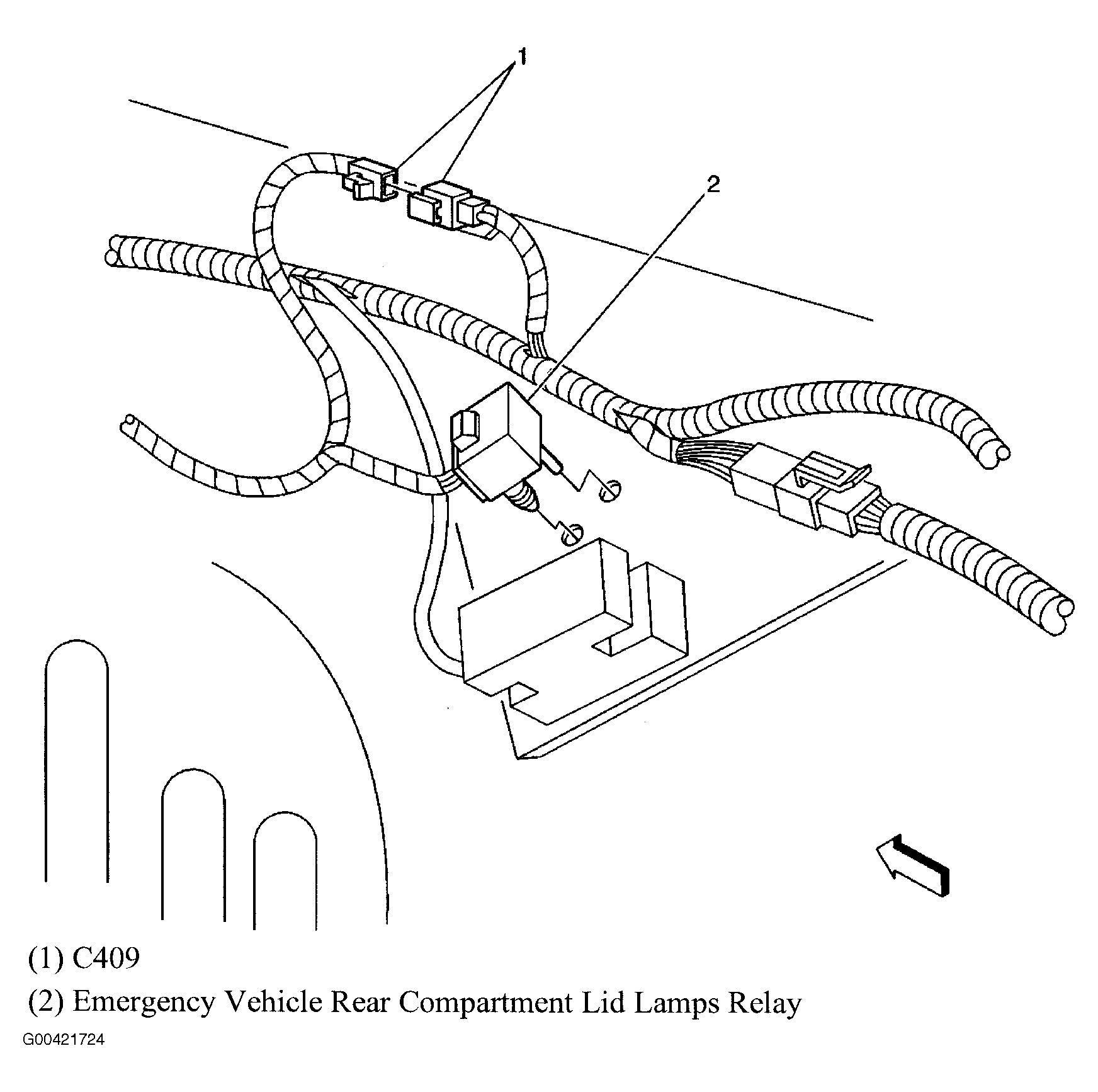

Fig 86: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 87: Deck Lid
Courtesy of GENERAL MOTORS CORP.
Fig 88: Rear Bumper (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Rear Bumper (Coupe)
Courtesy of GENERAL MOTORS CORP.
