Fuse Block - I/P C1

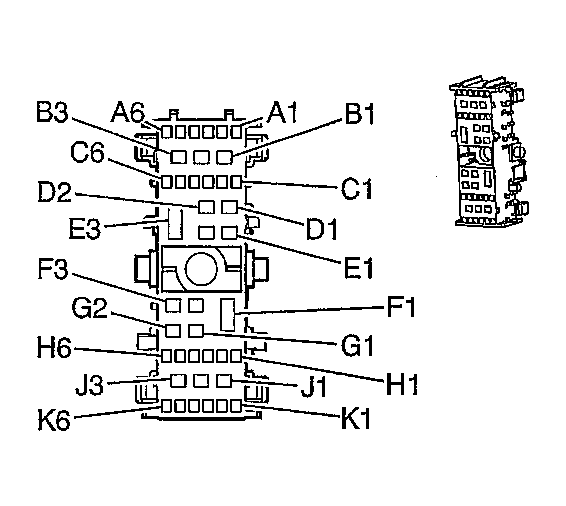

Fig 1: Fuse Block - I/P C1
G00398916Courtesy of GENERAL MOTORS CORP.
Electrical Center Identification Views

Connector Part Information
  • OEM: 15477601
  • Service: See Catalog
  • Description: 40-Way F GT 150 280 Metri-Pack 800
Terminal Part Information
  • Pins: A3, A4, A5, A6, C1, C2, C3, C4, H1, H6, K5, K6
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: B1, E2, F2, G1, G2, J1, J2, J3
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins B1 - E/A
  • Core/Insulation Crimp: Pins E2, F2, G1, G2, J1, J2, J3 - 2/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B2, B3, D1, E1, D2, F3
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: Pins B2, B3, D1, E1 - F/D
  • Core/Insulation Crimp: Pins D2, F3 - 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Fuse Block - I/P C1

Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 TN 707 RAP Relay Coil Supply Voltage
A4 L-BU 1344 Trunk Release Relay Control
A5 TN/WH 56 Trunk Release Motor [Control or Supply Voltage]
A6 RD/WH 2840 Battery Positive Voltage
B1 YE 643 Accessory Voltage
B2 YE 143 Accessory Voltage
B3 YE/BK 143 Accessory Voltage
C1 RD/WH 2340 Battery Positive Voltage
C2 RD/WH 2340 Battery Positive Voltage
C3 RD/WH 1340 Battery Positive Voltage
C4 RD/WH 1340 Battery Positive Voltage
C5-C6 - - Not Used
D1 RD/WH 1140 Battery Positive Voltage
D2 RD/WH 640 Battery Positive Voltage
E1 RD/WH 1140 Battery Positive Voltage
E2 RD/WH 1940 Battery Positive Voltage
E3 - - Not Used
F1 - - Not Used
F2 RD/WH 1440 Battery Positive Voltage
F3 RD/WH 3440 Battery Positive Voltage
G1 RD/WH 1440 Battery Positive Voltage
G2 BK 750 Ground
H1 RD/WH 840 Battery Positive Voltage
H2-H5 - - Not Used
H6 L-GN 1391 Driver Door Unlock Relay Control
J1 TN 294 Door Lock Actuator Unlock Control
J2 GY 295 Door Lock Actuator Lock Control
J3 TN 694 Driver Door Lock Actuator Unlock Control
K1-K4 - - Not Used
K5 L-BU 5921 TBD
K6 YE 356 Driver Door Lock Relay Unlock Control
