Power and Grounding Component Views

Fig 1: RF of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Generator
3	Brake Fluid Level Switch
4	Battery
5	Inflatable Restraint Front end Sensor - Right
6	G100
7	Horn Assembly
8	Windshield Washer Fluid Container
9	Windshield Washer Fluid Level Switch
10	Windshield Washer Fluid Pump
11	Battery Current Sensor
12	G102

Fig 2: LF of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2	Brake Fluid Level Switch
3	Windshield Wiper Motor
4	Electronic Brake Control Module (EBCM)
5	A/C Refrigerant Pressure Sensor
6	Transmission Control Module (TCM)
7	Engine Control Module (ECM)
8	G101
9	Inflatable Restraint Front end Sensor - Left

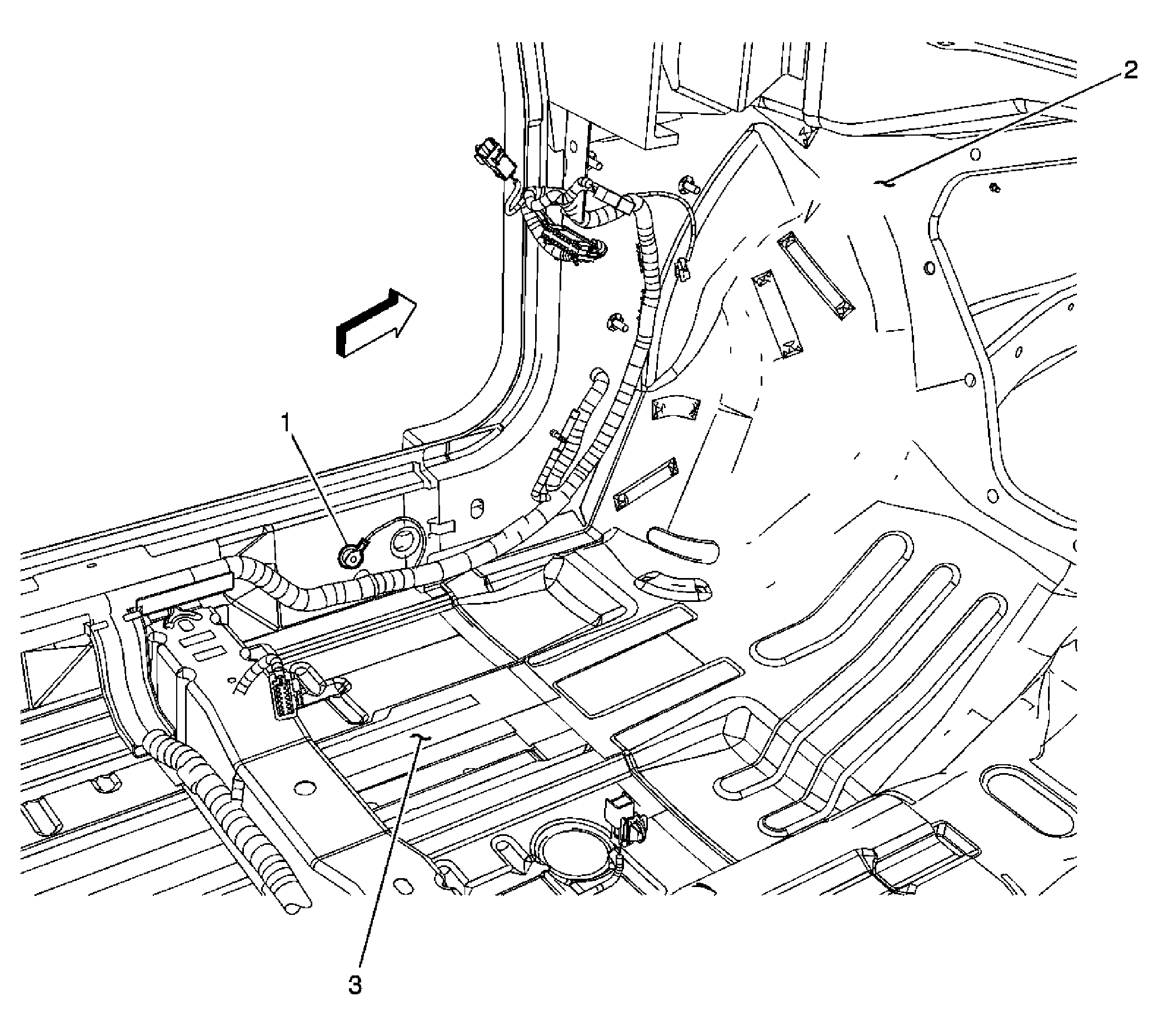

Fig 3: Identifying G301

Courtesy of GENERAL MOTORS CORP.

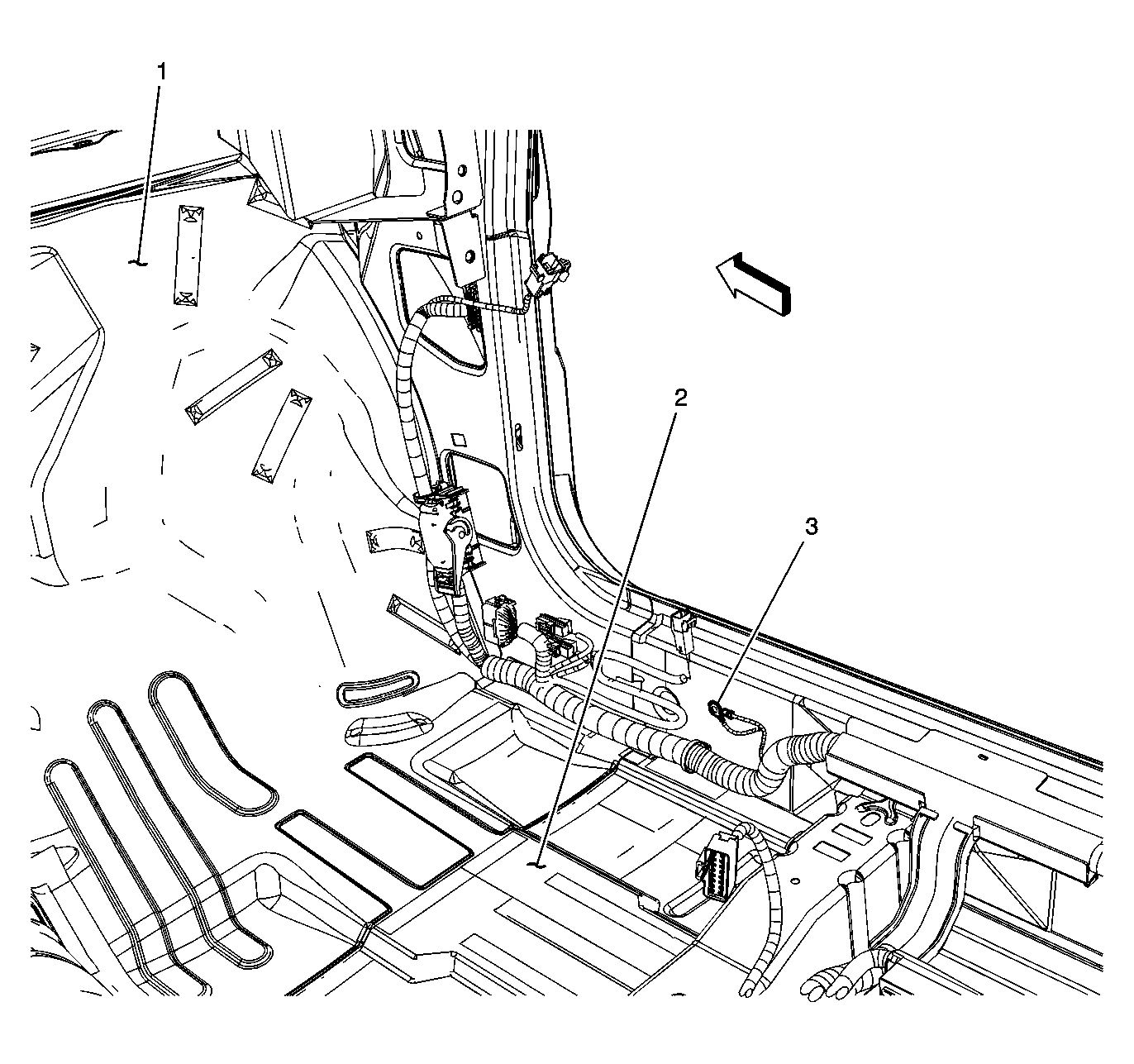

Fig 4: Identifying G302

Courtesy of GENERAL MOTORS CORP.

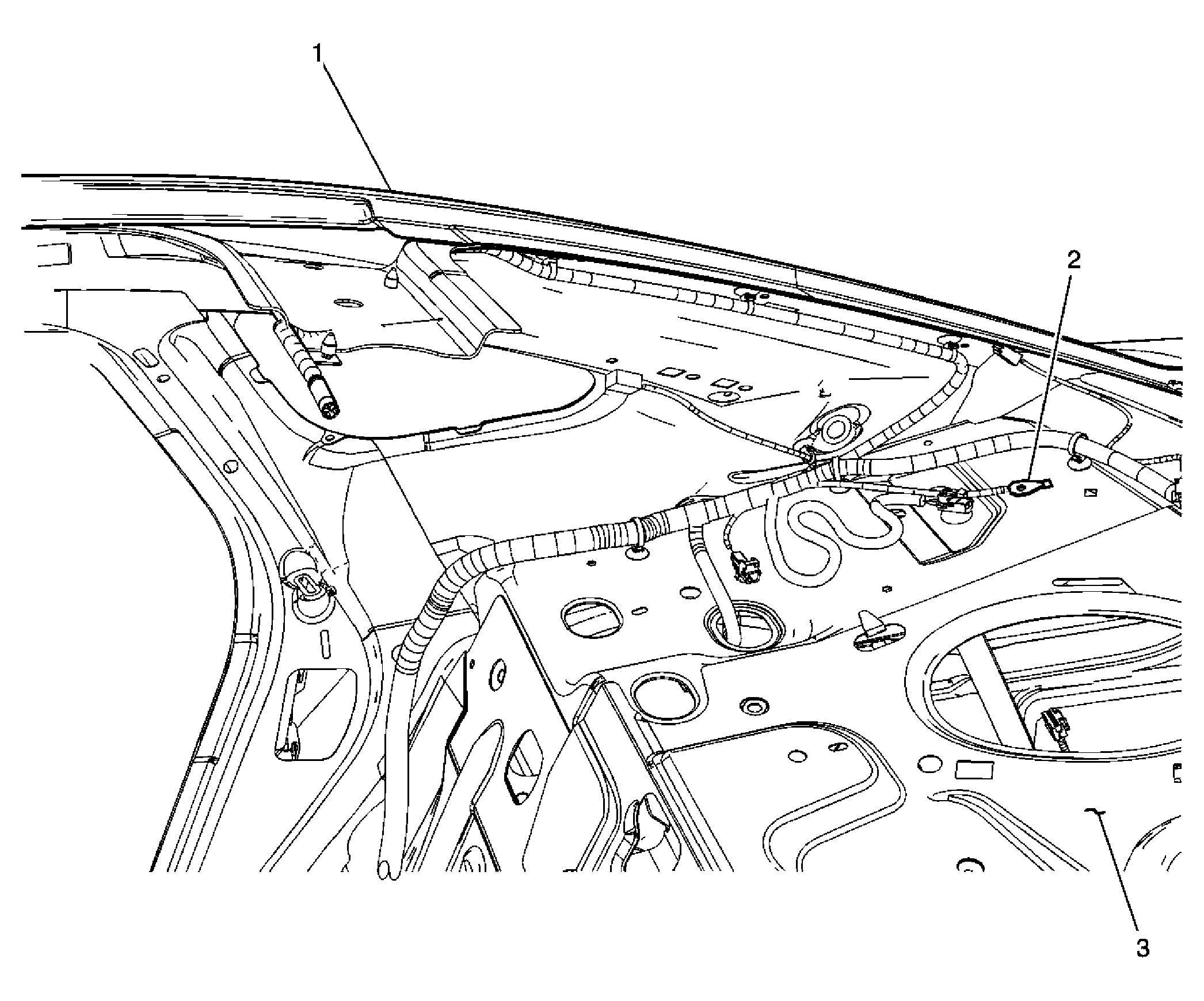

Fig 5: Identifying G304

Courtesy of GENERAL MOTORS CORP.
