Lighting Systems Component Views

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

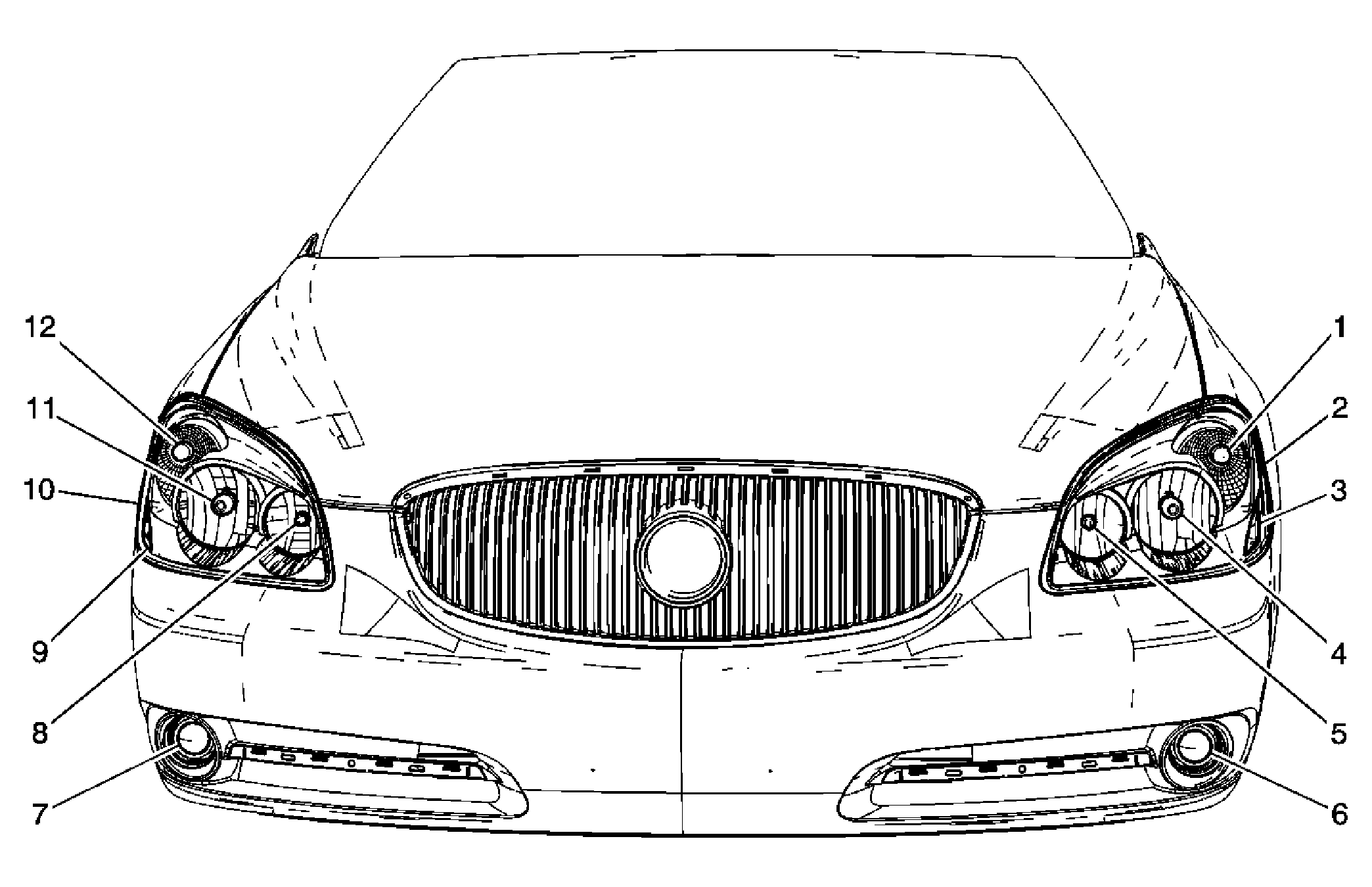

Fig 1: View Of Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - LF
2	Marker Lamp - LF
3	Headlamp - High Beam - Left
4	Headlamp - Low Beam - Left
5	Fog Lamp - LF (T96)
6	Fog Lamp - RF (T96)
7	Headlamp - Low Beam - Right
8	Marker Lamp - RF
9	Headlamp - High Beam - Right
10	Park/Turn Signal Lamp - RF

Fig 2: View Of Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Navigation (UE1) and Digital Radio Antenna (U2K)
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger
4	Backup Lamp - RR
5	Tail Lamp - Right Auxiliary
6	Stop/Turn Signal Lamp - RR
7	Marker Lamp - RR
8	Object Alarm Sensor - RR Corner (UFR)
9	Object Alarm Sensor - RR Middle (UFR)
10	License Lamps
11	Object Alarm Sensor - LR Middle (UFR)
12	Object Alarm Sensor - LR Corner (UFR)
13	Marker Lamp - LR
14	Stop/Turn Signal Lamp - LR
15	Tail Lamp - Left Auxiliary
16	Backup Lamp - LR
17	Radio Rear Glass Antenna

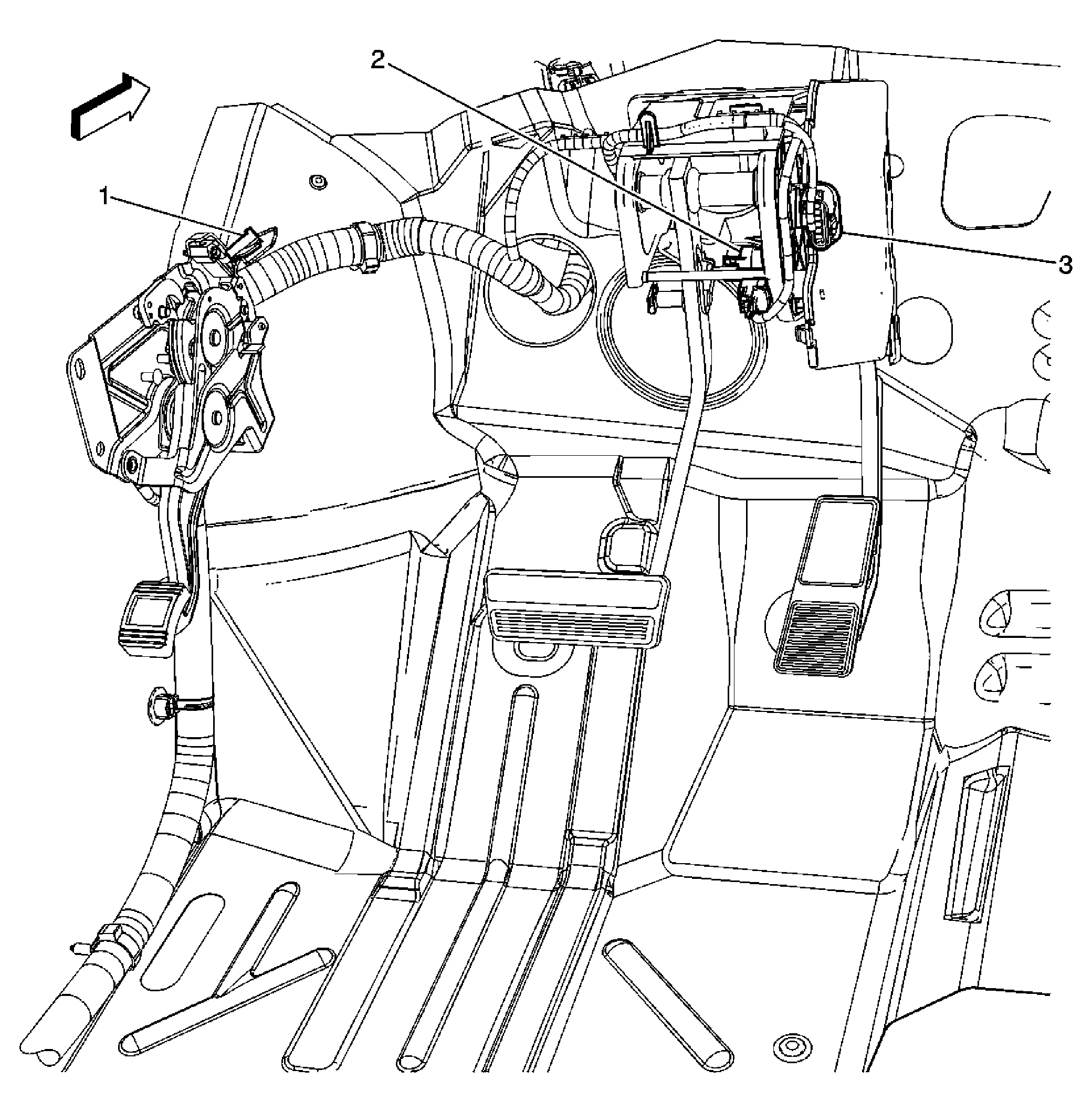

Fig 3: View Of Lower Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor

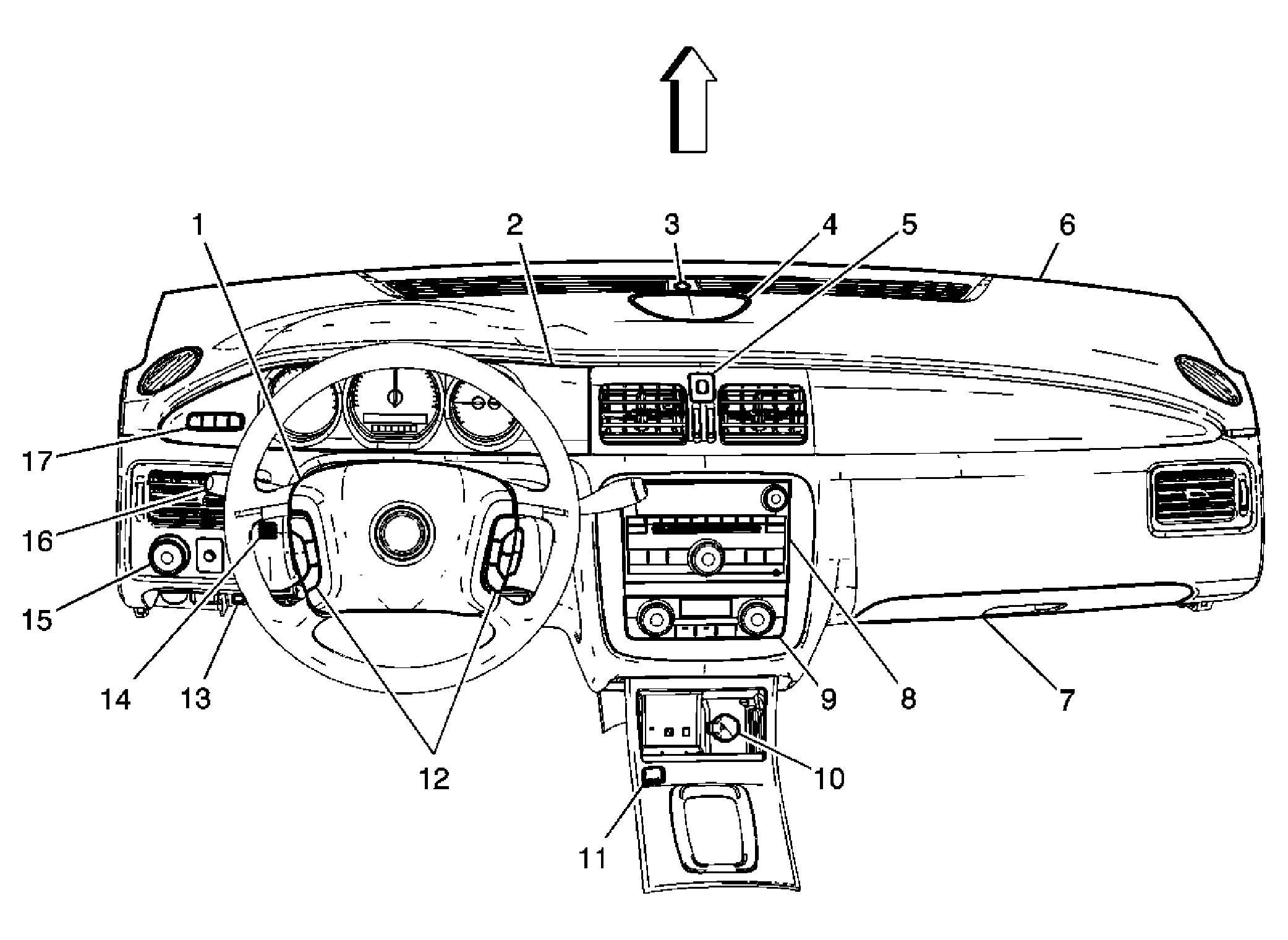

Fig 4: View Of Instrument Panel (I/P) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Instrument Panel Cluster (IPC)
3	Sunload Twilight Sensor
4	Speaker - Front Center (UQA)
5	Hazard Switch
6	Inflatable Restraint I/P Module
7	Radio
8	HVAC Control Module
9	Auxiliary Power Outlet - Console (A51)/Cigar Lighter (DT4 w/A51)
10	Traction Control Switch
11	Steering Wheel Controls
12	Data Link Connector (DLC)
13	Air Temperature Sensor - Inside (CJ2)
14	Headlamp Switch
15	Turn Signal/Multifunction Switch
16	Driver Information Display Switch

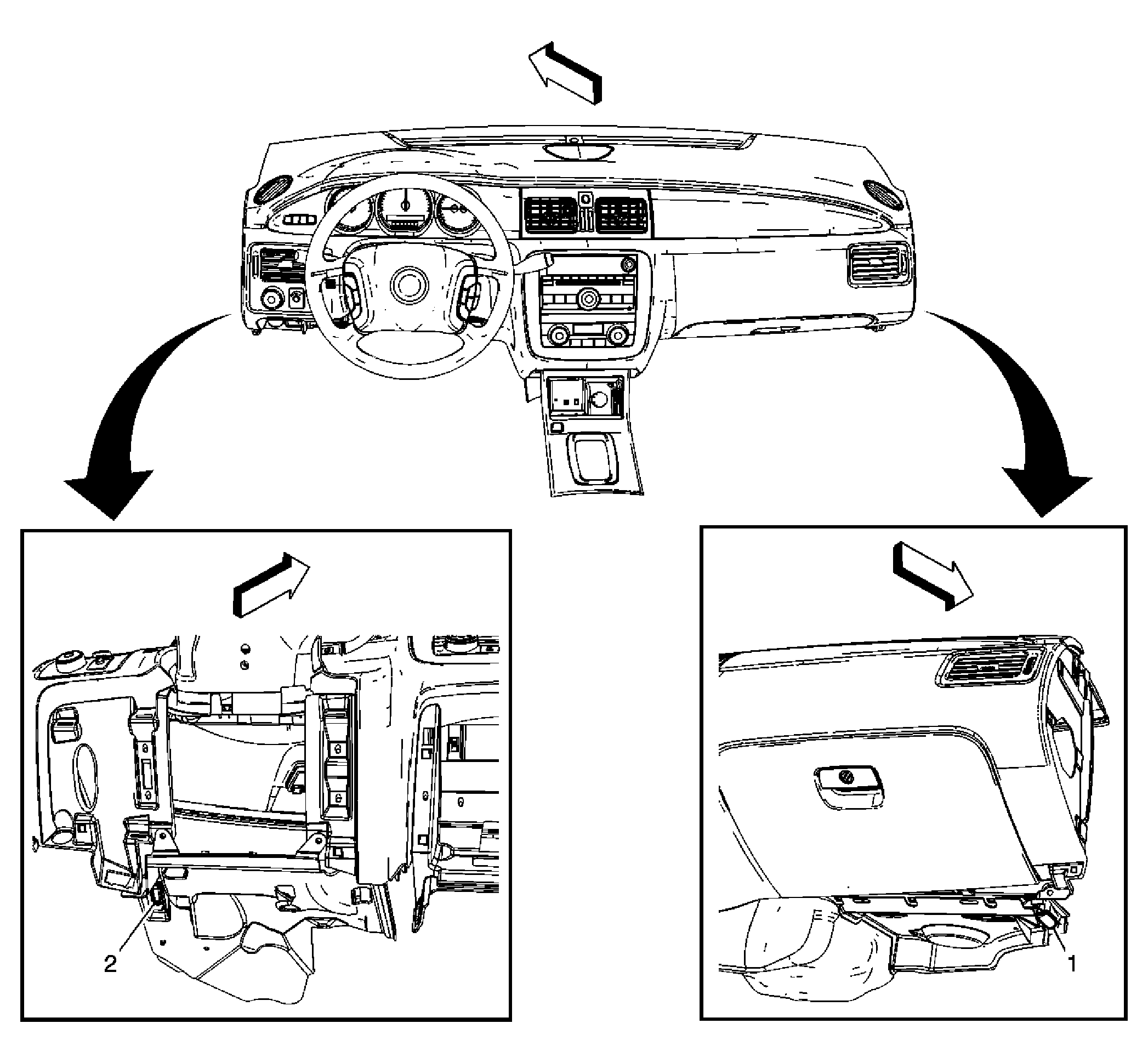

Fig 5: View Of Footwell Courtesy Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp - Right Footwell
2	Courtesy Lamp - Left Footwell

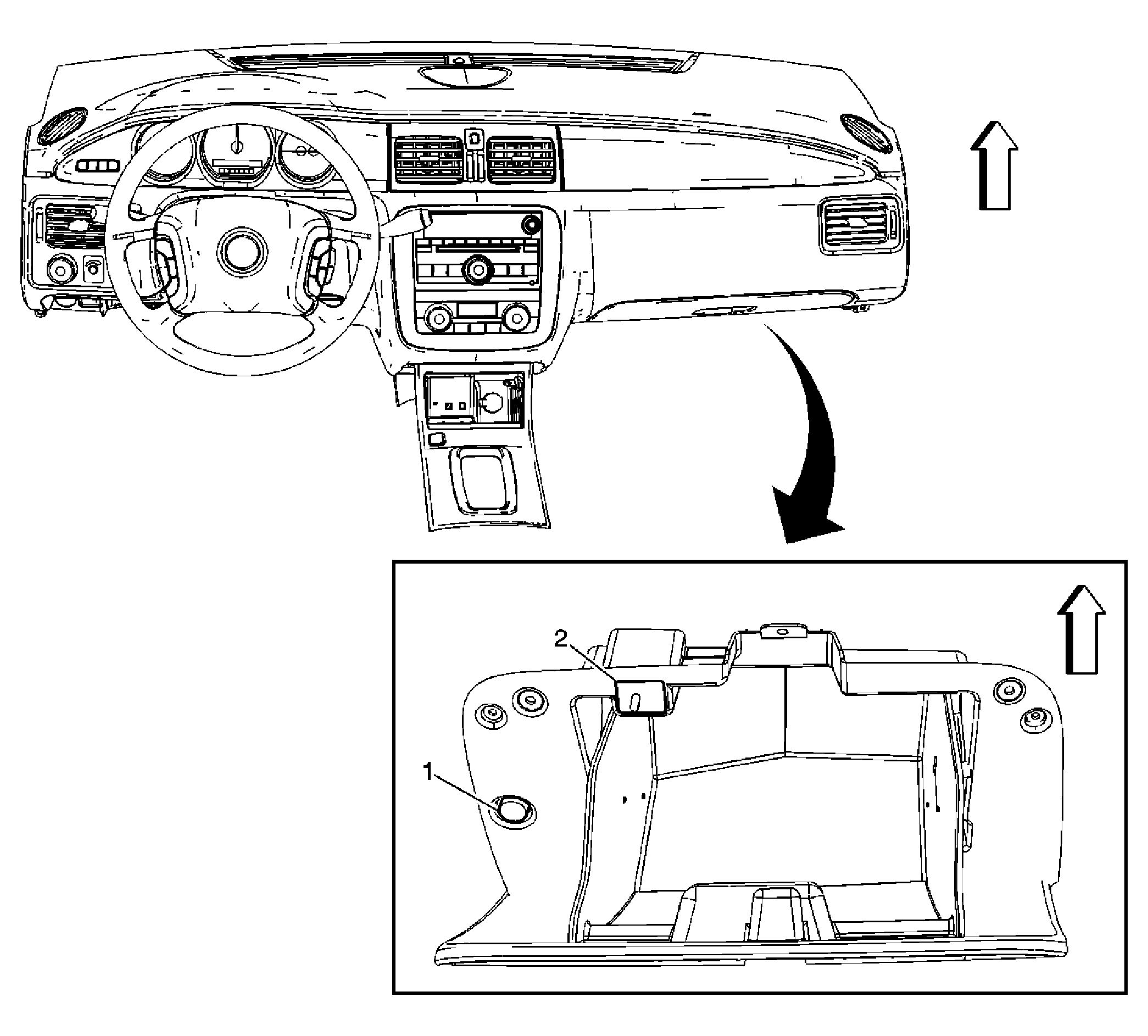

Fig 6: View Of I/P Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch
2	I/P Compartment Lamp

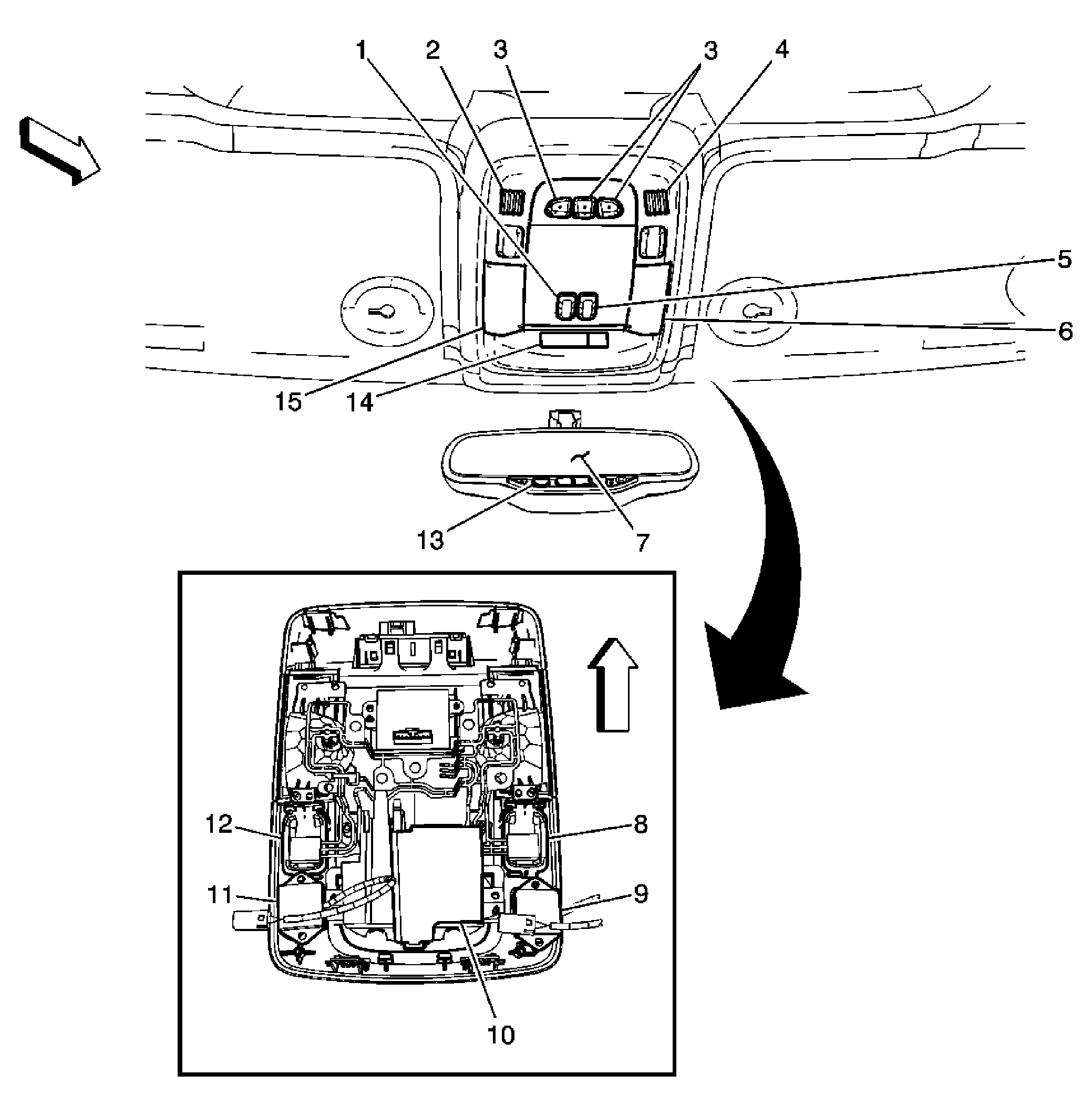

Fig 7: View Of Overhead Console & Inside Rearview Mirror Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch - Open/Close (CF5)
2	Cellular Microphone (UE1, U3U)
3	Garage Door Opener Buttons (UG1)
4	Cellular Microphone (UE1, U3U)
5	Sunroof Switch - Vent (CF5)
6	Courtesy Lamp - Overhead Console - Right
7	Inside Rearview Mirror
8	Courtesy Lamp Switch - Right
9	Cellular Microphone (UE1, U3U)
10	Garage Door Opener Transmitter (UG1)
11	Cellular Microphone (UE1, U3U)
12	Courtesy Lamp Switch - Left
13	OnStar Button Assembly
14	Inflatable Restraint I/P Module Indicator
15	Courtesy Lamp Overhead Console - Left

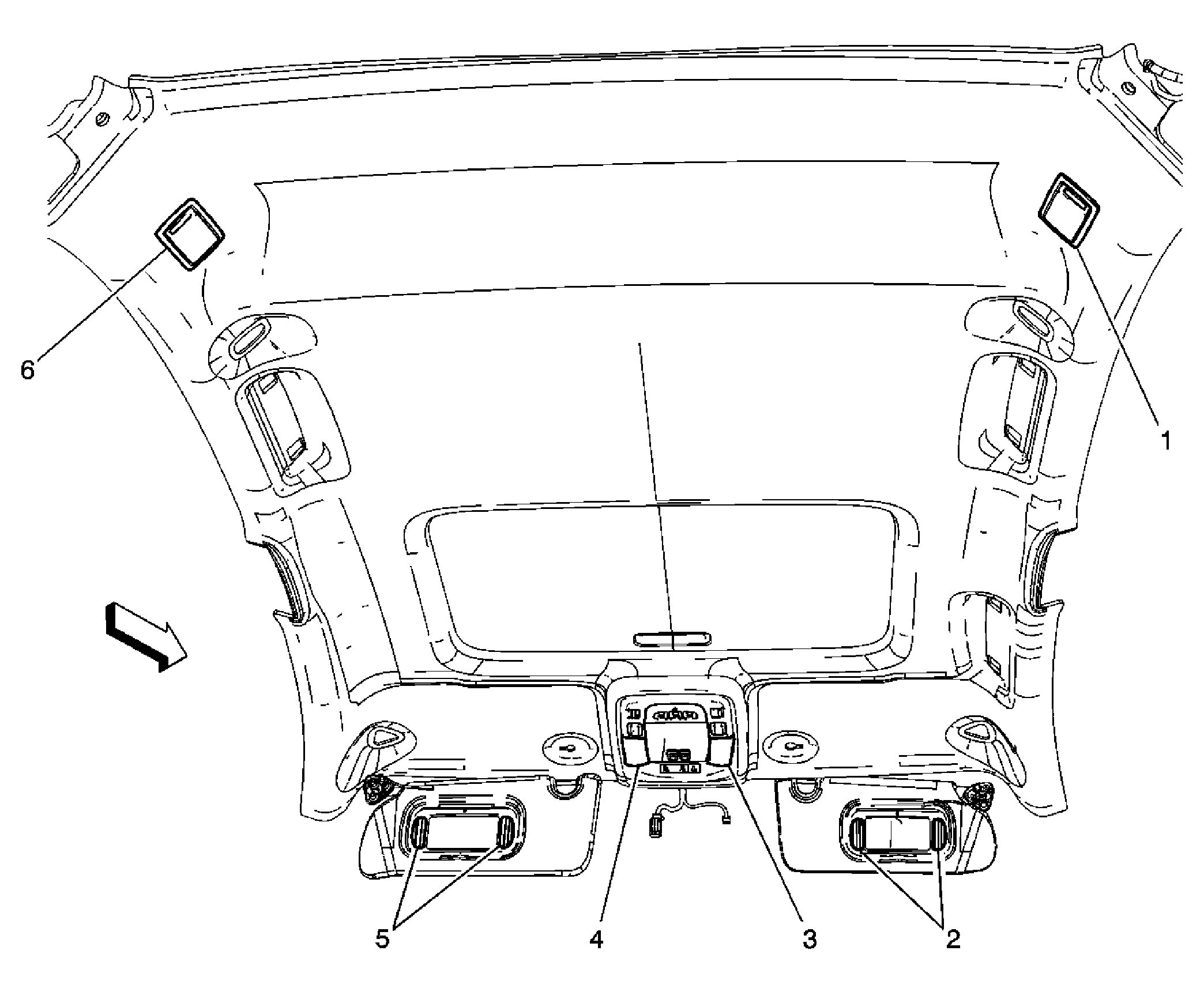

Fig 8: View Of Headliner Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp - RR
2	Vanity Mirror Lamp - RF (DH6)
3	Courtesy Lamp Overhead Console - Right
4	Courtesy Lamp Overhead Console - Left
5	Vanity Mirror Lamp - LF (DH6)
6	Courtesy Lamp - LR

Fig 9: View Behind Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Rear Park Assist Indicator (UD7)
3	Speaker - RR
4	Vehicle Communication Interface Module (VCIM) (UE1)
5	Amplifier (UQA)
6	Rear Compartment Courtesy Lamp
7	Speaker - LR
