Brake Pedal Position Sensor

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

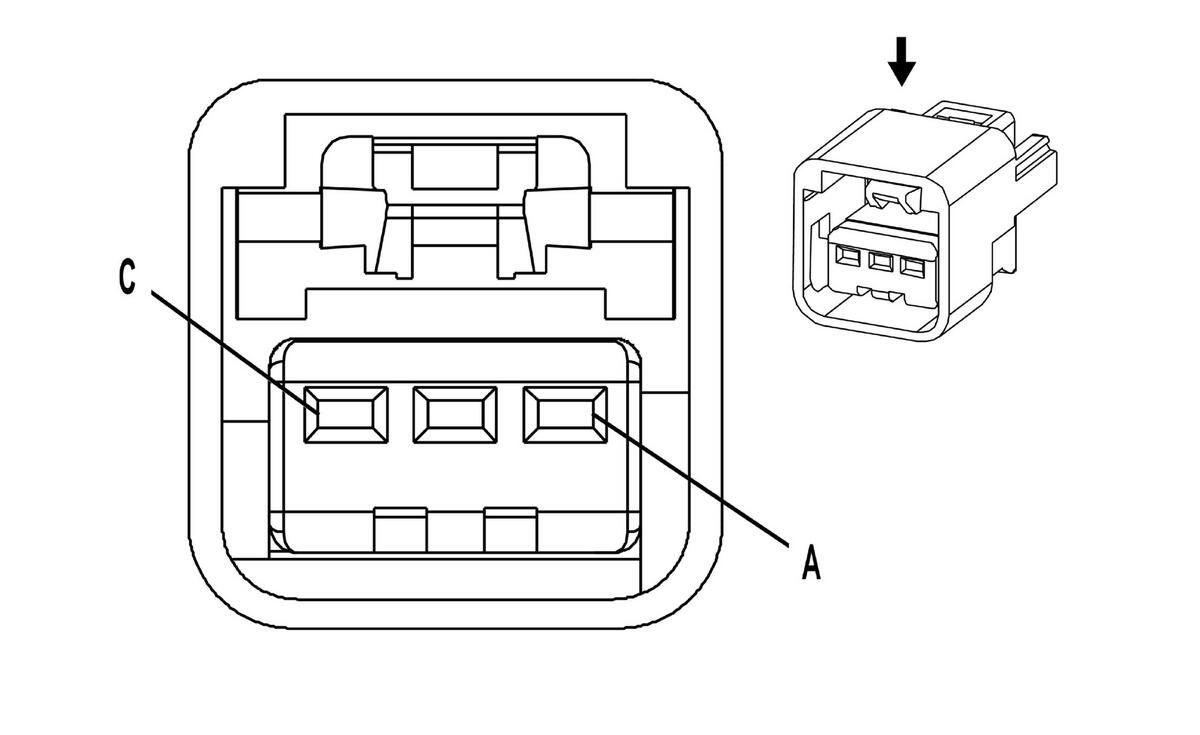

Fig 1: Brake Pedal Position Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Lighting Systems Connector End Views

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position Sensor

Pin	Wire Color	Circuit No.	Function
A	GY	5381	Brake Apply Sensor Supply Voltage
B	L-BU/YE	5361	Brake Apply Sensor Signal
C	L-BU/BK	853	Low Reference
