Turn Signal/Multifunction Switch C2

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

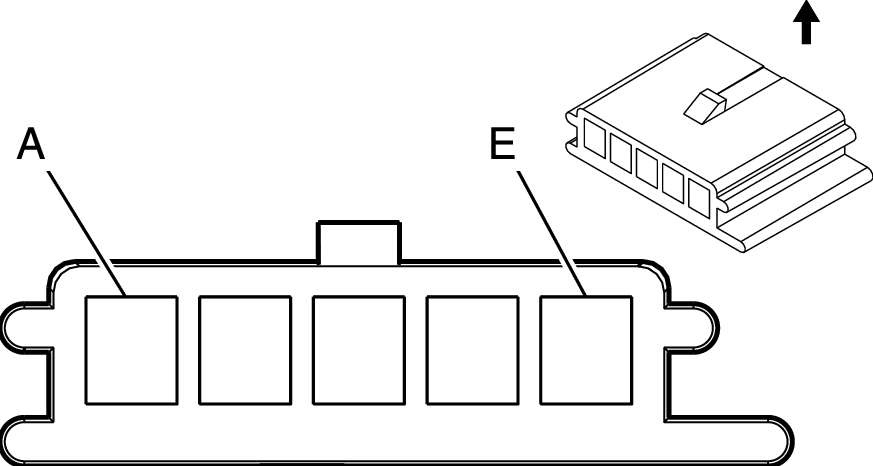

Fig 1: Turn Signal/Multifunction Switch C2 Connector End View
GM130718Courtesy of GENERAL MOTORS CORP.
Lighting Systems Connector End Views

Connector Part Information
  • OEM: 12059800
  • Service: 15306169
  • Description: 5-Way F Metri-pack 150 Series (BK)
Terminal Part Information
  • Pins: A, D, E
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Turn Signal/Multifunction Switch C2

Pin Wire Color Circuit No. Function
A YE 307 Flash to Pass Switch Signal
B-C - - Not Used
D BK 350 Ground
E PU 524 Headlamp Switch Highbeam Signal
