Turn Signal/Multifunction Switch C3

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

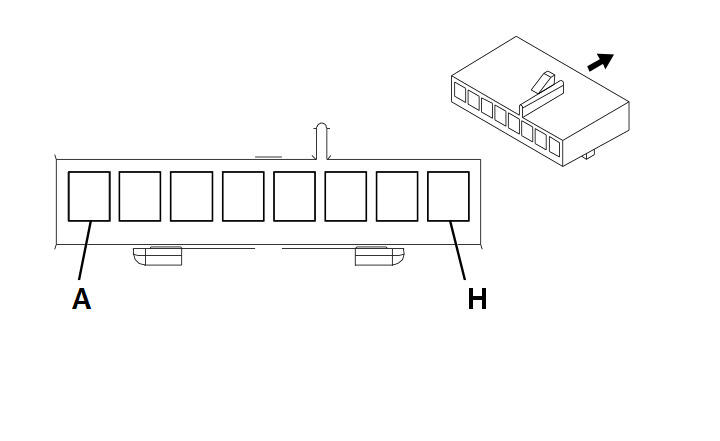

Fig 1: Turn Signal/Multifunction Switch C3 Connector End View

Courtesy of GENERAL MOTORS CORP.

Lighting Systems Connector End Views

Connector Part Information

OEM: 12064862
Service: 12126438
Description: 8-Way F Metri-pack 150 Series (BK)

Terminal Part Information

Pins: F, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C3

Pin	Wire Color	Circuit No.	Function
A-E	-	-	Not Used
F	L-BU/WH	1414	Left Turn Signal Switch Signal
G	BK	350	Ground
H	D-BU/WH	1415	Right Turn Signal Switch Signal
